Model # D130-04 TYPE 2 Official DeWalt 1/2" drill

Here are the diagrams and repair parts for Official DeWalt D130-04-TYPE-2 1/2" drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Power Tool Screw 99173-36
#55

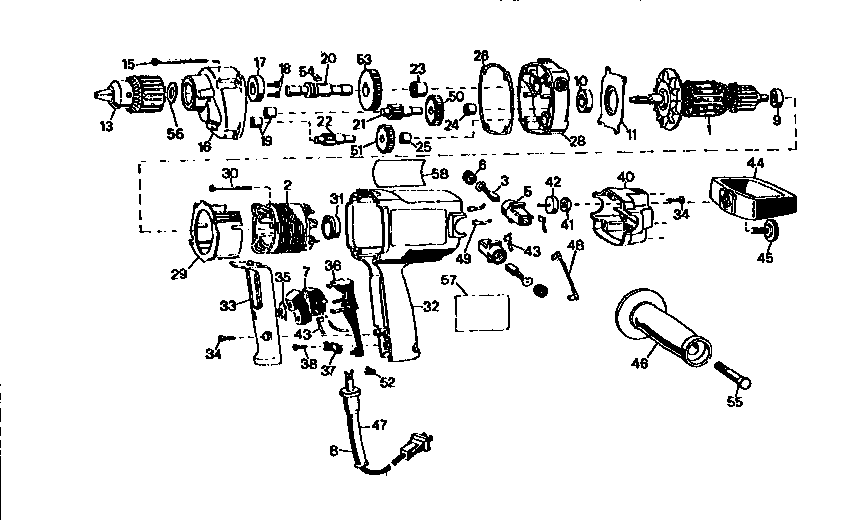

Unit parts diagram

Power tool screw

Part #99173-36

The manufacturer no longer makes this part, and there's no substitute part

Baffle 447786-00
#29

Unit parts diagram

Baffle

Part #447786-00

The manufacturer no longer makes this part, and there's no substitute part

Rolr Bearing 449493-00
#25

Unit parts diagram

Rolr bearing

Part #449493-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Impact Wrench Trigger Switch 449524-00
#7

Unit parts diagram

Black & decker impact wrench trigger switch

Part #449524-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Switch Support 449472-00
#36

Unit parts diagram

Black & decker switch support

Part #449472-00

The manufacturer no longer makes this part, and there's no substitute part

Gear 449487-00
#51

Unit parts diagram

Gear

Part #449487-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Cap Nut 449700-00
#42

Unit parts diagram

Black & decker cap nut

Part #449700-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 448172-00
#49

Unit parts diagram

Terminal

Part #448172-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lock Button 449523-00
#35

Unit parts diagram

Black & decker lock button

Part #449523-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#47

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part
