Radial Arm Saw

Model # 113197510 Official Craftsman 10" electronic radial saw

Here are the diagrams and repair parts for Official Craftsman 113197510 10" electronic radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

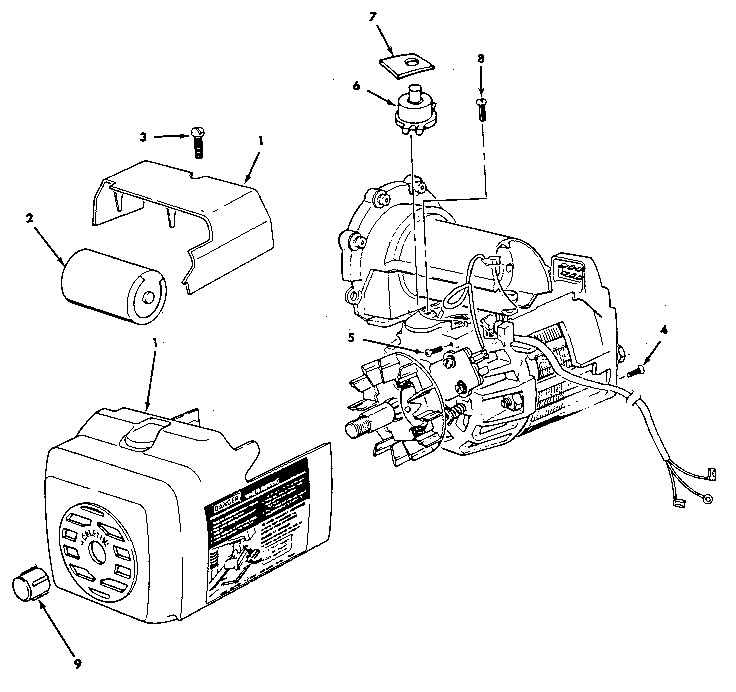

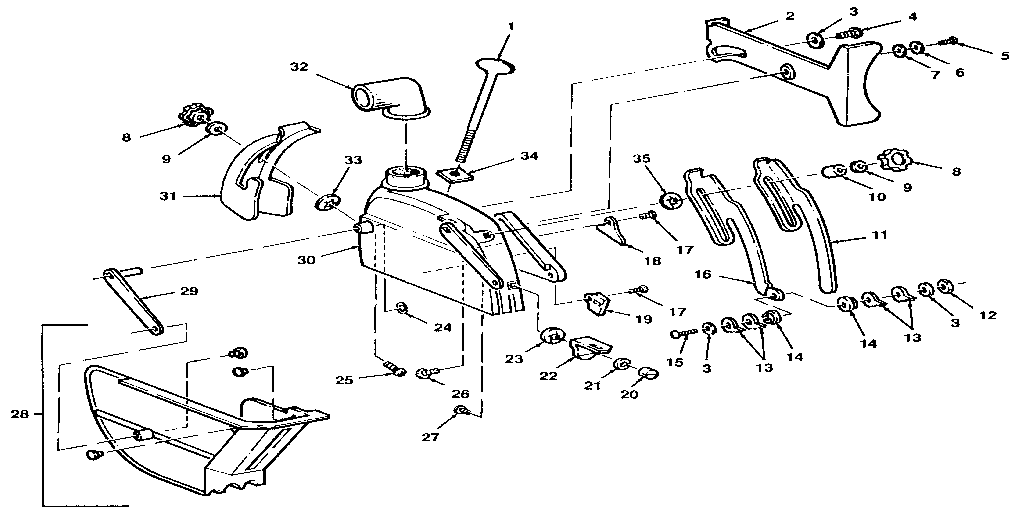

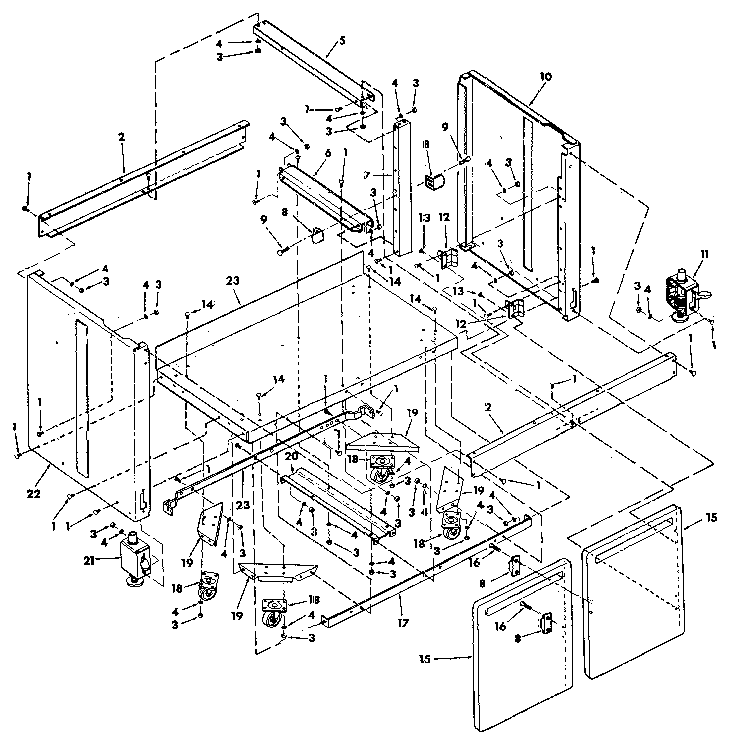

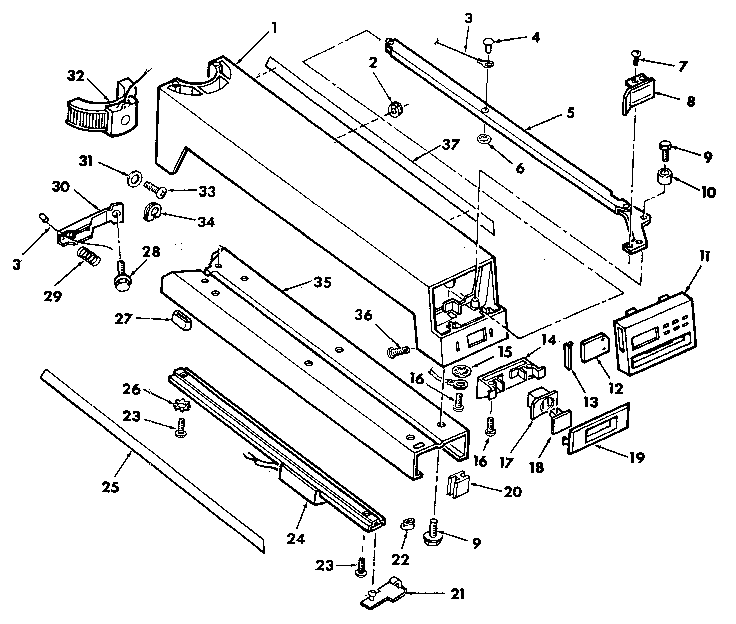

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 260 parts  |
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Washer 805548-10
Washer

Part #805548-10

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Set Screw 60074
#19

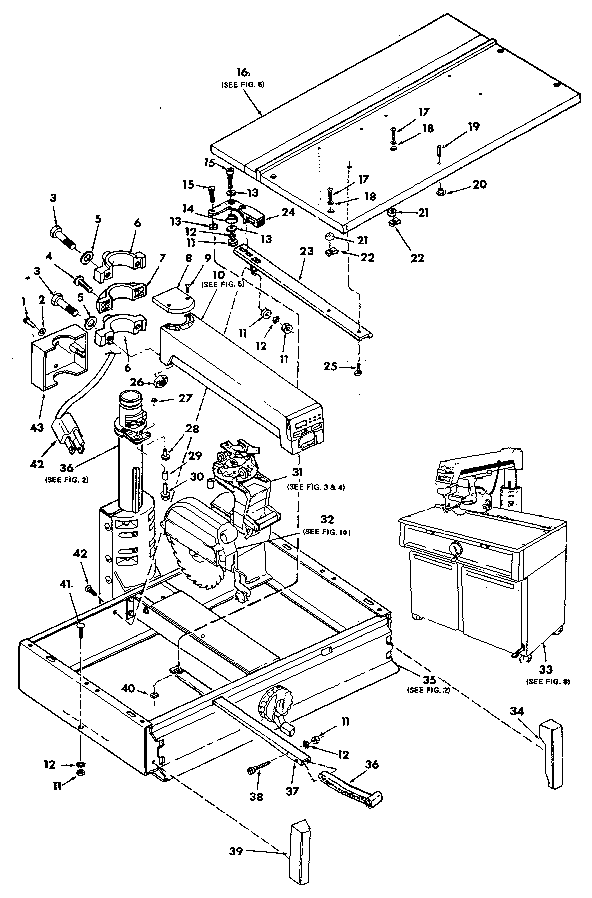

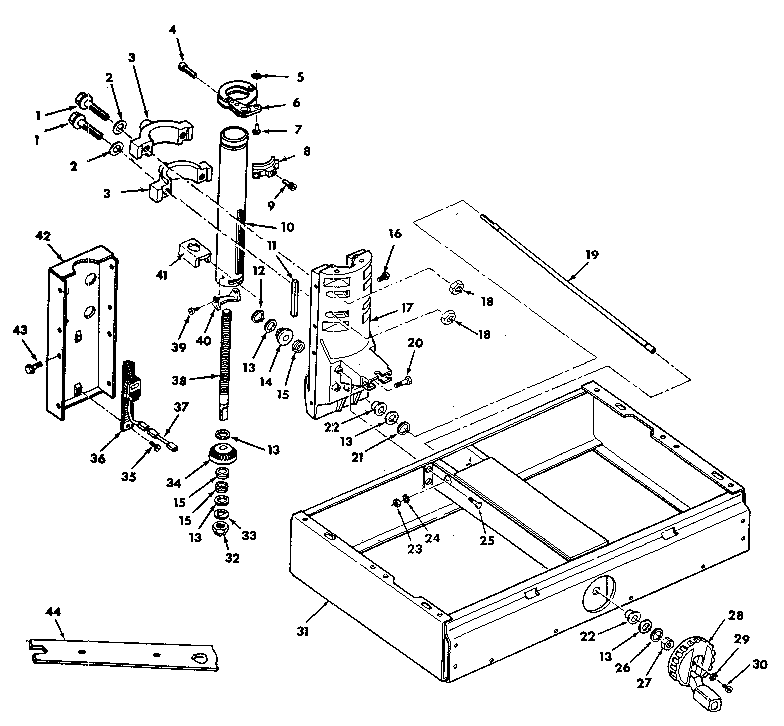

Figure 1 diagram

Radial arm saw set screw

Part #60074

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 818169
Radial arm saw table, rear

Part #818169

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer 820573
Radial arm saw table spacer

Part #820573

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 815757
Radial arm saw table, rear

Part #815757

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing Washer 60438
#38

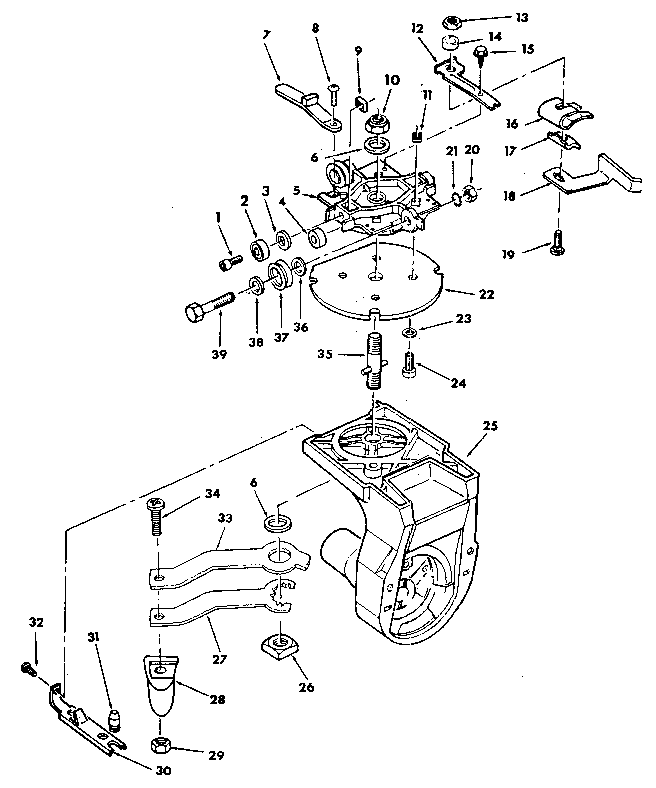

Yoke assembly diagram

Radial arm saw carriage bearing washer

Part #60438

The manufacturer no longer makes this part, and there's no substitute part

Chanel Lock 818190
#23

Figure 1 diagram

Chanel lock

Part #818190

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Clip Nut, 1/4 X 20-in 815989
#22

Figure 1 diagram

Radial arm saw clip nut, 1/4 x 20-in

Part #815989

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Pan Head Screw, 1/4-20 X 1-3/4-in 806828-4
#17

Figure 1 diagram

Table saw pan head screw, 1/4-20 x 1-3/4-in

Part #806828-4

The manufacturer no longer makes this part, and there's no substitute part
