Model # GFDR485EF1MC Official GE electric dryer

Here are the diagrams and repair parts for Official GE GFDR485EF1MC electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

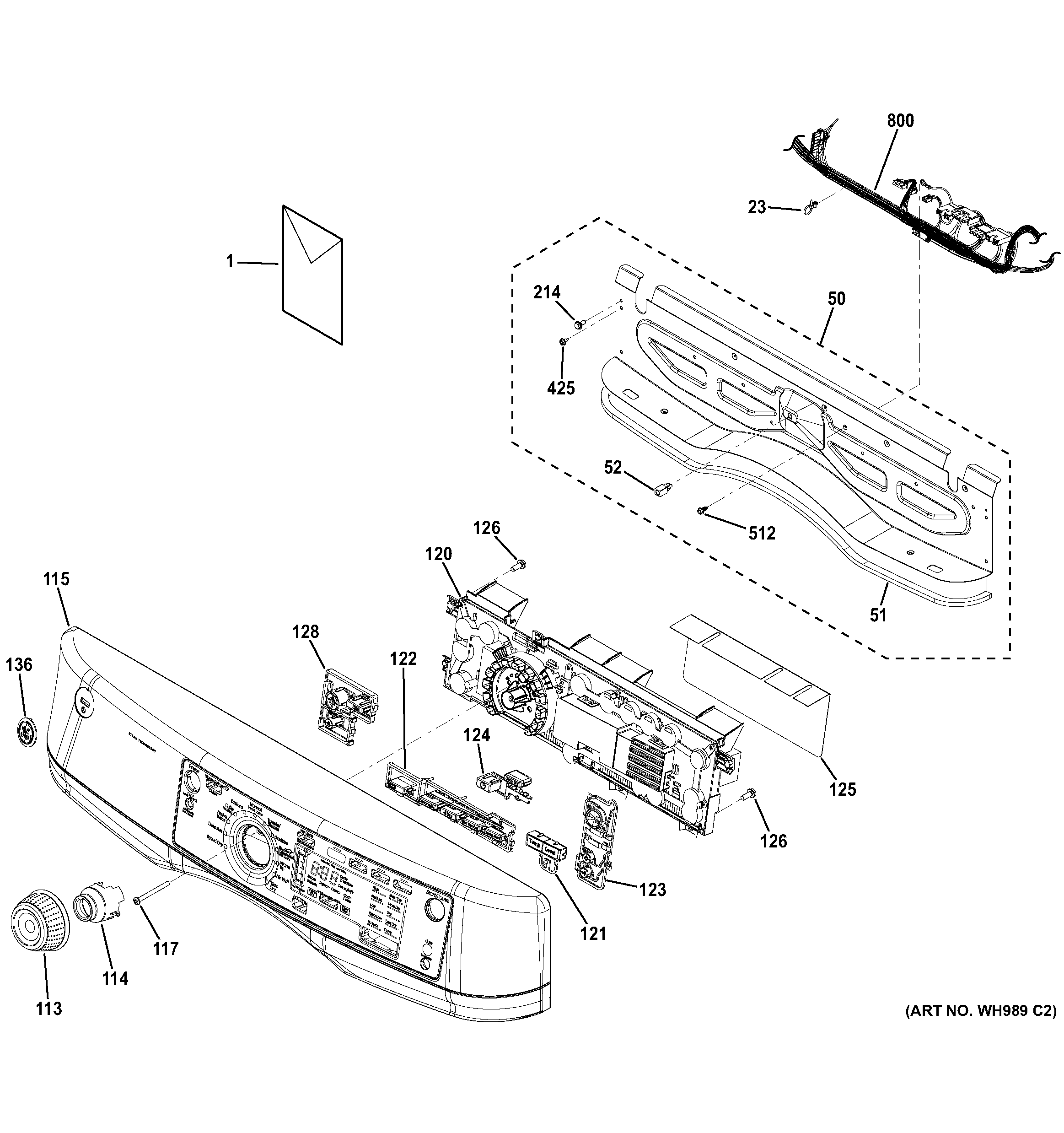

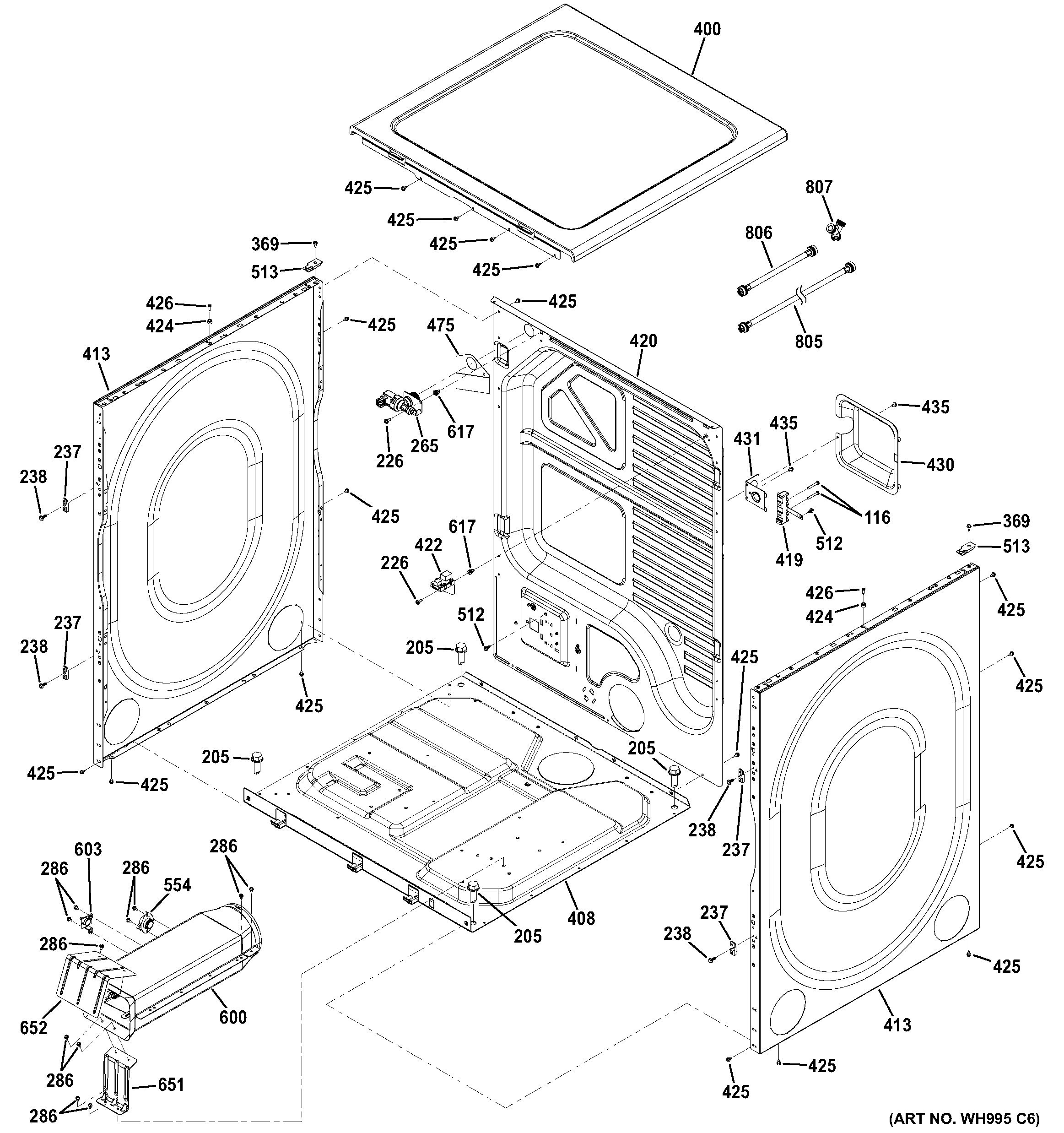

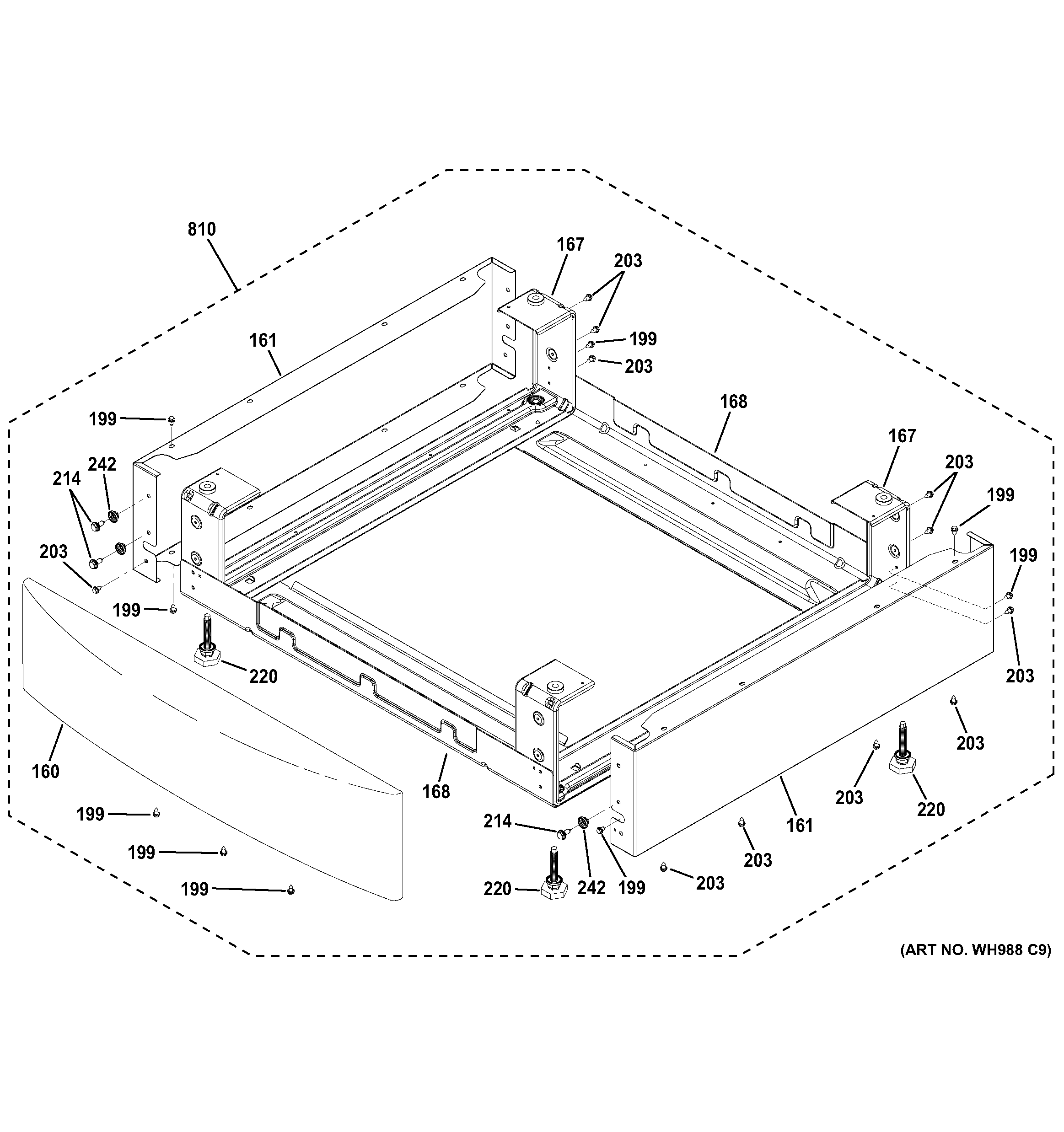

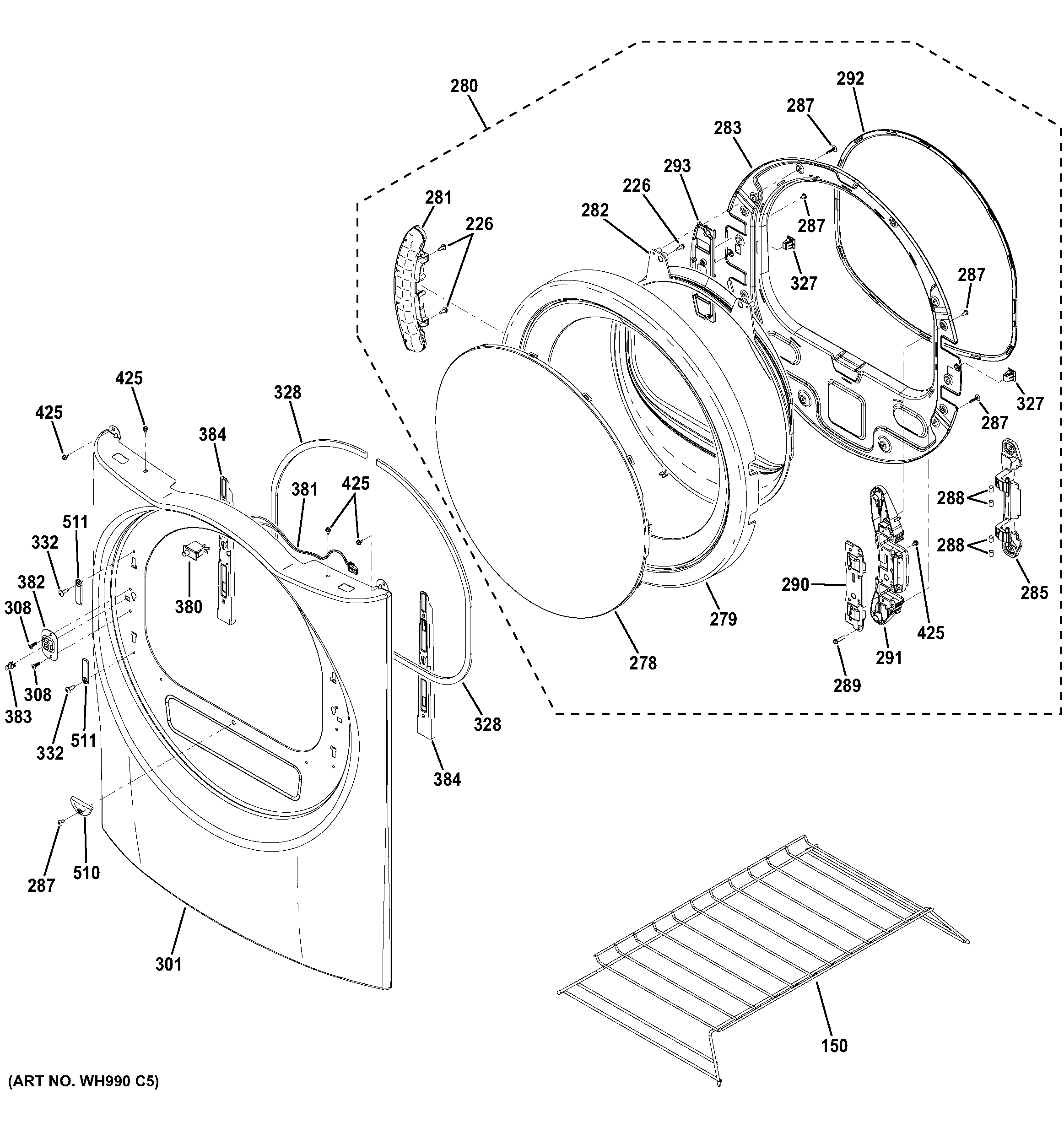

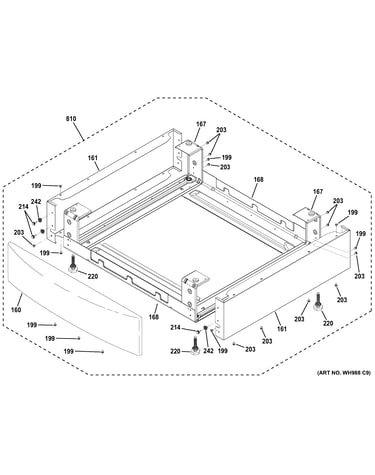

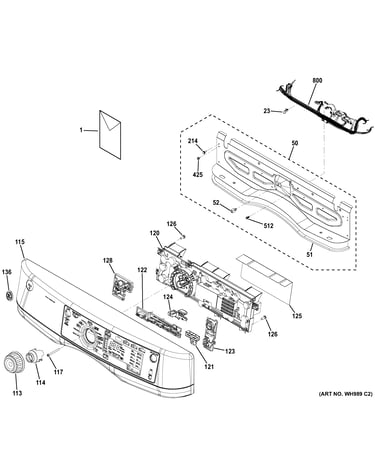

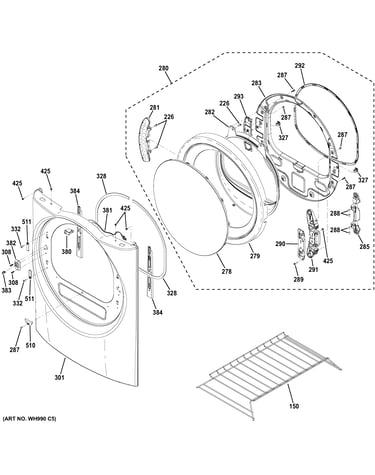

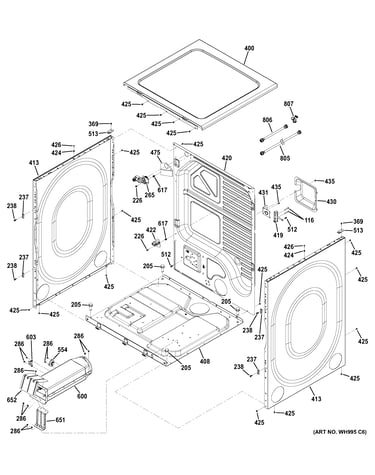

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Dryer Drum Support Roller Assembly (replaces We01x10384, We01x10385, We01x10386, We12m39) WE03X10016
#275

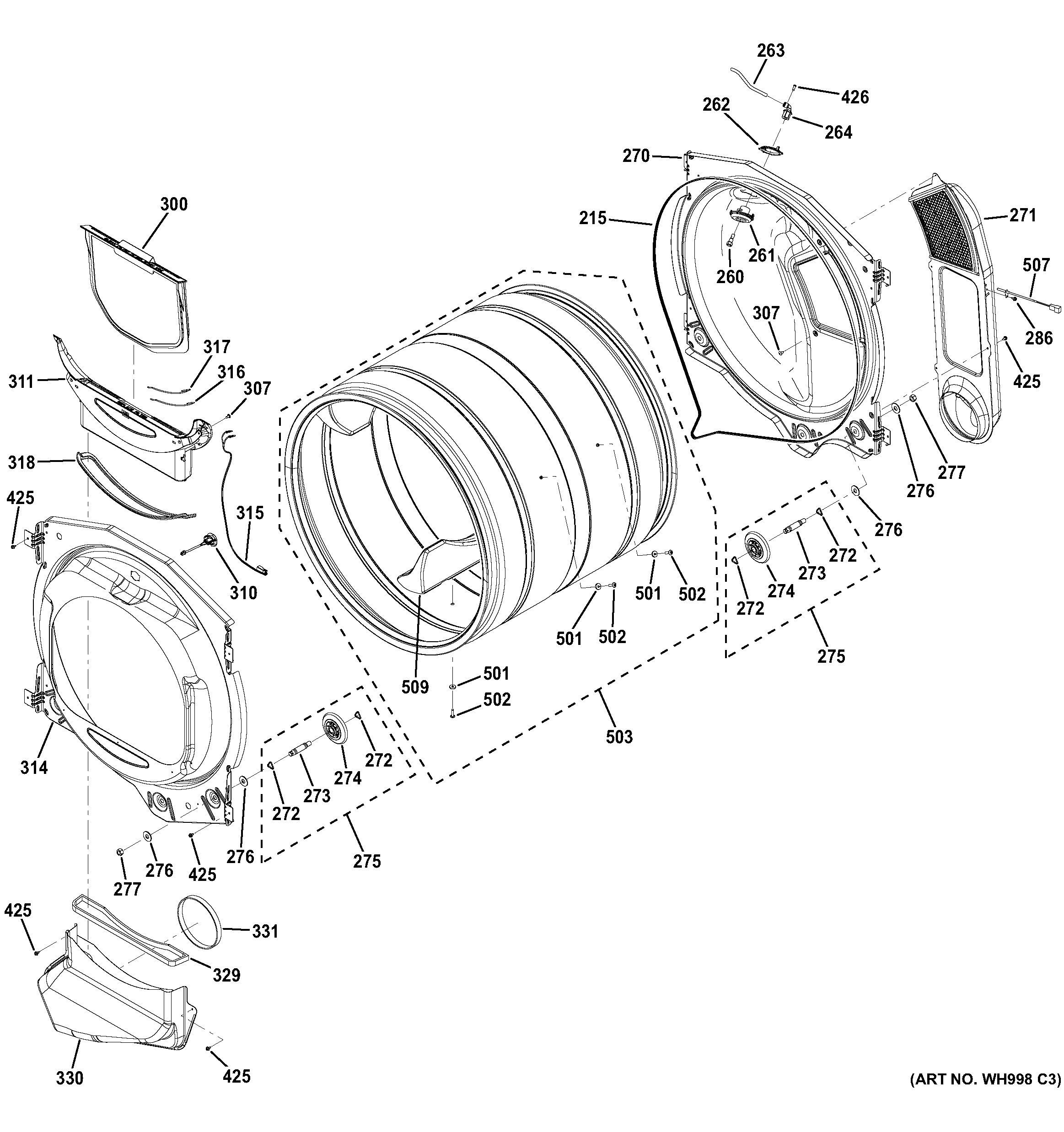

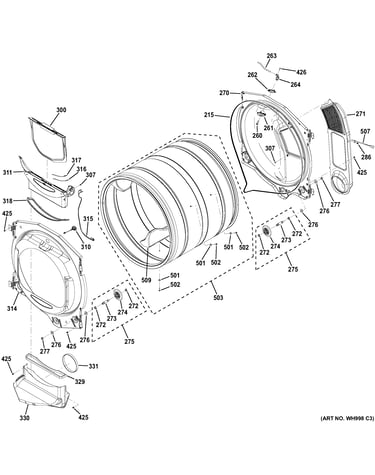

Drum diagram

Dryer drum support roller assembly (replaces we01x10384, we01x10385, we01x10386, we12m39)

Part #WE03X10016

BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Roller Axle WE01X10385
#273

Drum diagram

Roller axle

Part #WE01X10385

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10385. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Roller Wheel WE01X10384
#274

Drum diagram

Roller wheel

Part #WE01X10384

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10384. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Clip Retaini WE01X10386
#272

Drum diagram

Clip retaini

Part #WE01X10386

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10386. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Dryer Idler Assembly, Left WE12X10018
#216

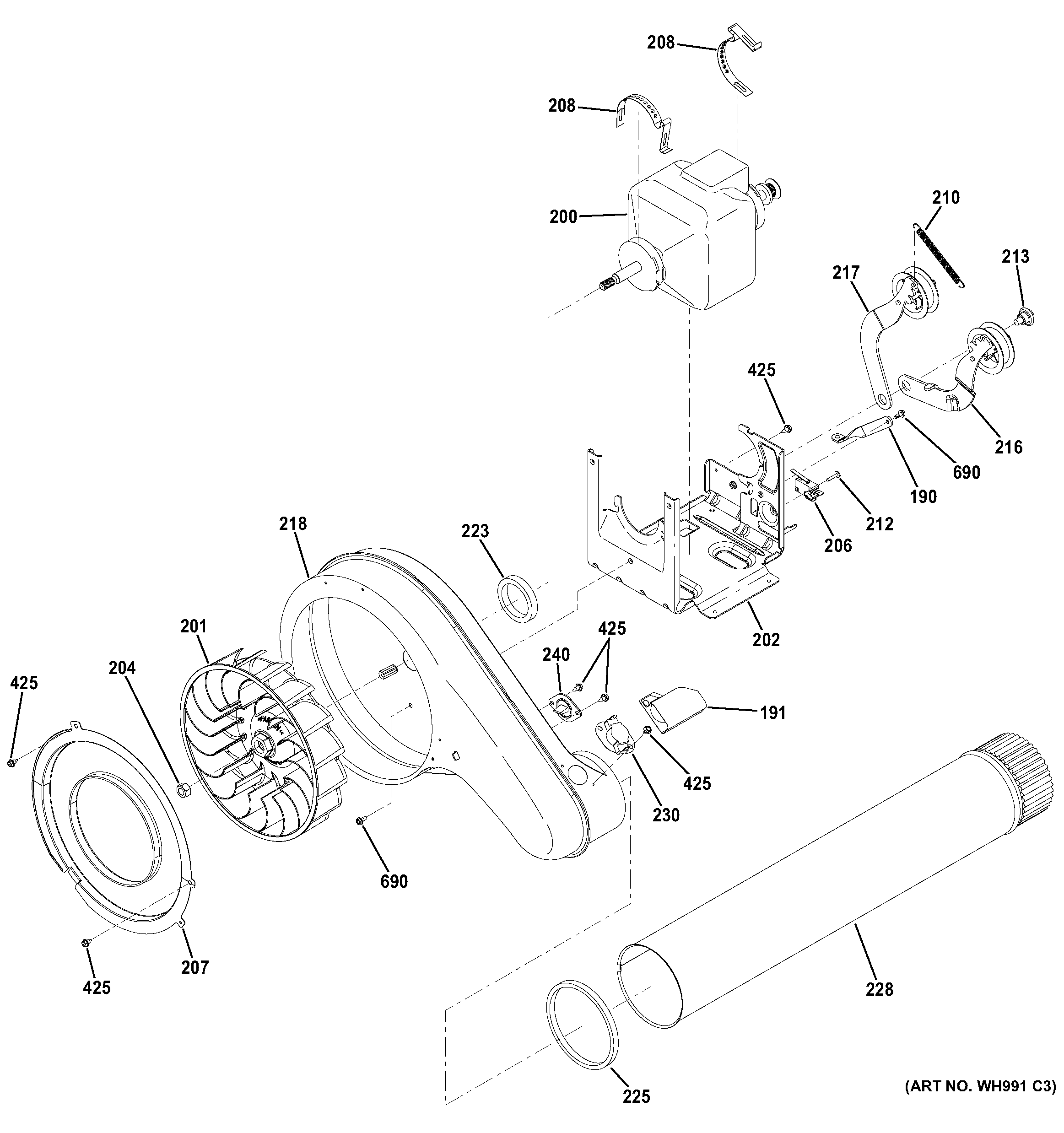

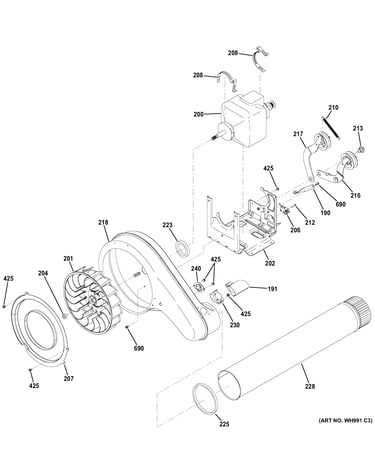

Blower & motor diagram

Dryer idler assembly, left

Part #WE12X10018

$25.00 |
19% OFF Phone Price : $31.00
In Stock
Idler Asm (r WE12X10019
#217

Blower & motor diagram

Idler asm (r

Part #WE12X10019

$26.23 |
19% OFF Phone Price : $32.23
In Stock
Dryer Drum Belt WE12X10020
#215

Drum diagram

Dryer drum belt

Part #WE12X10020

$25.51 |
19% OFF Phone Price : $31.51
In Stock
Dryer Baffle WE01X20693
#501

Drum diagram

Dryer baffle

Part #WE01X20693

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dryer Drive Motor WE17X10016
#200

Blower & motor diagram

Dryer drive motor

Part #WE17X10016

Replaced by #WE17X25555

?
Manufacturer substitution
This part replaces WE17X10016. Substitute parts can look different from the original.
$226.23 |
5% OFF Phone Price : $238.23
In Stock
Dryer Steam Nozzle Retainer WE01X10396
#261

Drum diagram

Dryer steam nozzle retainer

Part #WE01X10396

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
