Model # FDD40J2 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDD40J2 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

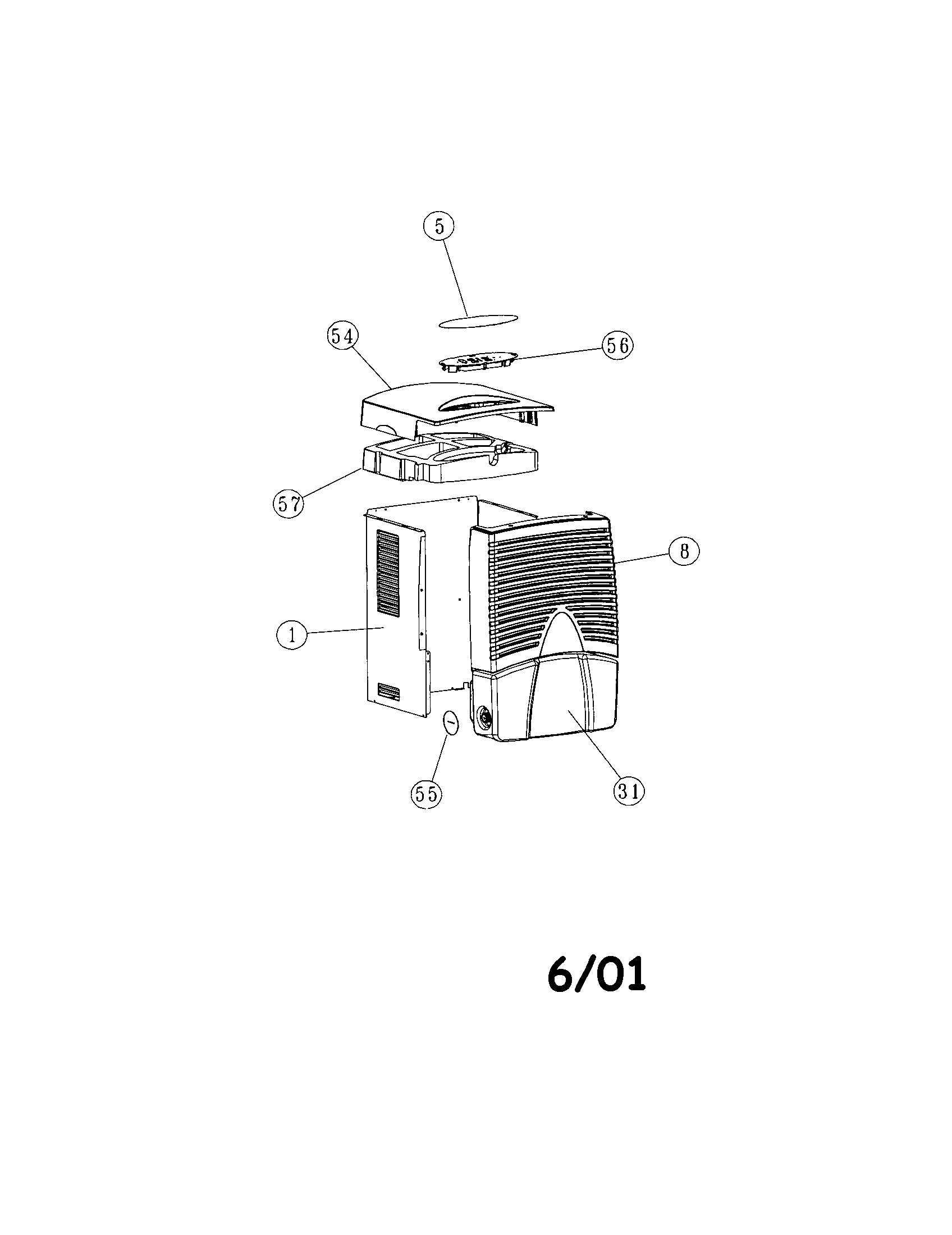

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

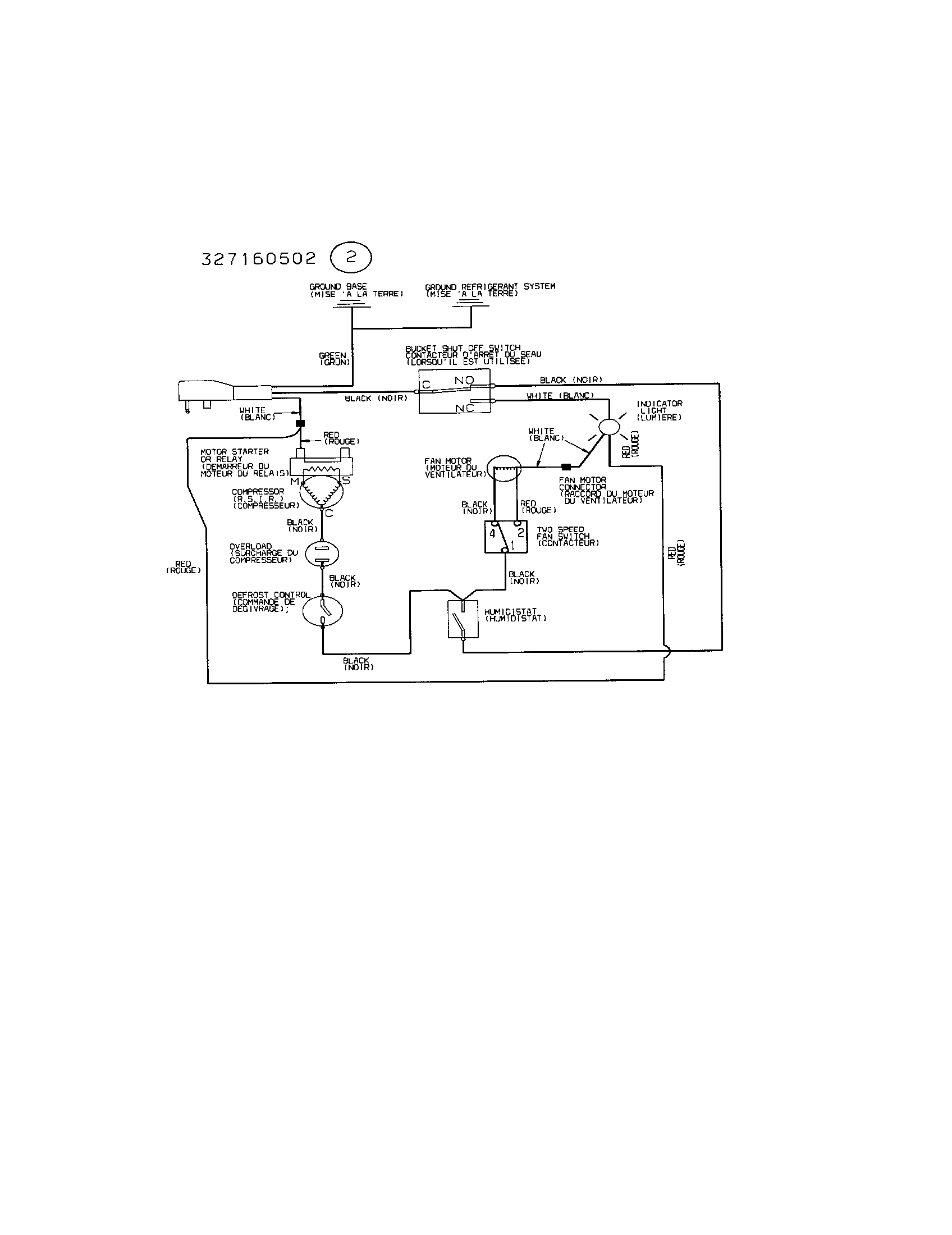

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Kelvinator Room Air Conditioner Lock Nut 08007481

#NI

All parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Capillary Tube 5304416437

#NI

All parts diagram

Capillary tube

Part #5304416437

This item is not returnable
$2.49
In Stock
Relay 5303273998

#NI

All parts diagram

Relay

Part #5303273998

Replaced by #216594300

?
Manufacturer substitution
This part replaces 5303273998. Substitute parts can look different from the original.
$53.69 |
10% OFF Phone Price : $59.69
In Stock
Scroll 327660201
#59

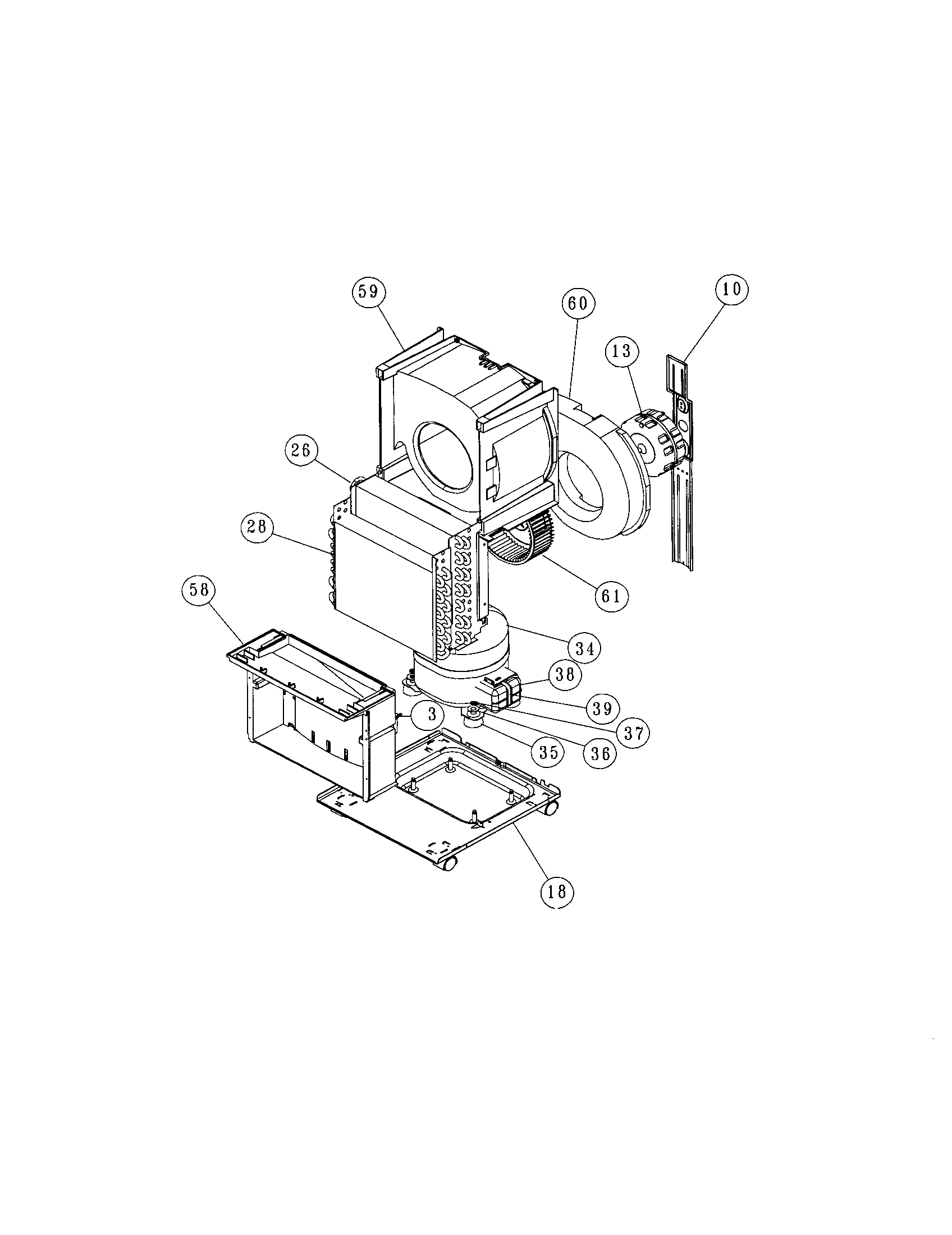

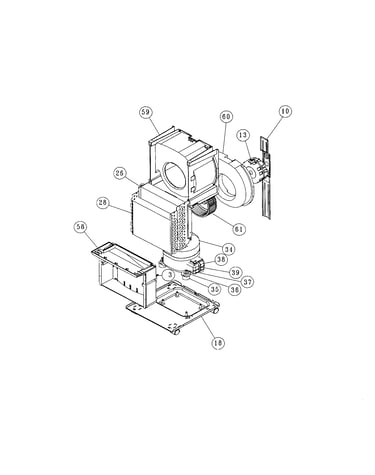

System parts diagram

Scroll

Part #327660201

The manufacturer no longer makes this part, and there's no substitute part

Clip 5303273997

#NI

All parts diagram

Clip

Part #5303273997

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304415506
#34

System parts diagram

Compressor

Part #5304415506

The manufacturer no longer makes this part, and there's no substitute part

Caster 5304416308

#NI

All parts diagram

Caster

Part #5304416308

The manufacturer no longer makes this part, and there's no substitute part

Reed Switch Harness 327160702

#NI

All parts diagram

Reed switch harness

Part #327160702

The manufacturer no longer makes this part, and there's no substitute part

Drip Tray 327660501
#58

System parts diagram

Drip tray

Part #327660501

The manufacturer no longer makes this part, and there's no substitute part

Bracket 327362101
#10

System parts diagram

Bracket

Part #327362101

The manufacturer no longer makes this part, and there's no substitute part
