Model # 110C71182011 Official Kenmore 29" gas dryer

Here are the diagrams and repair parts for Official Kenmore 110C71182011 29" gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Dryer Thermal Fuse 3392519
#39

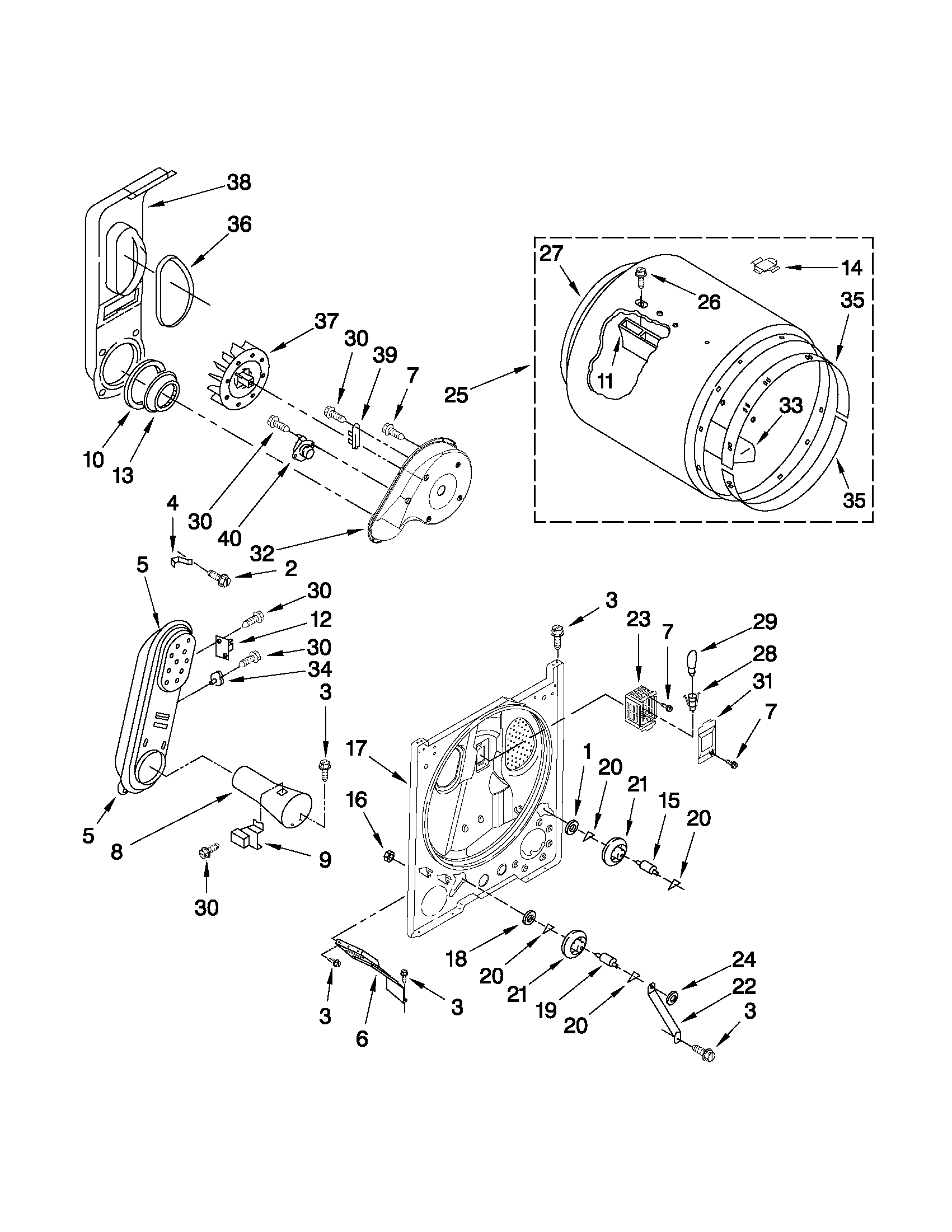

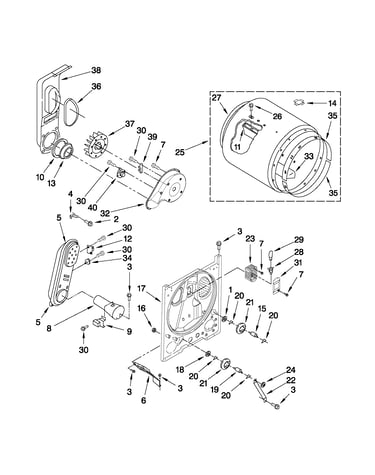

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Belt W10131364
#24

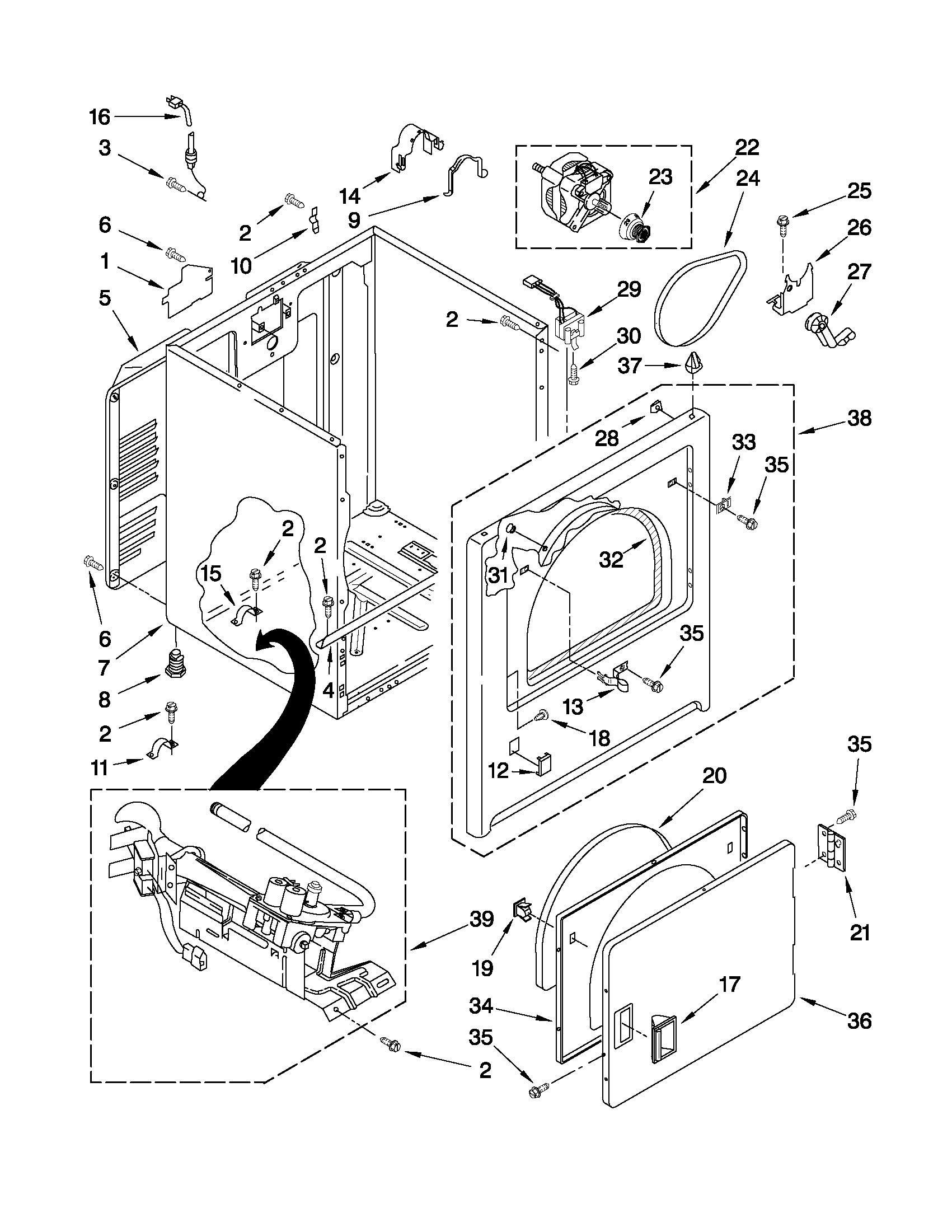

Cabinet parts diagram

Belt

Part #W10131364

Replaced by #341241

?
Manufacturer substitution
This part replaces W10131364. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Dryer Repair Kit 279948
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.75 |
17% OFF Phone Price : $35.75
In Stock
Drive Motor W10194250
#22

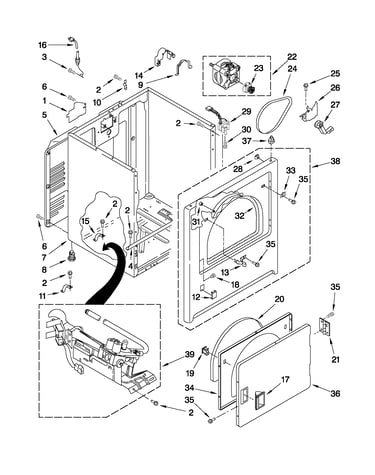

Cabinet parts diagram

Drive motor

Part #W10194250

Replaced by #279827

?
Manufacturer substitution
This part replaces W10194250. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Operating Thermostat 3387134
#40

Bulkhead parts diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$20.83 |
22% OFF Phone Price : $26.83
In Stock
Dryer Blower Wheel 694089
#37

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Igniter 686590
#4

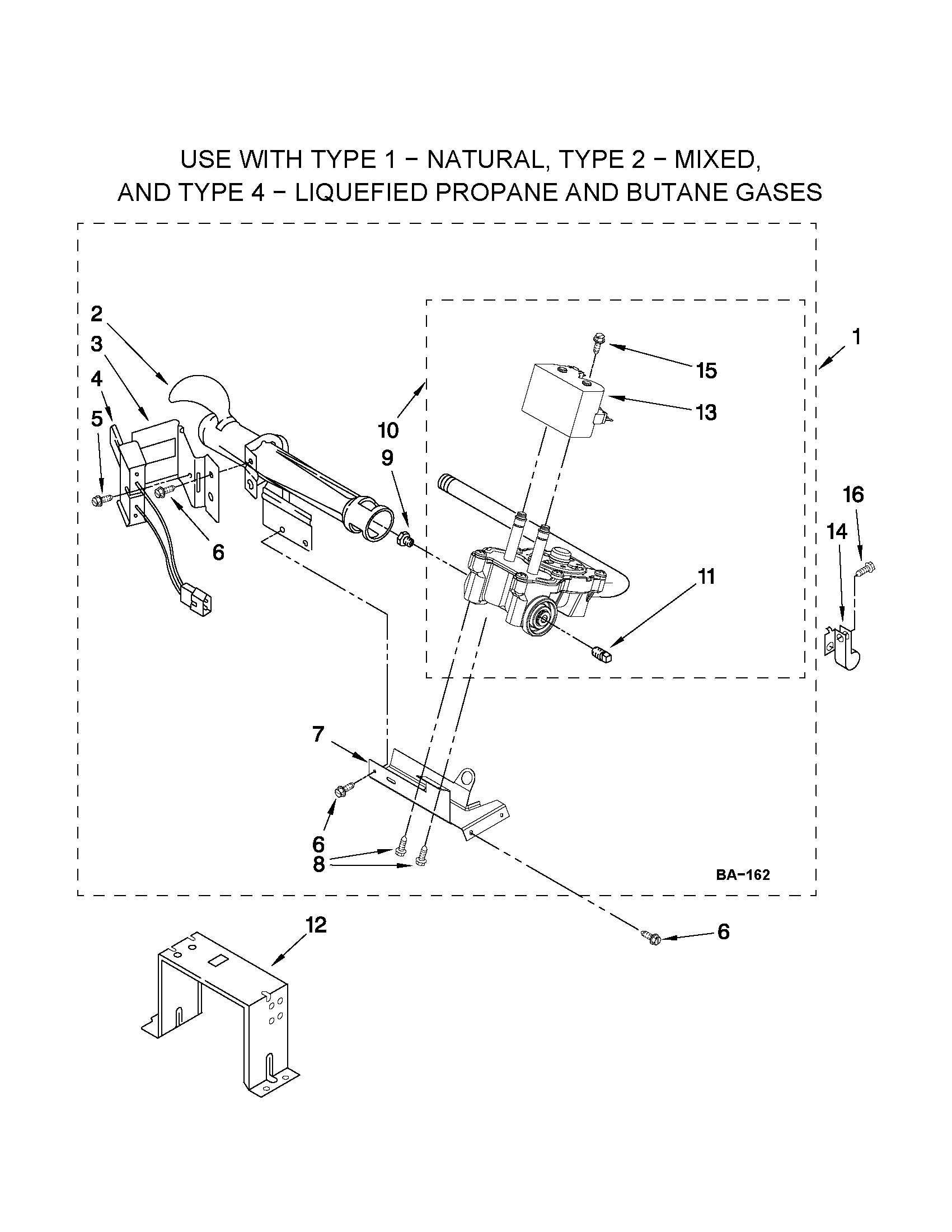

Burner assembly diagram

Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Cut-off Kit 3977394
#12

Bulkhead parts diagram

Cut-off kit

Part #3977394

Replaced by #279769

?
Manufacturer substitution
This part replaces 3977394. Substitute parts can look different from the original.
BEST SELLER
$41.82 |
13% OFF Phone Price : $47.82
In Stock
Dryer Lint Screen 8559787
#19

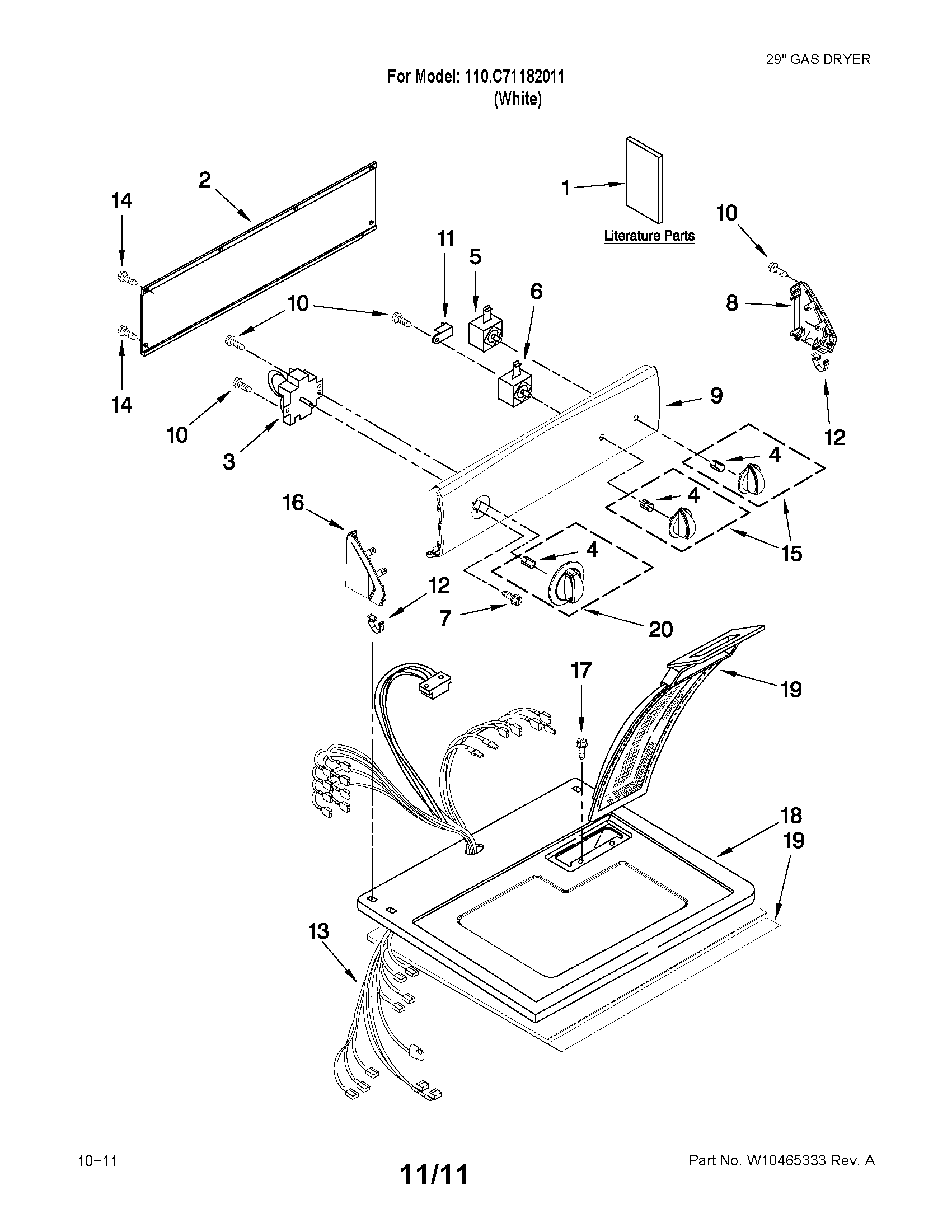

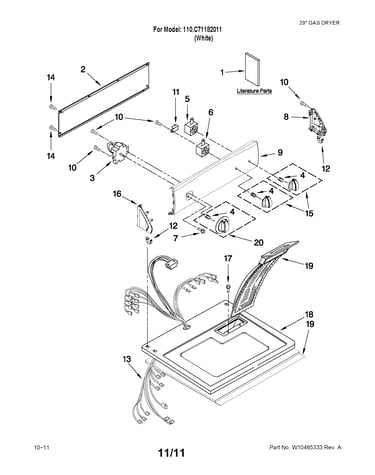

Top and console parts diagram

Dryer lint screen

Part #8559787

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 8559787. Substitute parts can look different from the original.
BEST SELLER
$33.96 |
15% OFF Phone Price : $39.96
In Stock
