Model # KDTE204EPA3 Official KitchenAid dishwasher
Here are the diagrams and repair parts for Official KitchenAid KDTE204EPA3 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
KDTE204EPA3 Dishwasher
#2

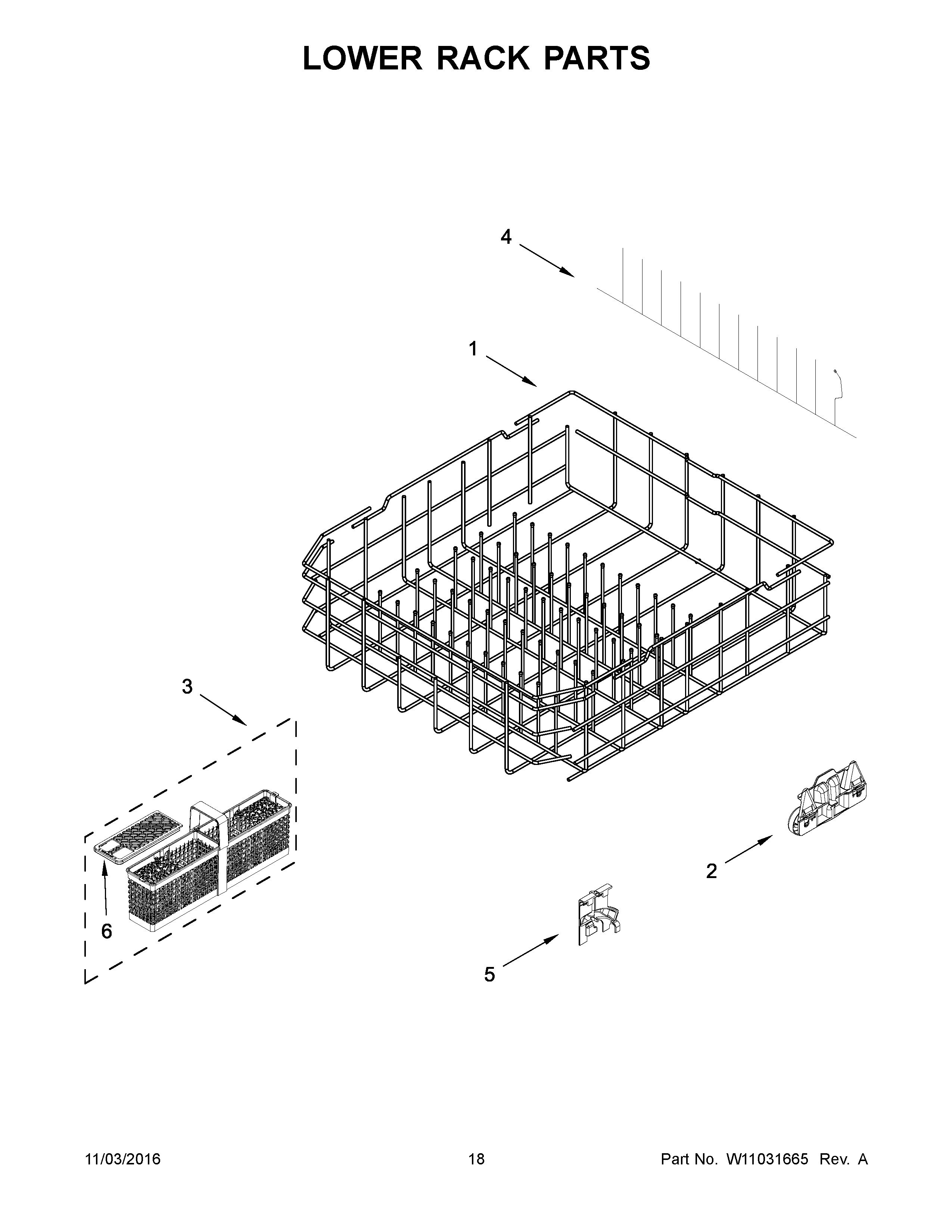

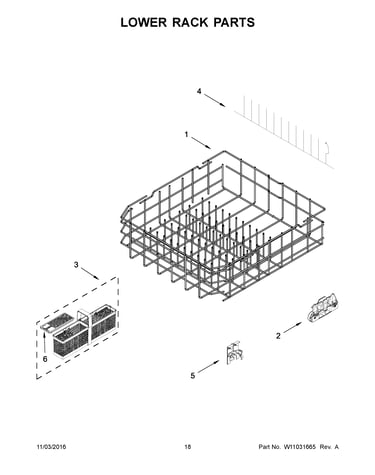

Lower rack parts diagram
Dishwasher dishrack roller assembly, lower
Part #W10195417
Replaced by #WPW10195417
?
Manufacturer substitution
This part replaces W10195417. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
In Stock
#3

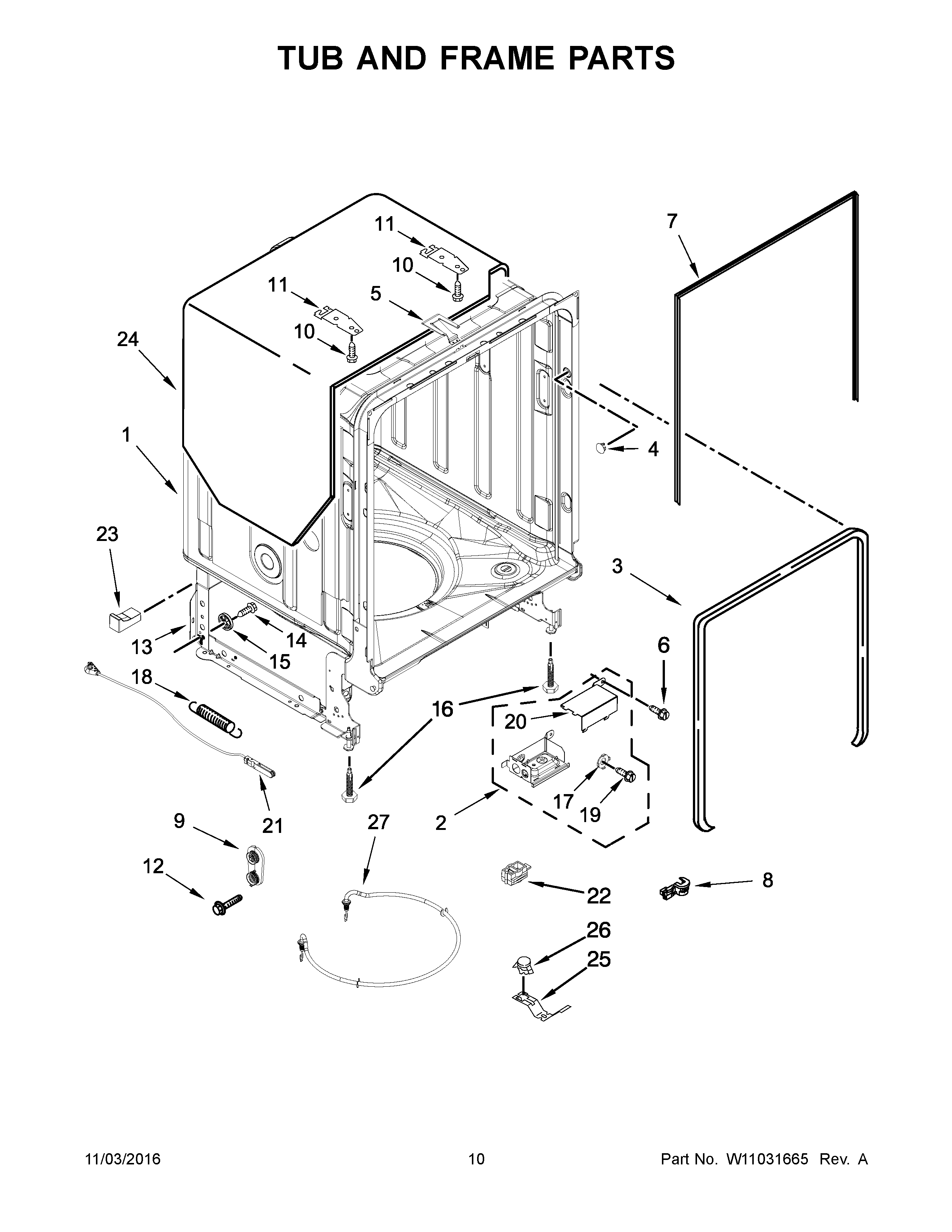

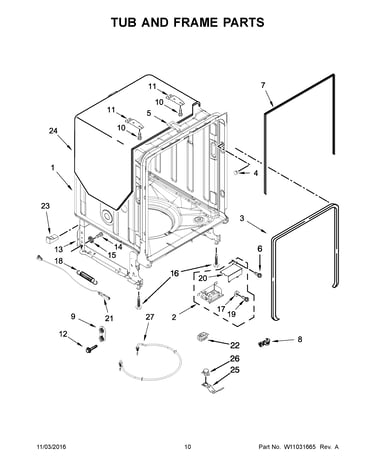

Tub and frame parts diagram
Dishwasher door seal
Part #W10300924
Replaced by #W11177741
?
Manufacturer substitution
This part replaces W10300924. Substitute parts can look different from the original.
$44.25 |
12% OFF Phone Price : $50.25
In Stock
#4

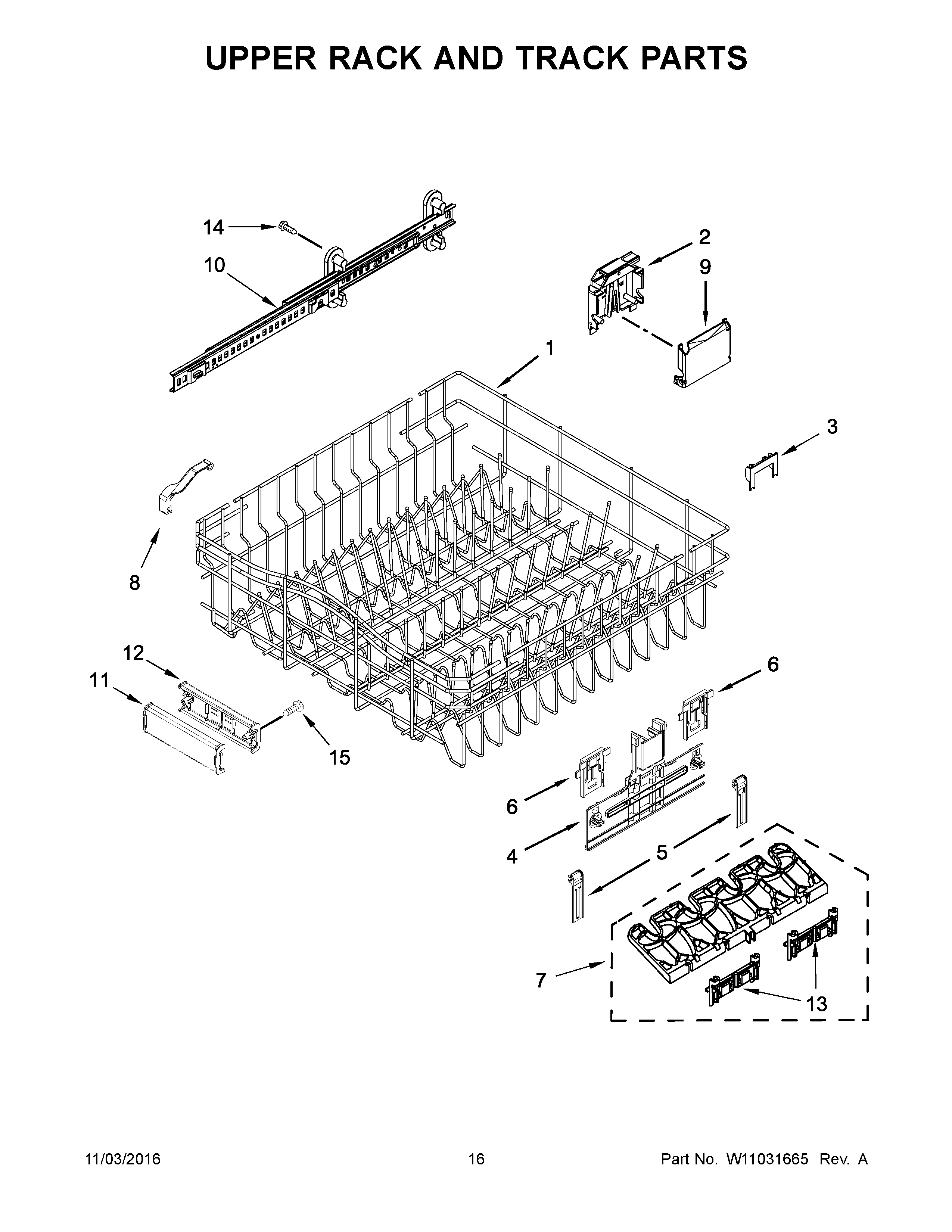

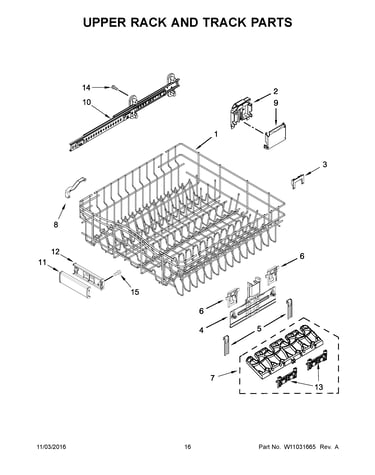

Upper rack and track parts diagram
Dishwasher dishrack adjuster
Part #W10546503
Replaced by #WPW10546503
?
Manufacturer substitution
This part replaces W10546503. Substitute parts can look different from the original.
$22.82 |
21% OFF Phone Price : $28.82
In Stock
#21
Tub and frame parts diagram
Dishwasher door balance link
Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
$23.54 |
20% OFF Phone Price : $29.54
In Stock
#7

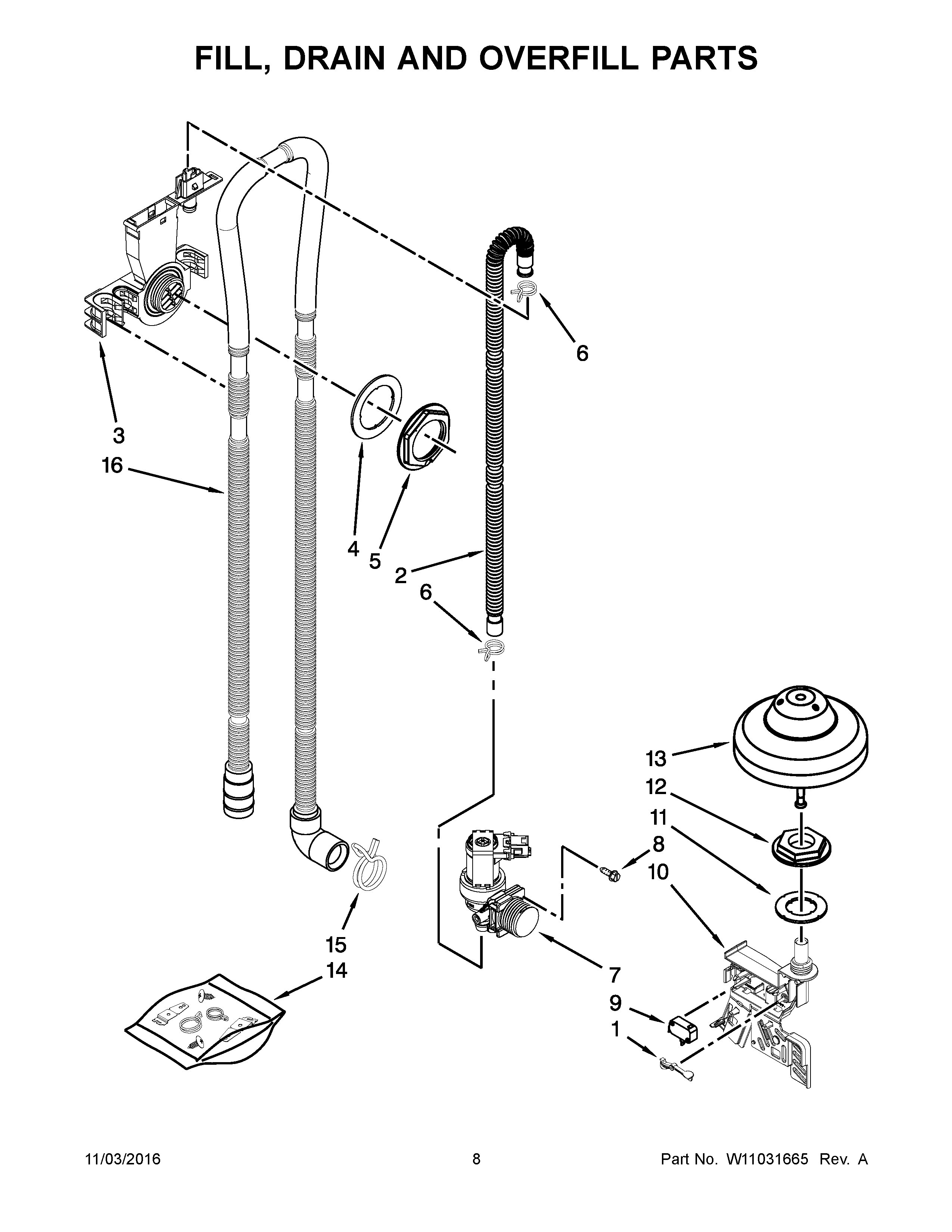

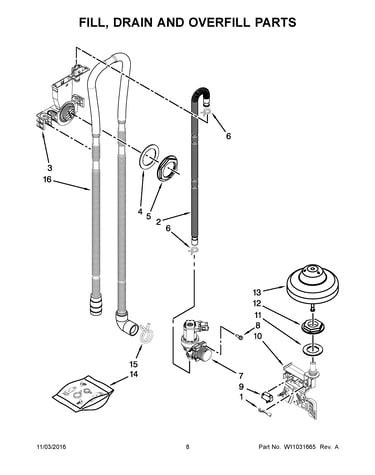

Fill, drain and overfill parts diagram
Dishwasher water inlet valve
Part #W10327250
Replaced by #W11175771
?
Manufacturer substitution
This part replaces W10327250. Substitute parts can look different from the original.
$41.95 |
13% OFF Phone Price : $47.95
In Stock
#27
Tub and frame parts diagram
Element assembly
Part #W10696509
Replaced by #W10703867
?
Manufacturer substitution
This part replaces W10696509. Substitute parts can look different from the original.
$57.42 |
9% OFF Phone Price : $63.42
In Stock
#11

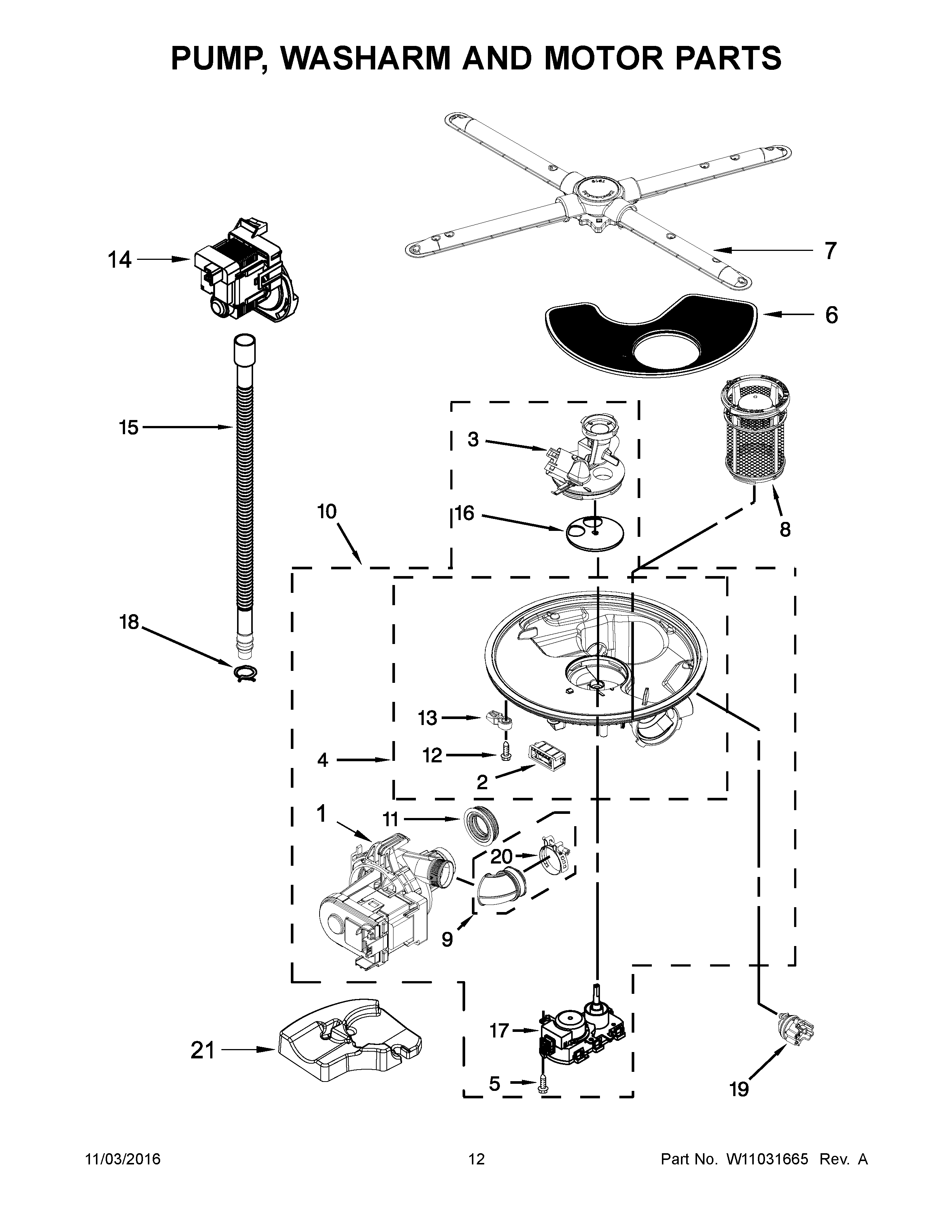

Pump, washarm and motor parts diagram
Dishwasher pump grommet
Part #W10538166
Replaced by #WPW10538166
?
Manufacturer substitution
This part replaces W10538166. Substitute parts can look different from the original.
$18.20 |
10% OFF Phone Price : $20.20
In Stock
#14
Pump, washarm and motor parts diagram
Dishwasher drain pump
Part #W10724439
Replaced by #W10876537
?
Manufacturer substitution
This part replaces W10724439. Substitute parts can look different from the original.
$53.33 |
10% OFF Phone Price : $59.33
In Stock
#17
Pump, washarm and motor parts diagram
Dishwasher diverter motor
Part #W10849439
Replaced by #W10537869
?
Manufacturer substitution
This part replaces W10849439. Substitute parts can look different from the original.
$60.37 |
9% OFF Phone Price : $66.37
In Stock
#5

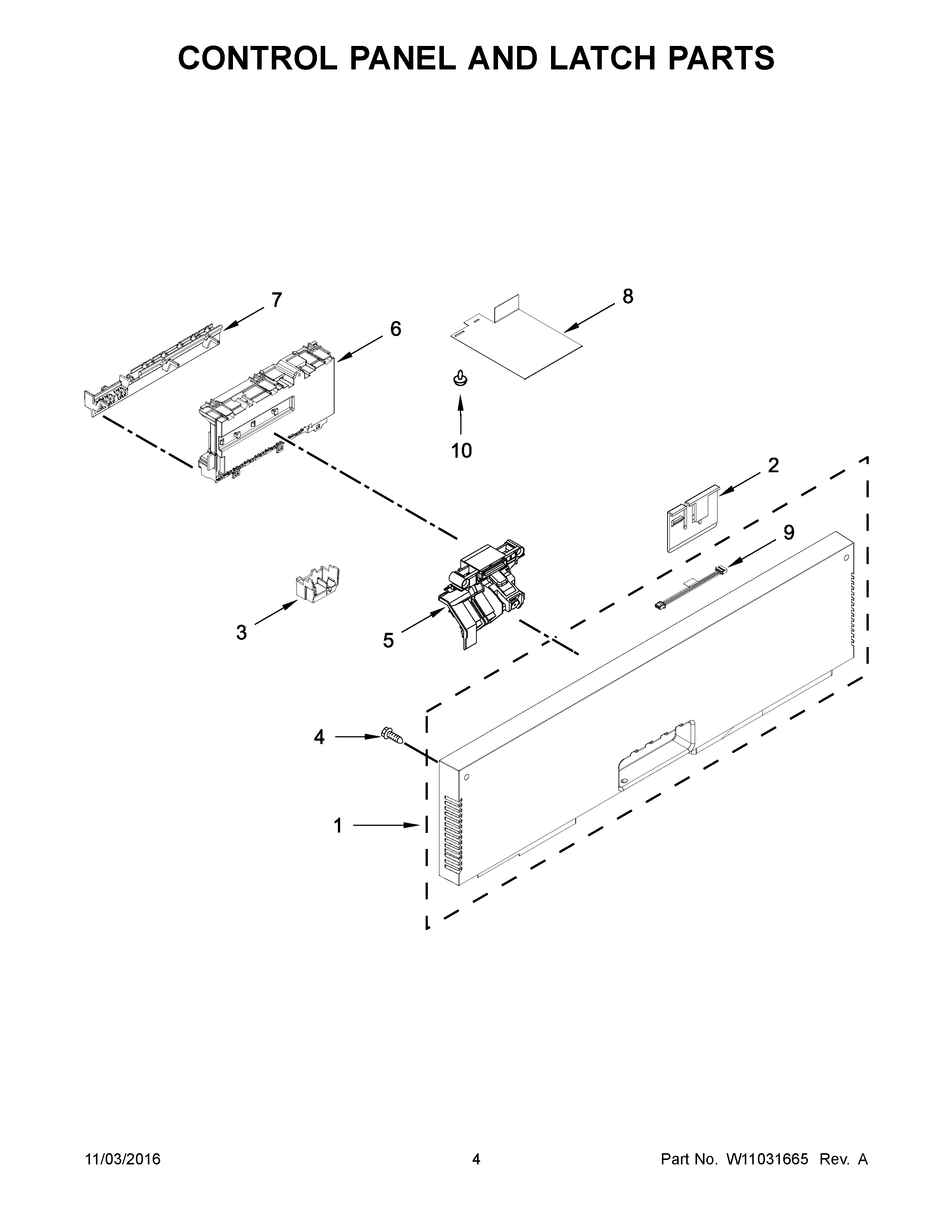

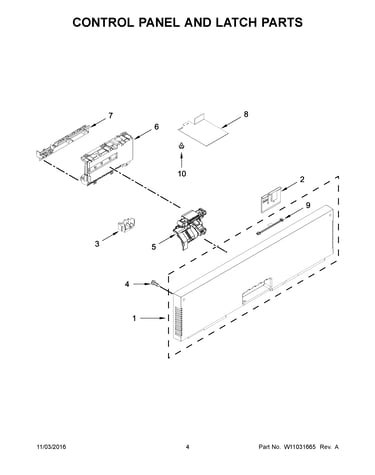

Control panel and latch parts diagram
Dishwasher door latch
Part #W10653840
Replaced by #WPW10653840
?
Manufacturer substitution
This part replaces W10653840. Substitute parts can look different from the original.
$22.27 |
21% OFF Phone Price : $28.27
In Stock
