Model # GX900QPKS0 Official Whirlpool compactor
Here are the diagrams and repair parts for Official Whirlpool GX900QPKS0 compactor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

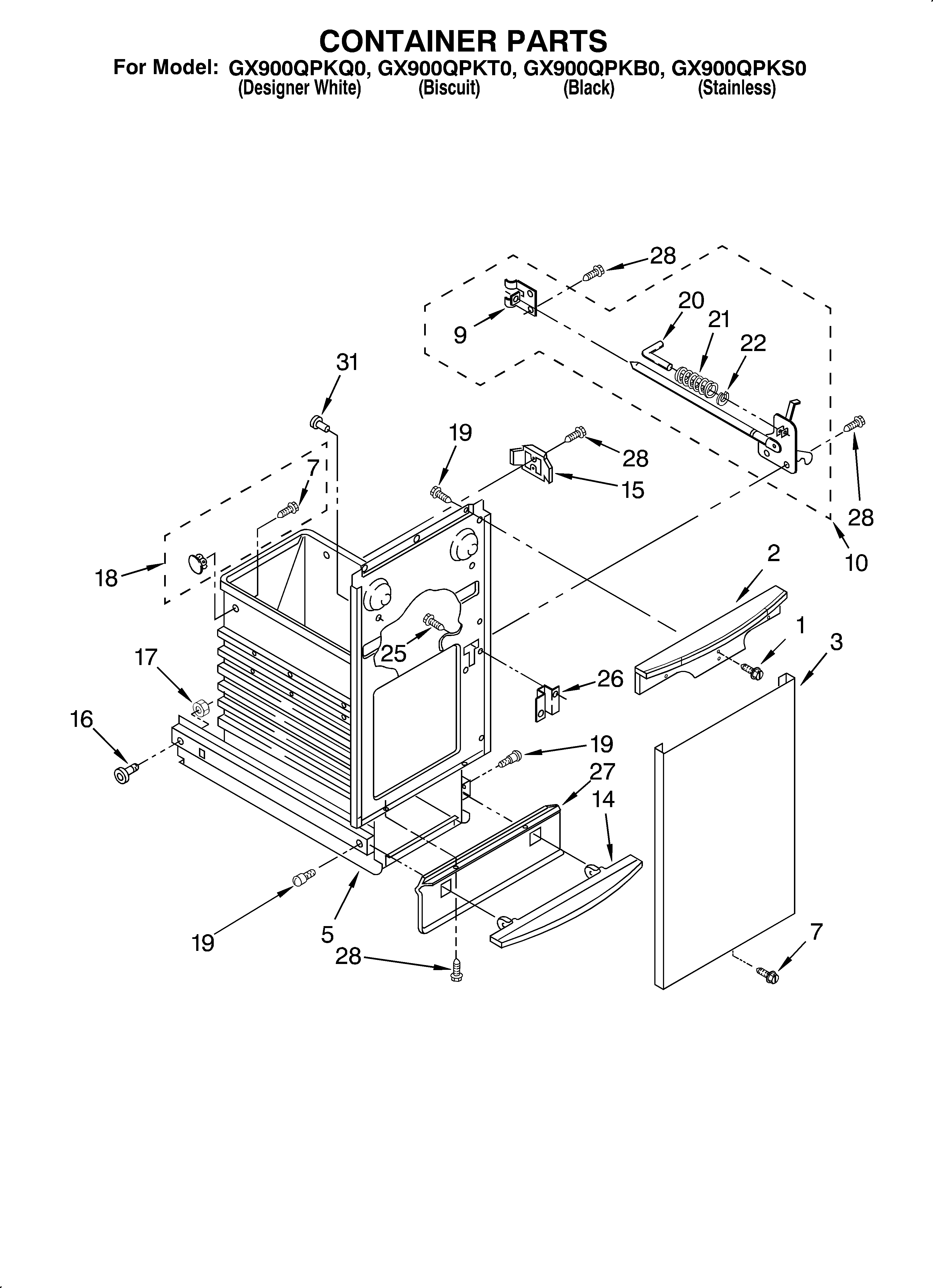

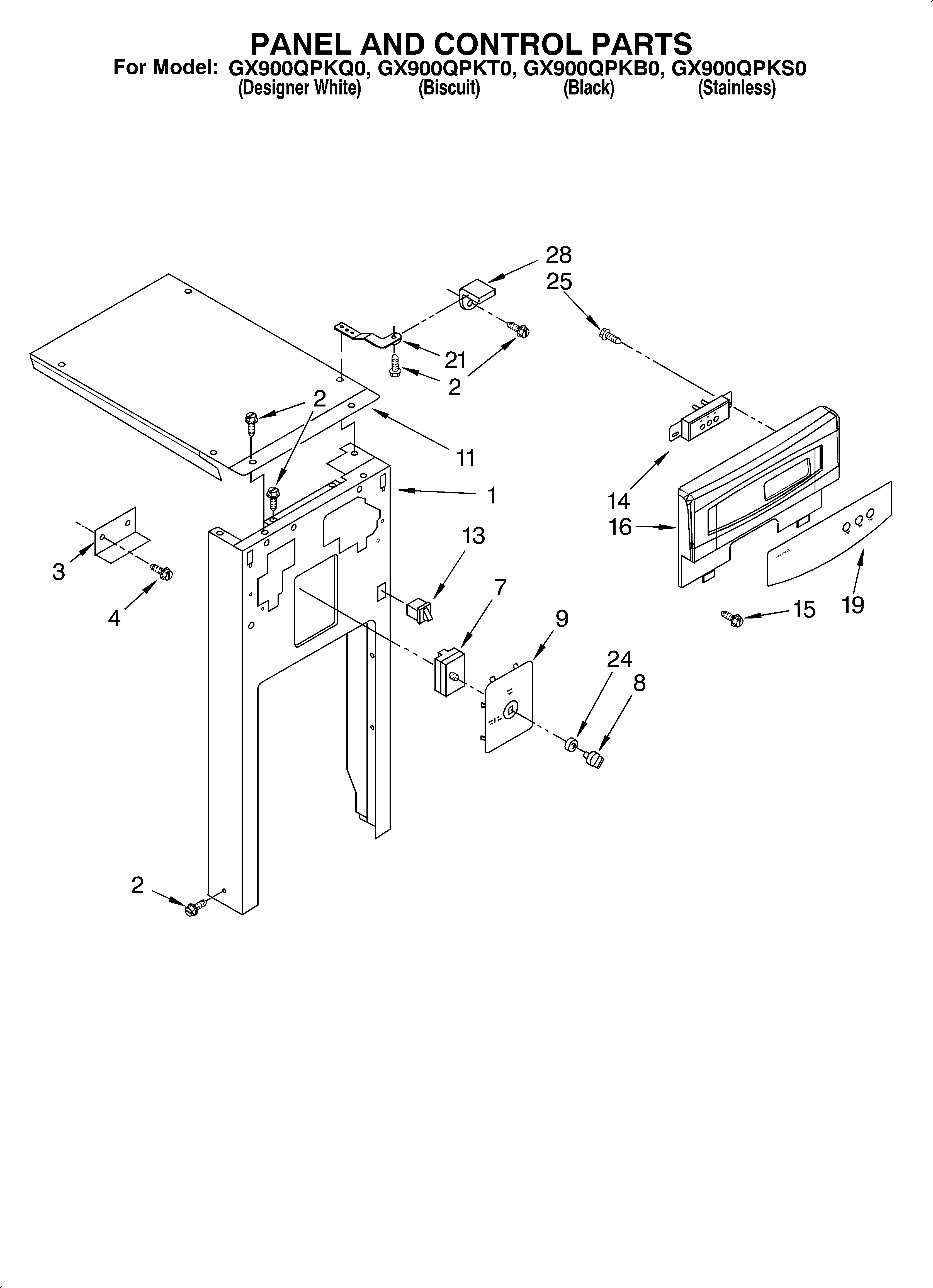

SELECT DIAGRAM
Browse Parts forGX900QPKS0 Compactor
- #6

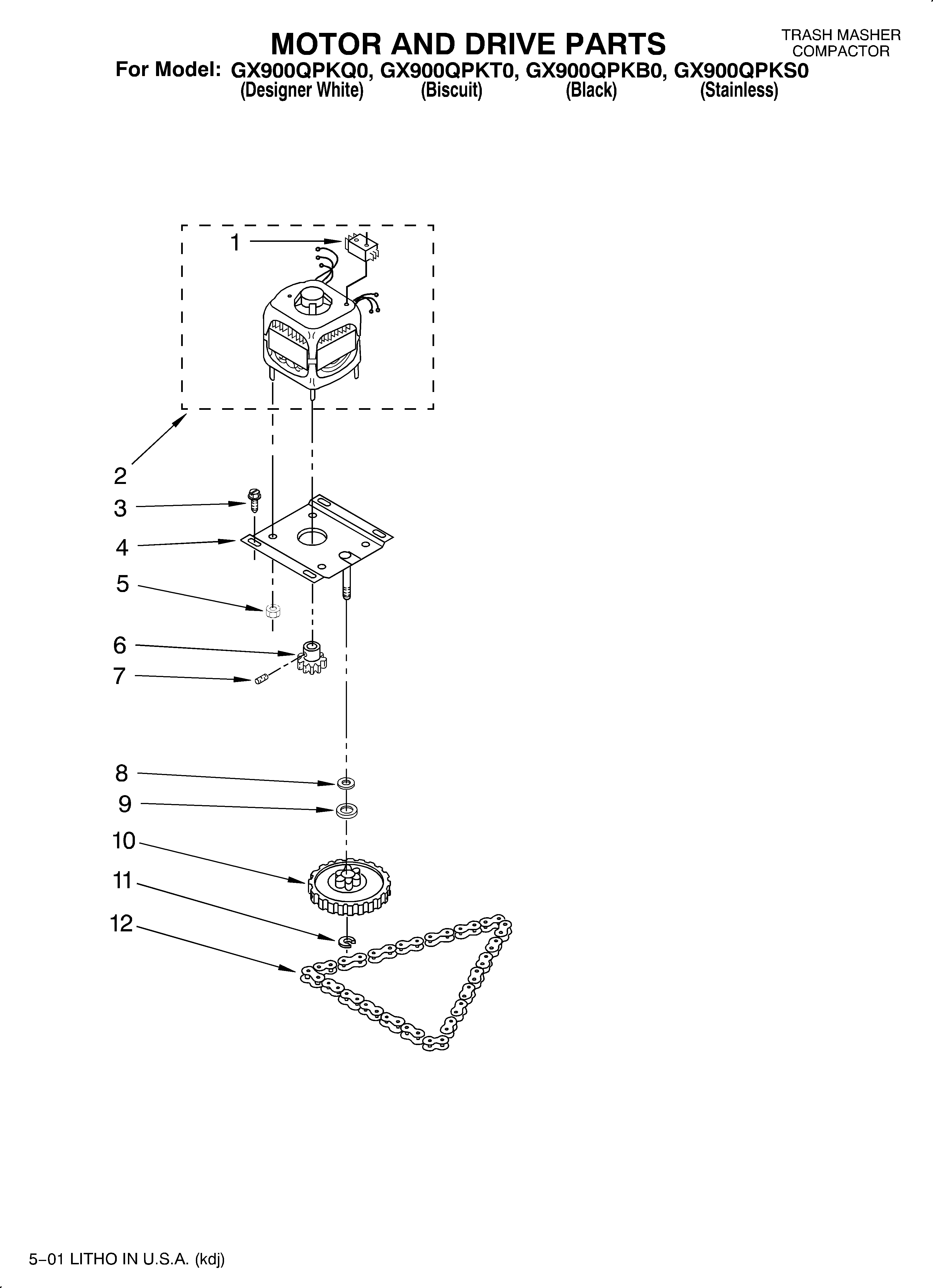

Motor and drive/lit/optional diagram
Drive gearPart #4149667
Replaced by #882699
?Manufacturer substitutionThis part replaces 4149667. Substitute parts can look different from the original.$77.73 |7% OFF Phone Price : $83.73In Stock - #10
Motor and drive/lit/optional diagram
GearPart #777124
Replaced by #882699
?Manufacturer substitutionThis part replaces 777124. Substitute parts can look different from the original.$77.73 |7% OFF Phone Price : $83.73In Stock - #9

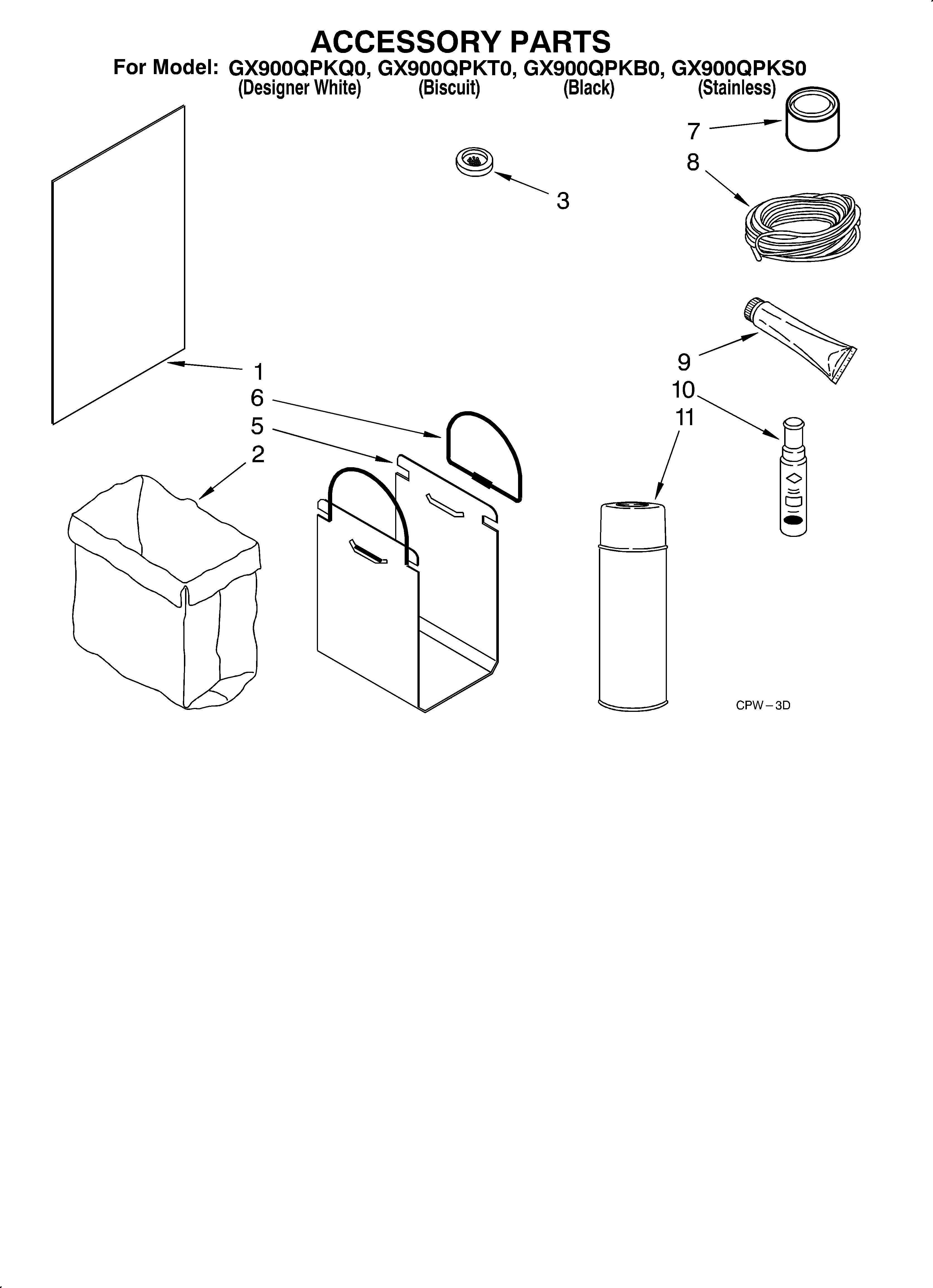

Accessory diagram
AdhesivePart #279368
Replaced by #WP279368
?Manufacturer substitutionThis part replaces 279368. Substitute parts can look different from the original.$46.06 |12% OFF Phone Price : $52.06In Stock - #23

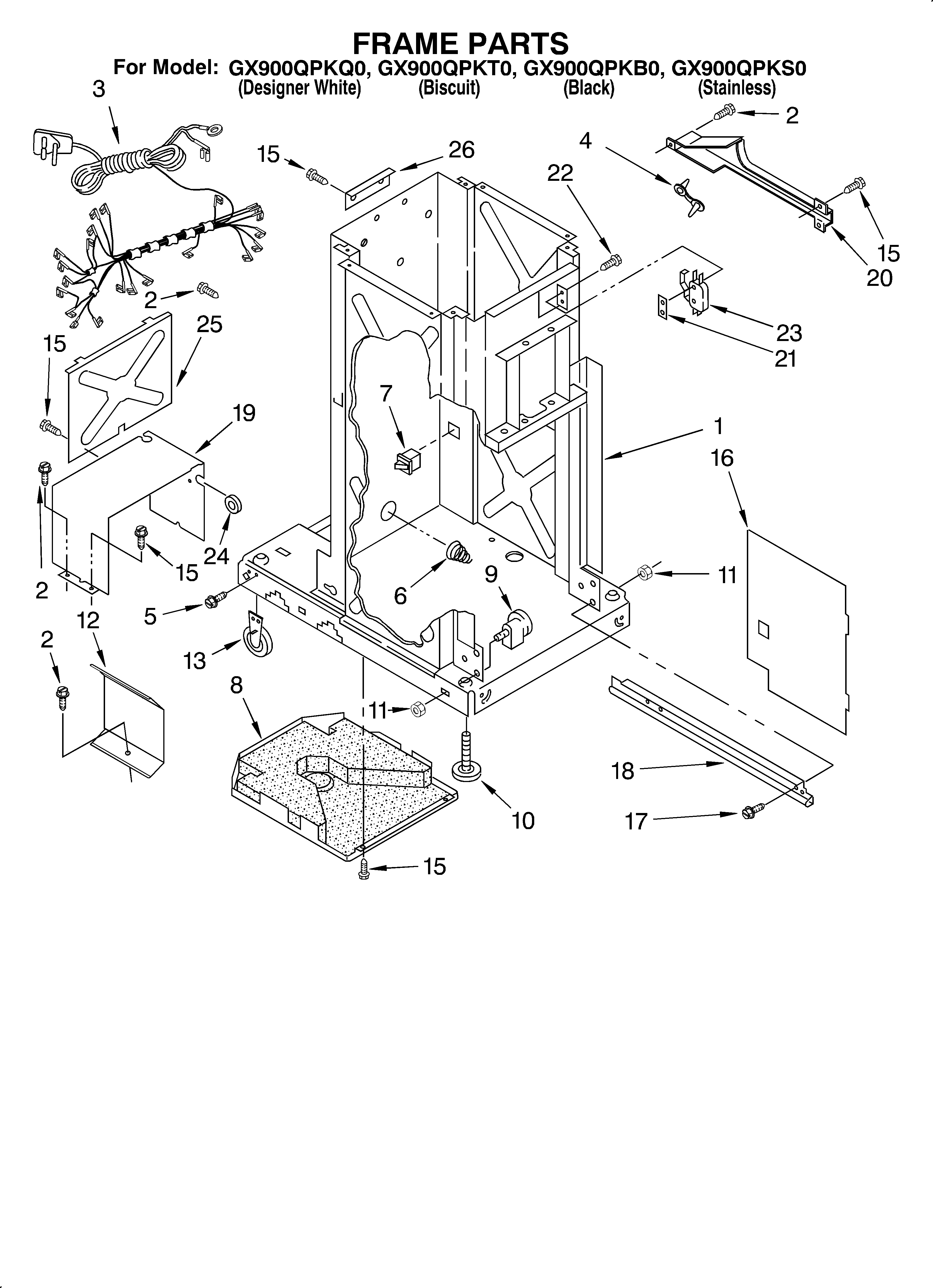

Frame diagram
Trash compactor top limit and directional switchPart #777811
Replaced by #WP777811
?Manufacturer substitutionThis part replaces 777811. Substitute parts can look different from the original.$48.43 |11% OFF Phone Price : $54.43In Stock - #1
Motor and drive/lit/optional diagram
SwitchPart #777971
Replaced by #W10439651
?Manufacturer substitutionThis part replaces 777971. Substitute parts can look different from the original.$174.26 |6% OFF Phone Price : $186.26In Stock - #2
Motor and drive/lit/optional diagram
Drive motorPart #9870343
Replaced by #W10439651
?Manufacturer substitutionThis part replaces 9870343. Substitute parts can look different from the original.$174.26 |6% OFF Phone Price : $186.26In Stock - #10G
Accessory diagram
Danby appliance touch-up paint, 0.6-oz (white)Part #72017
$7.13 |14% OFF Was : $8.29In Stock - #13

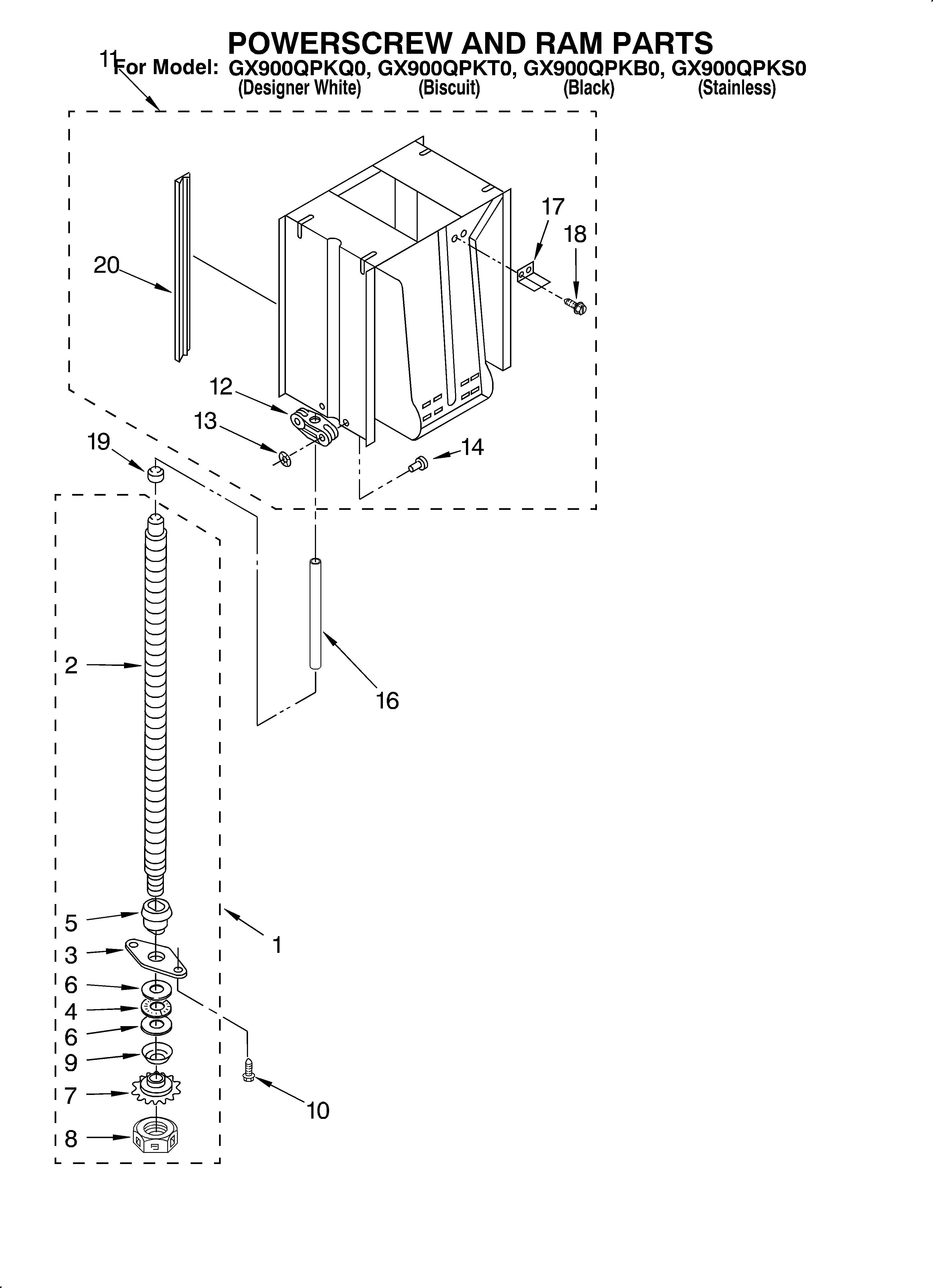

Powerscrew and ram diagram
ClipPart #90296
Replaced by #WP90296
?Manufacturer substitutionThis part replaces 90296. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #5
Accessory diagram
CarrierPart #13030
Replaced by #13030RP
?Manufacturer substitutionThis part replaces 13030. Substitute parts can look different from the original.This item is not returnable$29.07 |17% OFF Phone Price : $35.07In Stock - #7
Frame diagram
SwitchPart #4149377
Replaced by #W11243179
?Manufacturer substitutionThis part replaces 4149377. Substitute parts can look different from the original.This item is not returnable$36.92 |14% OFF Phone Price : $42.92In Stock
Most common symptoms to help you fix your trash compactors
Choose a symptom to see related trash compactor repairs.
Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…
Main causes: stuck foot pedal, bad momentary start switch, power switch failure…
Main cause: broken top limit and directional switch…
Main cause: faulty drawer tilt switch …
Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…
Main causes: bent drawer support rollers, damaged trash container…
Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
Most common repair guides to help fix your trash compactors
These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.
How to replace a trash compactor motor centrifugal switch
If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…
Repair difficulty
Time required
45 minutes or less
How to replace a trash compactor momentary start switch
The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…
Repair difficulty
Time required
15 minutes or less
How to replace a trash compactor power switch
If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…
Repair difficulty
Time required
30 minutes or less
Effective articles & videos to help repair your trash compactors
Use the advice and tips in these articles and videos to get the most out of your trash compactor.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
