Model # 587720210 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587720210 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

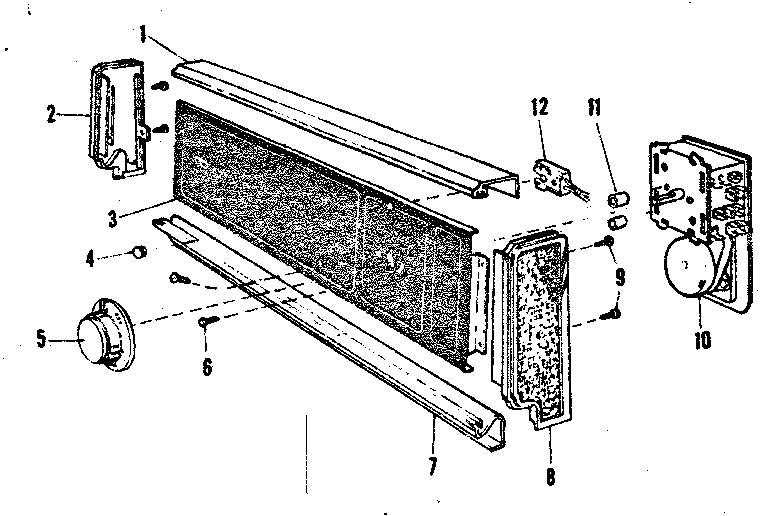

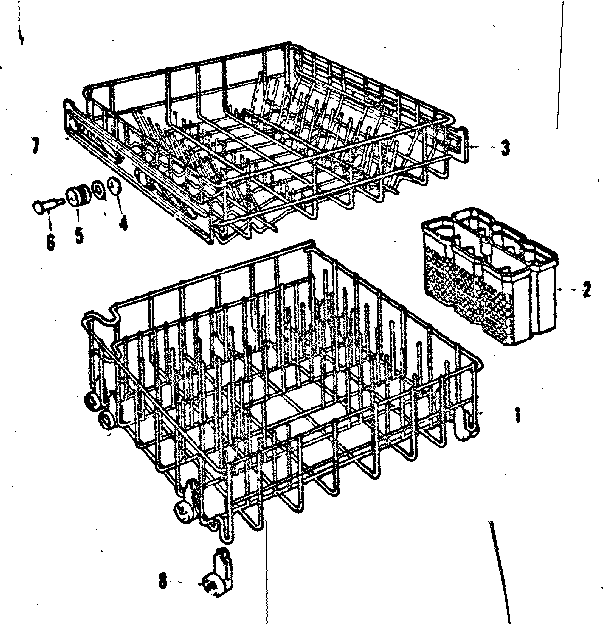

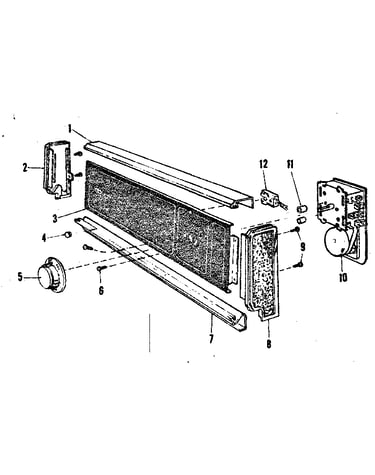

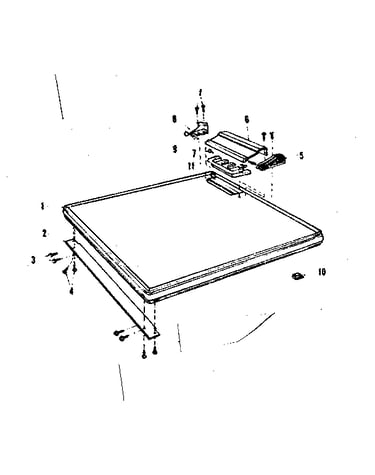

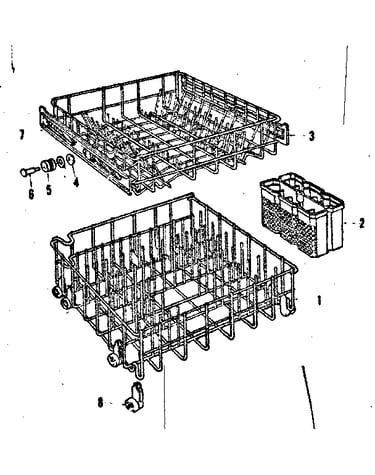

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Nut 806834
#20

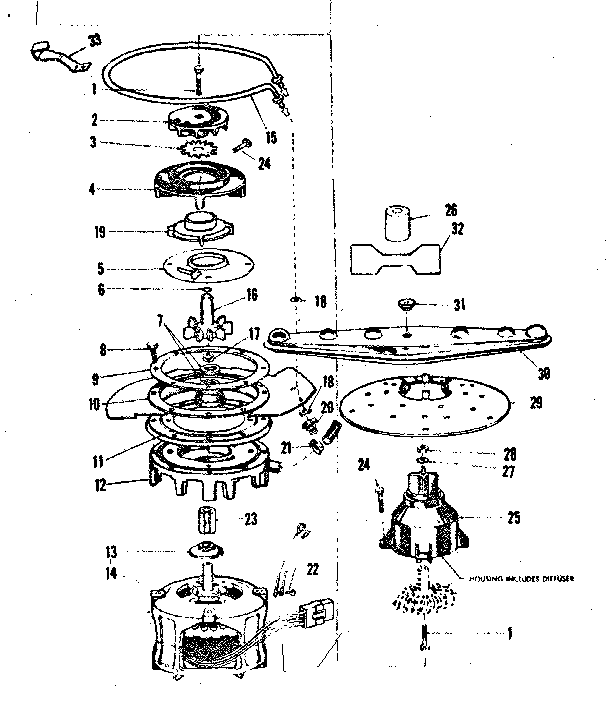

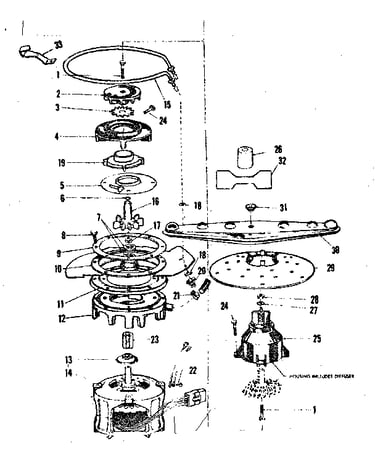

Motor, heater & spray arm details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 806812
#36

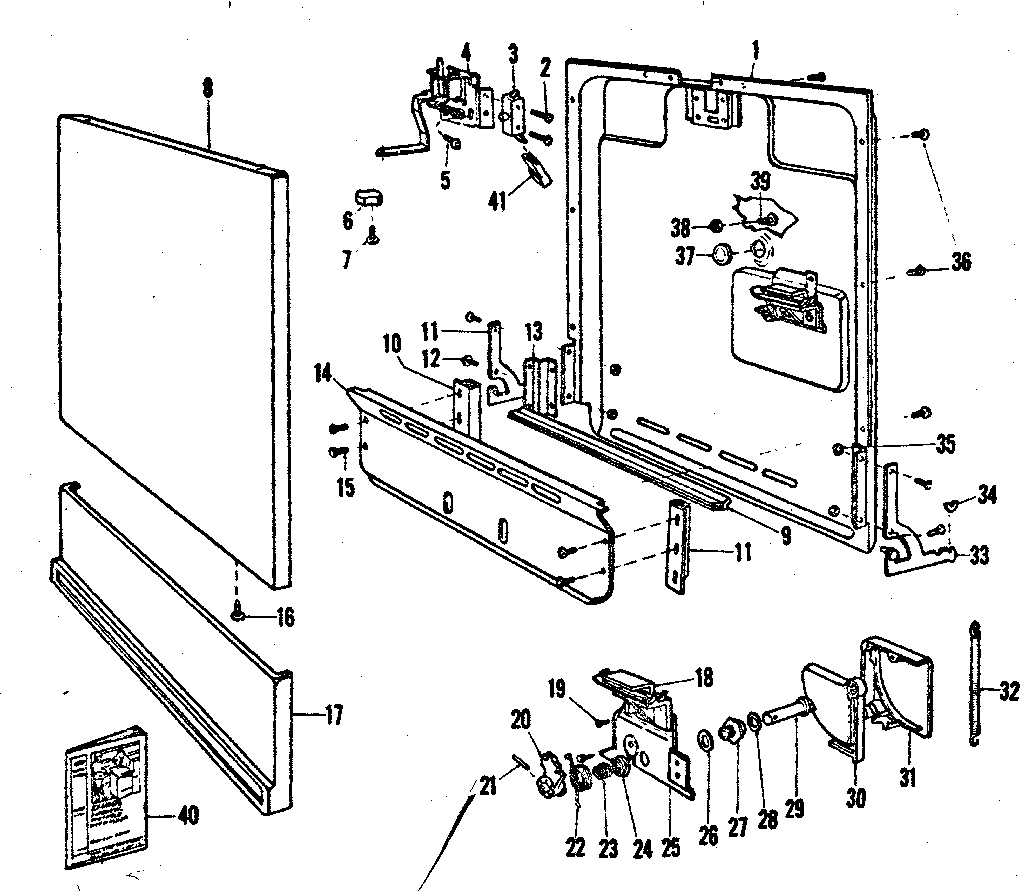

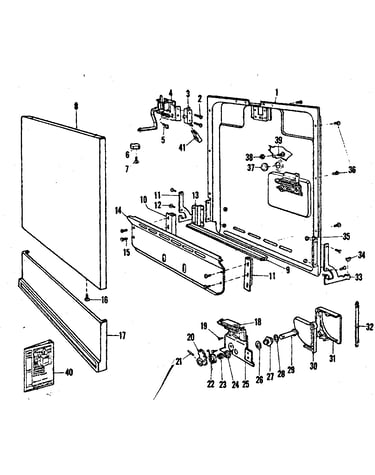

Door & access panel details diagram

Screw

Part #806812

Replaced by #5300806967

?
Manufacturer substitution
This part replaces 806812. Substitute parts can look different from the original.
This item is not returnable
$2.72
In Stock
Cam Spring 806567
#23

Door & access panel details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Arm Assembly 805681
#33

Door & access panel details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$79.52
In Stock
Nut 804527
#28

Motor, heater & spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Spray Arm 805577
#30

Motor, heater & spray arm details diagram

Spray arm

Part #805577

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 805577. Substitute parts can look different from the original.
$142.10
In Stock
Cam 806566
#20

Door & access panel details diagram

Cam

Part #806566

Replaced by #154180301

?
Manufacturer substitution
This part replaces 806566. Substitute parts can look different from the original.
$16.20
In Stock
Washer 800787
#13

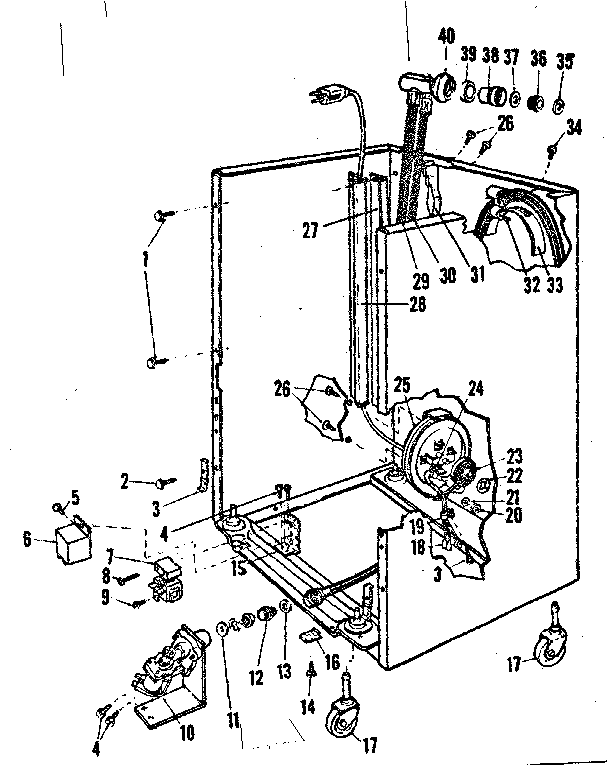

Frame details diagram

Washer

Part #800787

Replaced by #5300800787

?
Manufacturer substitution
This part replaces 800787. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Gasket 805763
#6

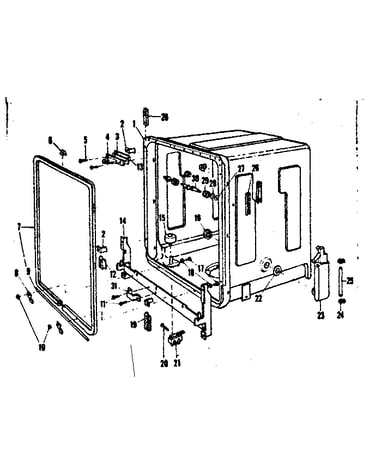

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Clamp 805584
#19

Frame details diagram

Clamp

Part #805584

Replaced by #5300808495

?
Manufacturer substitution
This part replaces 805584. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
