Model # PGLEF385EC7 Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire PGLEF385EC7 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

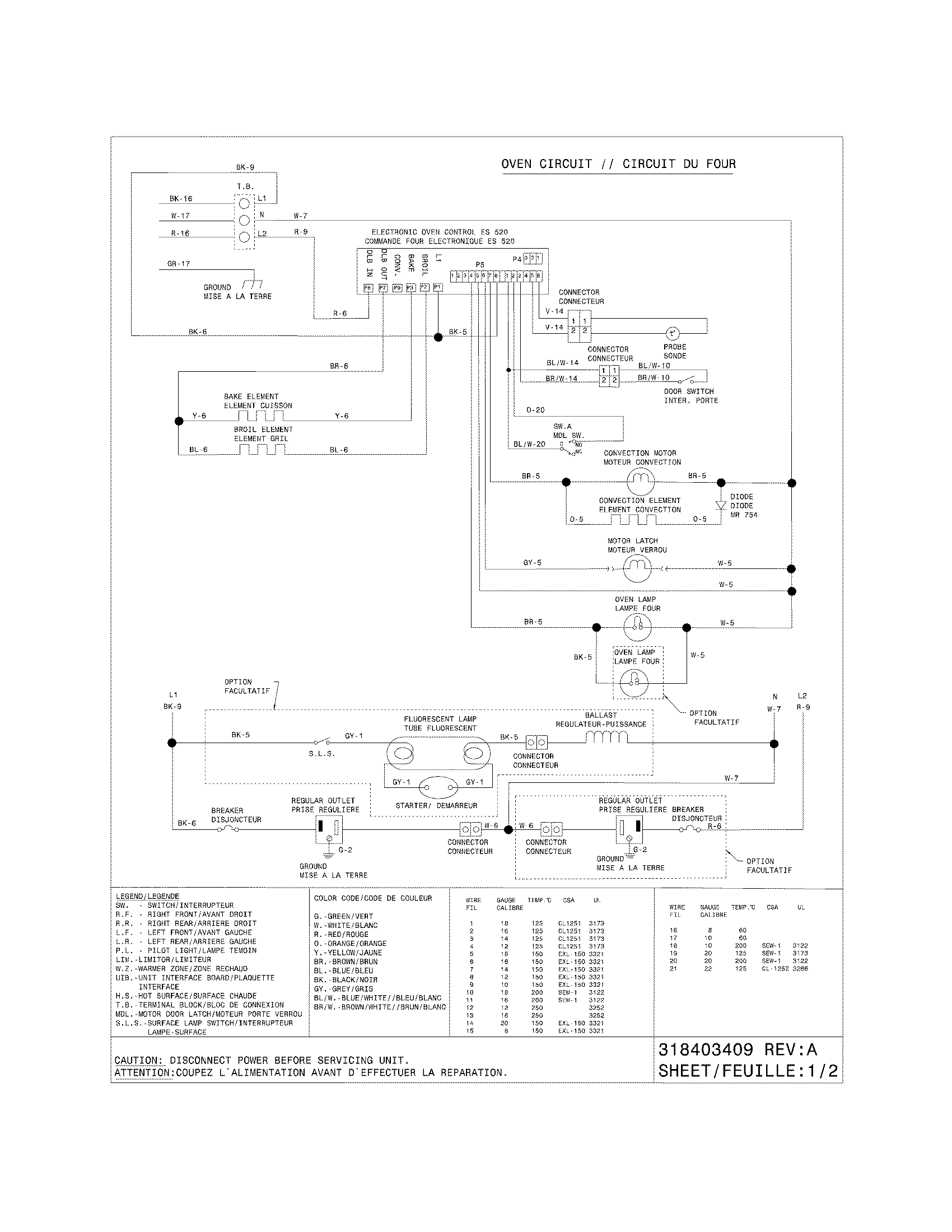

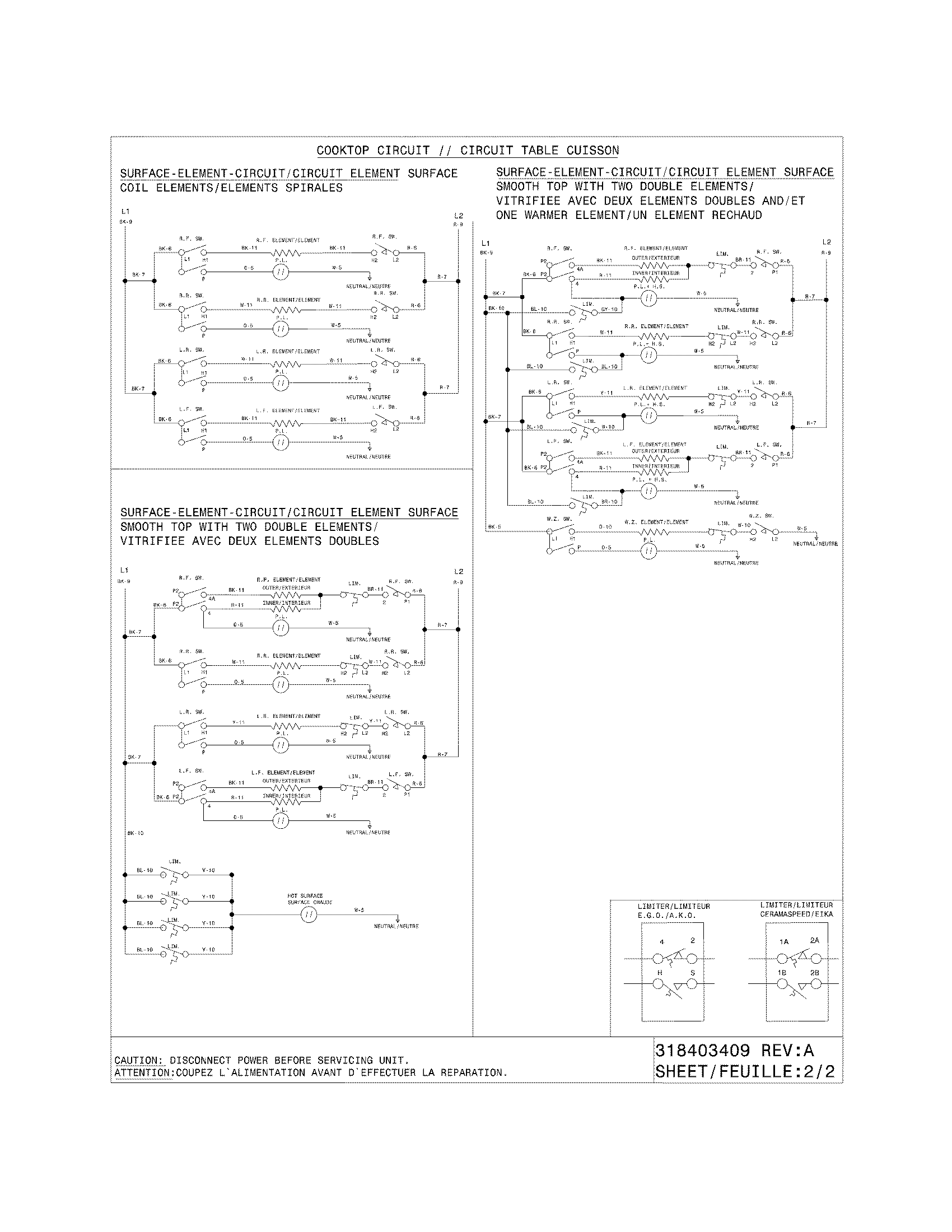

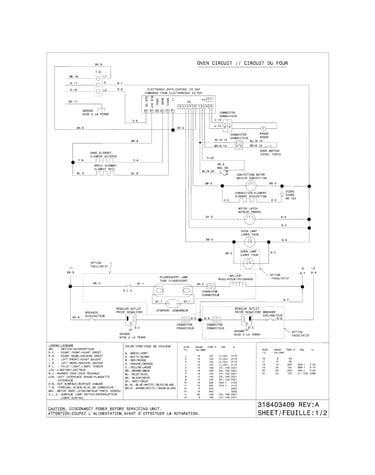

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Range Oven Light Bulb 5303013071
#15

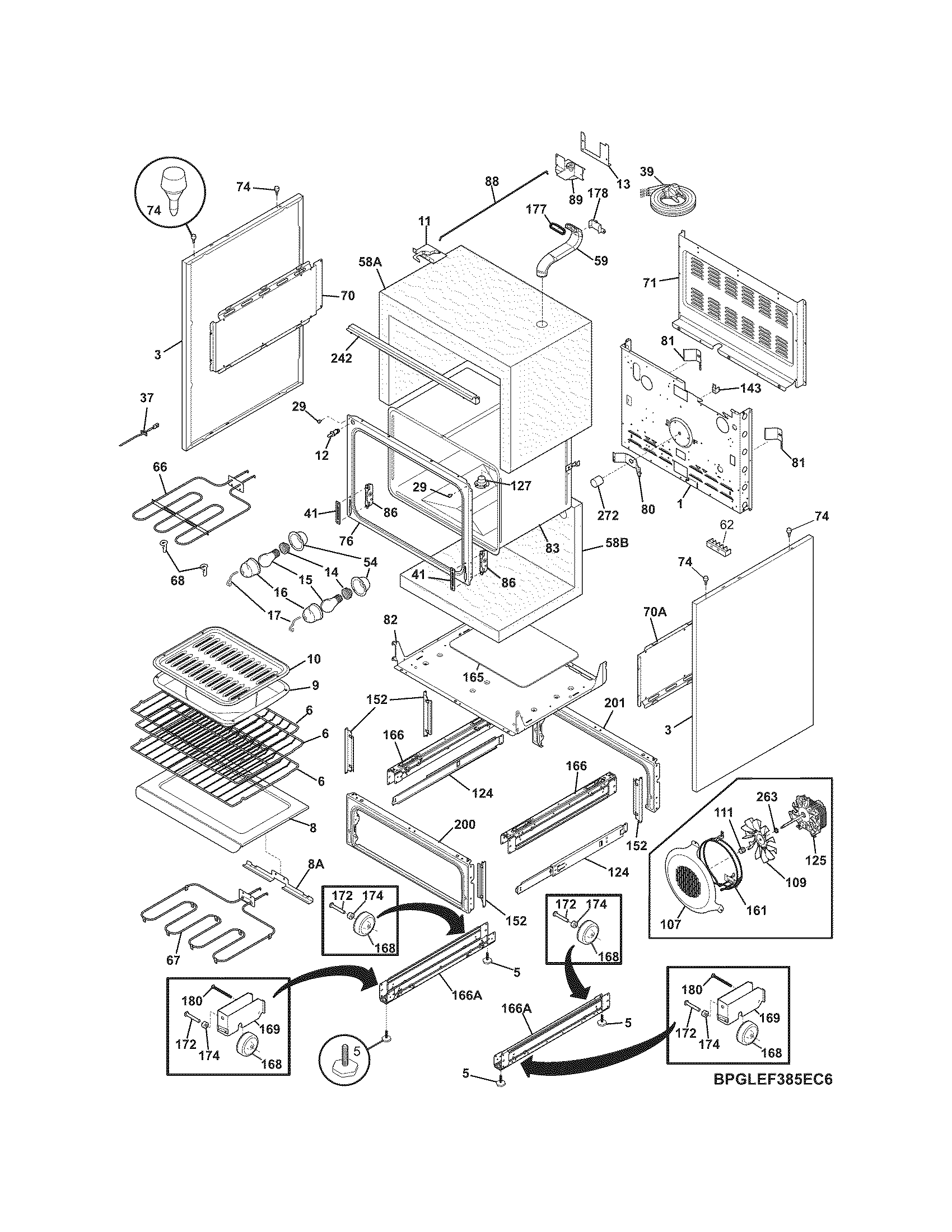

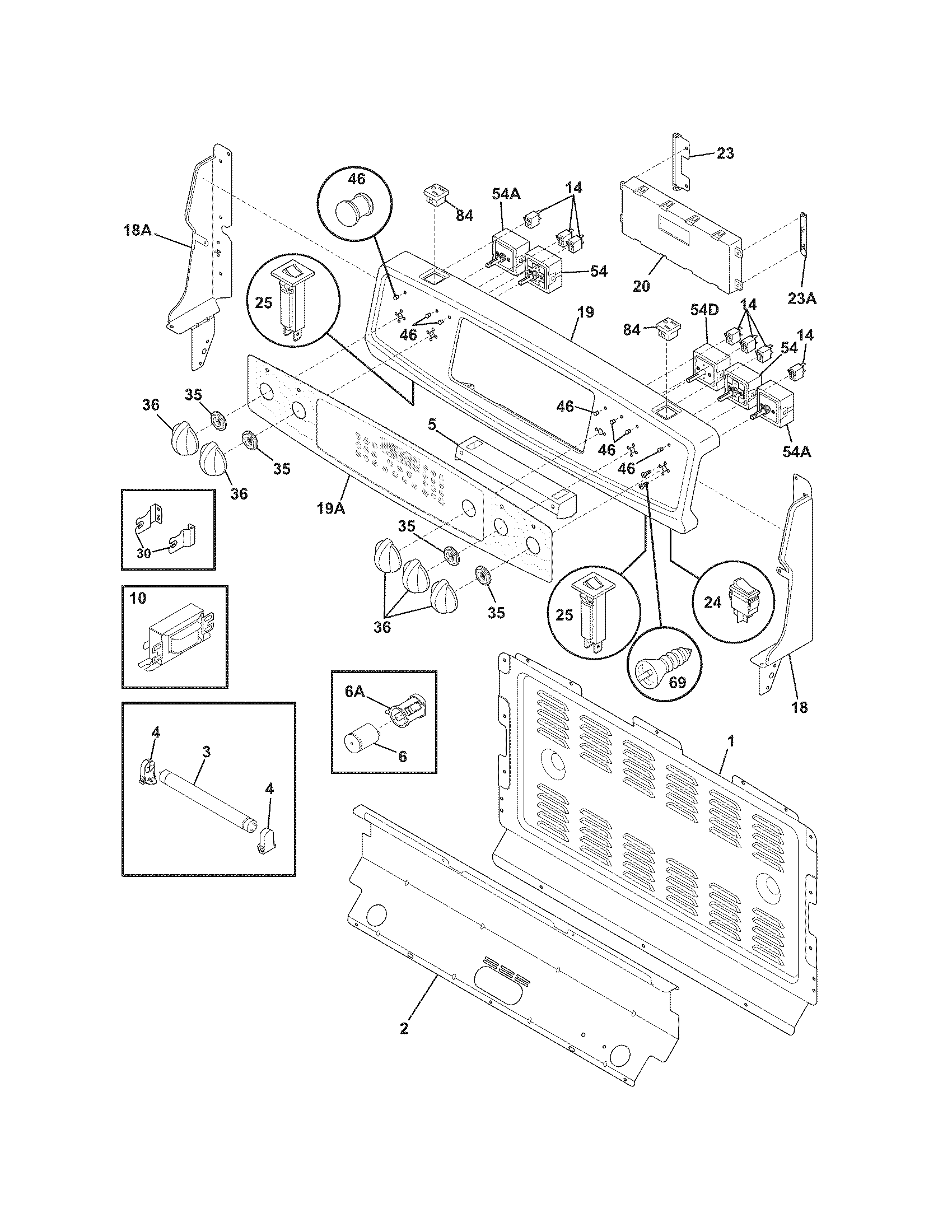

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Crosley Range Bake Element (replaces 318254909) 318254906
#67

Body diagram

Crosley range bake element (replaces 318254909)

Part #318254906

BEST SELLER
$150.18 |
7% OFF Phone Price : $162.18
In Stock
Range Dual Radiant Surface Element 316418401
#15A

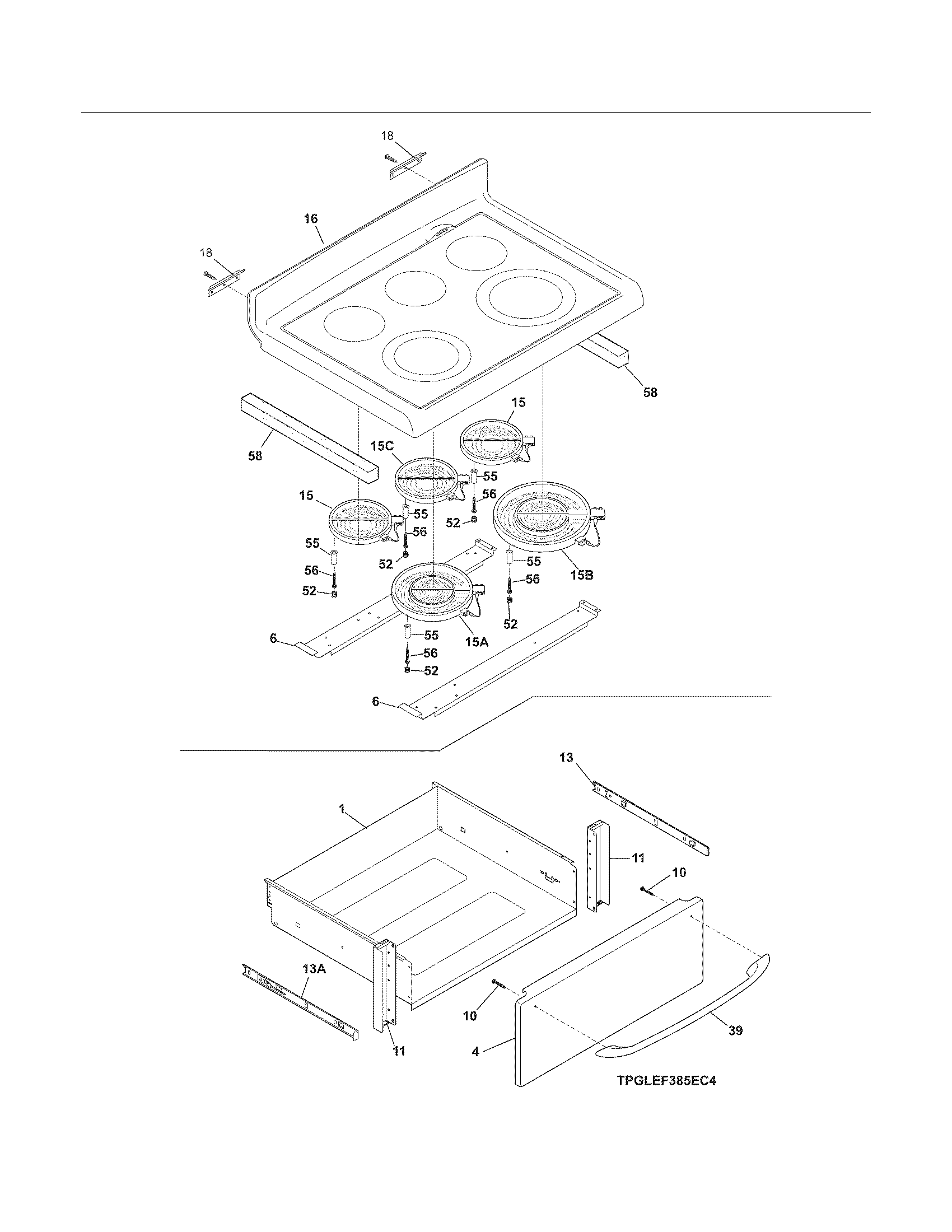

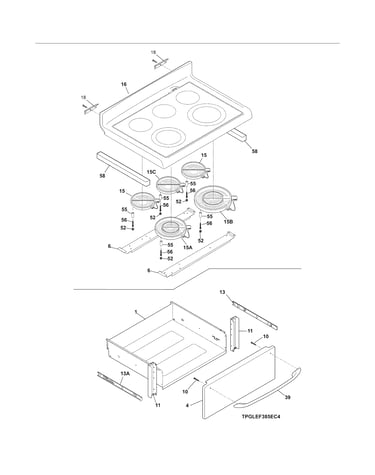

Top/drawer diagram

Range dual radiant surface element

Part #316418401

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418401. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Oven Door Inner Glass 316117500
#8

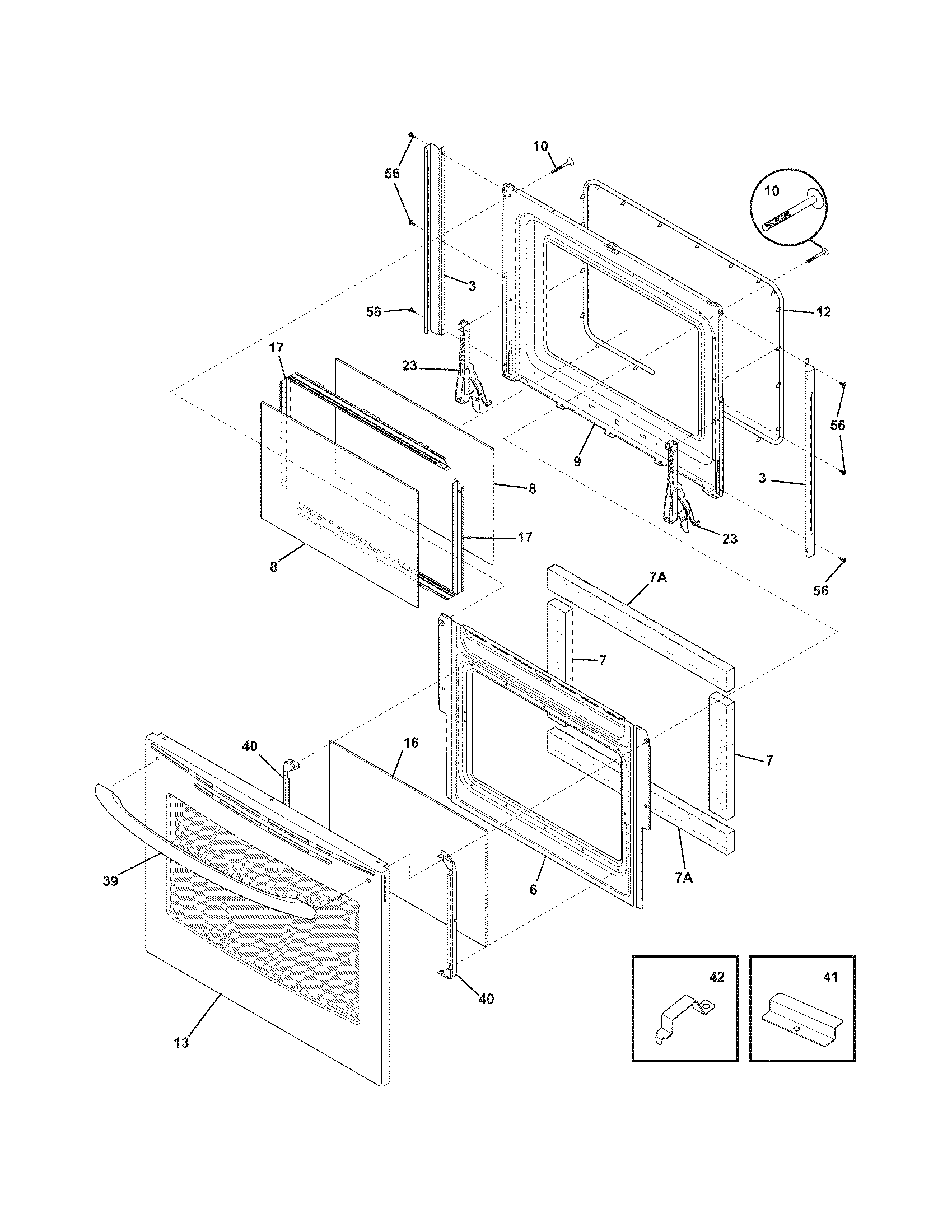

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

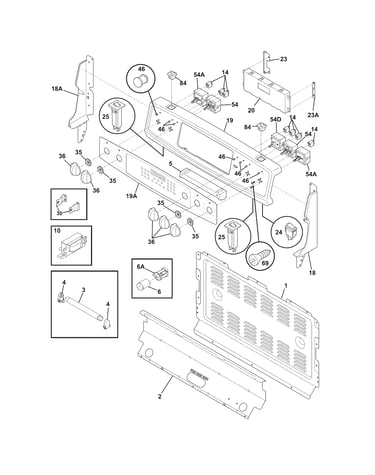

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Washer 316136500
#263

Body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Cooktop Element 318198934
#15B

Top/drawer diagram

Cooktop element

Part #318198934

Replaced by #316282100

?
Manufacturer substitution
This part replaces 318198934. Substitute parts can look different from the original.
BEST SELLER
$192.23 |
6% OFF Phone Price : $204.23
In Stock
Motor 318398200
#125

Body diagram

Motor

Part #318398200

Replaced by #5304467898

?
Manufacturer substitution
This part replaces 318398200. Substitute parts can look different from the original.
BEST SELLER
$124.11 |
9% OFF Phone Price : $136.11
In Stock
