Upright Freezer

Model # FMR3 Official Edina freezer

Here are the diagrams and repair parts for Official Edina FMR3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Filter Drier 216099900
#4

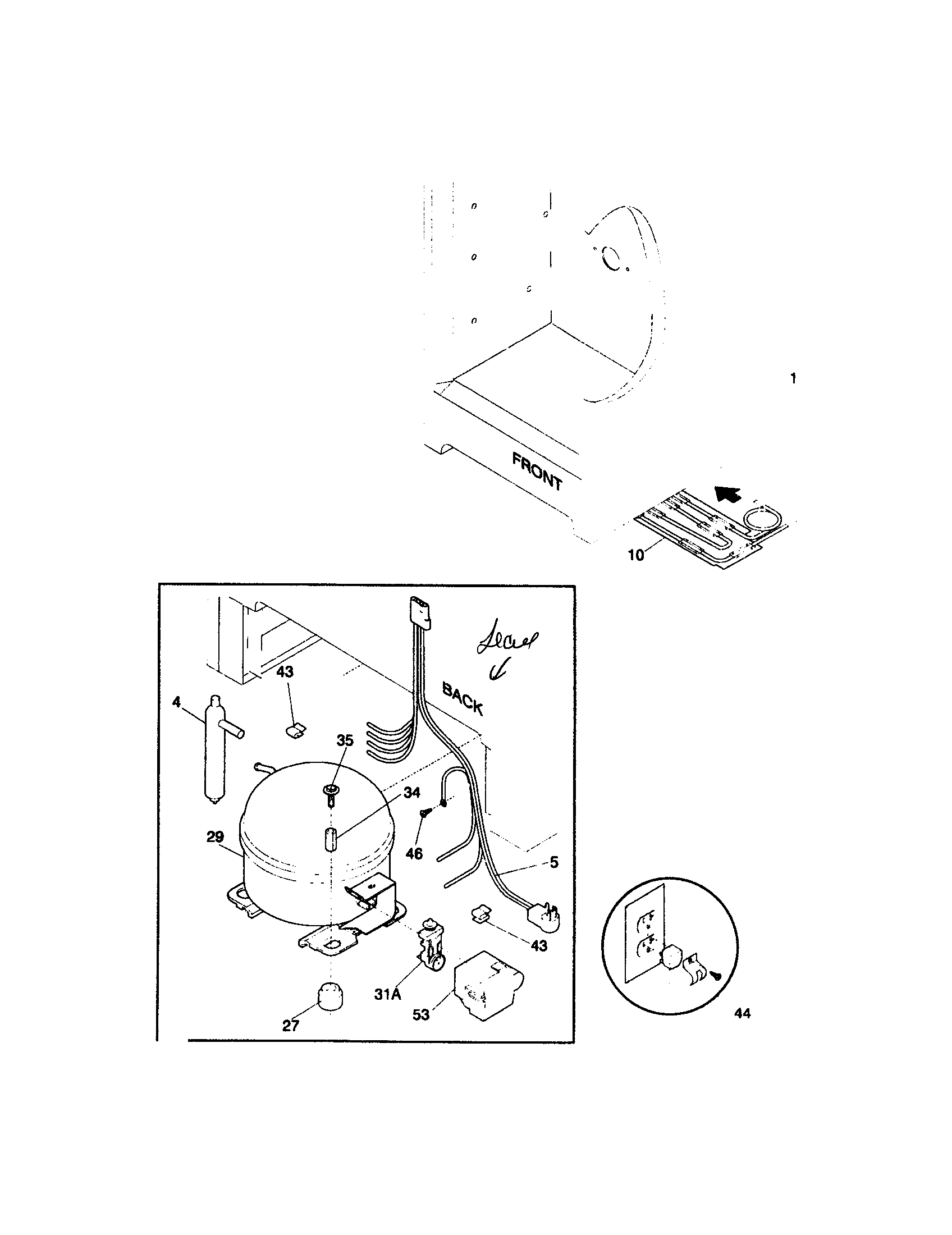

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Drain Hose Adapter 5308005500
#32

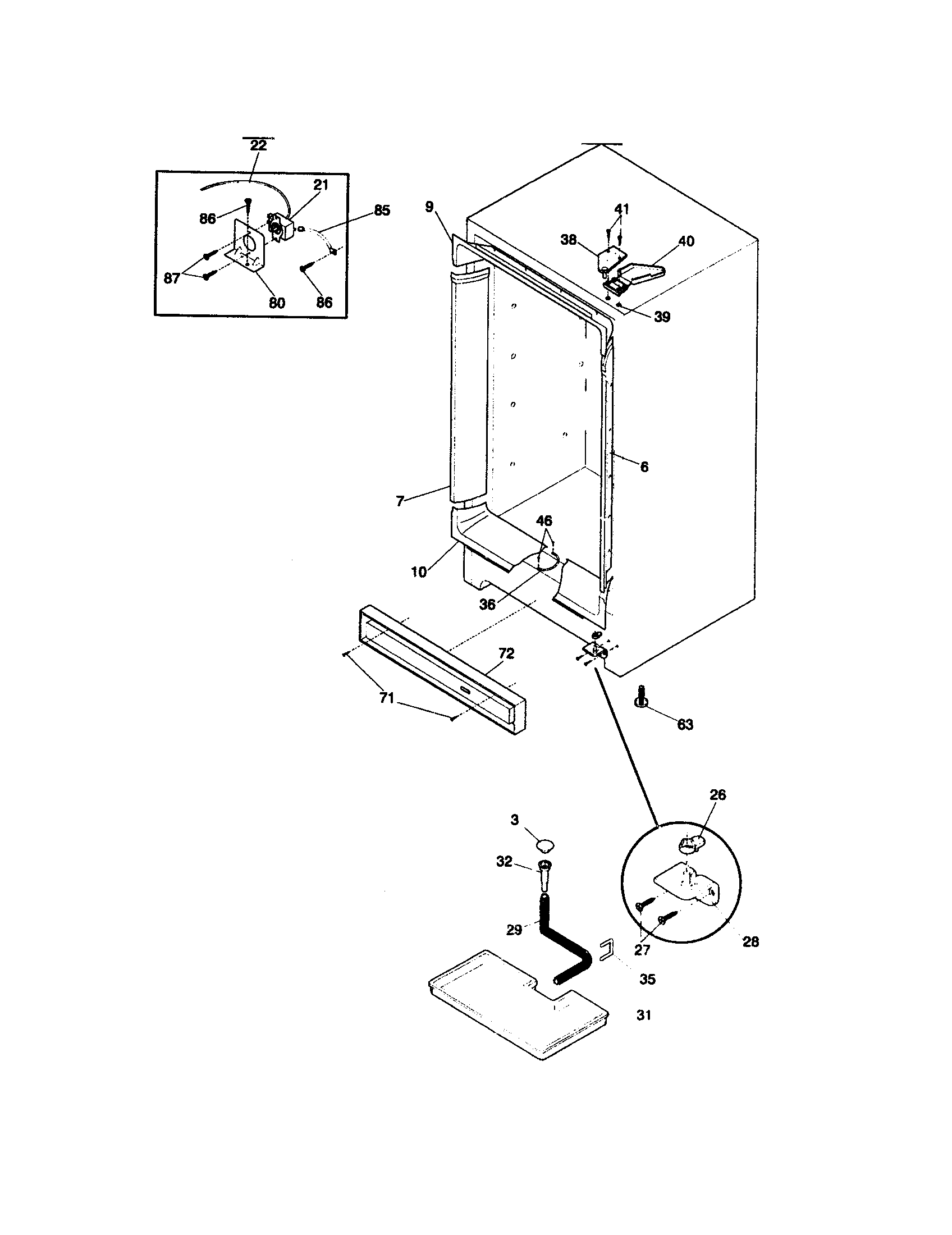

Cabinet diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

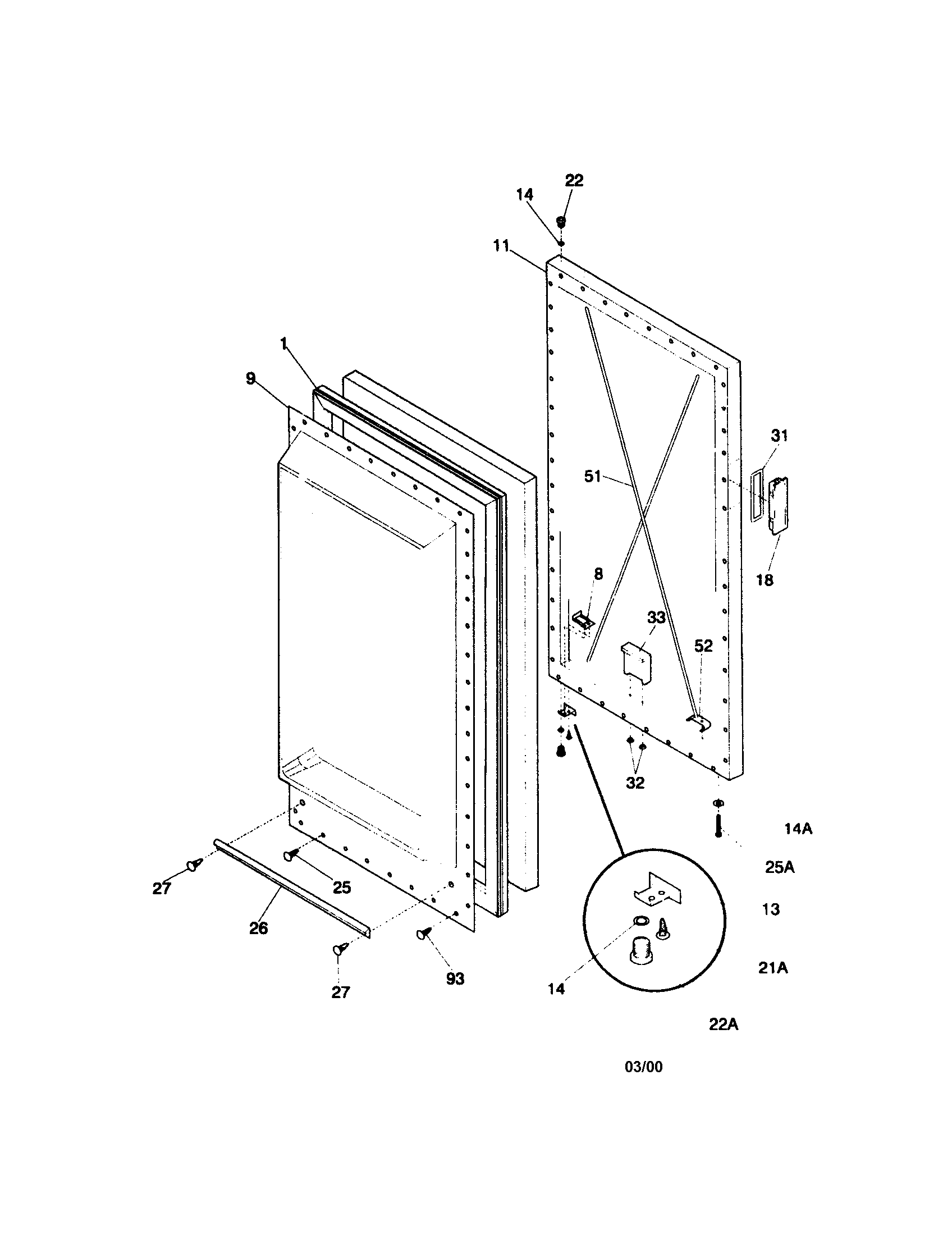

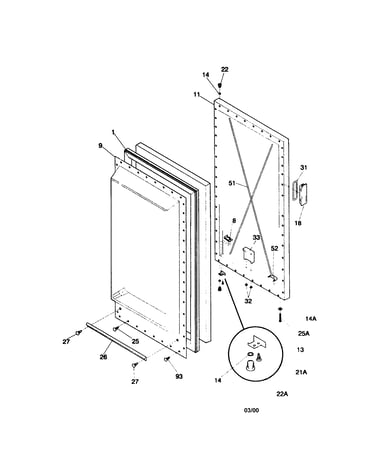

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Freezer Door Stop 08016354
#13

Door diagram

Freezer door stop

Part #08016354

$28.36
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22

Cabinet diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Strap 06594651
#36

Cabinet diagram

Strap

Part #06594651

This item is not returnable
$2.29
In Stock
Freezer Condenser Coil 5300123788
#1

System diagram

Freezer condenser coil

Part #5300123788

This item is not returnable
$449.87
In Stock
Refrigerator Evaporator Cover Screw 08037851
Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Refrigeration Appliance Screw, 1/4-20 X 1-in 5303205738
#27

Cabinet diagram

Refrigeration appliance screw, 1/4-20 x 1-in

Part #5303205738

Replaced by #154518001

?
Manufacturer substitution
This part replaces 5303205738. Substitute parts can look different from the original.
$10.40
In Stock
Screw (i 216036600
#86

Cabinet diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
