Model # KGCT365BBL2 Official KitchenAid 36" gas glass surface cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCT365BBL2 36" gas glass surface cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

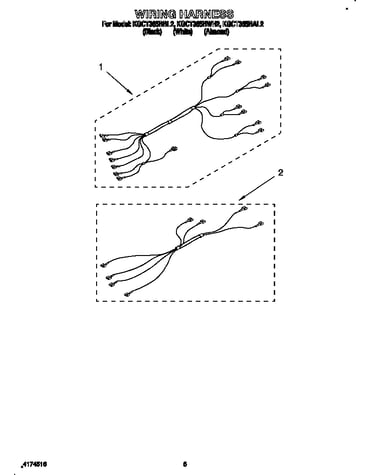

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Cooktop Burner Pad Grate Set (replaces 3186678, 814383) 814323
#12

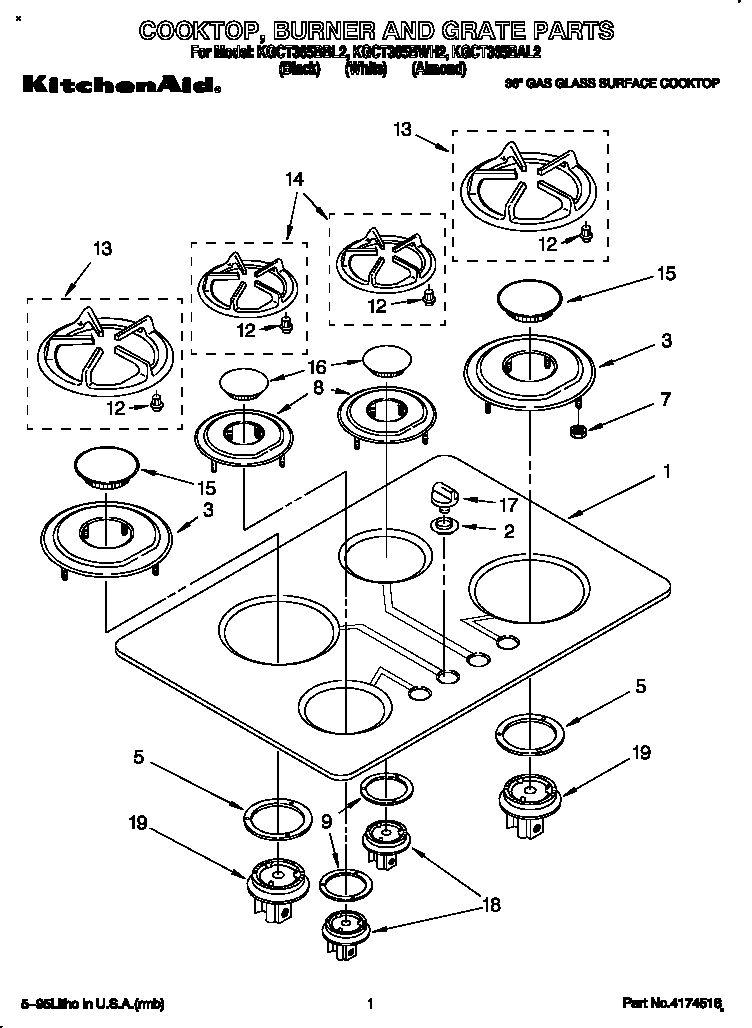

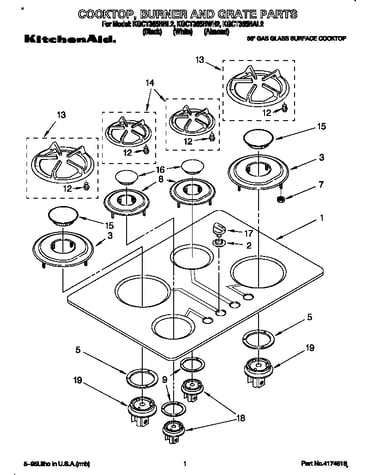

Cooktop, burner and grate diagram

Cooktop burner pad grate set (replaces 3186678, 814383)

Part #814323

BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Grommet-wh 3180081
#2A

Cooktop, burner and grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Range Surface Burner Igniter 3185804
#4

Sealed gas burner assembly diagram

Range surface burner igniter

Part #3185804

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 3185804. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Range Screw 3177991
#2A

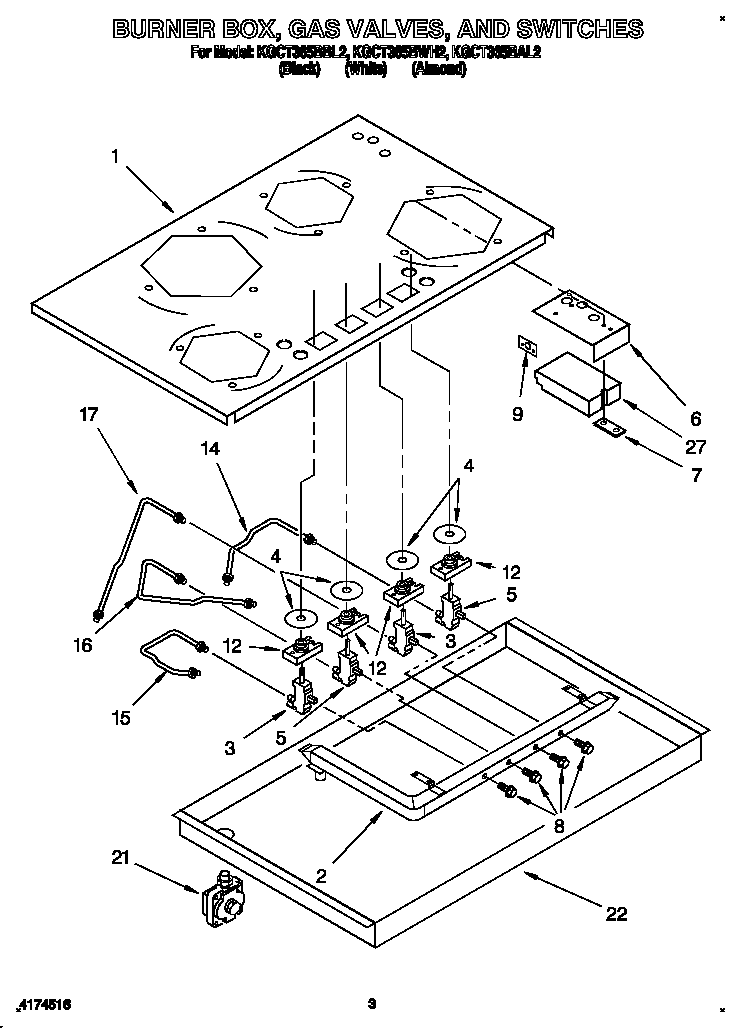

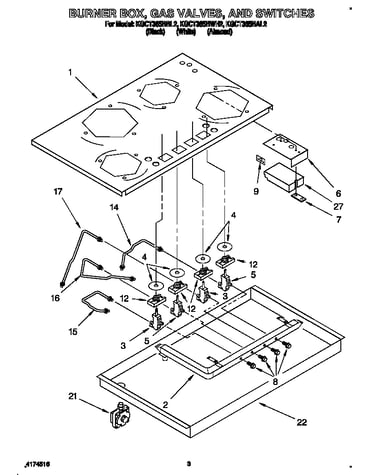

Burner box, gas valves, and switches diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Spark Module 3187409
#27

Burner box, gas valves, and switches diagram

Spark module

Part #3187409

Replaced by #WP4454392

?
Manufacturer substitution
This part replaces 3187409. Substitute parts can look different from the original.
$157.82 |
7% OFF Phone Price : $169.82
In Stock
Gasket Switch 3188425
#4

Burner box, gas valves, and switches diagram

Gasket switch

Part #3188425

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3188425. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Burner Control Knob 3182568
#17A

Cooktop, burner and grate diagram

Range burner control knob

Part #3182568

Replaced by #WP3182568

?
Manufacturer substitution
This part replaces 3182568. Substitute parts can look different from the original.
This item is not returnable
$22.35 |
21% OFF Phone Price : $28.35
In Stock
Range Burner Control Knob 3182569
#17C

Cooktop, burner and grate diagram

Range burner control knob

Part #3182569

Replaced by #WP3182569

?
Manufacturer substitution
This part replaces 3182569. Substitute parts can look different from the original.
This item is not returnable
$23.48 |
20% OFF Phone Price : $29.48
In Stock
Bushing 4173634

#NI

All parts diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Cable Tie 309330

#NI

All parts diagram

Cable tie

Part #309330

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 309330. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
