Gas Water Heater

Model # PR650CCVIT Official State water heater

Here are the diagrams and repair parts for Official State PR650CCVIT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
State Burner Tube 184049-1
#14

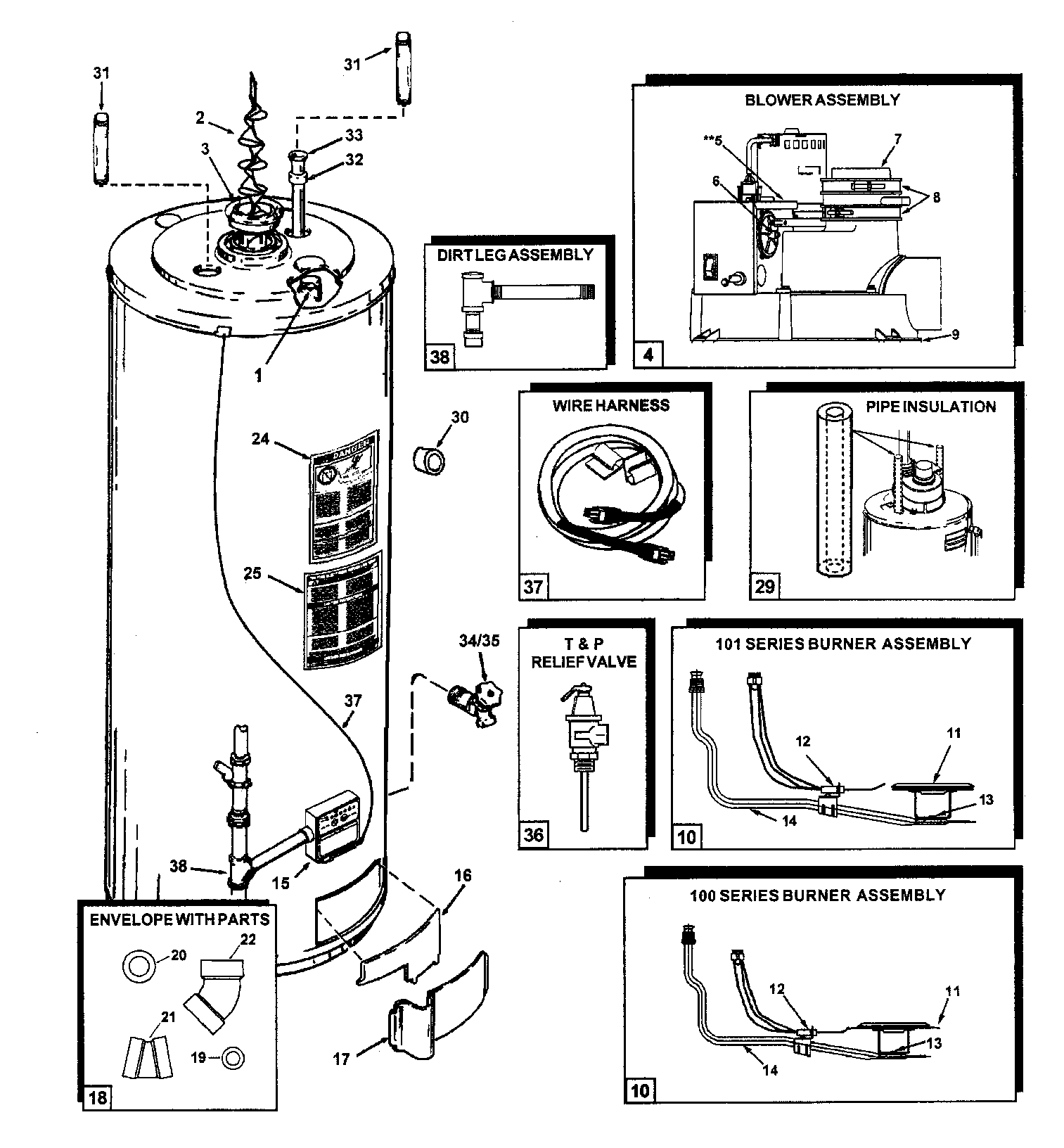

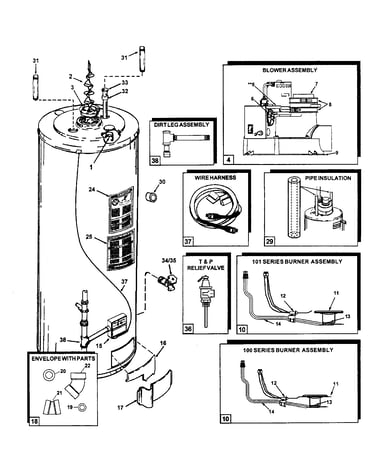

Water heater diagram

State burner tube

Part #184049-1

This item is not returnable
$2.16
In Stock
Ignitor,pg 185148-000
#12

Water heater diagram

Ignitor,pg

Part #185148-000

Replaced by #100109355

?
Manufacturer substitution
This part replaces 185148-000. Substitute parts can look different from the original.
$160.00
In Stock
Switch 185110-000
#6

Water heater diagram

Switch

Part #185110-000

Replaced by #100111732

?
Manufacturer substitution
This part replaces 185110-000. Substitute parts can look different from the original.
$88.89
In Stock
Label 183765
#NI

Water heater diagram

Label

Part #183765

Replaced by #183765-000

?
Manufacturer substitution
This part replaces 183765. Substitute parts can look different from the original.
$8.49
In Stock
Wire Harness 183506-1
#37

Water heater diagram

Wire harness

Part #183506-1

The manufacturer no longer makes this part, and there's no substitute part

Adapter,ex 185215-000
#7

Water heater diagram

Adapter,ex

Part #185215-000

The manufacturer no longer makes this part, and there's no substitute part

Orifice Burner Pg 181791-48
#13

Water heater diagram

Orifice burner pg

Part #181791-48

The manufacturer no longer makes this part, and there's no substitute part

Label 183301
#24

Water heater diagram

Label

Part #183301

The manufacturer no longer makes this part, and there's no substitute part

Valve,t&p Relief 76527-3
#36

Water heater diagram

Valve,t&p relief

Part #76527-3

The manufacturer no longer makes this part, and there's no substitute part

Insulation Kit 183256-000
#30

Water heater diagram

Insulation kit

Part #183256-000

The manufacturer no longer makes this part, and there's no substitute part
