Craftsman
Garage Door Opener

Model # 139650500 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139650500 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Nut 203A16
#34

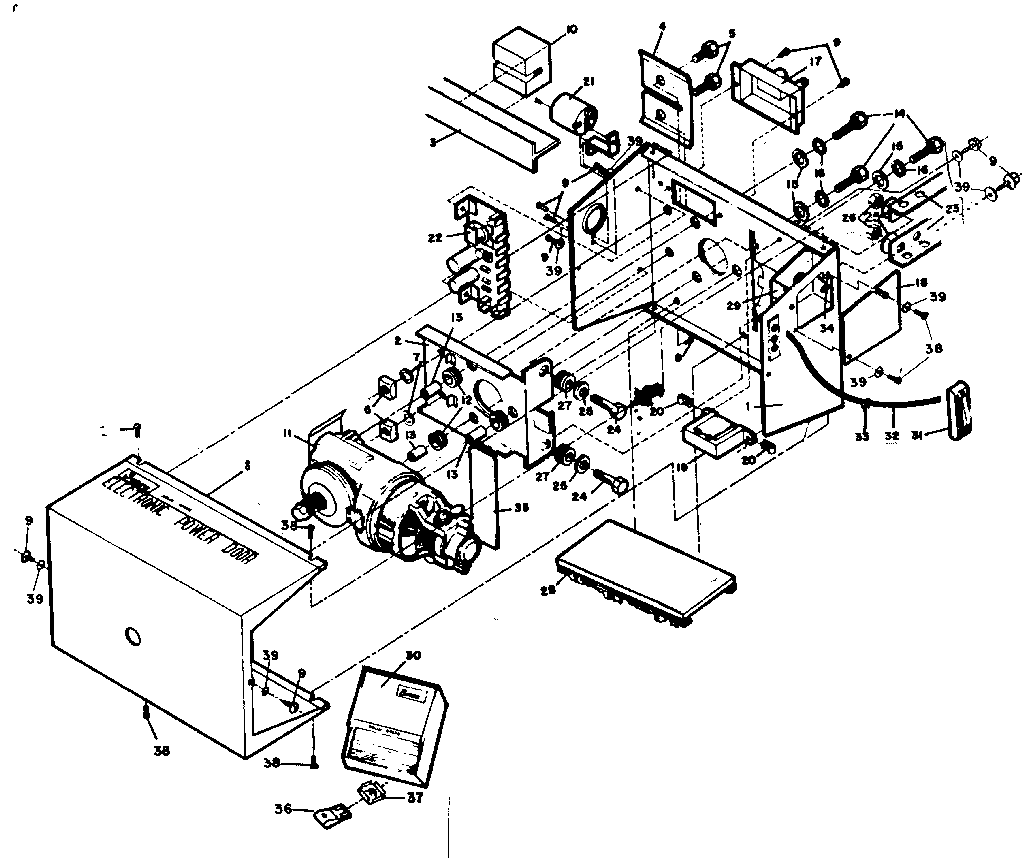

Chassis assembly diagram

Nut

Part #203A16

The manufacturer no longer makes this part, and there's no substitute part

Transmitter 1A548
#55

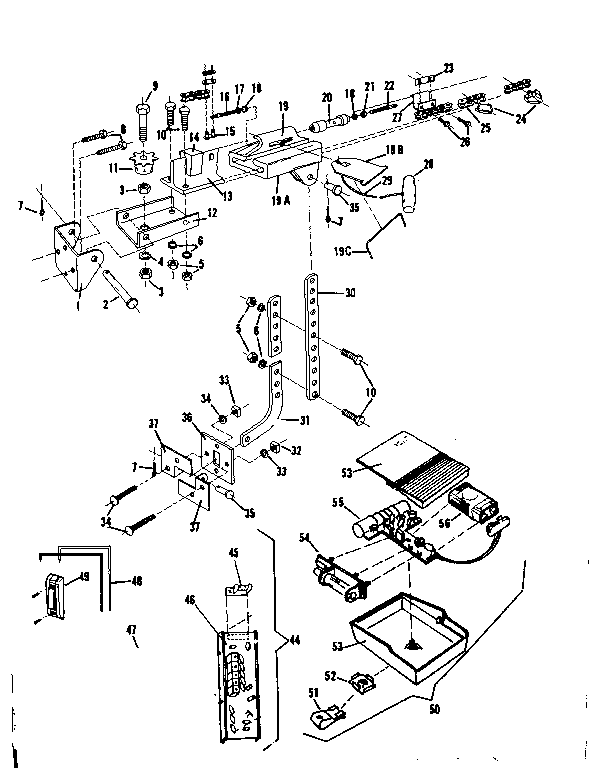

Rail assembly and radio controls diagram

Transmitter

Part #1A548

The manufacturer no longer makes this part, and there's no substitute part

Channel Sele 1A12
#45

Rail assembly and radio controls diagram

Channel sele

Part #1A12

The manufacturer no longer makes this part, and there's no substitute part

Transmitter G-3213
Transmitter

Part #G-3213

The manufacturer no longer makes this part, and there's no substitute part

Chnnl Select 1A13
#54

Rail assembly and radio controls diagram

Chnnl select

Part #1A13

The manufacturer no longer makes this part, and there's no substitute part

Hardware Pkg 1A725

#NI

All parts diagram

Hardware pkg

Part #1A725

The manufacturer no longer makes this part, and there's no substitute part

Motor Sub As 123D10
#1

Motor drive assembly diagram

Motor sub as

Part #123D10

The manufacturer no longer makes this part, and there's no substitute part

Spring Clutc 177A51
#17

Motor drive assembly diagram

Spring clutc

Part #177A51

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A168
#26

Rail assembly and radio controls diagram

Screw

Part #171A168

The manufacturer no longer makes this part, and there's no substitute part

Worm 4A66
#3

Motor drive assembly diagram

Worm

Part #4A66

The manufacturer no longer makes this part, and there's no substitute part
