Model # 75874093 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 75874093 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Humidifier Drive Belt 24532
#17

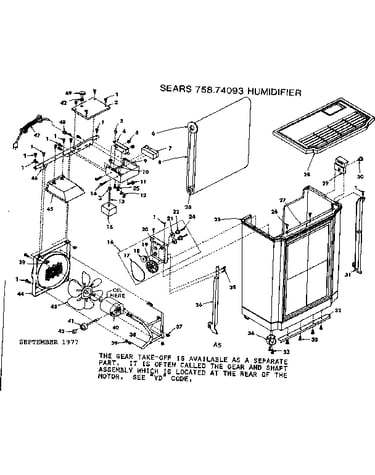

Functional replacement parts diagram

Humidifier drive belt

Part #24532

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Pad 34-7269
#8

Functional replacement parts diagram

Evaporator pad

Part #34-7269

The manufacturer no longer makes this part, and there's no substitute part

Support 24312-01
#38

Functional replacement parts diagram

Support

Part #24312-01

The manufacturer no longer makes this part, and there's no substitute part

Drive Box 24771
#20

Functional replacement parts diagram

Drive box

Part #24771

The manufacturer no longer makes this part, and there's no substitute part

Shaft 24318
#41

Functional replacement parts diagram

Shaft

Part #24318

The manufacturer no longer makes this part, and there's no substitute part

Screw STD600603
#26

Functional replacement parts diagram

Screw

Part #STD600603

The manufacturer no longer makes this part, and there's no substitute part

Roller 25262
#23

Functional replacement parts diagram

Roller

Part #25262

The manufacturer no longer makes this part, and there's no substitute part

Washer 25250
#42

Functional replacement parts diagram

Washer

Part #25250

The manufacturer no longer makes this part, and there's no substitute part

Bracket 19249
#29

Functional replacement parts diagram

Bracket

Part #19249

The manufacturer no longer makes this part, and there's no substitute part

Bushing 13802
#48

Functional replacement parts diagram

Bushing

Part #13802

The manufacturer no longer makes this part, and there's no substitute part
