Electric Range

Model # 79094853300 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79094853300 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

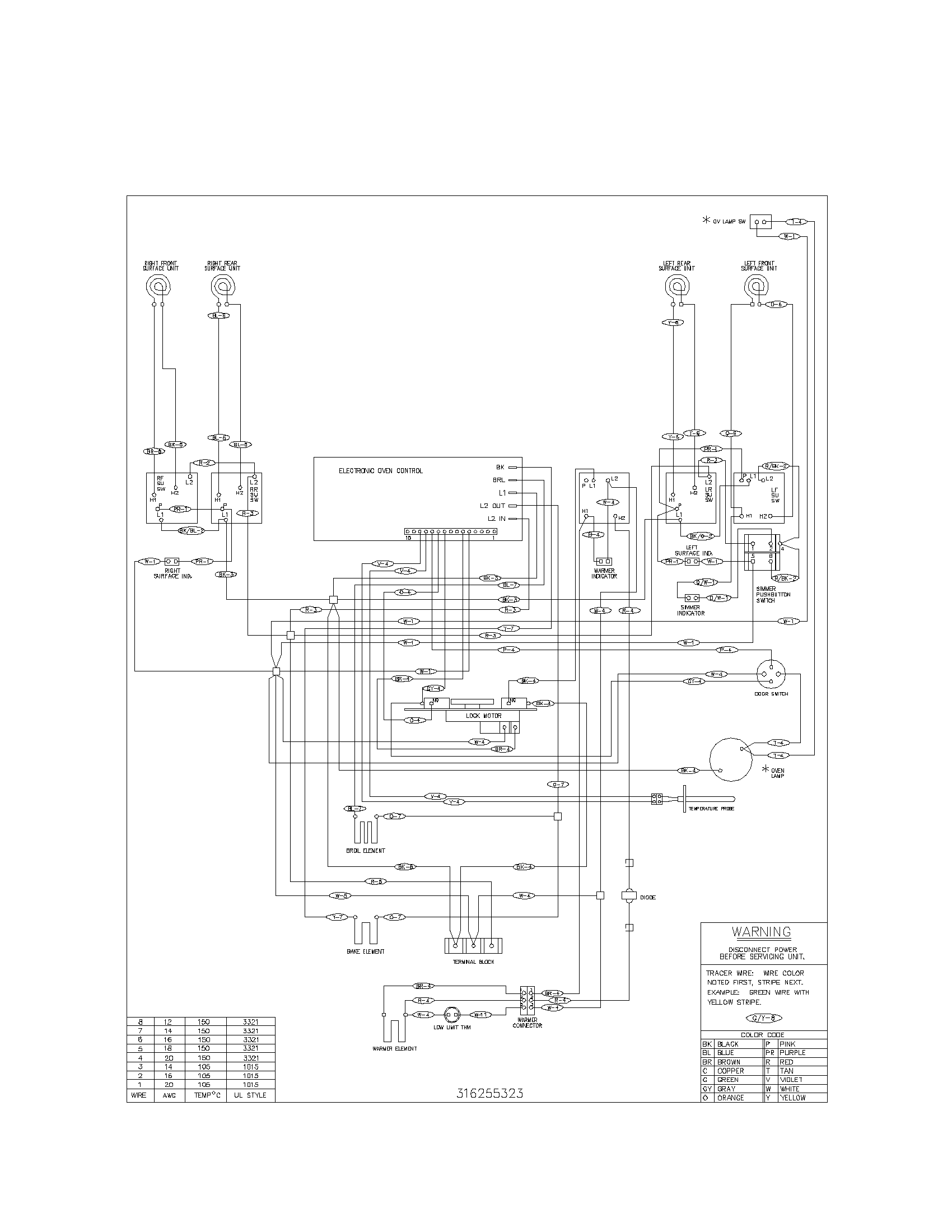

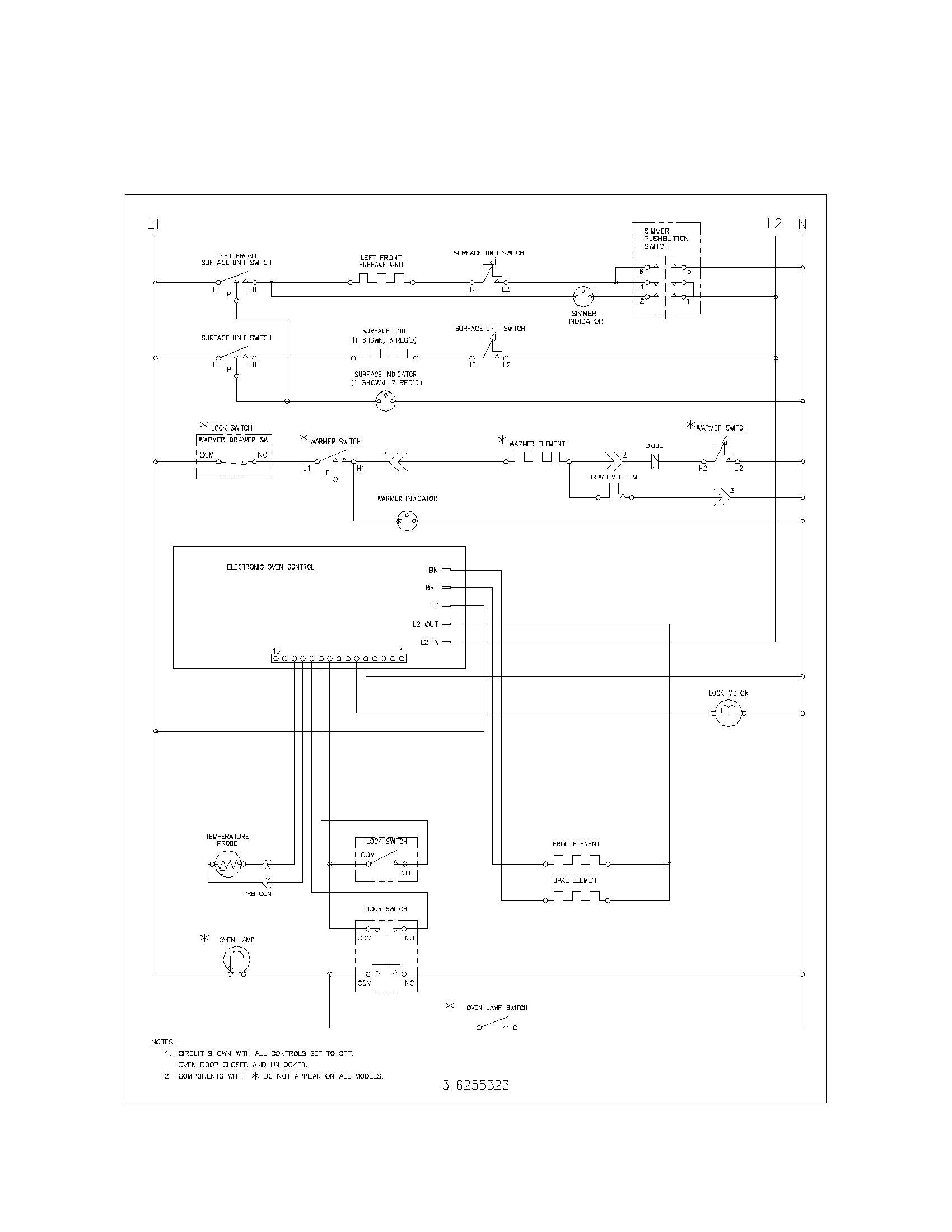

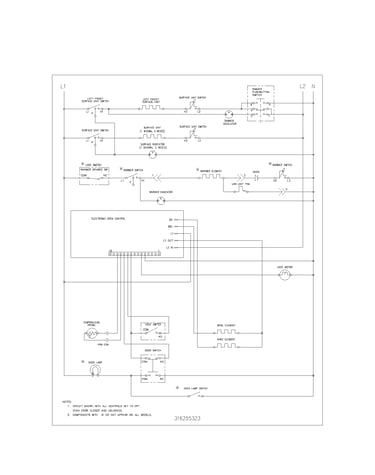

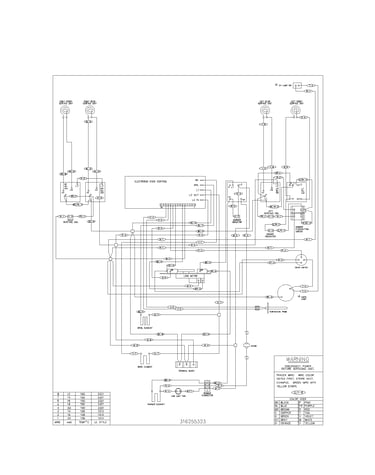

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79094853300 Ranges
Range Surface Element Control Switch 316021501
#54A

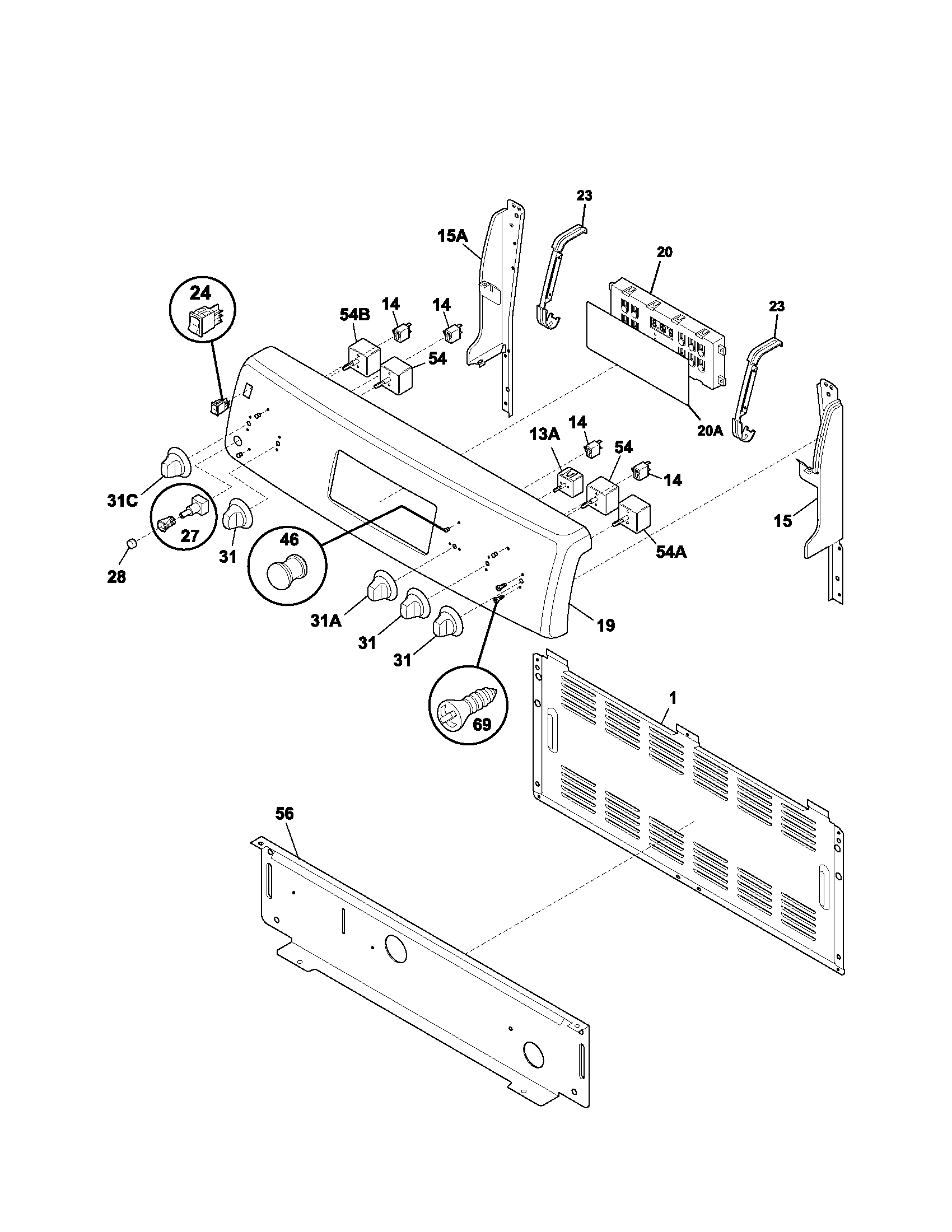

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
4.55 (113)
BEST SELLER
$34.18 |
15% OFF Phone Price : $40.18
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
4.1 (30)
BEST SELLER
$51.03 |
11% OFF Phone Price : $57.03
In Stock
Range Surface Element, 8-in 5303012223
#15

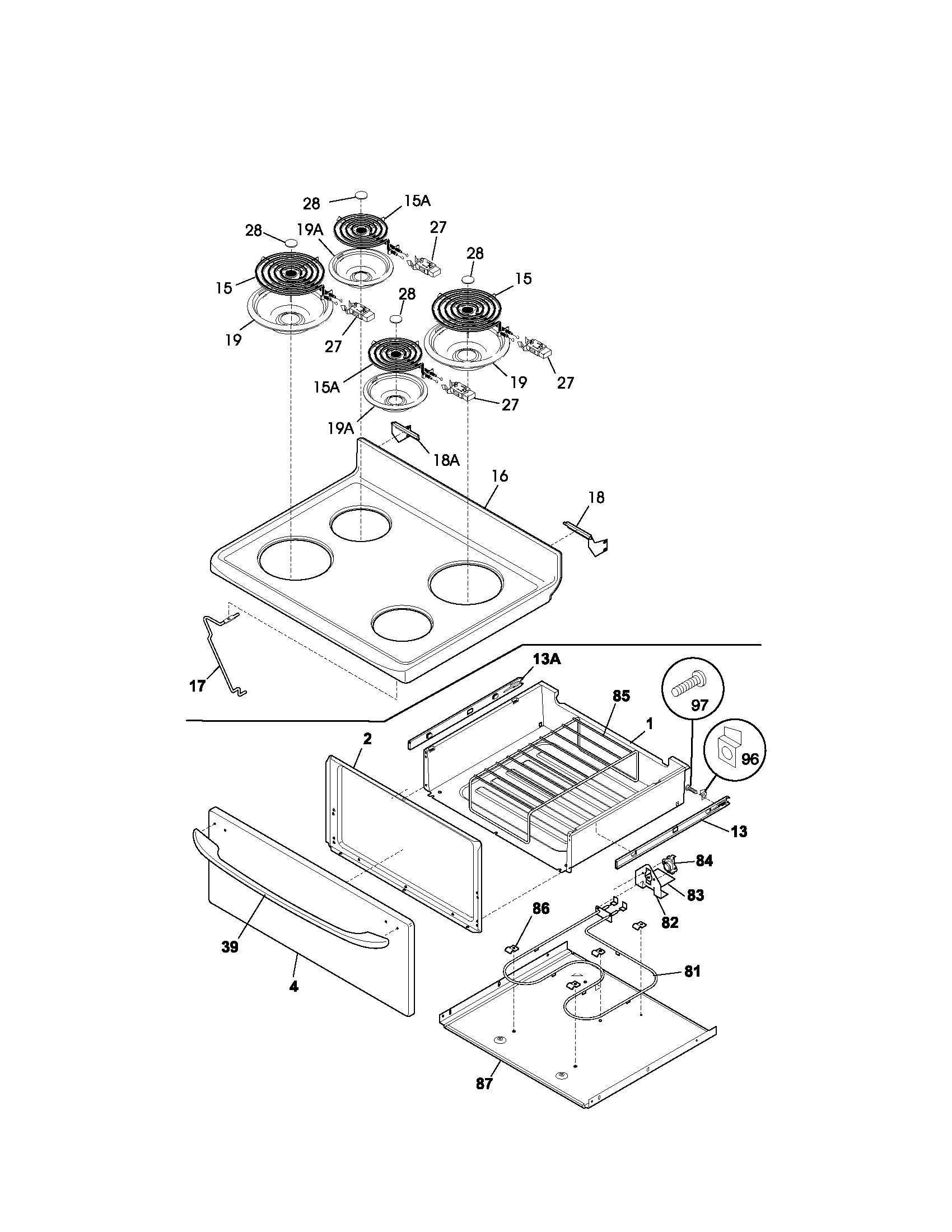

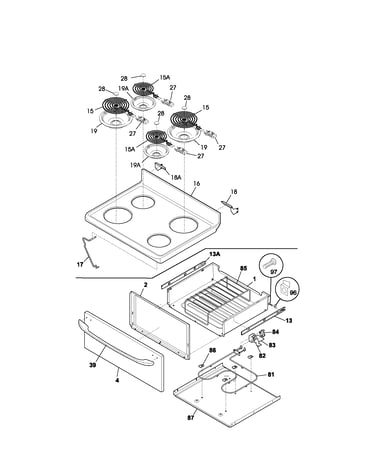

Top/drawer diagram

Range surface element, 8-in

Part #5303012223

Replaced by #316442301

?
Manufacturer substitution
This part replaces 5303012223. Substitute parts can look different from the original.
4.4 (63)
BEST SELLER
$22.92 |
21% OFF Phone Price : $28.92
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Block 5303912666
#27

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
3.91 (23)
BEST SELLER
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Frigidaire Range Broil Element (replaces 316200600) 316203301
#66

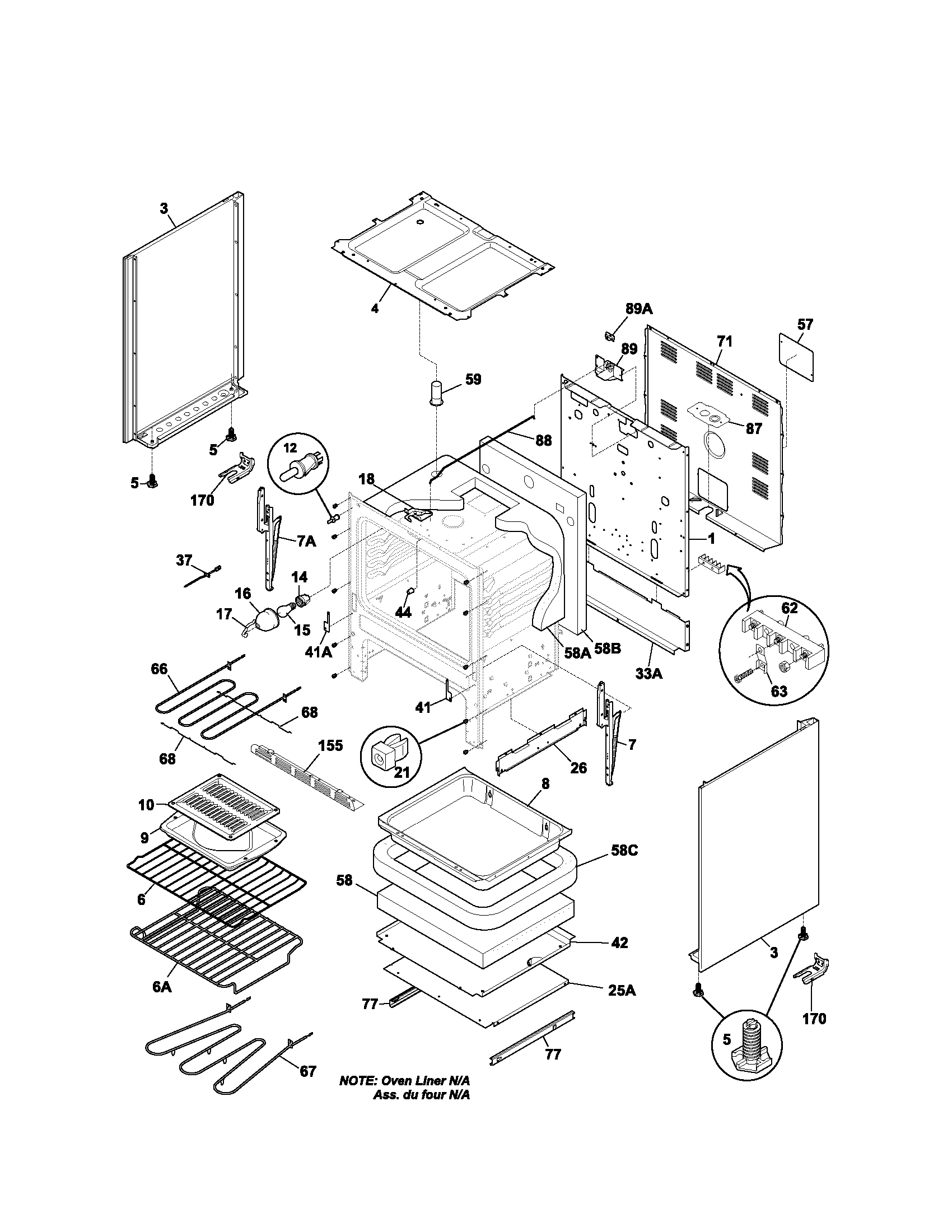

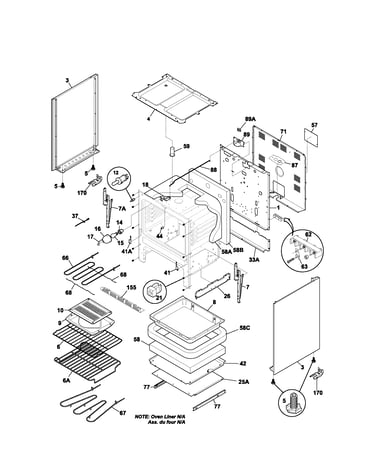

Body diagram

Frigidaire range broil element (replaces 316200600)

Part #316203301

4.4 (25)
BEST SELLER
$124.31 |
9% OFF Phone Price : $136.31
In Stock
Range Oven Door Inner Glass 316237100
#8

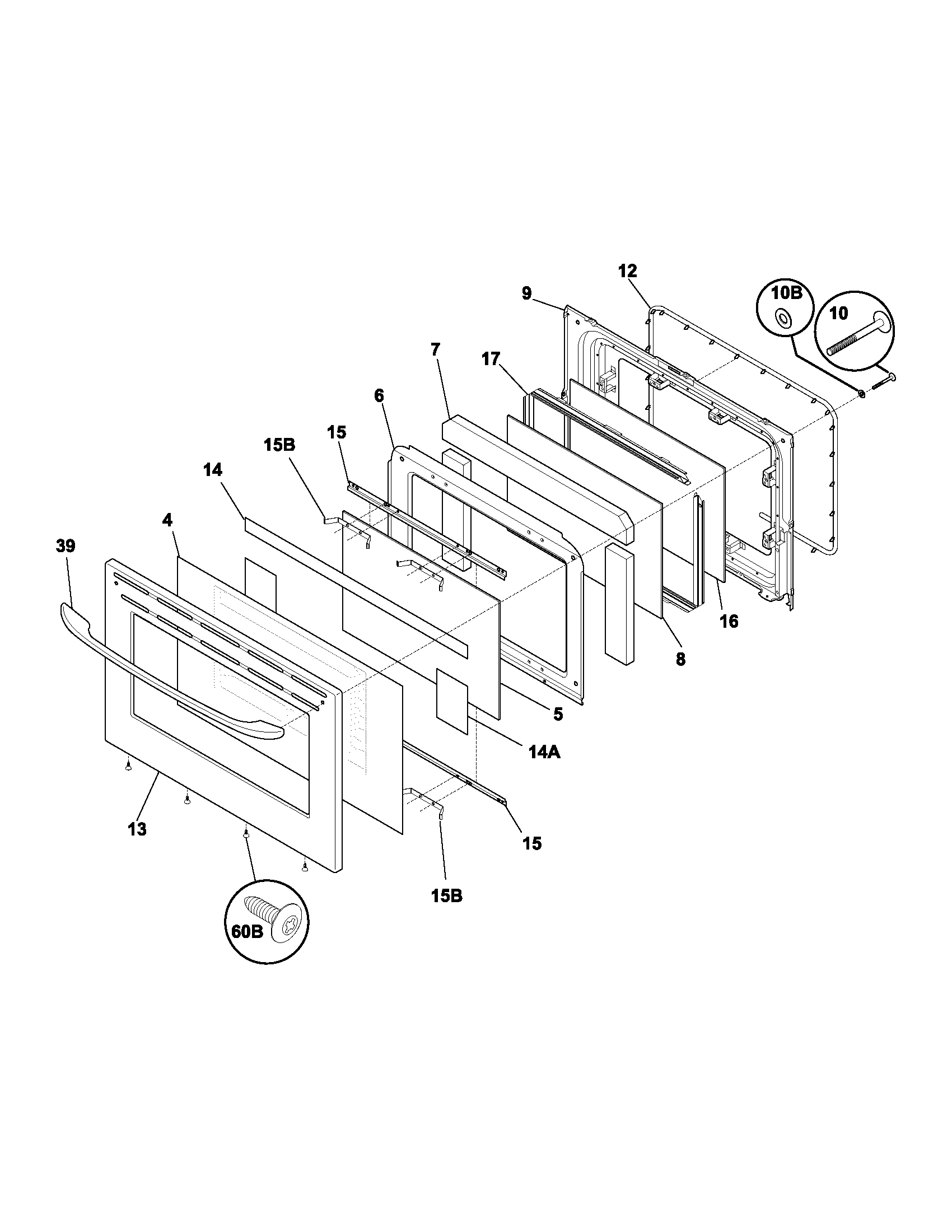

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Range Oven Door Inner Glass 316117500
#16

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Cooktop Surface Element 08067762
#15A

Top/drawer diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
4.52 (29)
BEST SELLER
$40.41 |
13% OFF Phone Price : $46.41
In Stock
Range Drip Pan 5303935053
#19

Top/drawer diagram

Range drip pan

Part #5303935053

Replaced by #A316222301

?
Manufacturer substitution
This part replaces 5303935053. Substitute parts can look different from the original.
4.27 (15)
BEST SELLER
$12.80 |
14% OFF Phone Price : $14.80
In Stock
