Model # FFUF2021AW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFUF2021AW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

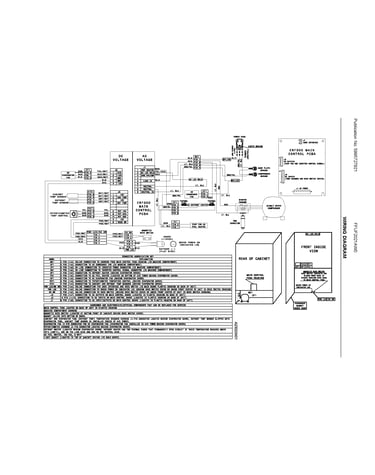

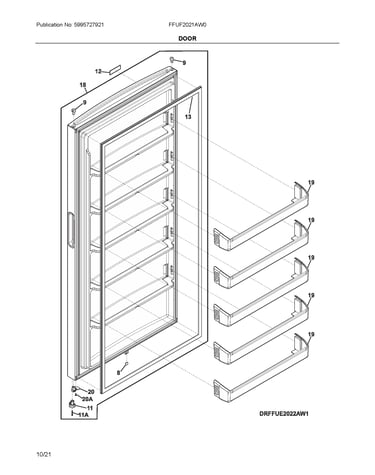

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 75 parts |

#10

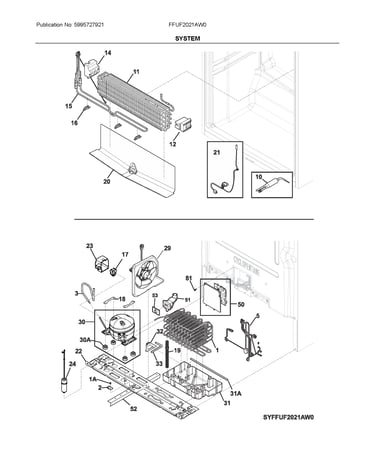

System diagram

Refrigerator filter dryer

Part #A19676501

$81.09

In Stock

Qty

#30

System diagram

S/a pur compressor esx55cbt

Part #5304529496

Replaced by #5304532451

$193.64

In Stock

Qty

#15

System diagram

Freezer defrost heater

Part #5304523833

$74.06 |

7% OFF Phone Price : $80.06

In Stock

Qty

Freezer defrost bi-metal thermostat and wire harness assembly (replaces 5304521790)

Part #5304523788

$37.99 |

14% OFF Phone Price : $43.99

In Stock

Qty

Refrigerator Run Capacitor (replaces 5304522105) 5304528894

#24

System diagram

Refrigerator run capacitor (replaces 5304522105)

Part #5304528894

$34.04

In Stock

Qty

Refrigerator Compressor Start Relay 5304529507

#17

System diagram

Refrigerator compressor start relay

Part #5304529507

$41.47 |

13% OFF Phone Price : $47.47

In Stock

Qty

Frigidaire Freezer Sliding Shelf (replaces 5304523692) 5304525223

#42

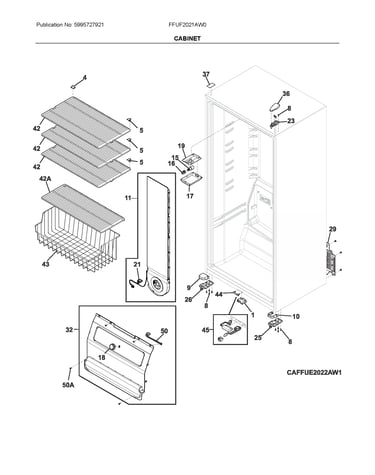

Cabinet diagram

Frigidaire freezer sliding shelf (replaces 5304523692)

Part #5304525223

$60.96 |

9% OFF Phone Price : $66.96

In Stock

Qty

#15

Cabinet diagram

Refrigerator light bulb

Part #5304522314

$32.22 |

16% OFF Phone Price : $38.22

In Stock

Qty

Air Tower,assembly ,complete ,w/motor-heater 5304531494

#11

Cabinet diagram

Air tower,assembly ,complete ,w/motor-heater

Part #5304531494

Replaced by #5303918891

$108.08

In Stock

Qty

#11

System diagram

Coil

Part #5304523830

$115.46

In Stock

Qty
