Haban
Gas Snowblower

Model # 9-24575 Official Haban snow thrower

Here are the diagrams and repair parts for Official Haban 9-24575 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

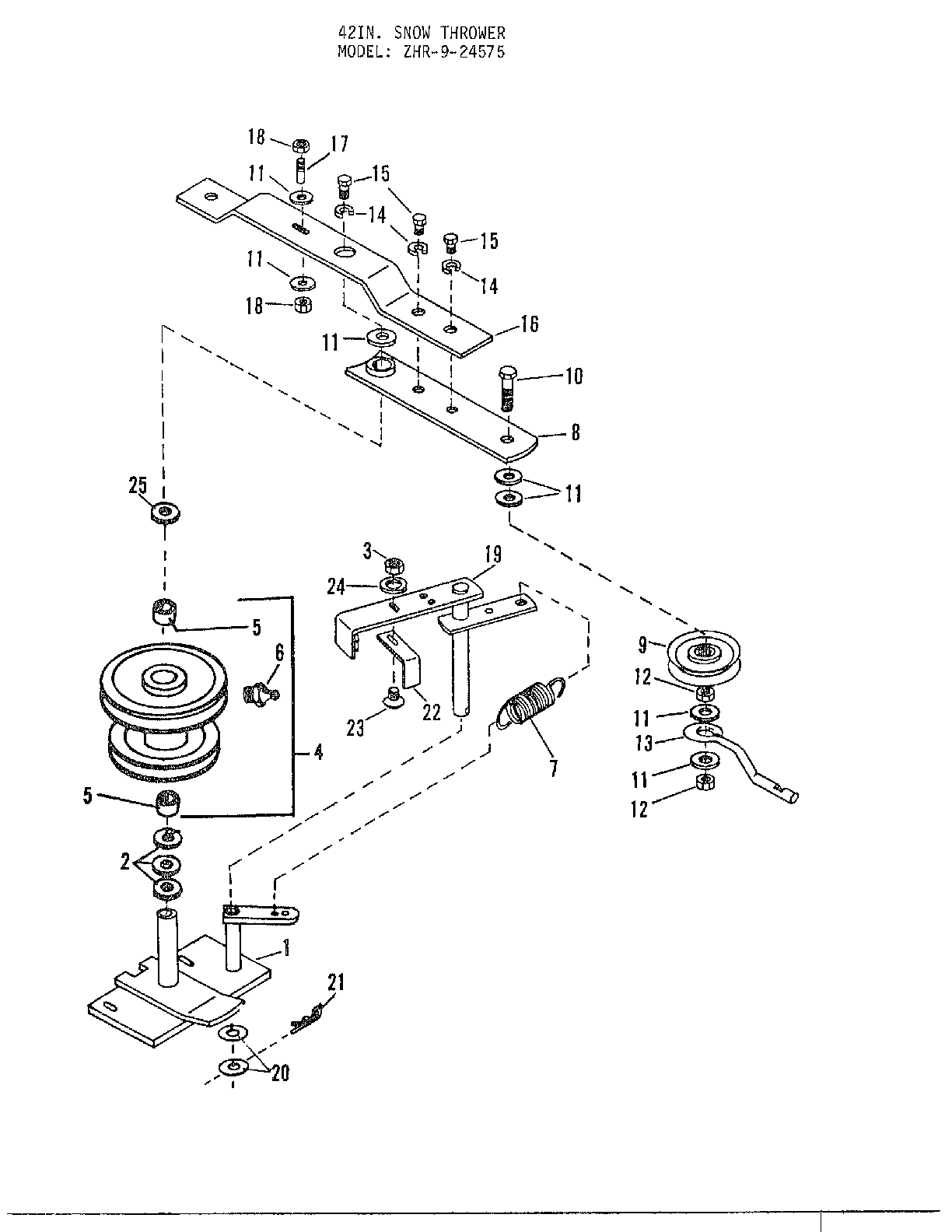

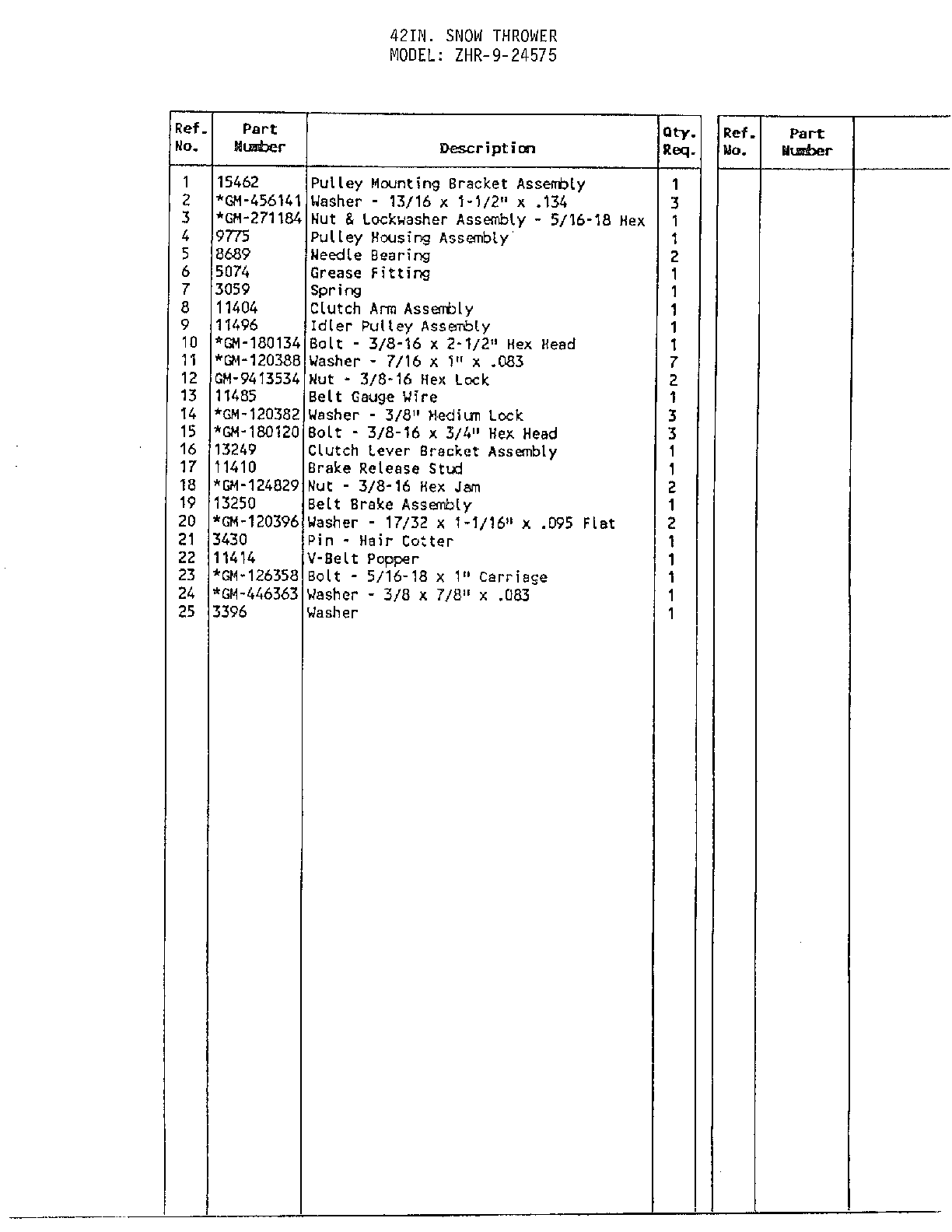

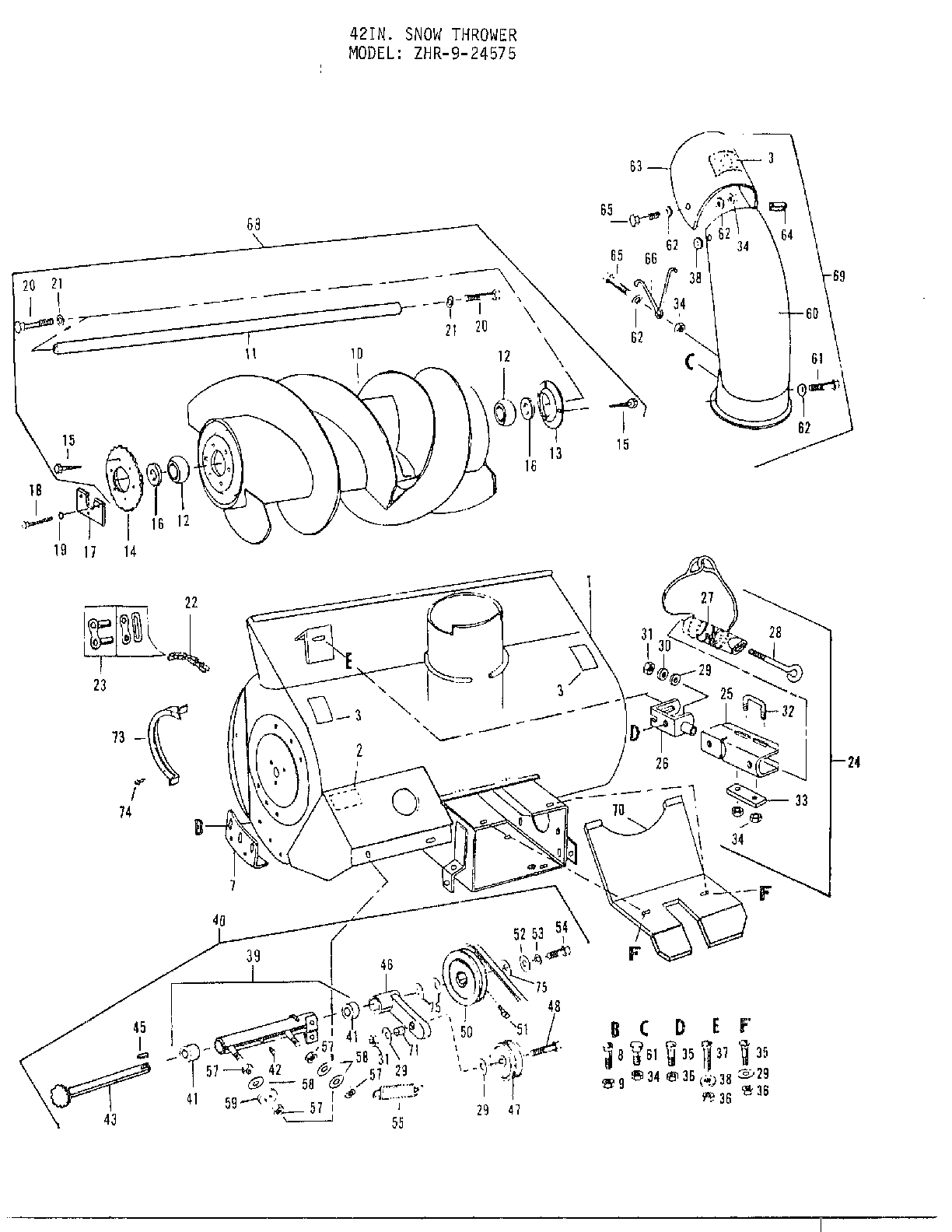

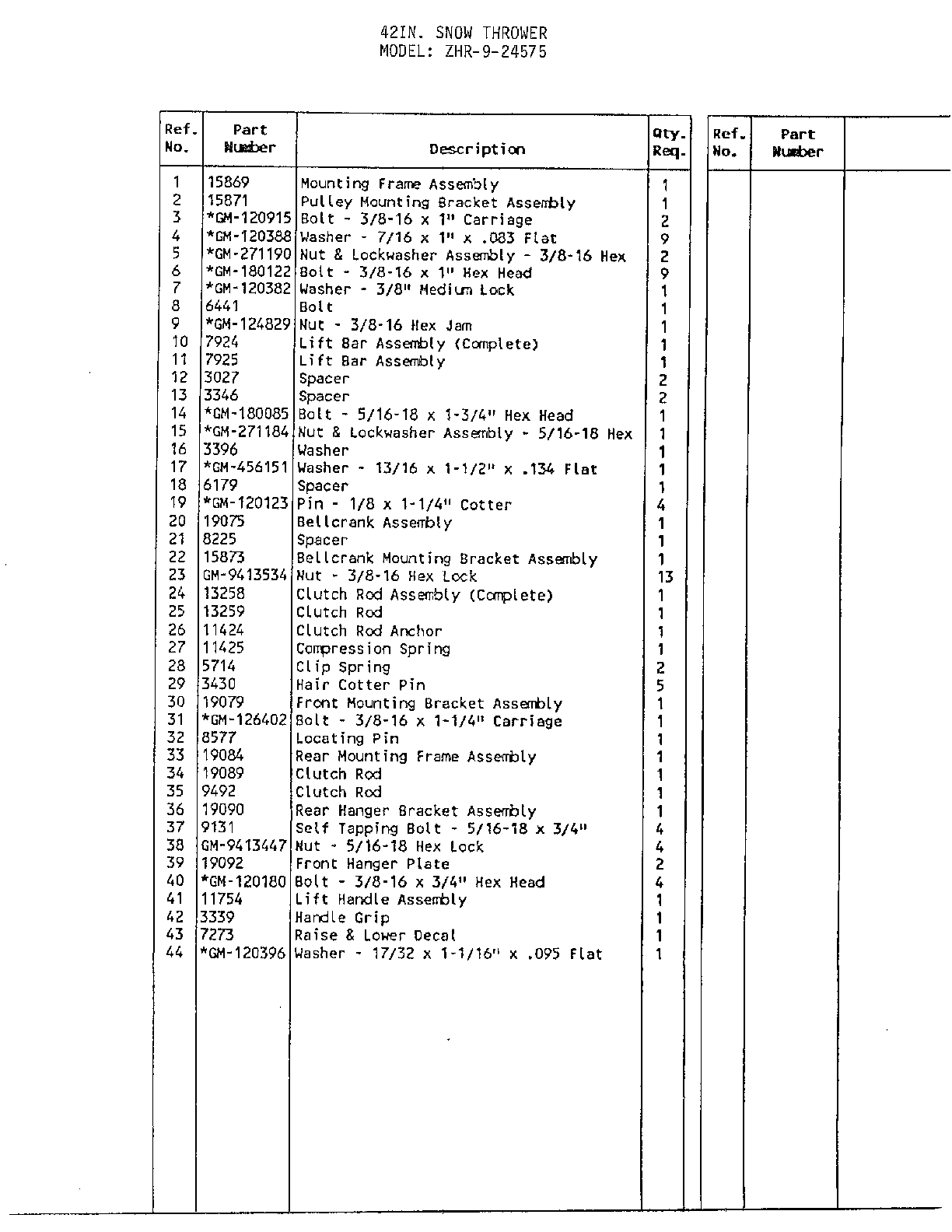

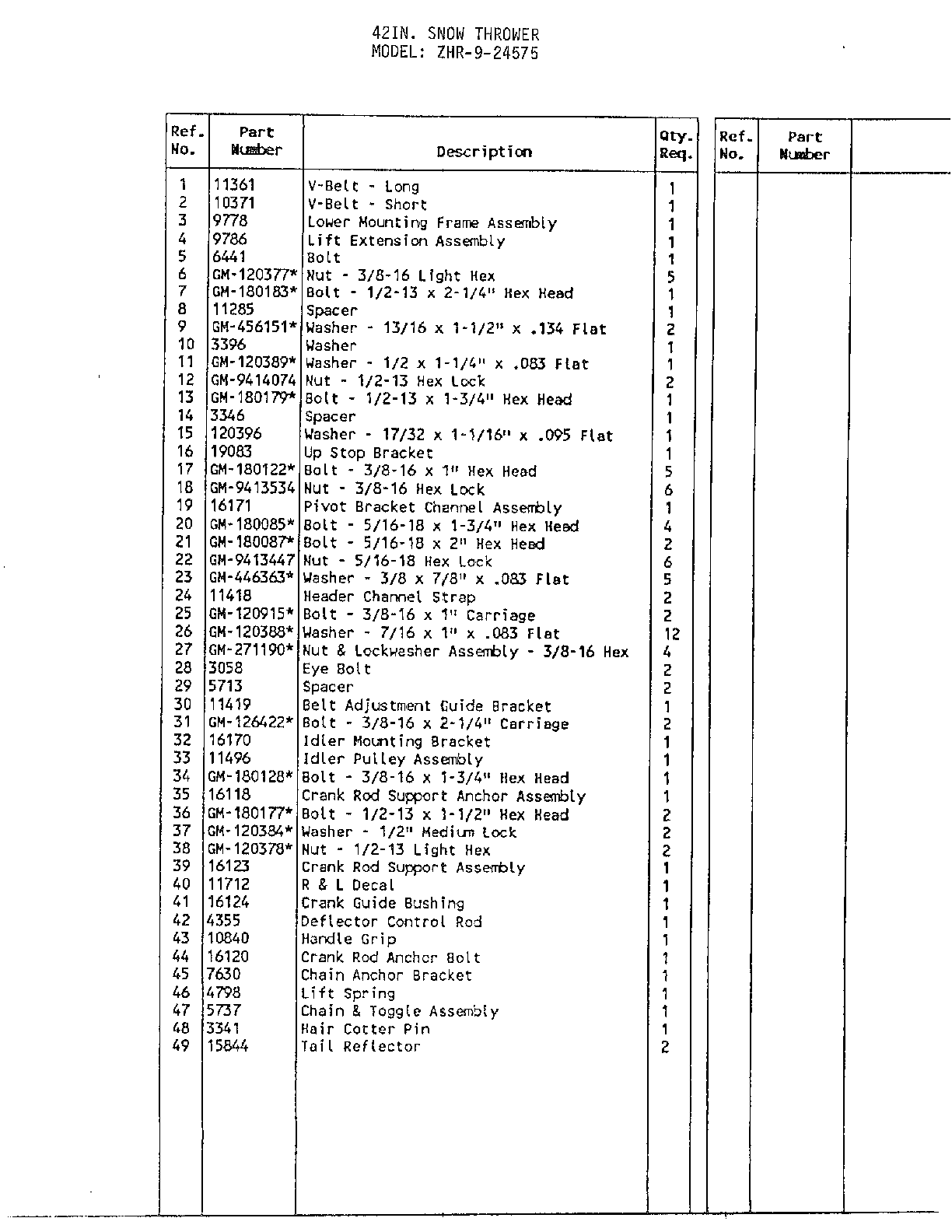

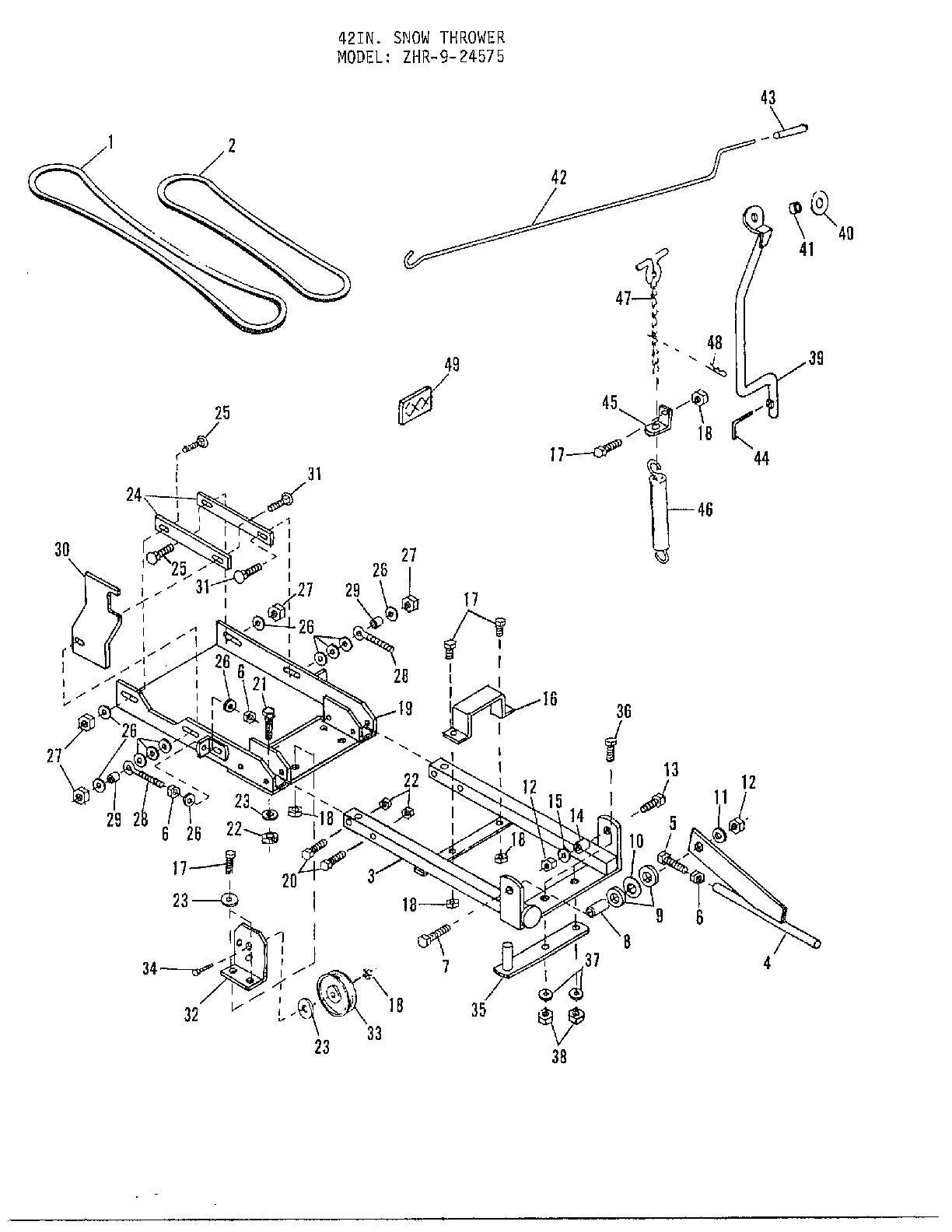

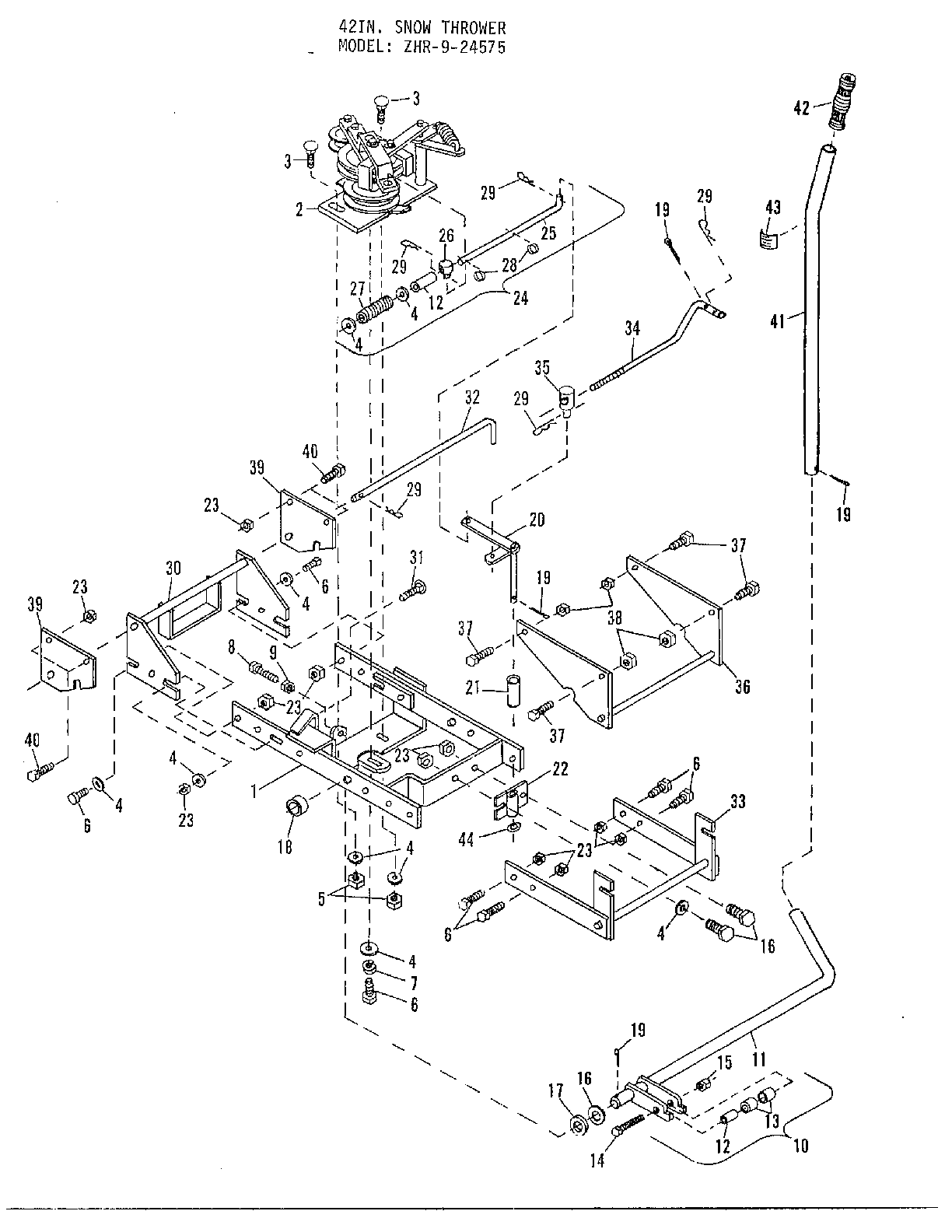

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Bolt 7953
Bolt

Part #7953

The manufacturer no longer makes this part, and there's no substitute part

Nut 4119
Nut

Part #4119

The manufacturer no longer makes this part, and there's no substitute part

Nut, 8-pack STD541431
Nut, 8-pack

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Pin 3341
Pin

Part #3341

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut GM-9413447
Lock nut

Part #GM-9413447

The manufacturer no longer makes this part, and there's no substitute part

Pulley 11496
Pulley

Part #11496

The manufacturer no longer makes this part, and there's no substitute part

Spring 3059
Spring

Part #3059

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271190
Nut washer

Part #GM-271190

The manufacturer no longer makes this part, and there's no substitute part

Murray Snowblower Chain Guard 3036
Murray snowblower chain guard

Part #3036

The manufacturer no longer makes this part, and there's no substitute part
