Model # G9CE3074XB00 Official Whirlpool 30" electric built-in cooktop

Here are the diagrams and repair parts for Official Whirlpool G9CE3074XB00 30" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Range Radiant Surface Element 8273994
#11

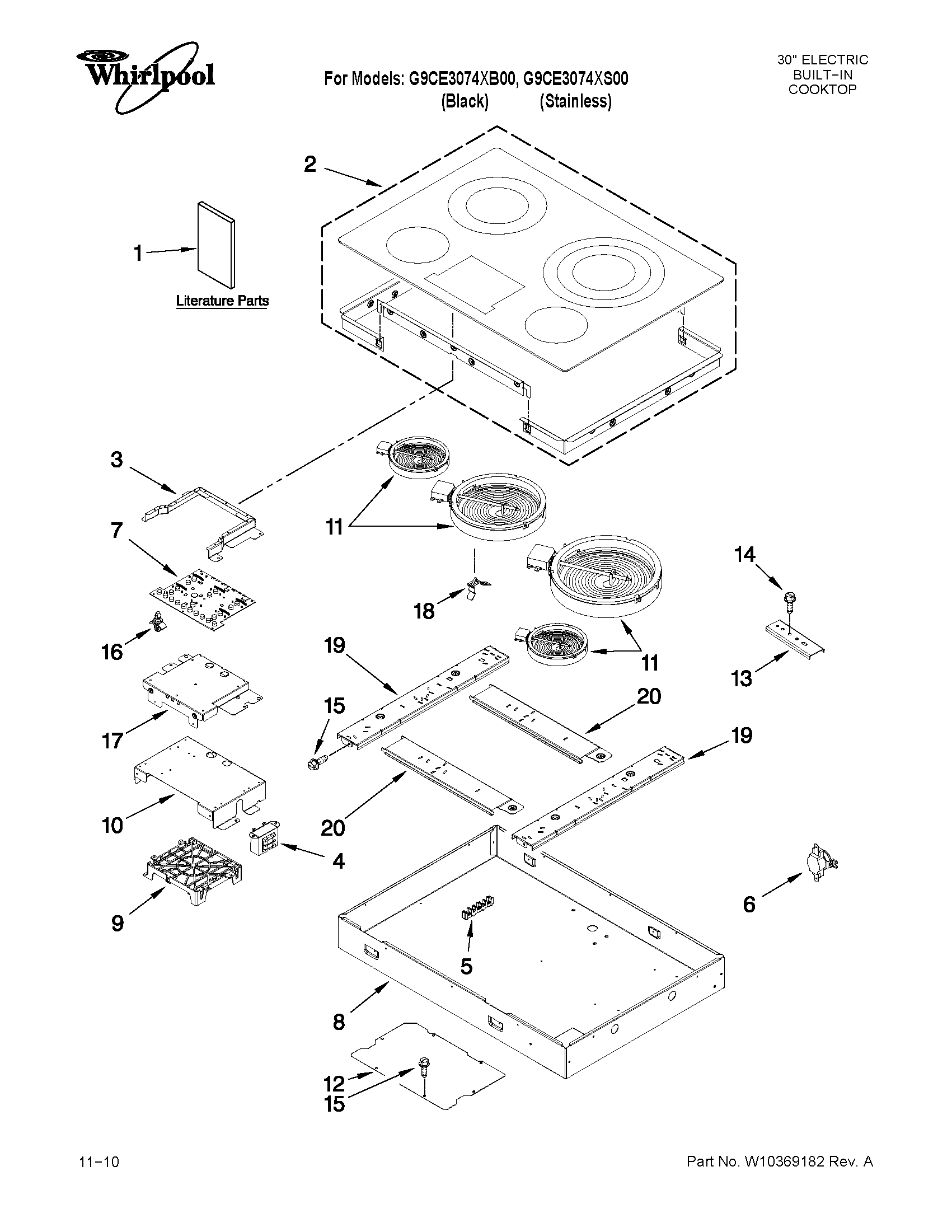

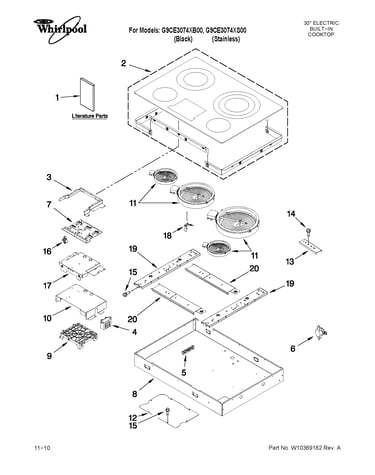

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Cleaner 31464
#NI

Optional parts (not included) diagram

Cleaner

Part #31464

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 31464. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Cooktop Surface Element W10187839
#11B

Cooktop parts diagram

Cooktop surface element

Part #W10187839

Replaced by #W11563195

?
Manufacturer substitution
This part replaces W10187839. Substitute parts can look different from the original.
BEST SELLER
$116.17 |
9% OFF Phone Price : $128.17
In Stock
Cooktop Scraper WA906B
#NI

Optional parts (not included) diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Wall Oven Transformer 9760588
#4

Cooktop parts diagram

Wall oven transformer

Part #9760588

Replaced by #WP9760588

?
Manufacturer substitution
This part replaces 9760588. Substitute parts can look different from the original.
$109.45 |
10% OFF Phone Price : $121.45
In Stock
Switch- Hi 7450P034-60
#6

Cooktop parts diagram

Switch- hi

Part #7450P034-60

Replaced by #WP7450P034-60

?
Manufacturer substitution
This part replaces 7450P034-60. Substitute parts can look different from the original.
$77.68 |
7% OFF Phone Price : $83.68
In Stock
Control Box W10311795
#10

Cooktop parts diagram

Control box

Part #W10311795

$70.69
In Stock
Support W10225914
#16

Cooktop parts diagram

Support

Part #W10225914

$10.31
In Stock
Grommet 8008P068-60
#NI

Optional parts (not included) diagram

Grommet

Part #8008P068-60

$12.04
In Stock
Heat Gasket W10316659
#NI

Optional parts (not included) diagram

Heat gasket

Part #W10316659

$45.99 |
12% OFF Phone Price : $51.99
In Stock
