Dryer

Model # 970C9003200 Official Sears Canada dryer

Here are the diagrams and repair parts for Official Sears Canada 970C9003200 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

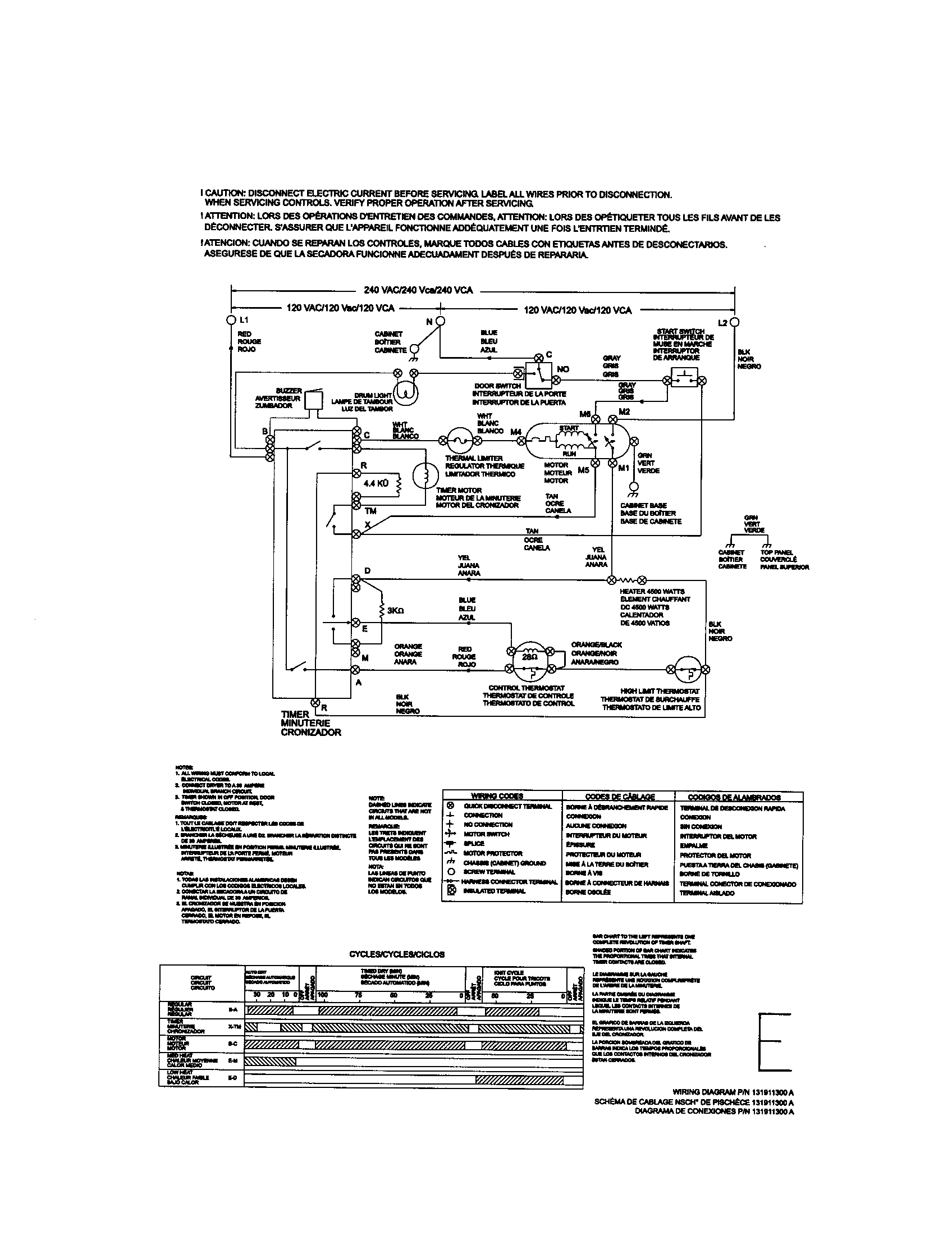

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Belt 5303283471
#25

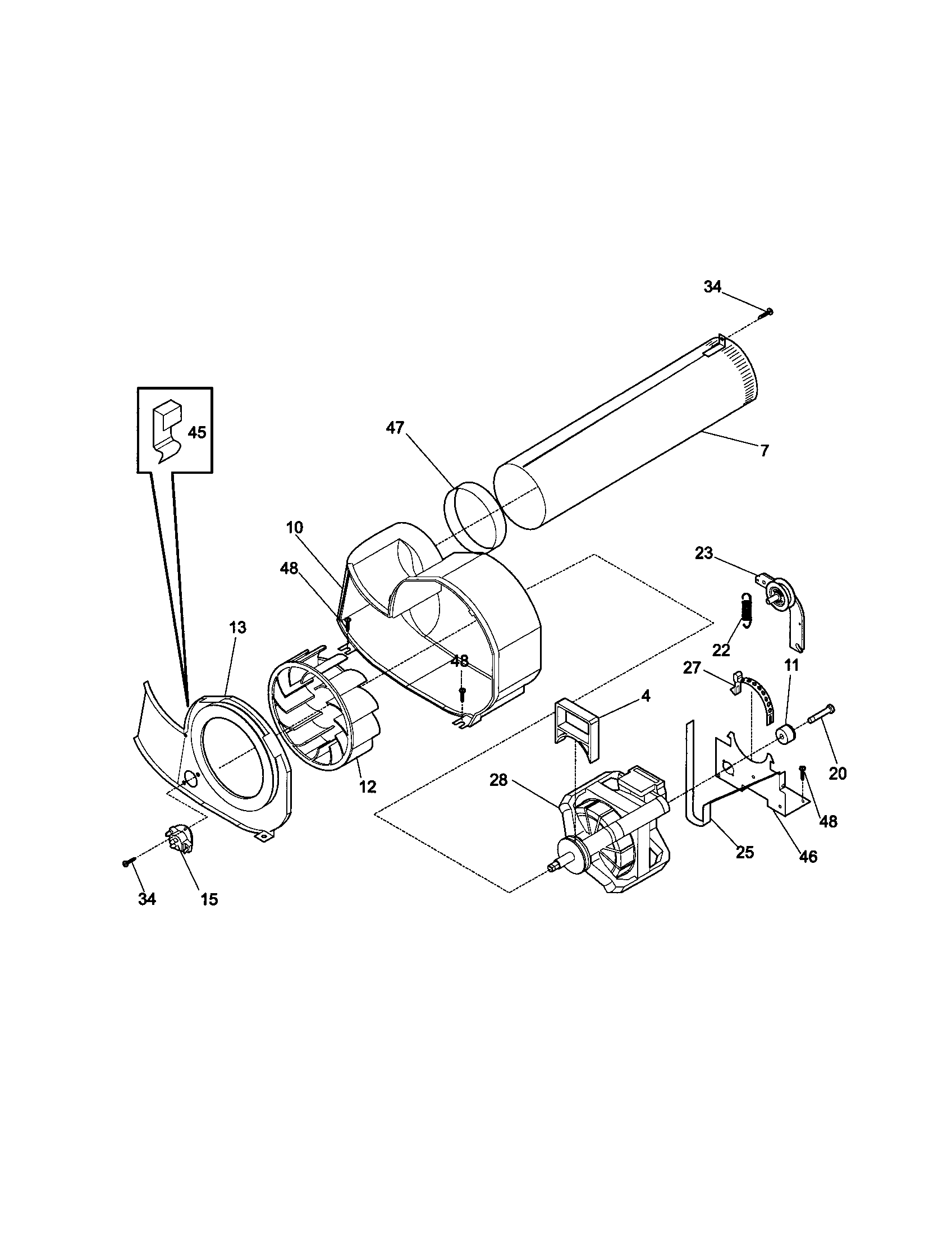

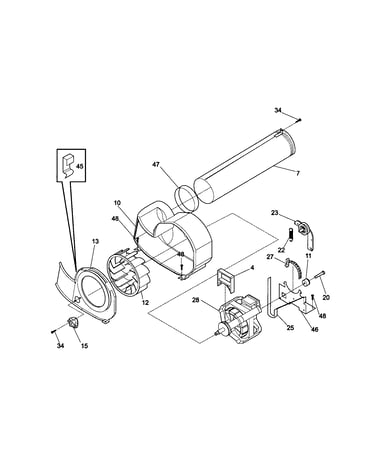

Blower diagram

Belt

Part #5303283471

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

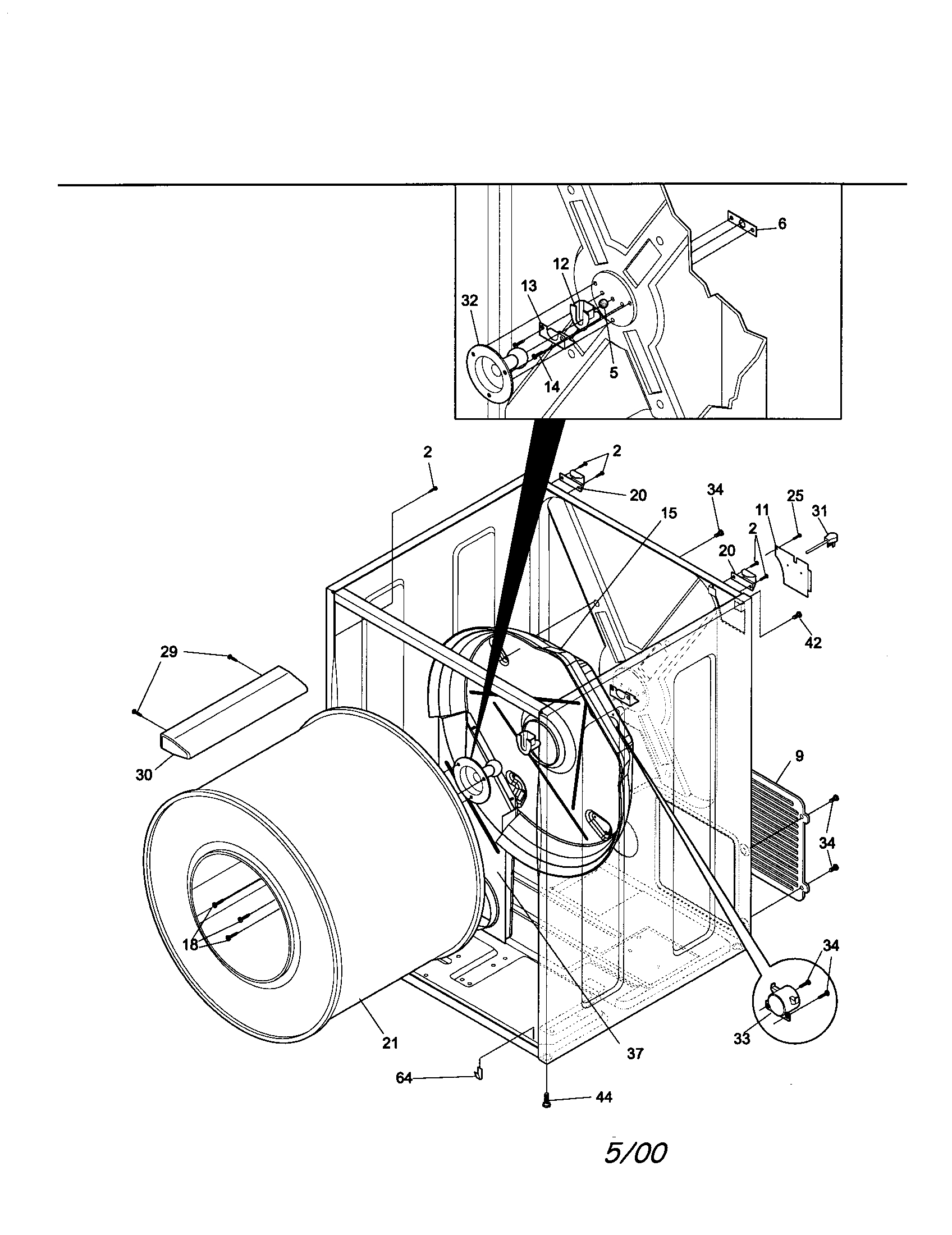

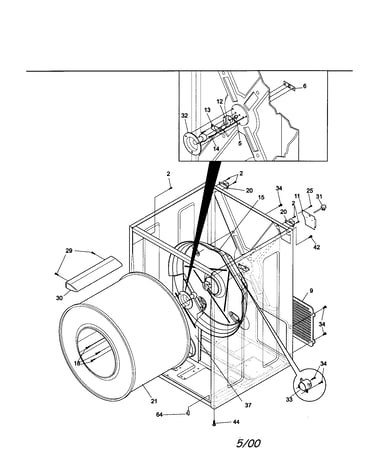

Drum/cabinet diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

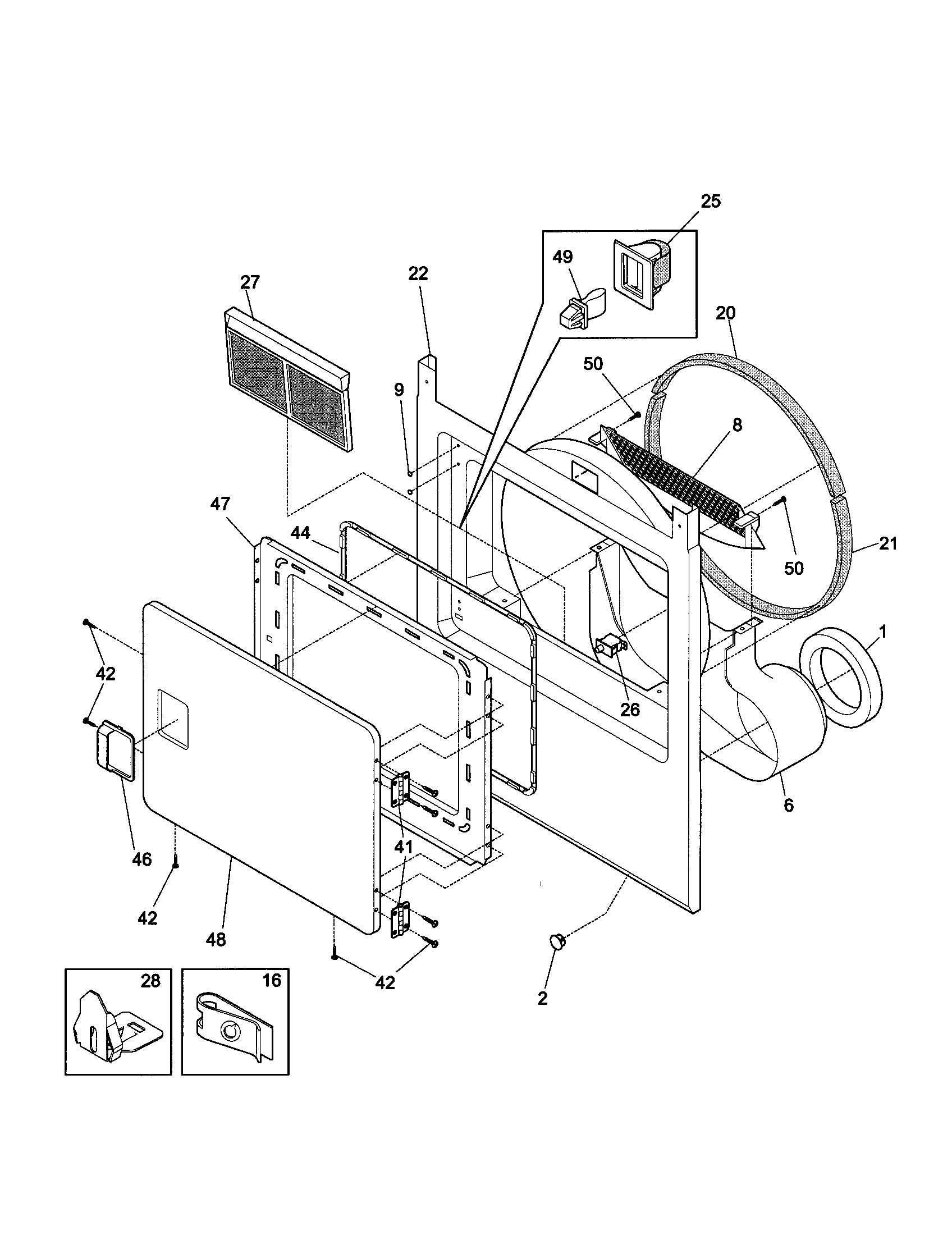

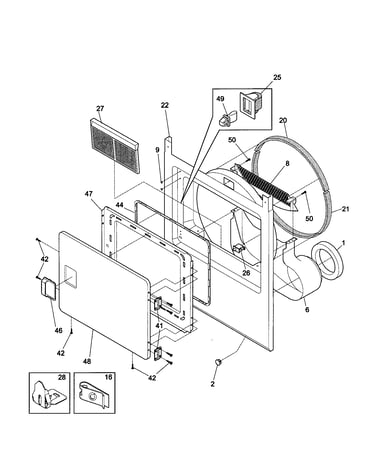

Door diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Bracket 131863000
#23

Blower diagram

Bracket

Part #131863000

Replaced by #131863007

?
Manufacturer substitution
This part replaces 131863000. Substitute parts can look different from the original.
BEST SELLER
$44.70 |
12% OFF Phone Price : $50.70
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#5

Drum/cabinet diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Kelvinator Dryer Gas Valve Assembly (replaces 131180700, 75303207409) 5303207409
#70

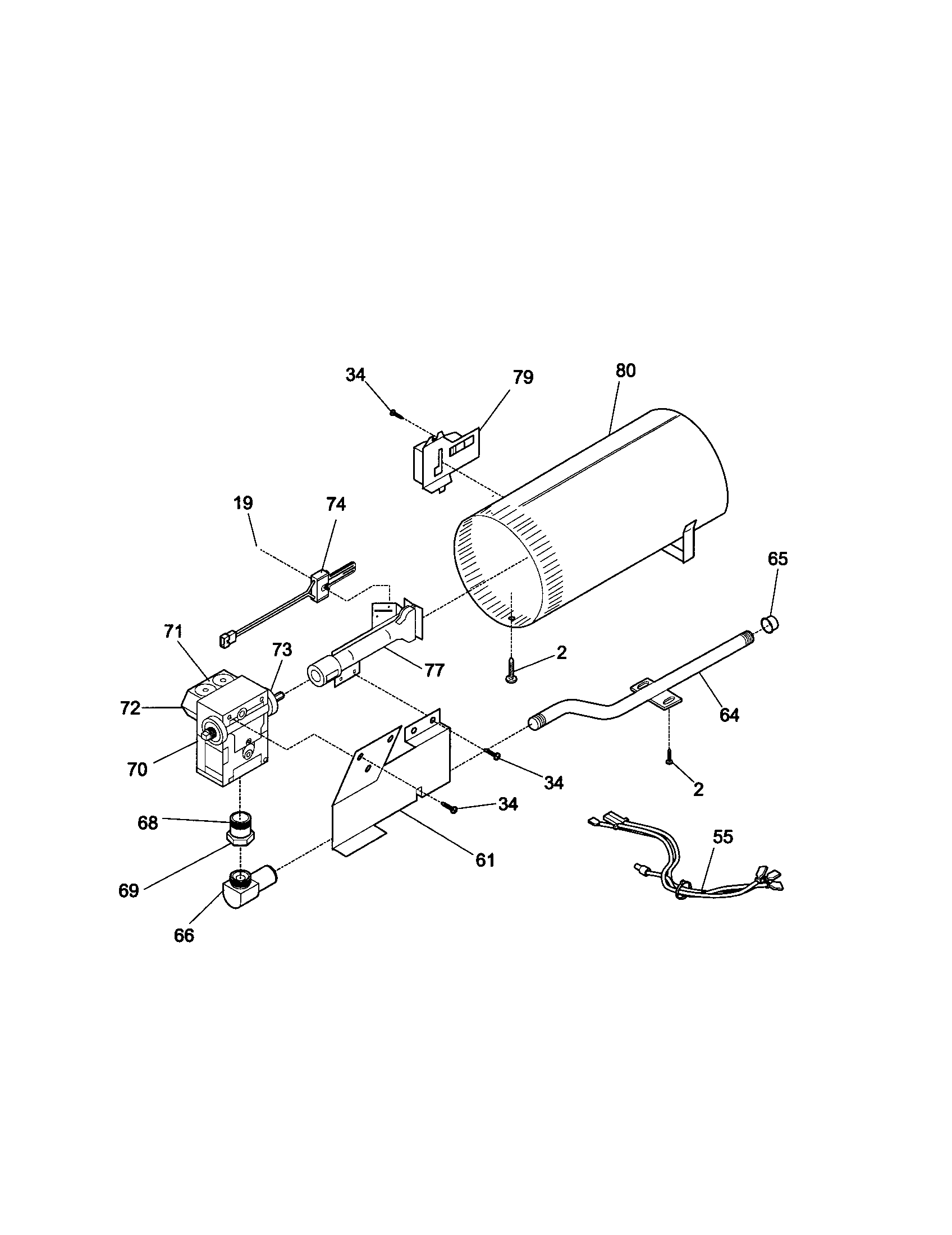

Burner diagram

Kelvinator dryer gas valve assembly (replaces 131180700, 75303207409)

Part #5303207409

BEST SELLER
$238.60 |
5% OFF Phone Price : $250.60
In Stock
Dryer Radiant Sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, F000078913, F078913-000, F78913, Fl00078913, Q000600651, Wq600651) 5303281135
#79

Burner diagram

Dryer radiant sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, f000078913, f078913-000, f78913, fl00078913, q000600651, wq600651)

Part #5303281135

BEST SELLER
$53.99 |
10% OFF Phone Price : $59.99
In Stock
Dryer Rear Bearing Clip (replaces 000500537, 08015324, 3281020, 500537, 5303286875, Q000500537, Wq500537) 5303281020
#6

Drum/cabinet diagram

Dryer rear bearing clip (replaces 000500537, 08015324, 3281020, 500537, 5303286875, q000500537, wq500537)

Part #5303281020

BEST SELLER
$17.79 |
10% OFF Phone Price : $19.79
In Stock
Start Switch 131447800
#10

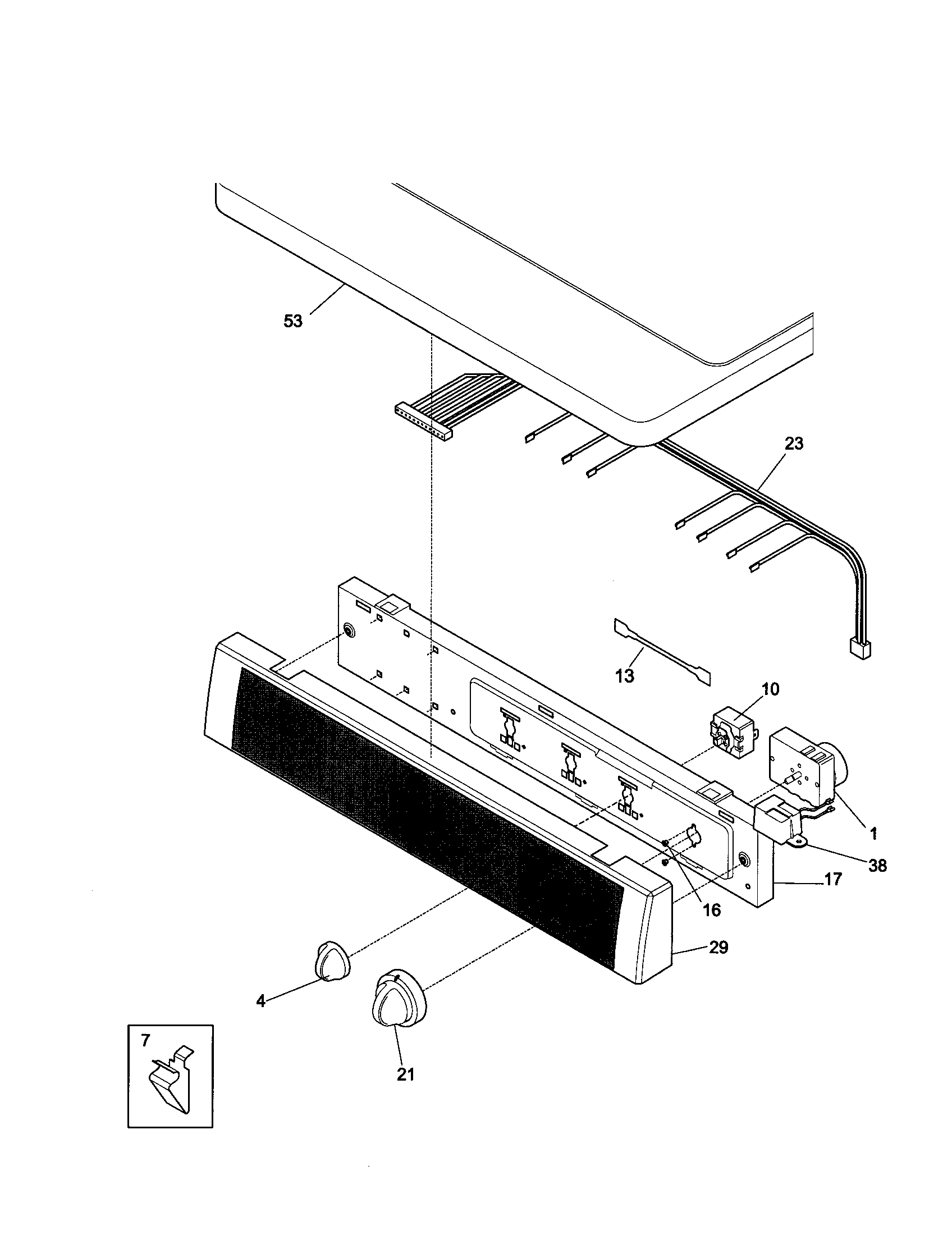

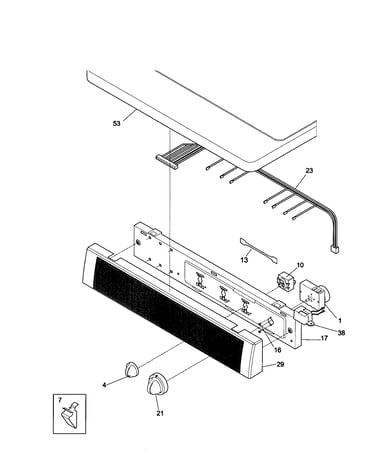

Control panel diagram

Start switch

Part #131447800

Replaced by #134398300

?
Manufacturer substitution
This part replaces 131447800. Substitute parts can look different from the original.
BEST SELLER
$54.02 |
10% OFF Phone Price : $60.02
In Stock
Dryer Idler Spring (replaces 7131601000) 131601000
#22

Blower diagram

Dryer idler spring (replaces 7131601000)

Part #131601000

$42.09 |
12% OFF Phone Price : $48.09
In Stock
