Model # 587735700 Official Kenmore undercounter dishwasher

Here are the diagrams and repair parts for Official Kenmore 587735700 undercounter dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

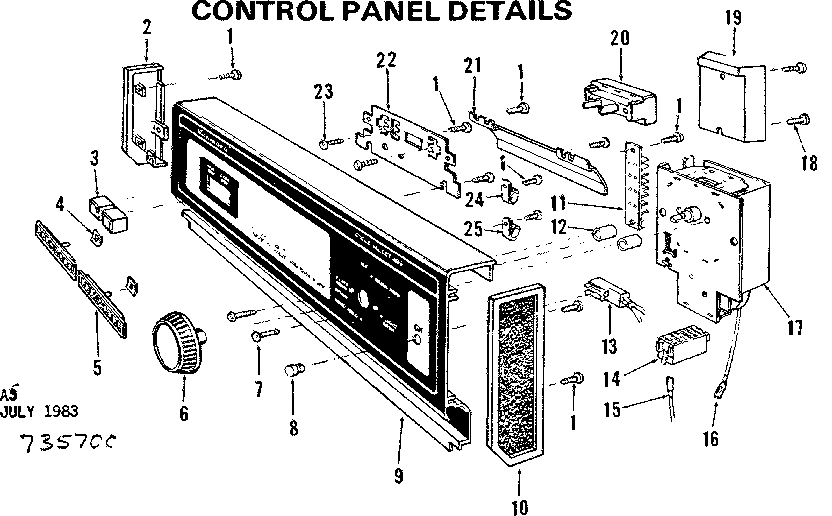

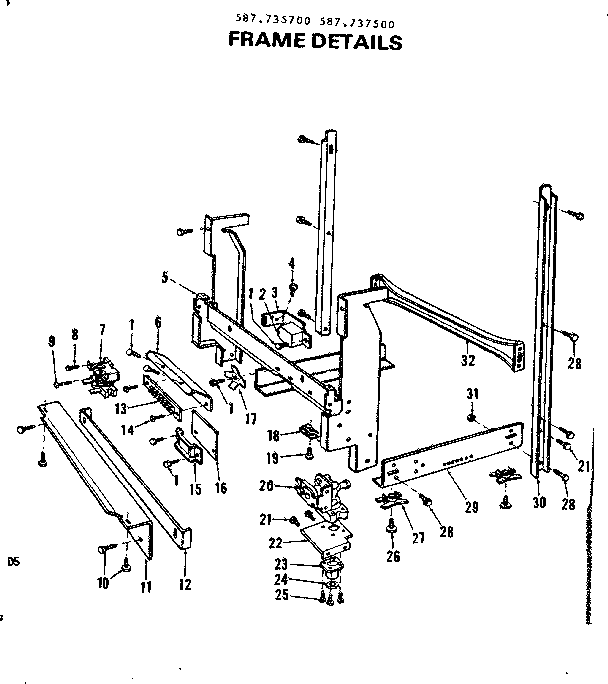

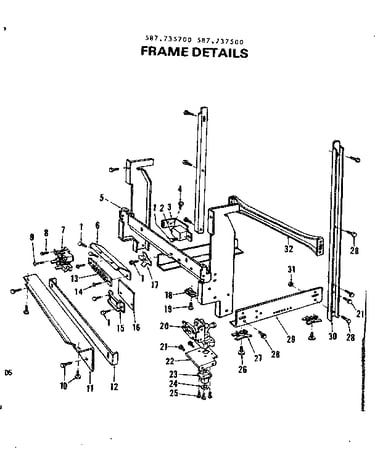

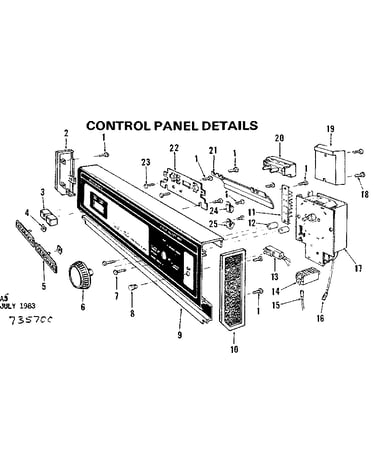

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for587735700 Undercounter Dishwasher

  • Nut 806834
    #18

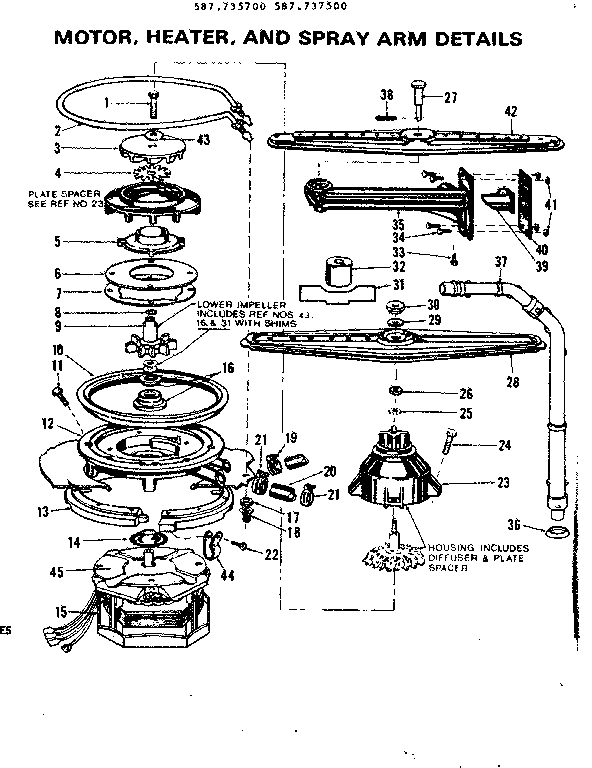

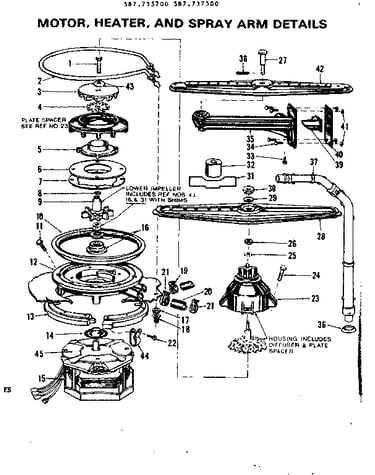

    Motor heater & spray arm details diagram

    Nut

    Part #806834

    Replaced by #154106202

    ?
    Manufacturer substitution
    This part replaces 806834. Substitute parts can look different from the original.
    BEST SELLER
    $7.76
    11% OFF Phone Price : $8.76
    In Stock
  • Silverware Basket 807856
    #2

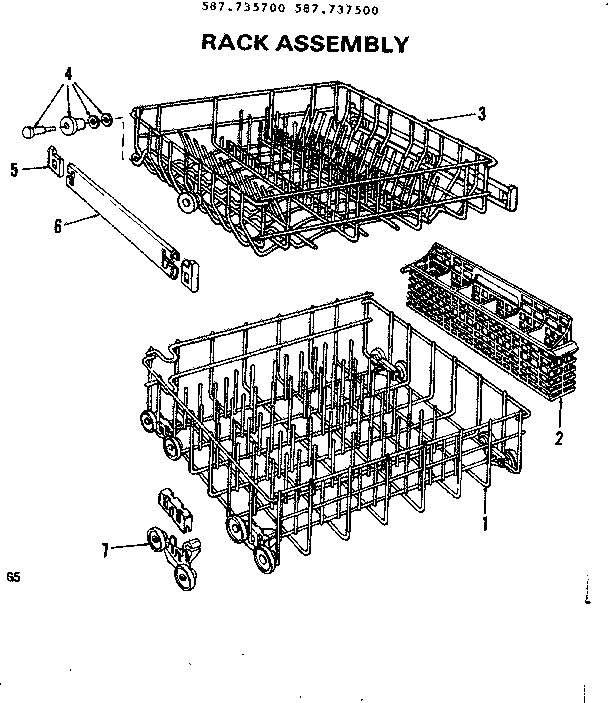

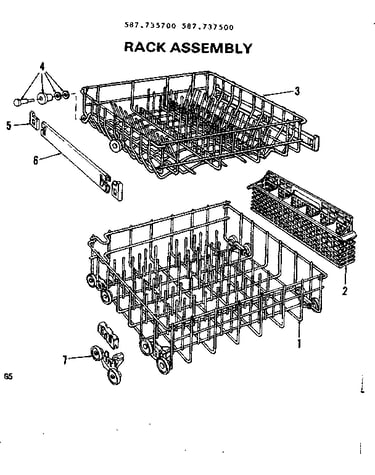

    Rack assembly diagram

    Silverware basket

    Part #807856

    Replaced by #5304509753

    ?
    Manufacturer substitution
    This part replaces 807856. Substitute parts can look different from the original.
    This item is not returnable
    $32.58
    16% OFF Phone Price : $38.58
    In Stock
  • Lock Nut 808470
    #31

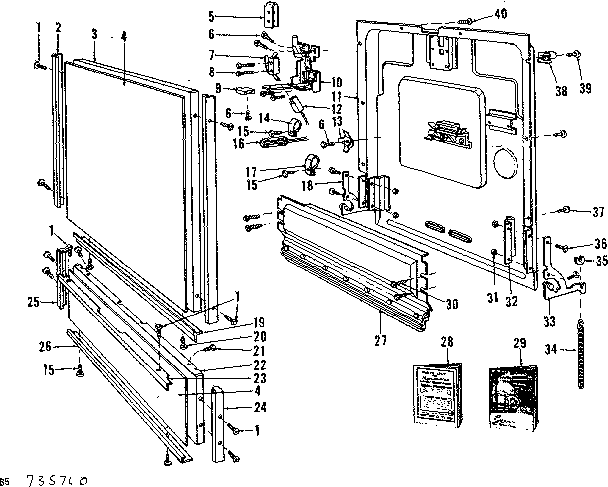

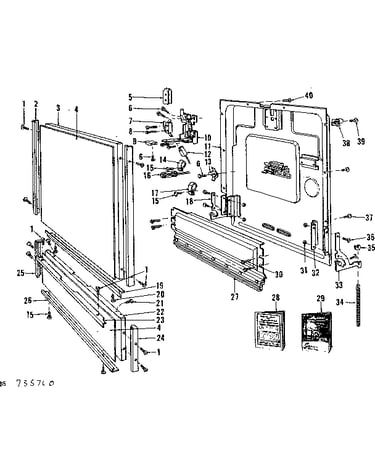

    Door details diagram

    Lock nut

    Part #808470

    Replaced by #5303013272

    ?
    Manufacturer substitution
    This part replaces 808470. Substitute parts can look different from the original.
    This item is not returnable
    $18.06
    10% OFF Phone Price : $20.06
    In Stock
  • Screw 806890
    #8

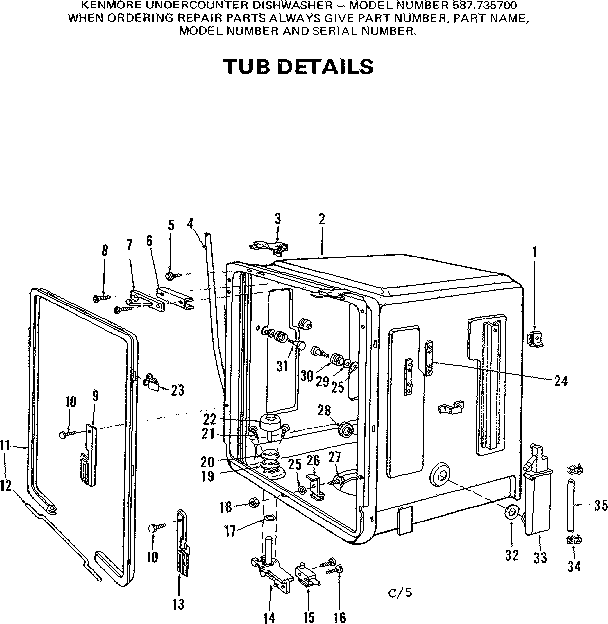

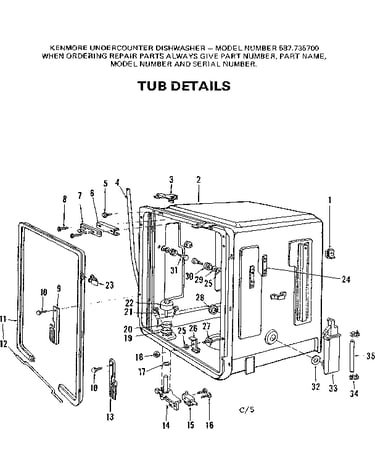

    Tub details diagram

    Screw

    Part #806890

    Replaced by #131302901

    ?
    Manufacturer substitution
    This part replaces 806890. Substitute parts can look different from the original.
    This item is not returnable
    $5.24
    16% OFF Phone Price : $6.24
    In Stock
  • Gasket 808063
    #19

    Tub details diagram

    Gasket

    Part #808063

    Replaced by #5300808063

    ?
    Manufacturer substitution
    This part replaces 808063. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
  • Clamp 808442
    Clamp

    Part #808442

    Replaced by #5308000133

    ?
    Manufacturer substitution
    This part replaces 808442. Substitute parts can look different from the original.
    In Stock
  • Cam Spring 806567
    #7

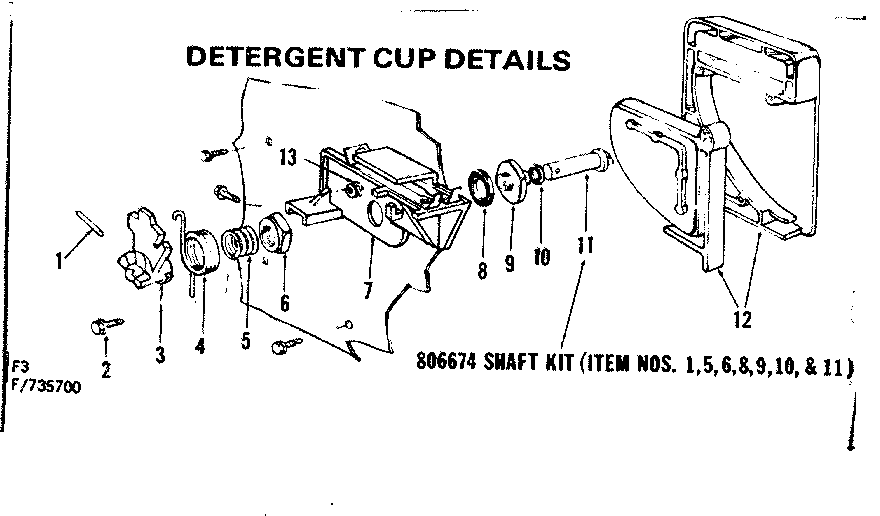

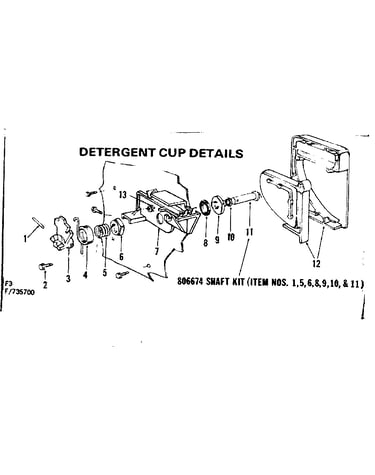

    Detergent cup details diagram

    Cam spring

    Part #806567

    Replaced by #5300806567

    ?
    Manufacturer substitution
    This part replaces 806567. Substitute parts can look different from the original.
    In Stock
  • Screw 806830
    Screw

    Part #806830

    Replaced by #5300806830

    ?
    Manufacturer substitution
    This part replaces 806830. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Screw 807501
    Screw

    Part #807501

    Replaced by #5300807501

    ?
    Manufacturer substitution
    This part replaces 807501. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Gasket 807709
    #7

    Motor heater & spray arm details diagram

    Gasket

    Part #807709

    Replaced by #5300807709

    ?
    Manufacturer substitution
    This part replaces 807709. Substitute parts can look different from the original.
    $60.25
    9% OFF Phone Price : $66.25
    In Stock
