Model # DPSB620GC3CC Official GE gas dryer

Here are the diagrams and repair parts for Official GE DPSB620GC3CC gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

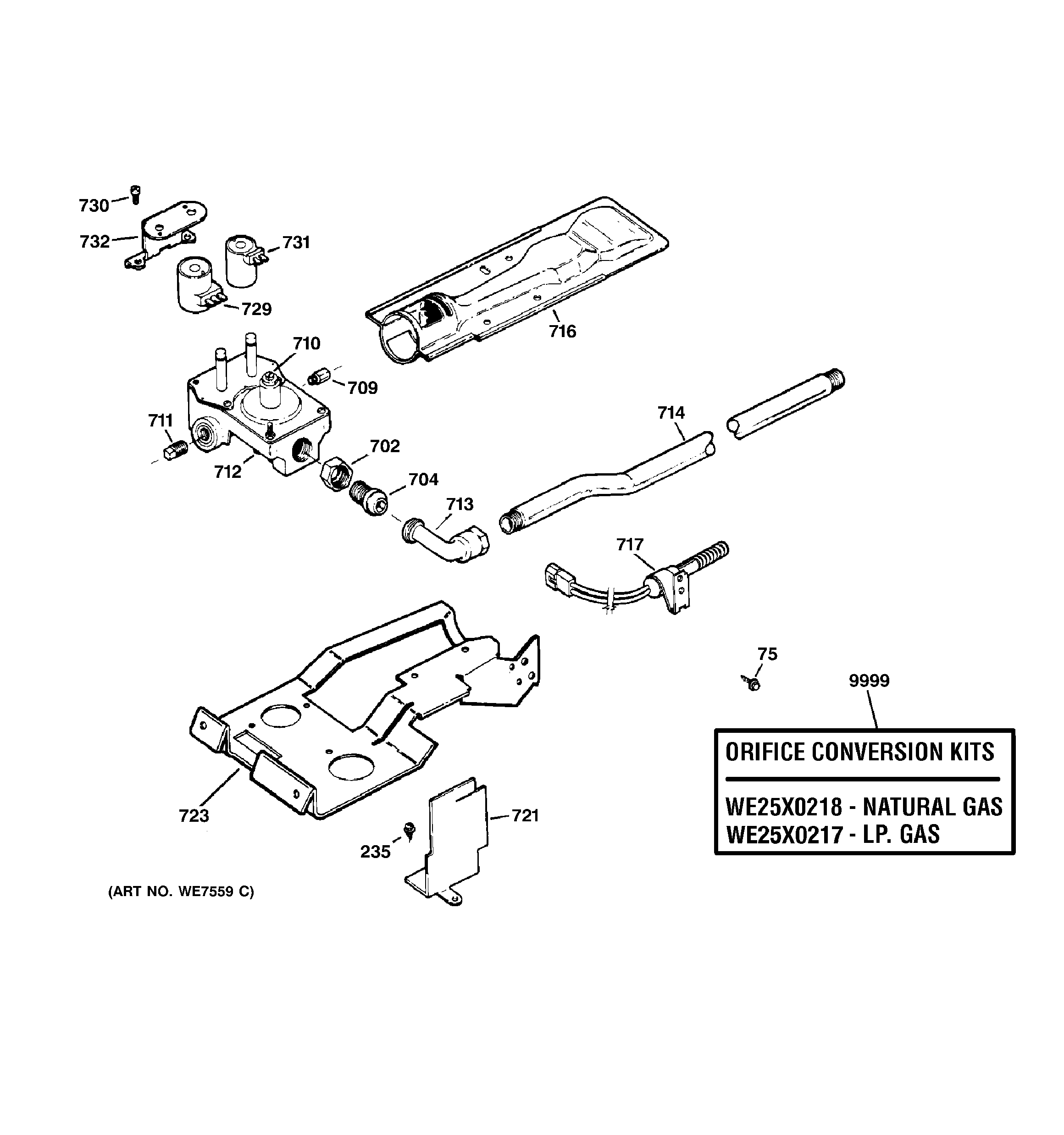

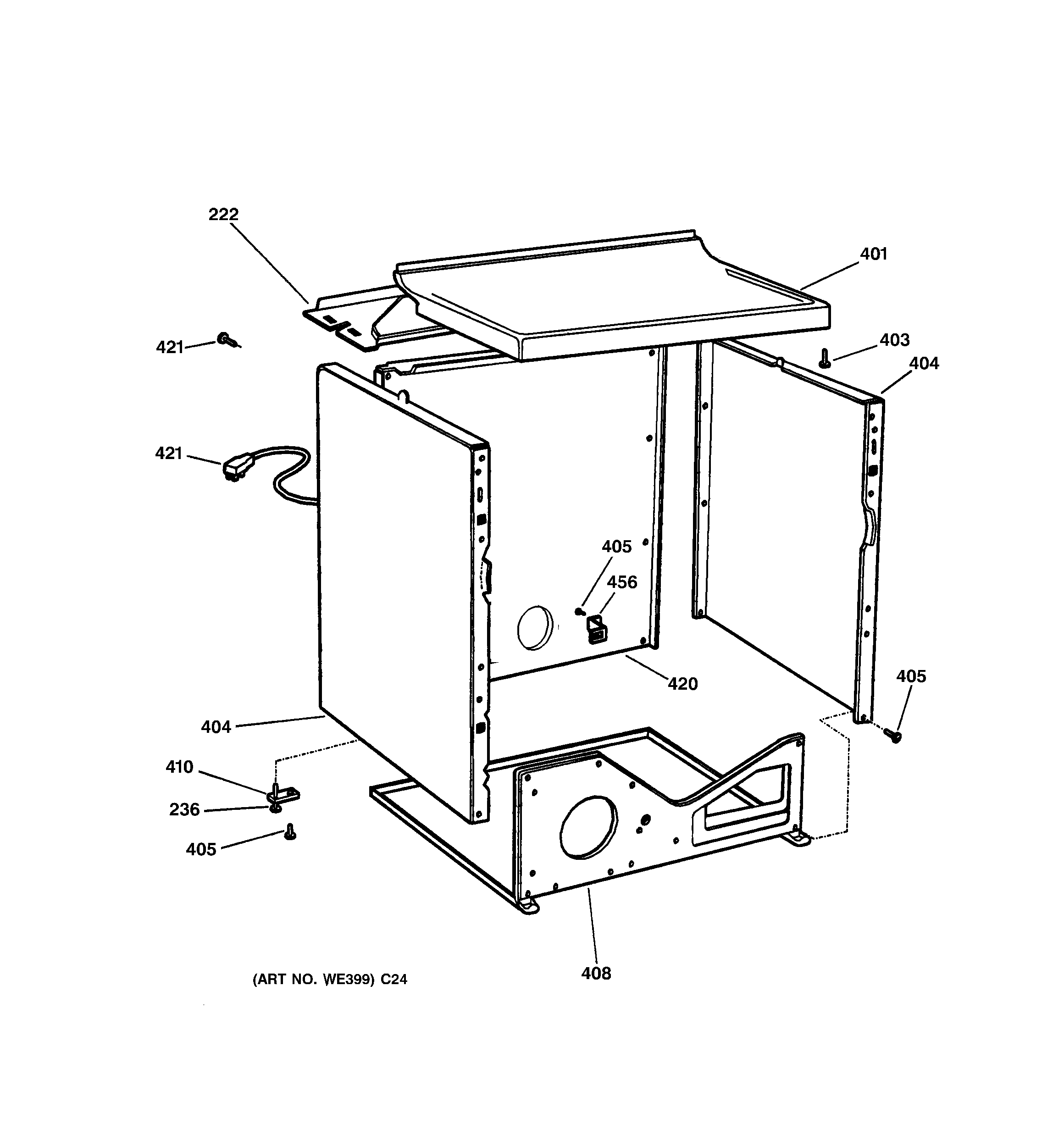

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Drum Bearing WE3M20
#313

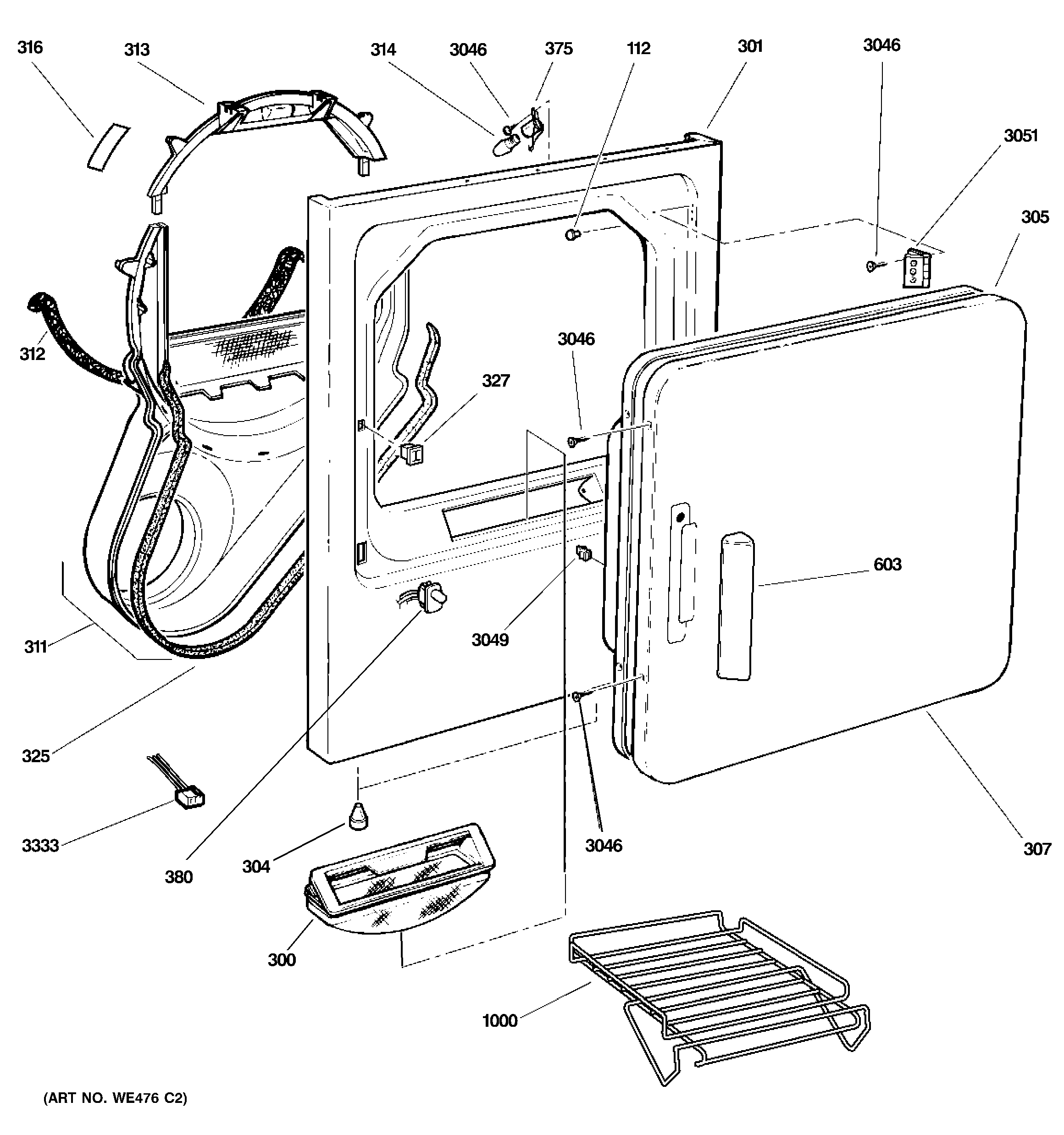

Front panel & door diagram

Drum bearing

Part #WE3M20

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE3M20. Substitute parts can look different from the original.
BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Felt WE9M15
#312

Front panel & door diagram

Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Idler Pulley WE12M8
#216

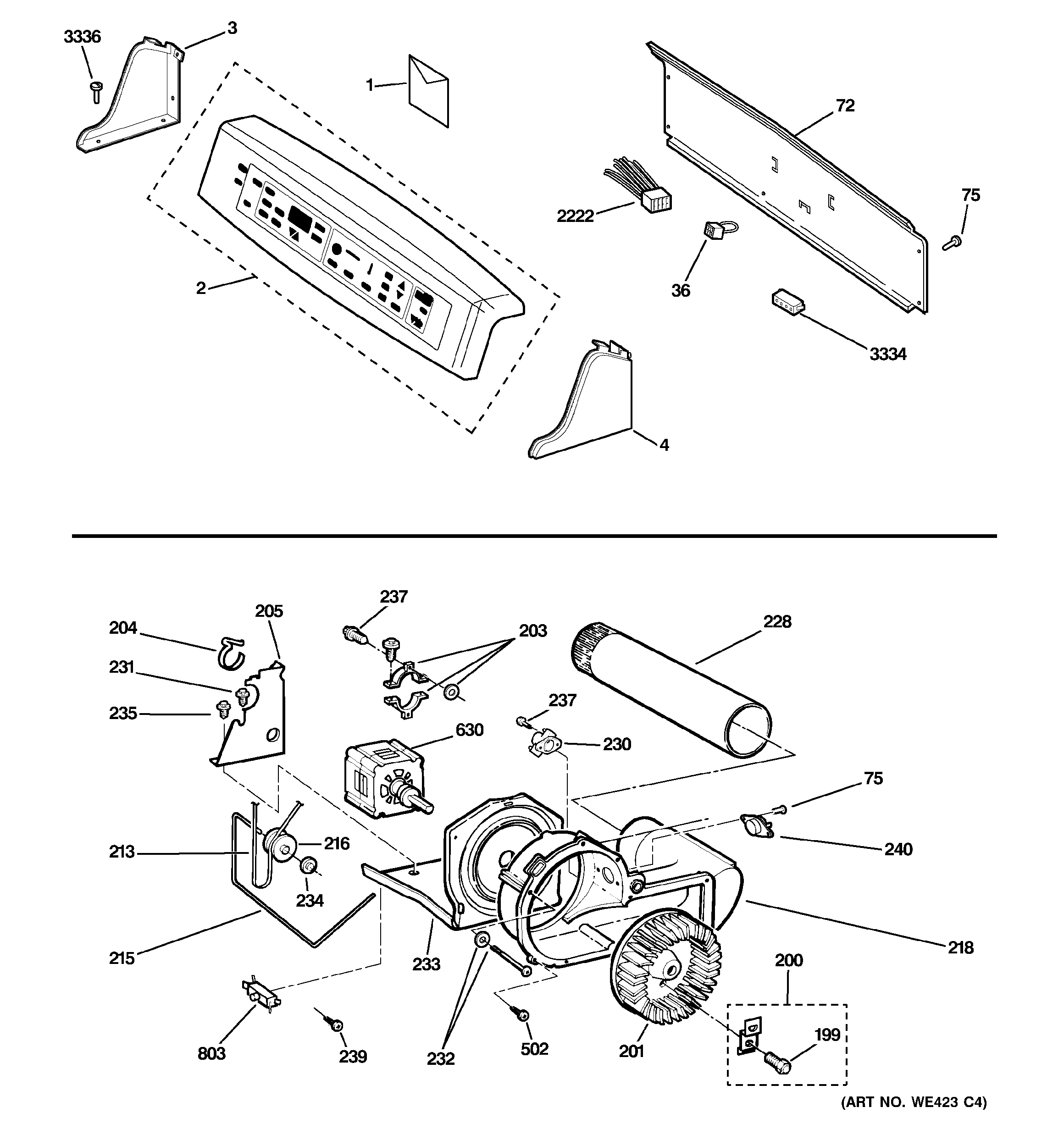

Backsplash, blower & motor diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt WE3X39
#508

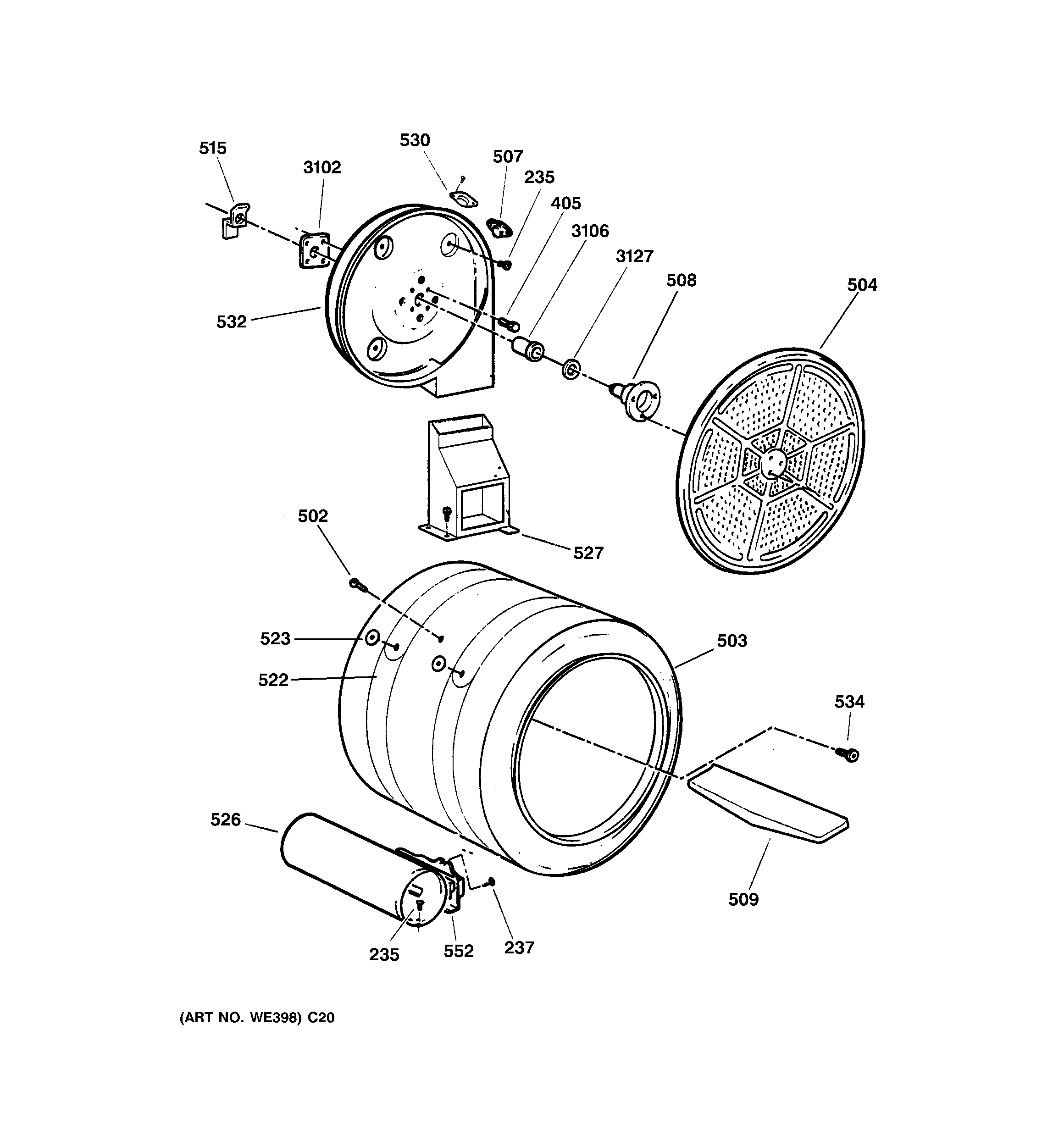

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Dryer Air Duct Seal WE01X10217
#325

Front panel & door diagram

Dryer air duct seal

Part #WE01X10217

Replaced by #WE1M825

?
Manufacturer substitution
This part replaces WE01X10217. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.96 |
13% OFF Phone Price : $7.96
In Stock
Interlock Switch WD21X0557
#803

Backsplash, blower & motor diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Door Switch WE4M126
#380

Front panel & door diagram

Door switch

Part #WE4M126

Replaced by #WE4M415

?
Manufacturer substitution
This part replaces WE4M126. Substitute parts can look different from the original.
BEST SELLER
$23.58 |
20% OFF Phone Price : $29.58
In Stock
