Model # 919153310 Official Craftsman oilless air compressor

Here are the diagrams and repair parts for Official Craftsman 919153310 oilless air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 74 parts |

Tower Air Compressor Valve Plate O-ring (replaces Stg-8156) SSG-8156

#56

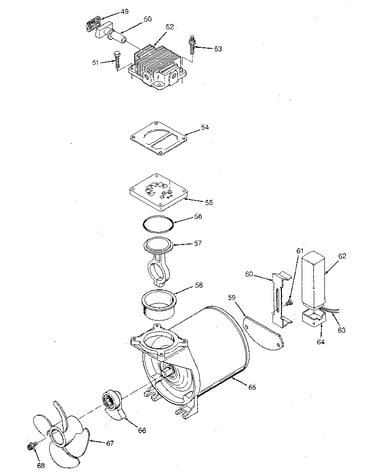

Compressor pump diagram diagram

Tower air compressor valve plate o-ring (replaces stg-8156)

Part #SSG-8156

The manufacturer no longer makes this part, and there's no substitute part

#42

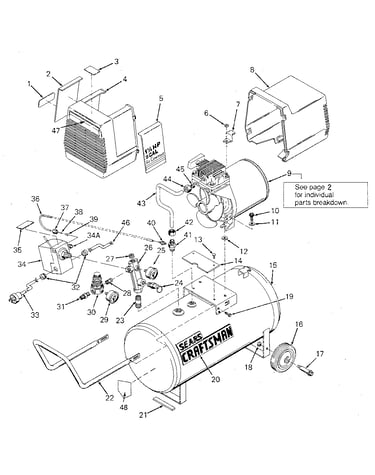

Air compressor diagram diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

#61

Compressor pump diagram diagram

Screw

Part #SSF-4229

The manufacturer no longer makes this part, and there's no substitute part

#13

Air compressor diagram diagram

Fastener

Part #SSN-8001

The manufacturer no longer makes this part, and there's no substitute part

#12

Air compressor diagram diagram

Devilbiss washer

Part #SSN-51

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram diagram

Label

Part #LA-1977

The manufacturer no longer makes this part, and there's no substitute part

#10

Air compressor diagram diagram

Unknown brand name #696 screw

Part #SSF-928

The manufacturer no longer makes this part, and there's no substitute part

#14

Air compressor diagram diagram

Devilbiss plate

Part #CAC-333-1

The manufacturer no longer makes this part, and there's no substitute part

#17

Air compressor diagram diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

#19

Air compressor diagram diagram

Air compressor handle screw

Part #SSF-981

The manufacturer no longer makes this part, and there's no substitute part
