Amana
Bottom-Mount Refrigerator

Model # ABB2527DEB14 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ABB2527DEB14 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

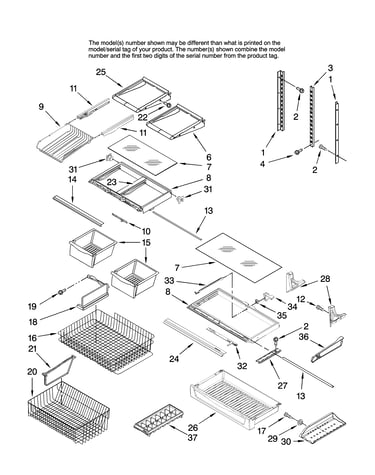

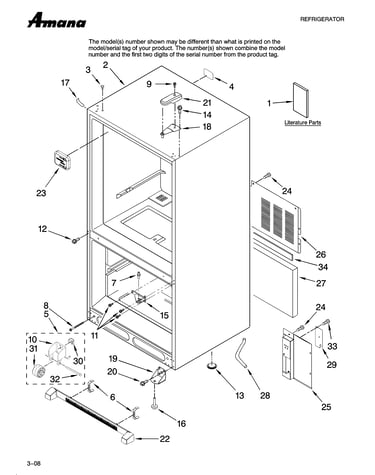

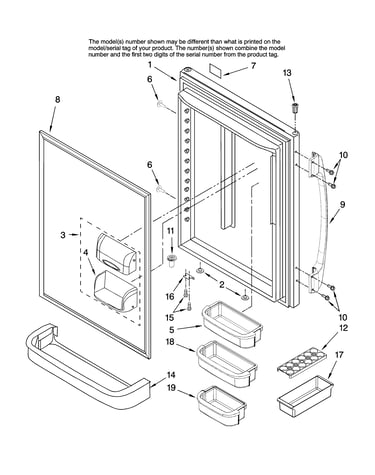

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Refrigerator Drier 2317845
#27

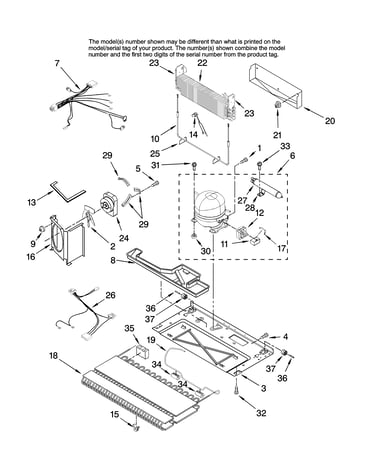

Unit parts diagram

Refrigerator drier

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker D7824706Q
#NI

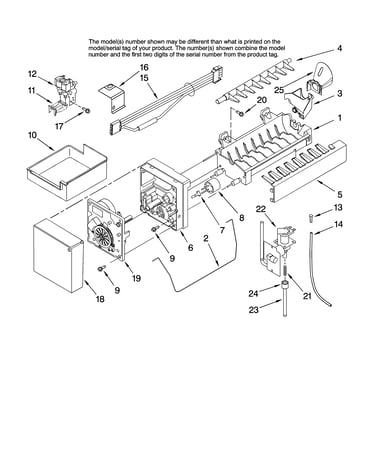

Icemaker parts, optional parts (not included) diagram

Refrigerator ice maker

Part #D7824706Q

BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Electronic Control Board W10165748
#5

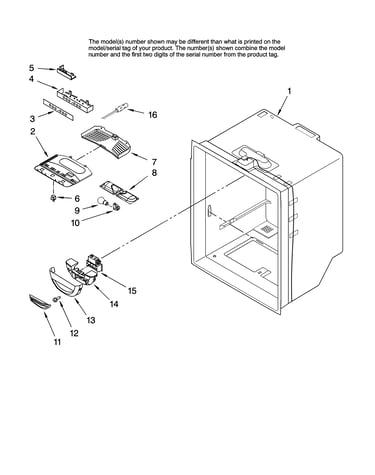

Refrigerator liner parts diagram

Refrigerator electronic control board

Part #W10165748

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces W10165748. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Tube B5705323
#23

Icemaker parts, optional parts (not included) diagram

Refrigerator tube

Part #B5705323

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Capacitor W/ 67005562
#11

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Overload Release 67005561
#12

Unit parts diagram

Refrigerator overload release

Part #67005561

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005561. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 67005653
#16

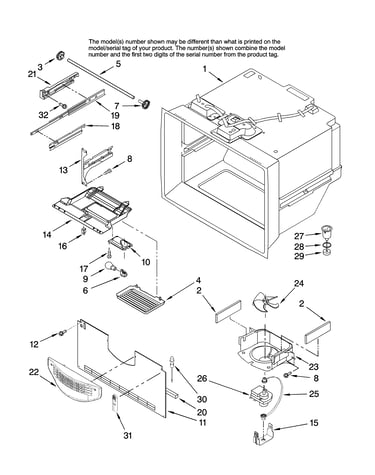

Freezer liner parts diagram
