Model # TFU20F7BW1 Official Tappan freezer - 5995251435

Here are the diagrams and repair parts for Official Tappan TFU20F7BW1 freezer - 5995251435, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Filter 5308000027
#26

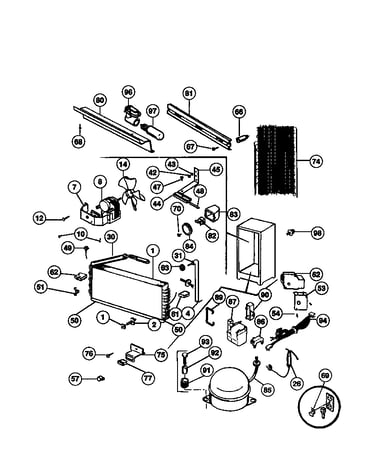

System diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402
#47

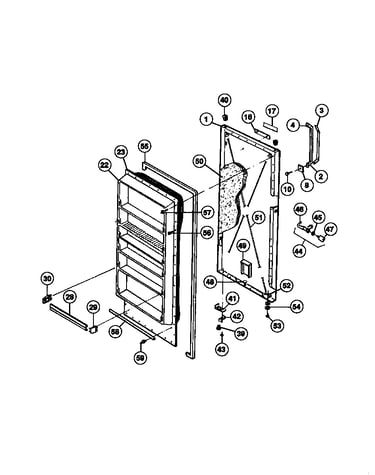

Door diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Upright Freezer Defrost Timer 5308037967
#52

System diagram

Upright freezer defrost timer

Part #5308037967

The manufacturer no longer makes this part, and there's no substitute part

Handle 5303288185
#2

Door diagram

Handle

Part #5303288185

Replaced by #216446900

?
Manufacturer substitution
This part replaces 5303288185. Substitute parts can look different from the original.
BEST SELLER
$41.47 |
13% OFF Phone Price : $47.47
In Stock
Lamp Bulb 216222700
#97

System diagram

Lamp bulb

Part #216222700

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216222700. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Fan Motor 3205519
#8

System diagram

Fan motor

Part #3205519

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 3205519. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
Freezer Handle Insert 3017682
#3

Door diagram

Freezer handle insert

Part #3017682

This item is not returnable
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Freezer Drain Hose Adapter 5308005500
#26

Cabinet diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Inner Door Panel Rivet 5303212828
#59

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Screen 5308037403
#25

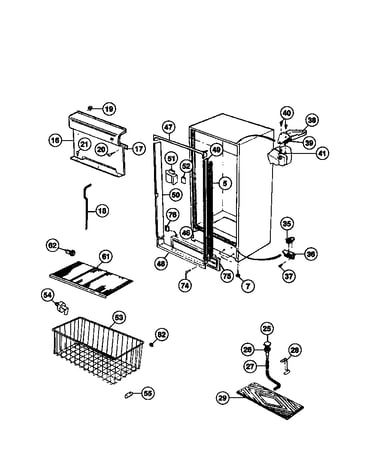

Cabinet diagram

Screen

Part #5308037403

Replaced by #216503100

?
Manufacturer substitution
This part replaces 5308037403. Substitute parts can look different from the original.
$49.59 |
11% OFF Phone Price : $55.59
In Stock
