Model # 315174740 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315174740 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 30 parts |

#15

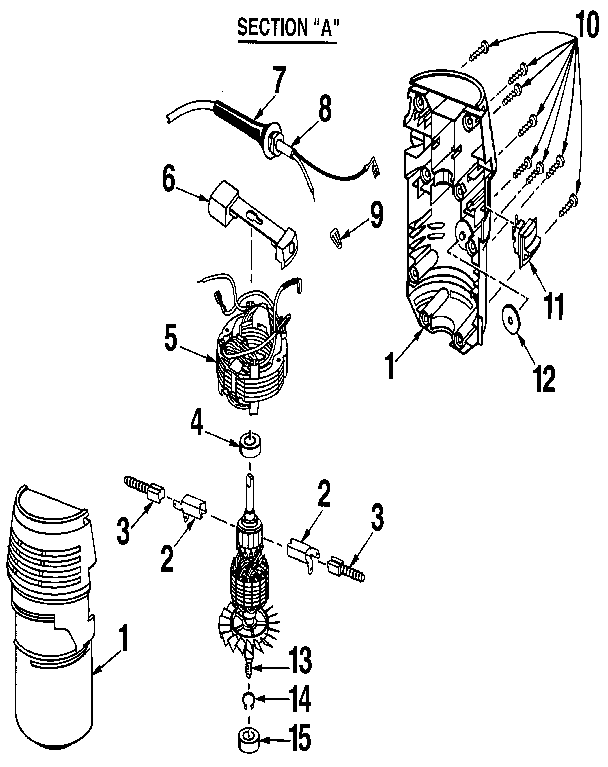

Housing and armature assembly diagram

Ball bearing

Part #989919-004

The manufacturer no longer makes this part, and there's no substitute part

#11

Housing and armature assembly diagram

Switch

Part #612721-003

The manufacturer no longer makes this part, and there's no substitute part

Housing and armature assembly diagram

Shaft lock

Part #969708-001

The manufacturer no longer makes this part, and there's no substitute part

#14

Housing and armature assembly diagram

Retain ring

Part #622167-012

The manufacturer no longer makes this part, and there's no substitute part

Housing and armature assembly diagram

Brush assembly

Part #610784-034

The manufacturer no longer makes this part, and there's no substitute part

#10

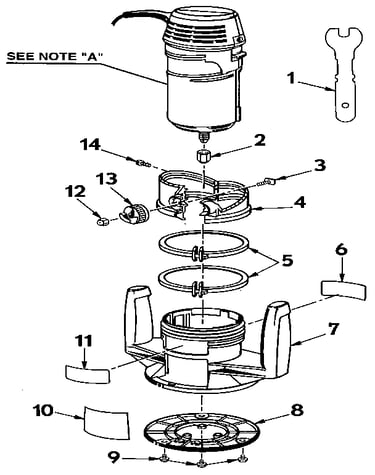

Base assembly diagram

Chip shield

Part #969712-001

The manufacturer no longer makes this part, and there's no substitute part

Housing and armature assembly diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

#12

Base assembly diagram

Hex nut

Part #970856-001

The manufacturer no longer makes this part, and there's no substitute part

Base assembly diagram

Screw

Part #969697-001

The manufacturer no longer makes this part, and there's no substitute part

Housing and armature assembly diagram

Housing assembly

Part #969850-001

The manufacturer no longer makes this part, and there's no substitute part
