Dishwasher

Model # FFBD2407LM0A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FFBD2407LM0A dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FFBD2407LM0A Dishwasher
Dishwasher Tub Gasket 154782401
#3

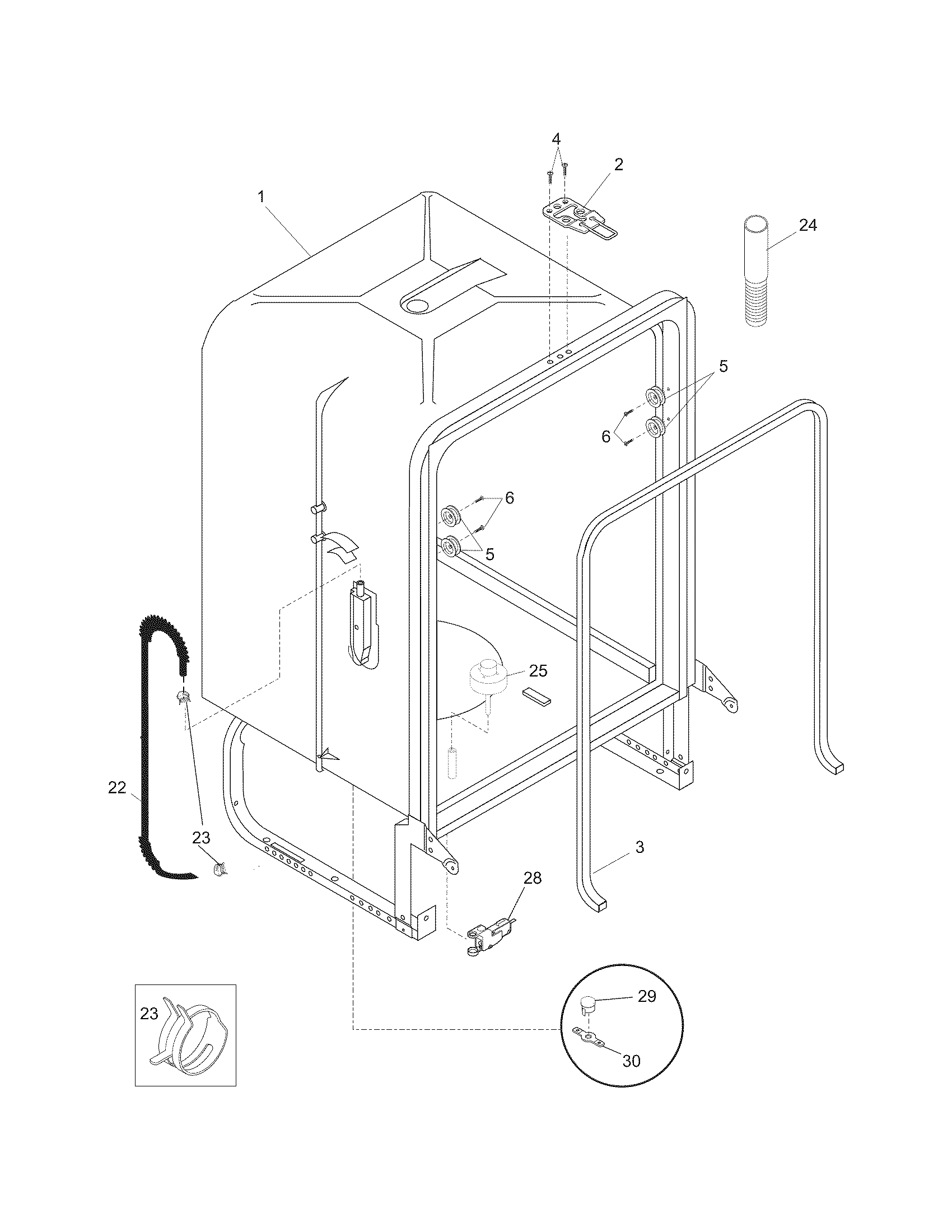

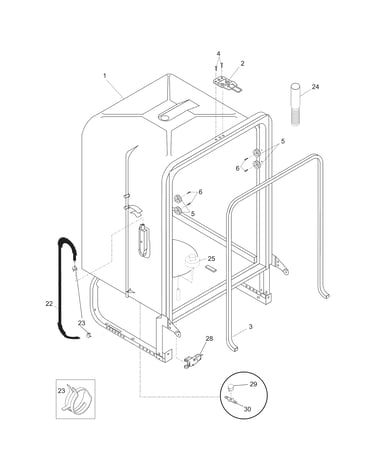

Tub diagram

Dishwasher tub gasket

Part #154782401

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154782401. Substitute parts can look different from the original.
4.46 (37)
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Dishwasher Spray Arm 154568001
#24

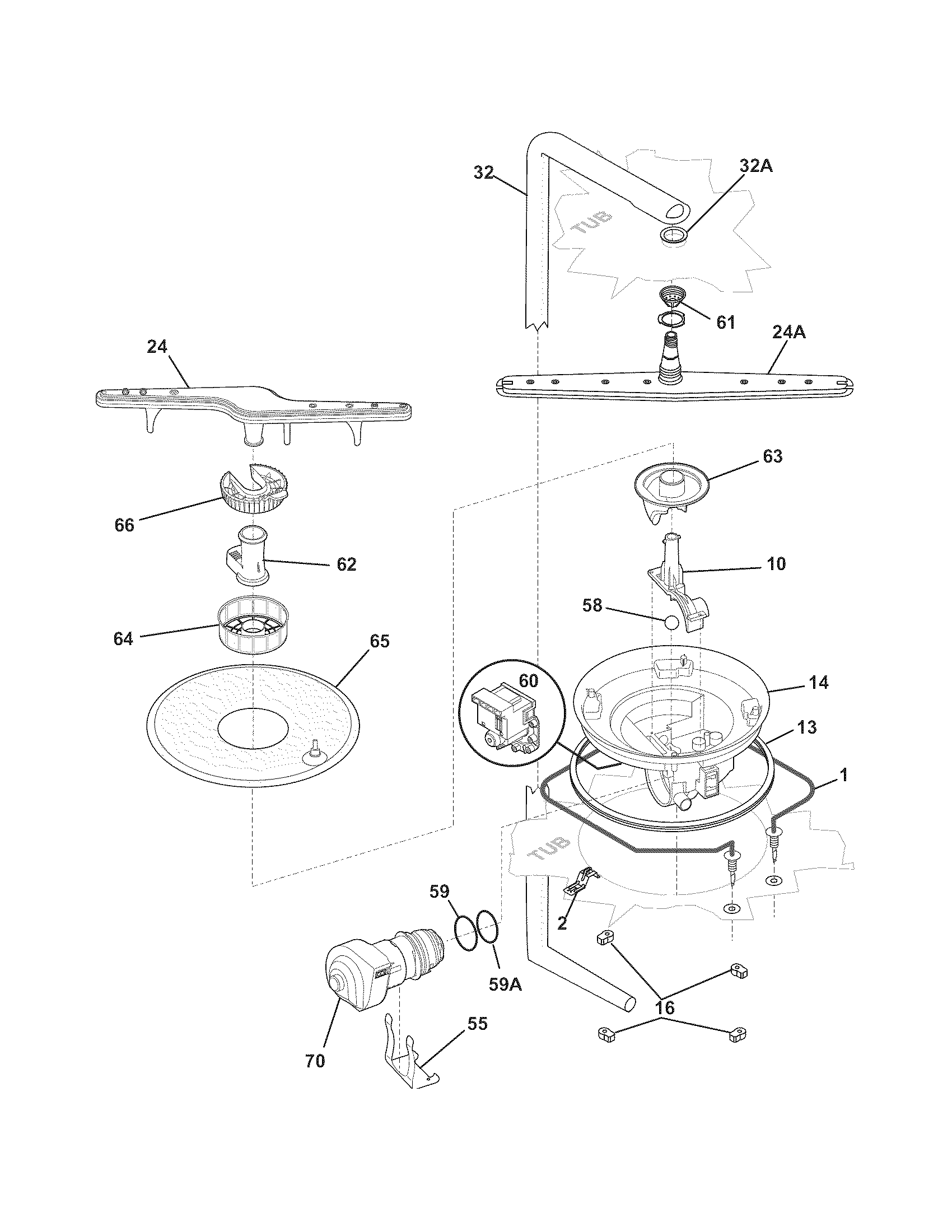

Motor & pump diagram

Dishwasher spray arm

Part #154568001

Replaced by #5304517203

?
Manufacturer substitution
This part replaces 154568001. Substitute parts can look different from the original.
4.52 (27)
BEST SELLER
$33.86 |
15% OFF Phone Price : $39.86
In Stock
Pump 154736201
#60

Motor & pump diagram

Pump

Part #154736201

Replaced by #A00126401

?
Manufacturer substitution
This part replaces 154736201. Substitute parts can look different from the original.
4.23 (13)
BEST SELLER
$83.85 |
7% OFF Phone Price : $89.85
In Stock
Dishwasher Door Seal 154576501
#49

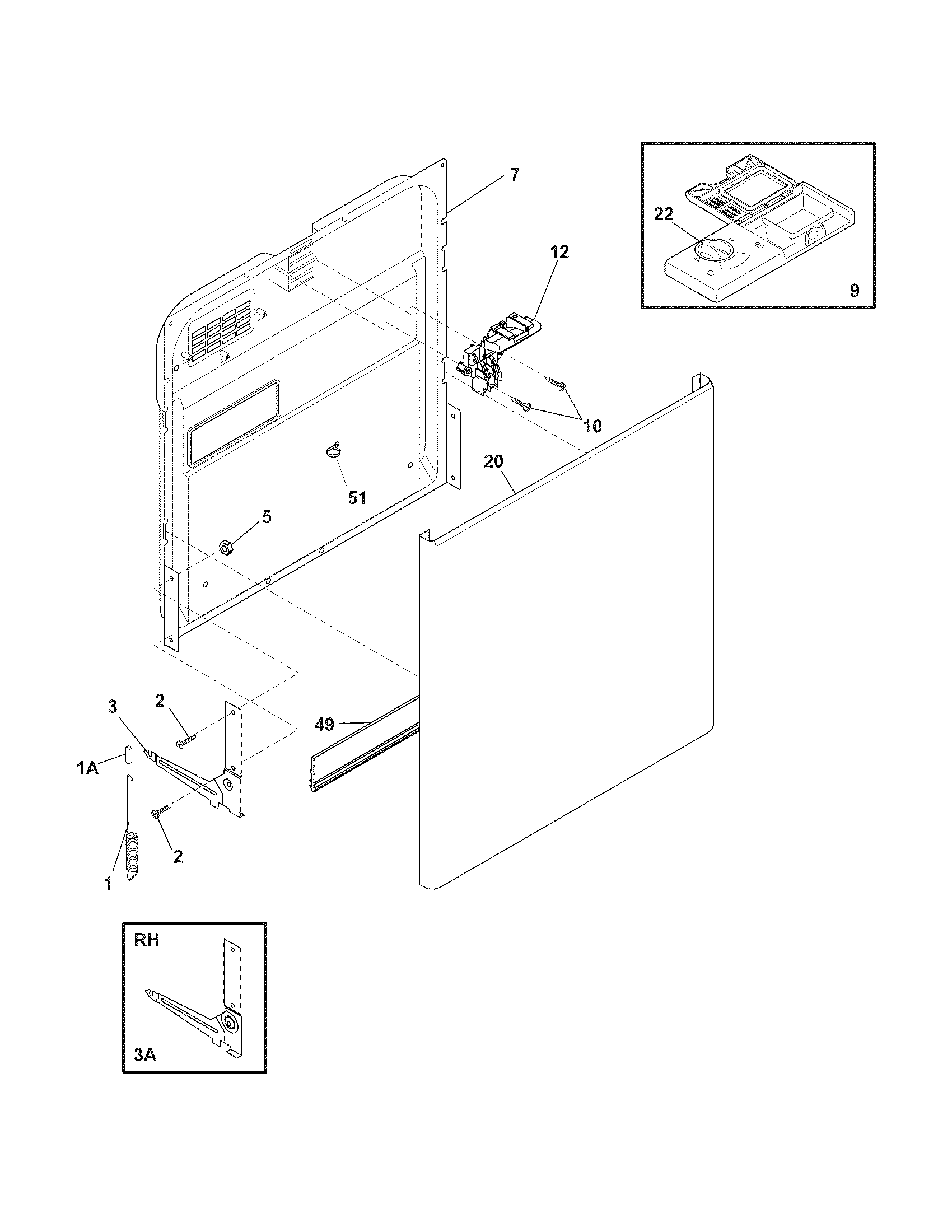

Door diagram

Dishwasher door seal

Part #154576501

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154576501. Substitute parts can look different from the original.
4.64 (25)
BEST SELLER
$23.62 |
20% OFF Phone Price : $29.62
In Stock
Dishwasher Lower Spray Arm Support 154294101
#62

Motor & pump diagram

Dishwasher lower spray arm support

Part #154294101

Replaced by #5304518968

?
Manufacturer substitution
This part replaces 154294101. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Dishwasher Pump O-ring, Rear 154246901
#59

Motor & pump diagram

Dishwasher pump o-ring, rear

Part #154246901

1 (1)
BEST SELLER
$38.32 |
14% OFF Phone Price : $44.32
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.32 |
14% OFF Phone Price : $44.32
In Stock

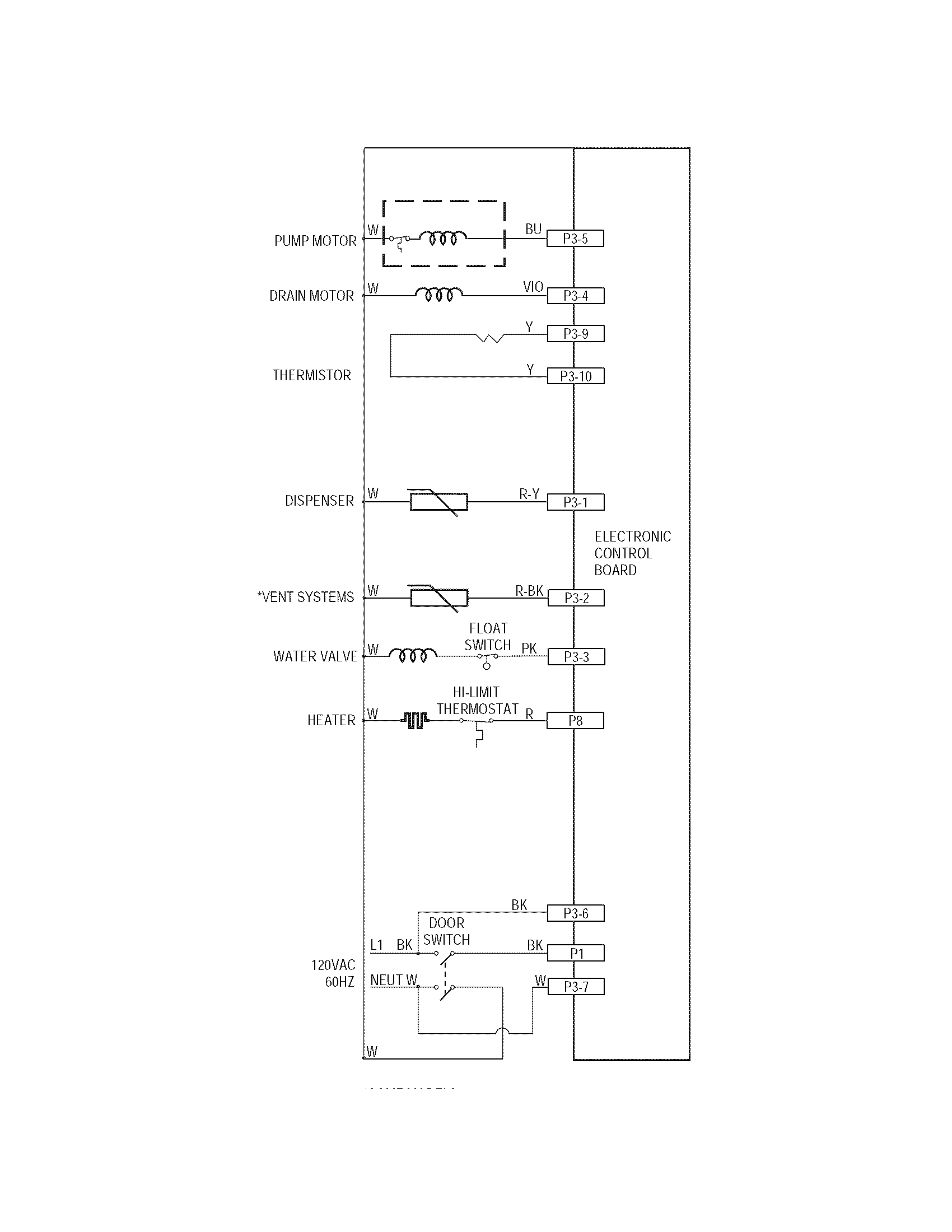

Dishwasher Electronic Control Board 154783201
#3

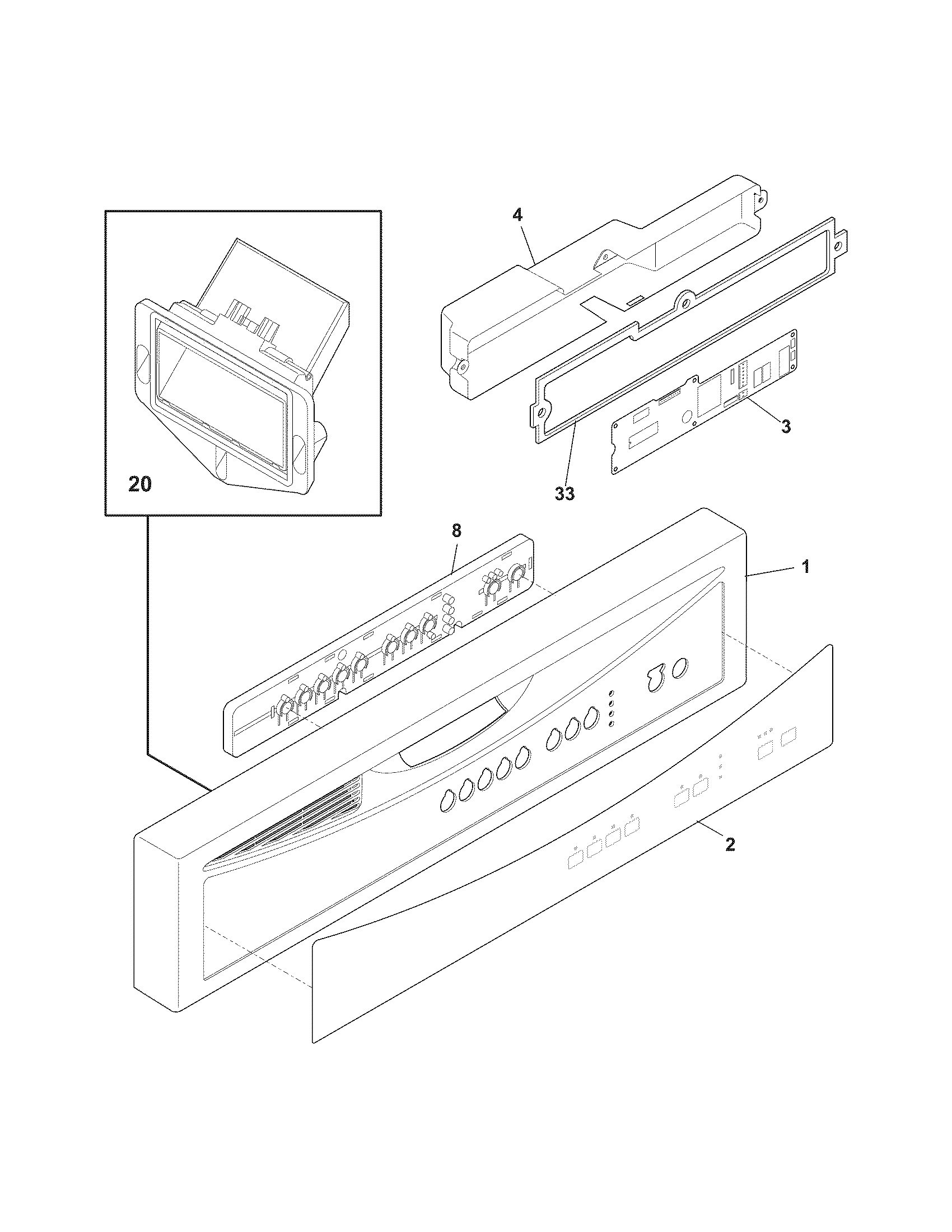

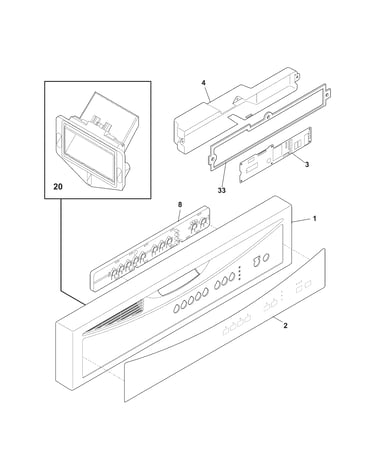

Control panel diagram

Dishwasher electronic control board

Part #154783201

Replaced by #5304512731

?
Manufacturer substitution
This part replaces 154783201. Substitute parts can look different from the original.
4.5 (2)
BEST SELLER
This item is not returnable
$99.78 |
11% OFF Phone Price : $111.78
In Stock
Dishwasher Dishrack Roller, Lower 154174502
#7

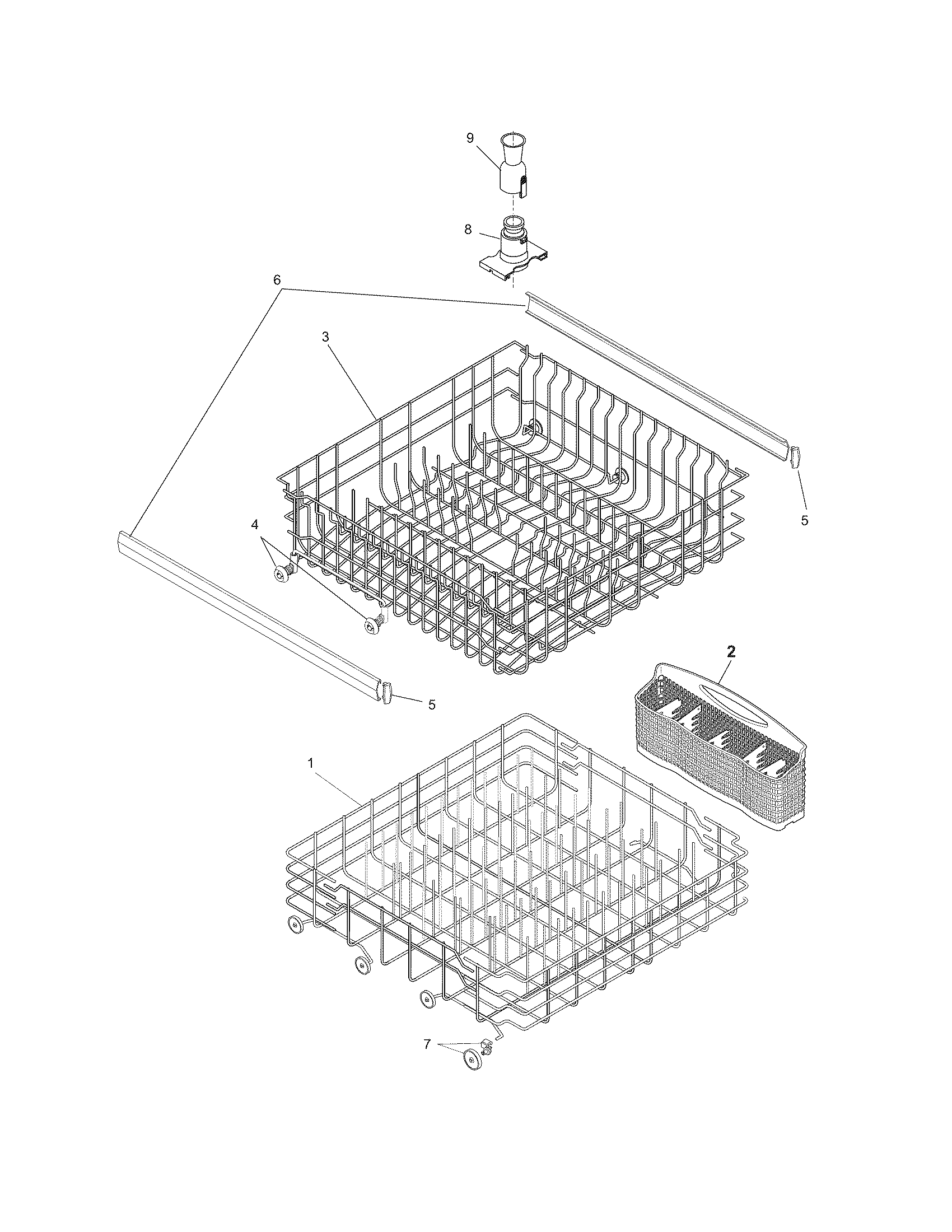

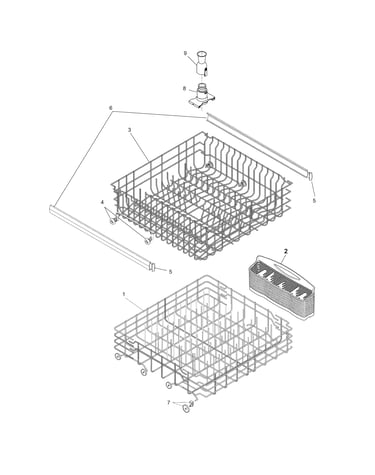

Racks diagram

Dishwasher dishrack roller, lower

Part #154174502

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174502. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.92 |
17% OFF Phone Price : $5.92
In Stock
Latch Assembly 154556701
#12

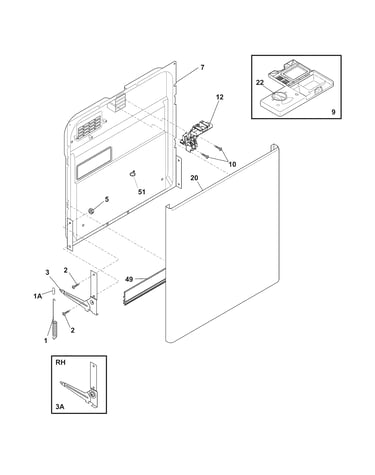

Door diagram

Latch assembly

Part #154556701

Replaced by #A00099902

?
Manufacturer substitution
This part replaces 154556701. Substitute parts can look different from the original.
5 (5)
BEST SELLER
$57.78 |
9% OFF Phone Price : $63.78
In Stock
