Kenmore
Electric Range

Model # 79093012314 Official Kenmore electric freestanding range

Here are the diagrams and repair parts for Official Kenmore 79093012314 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

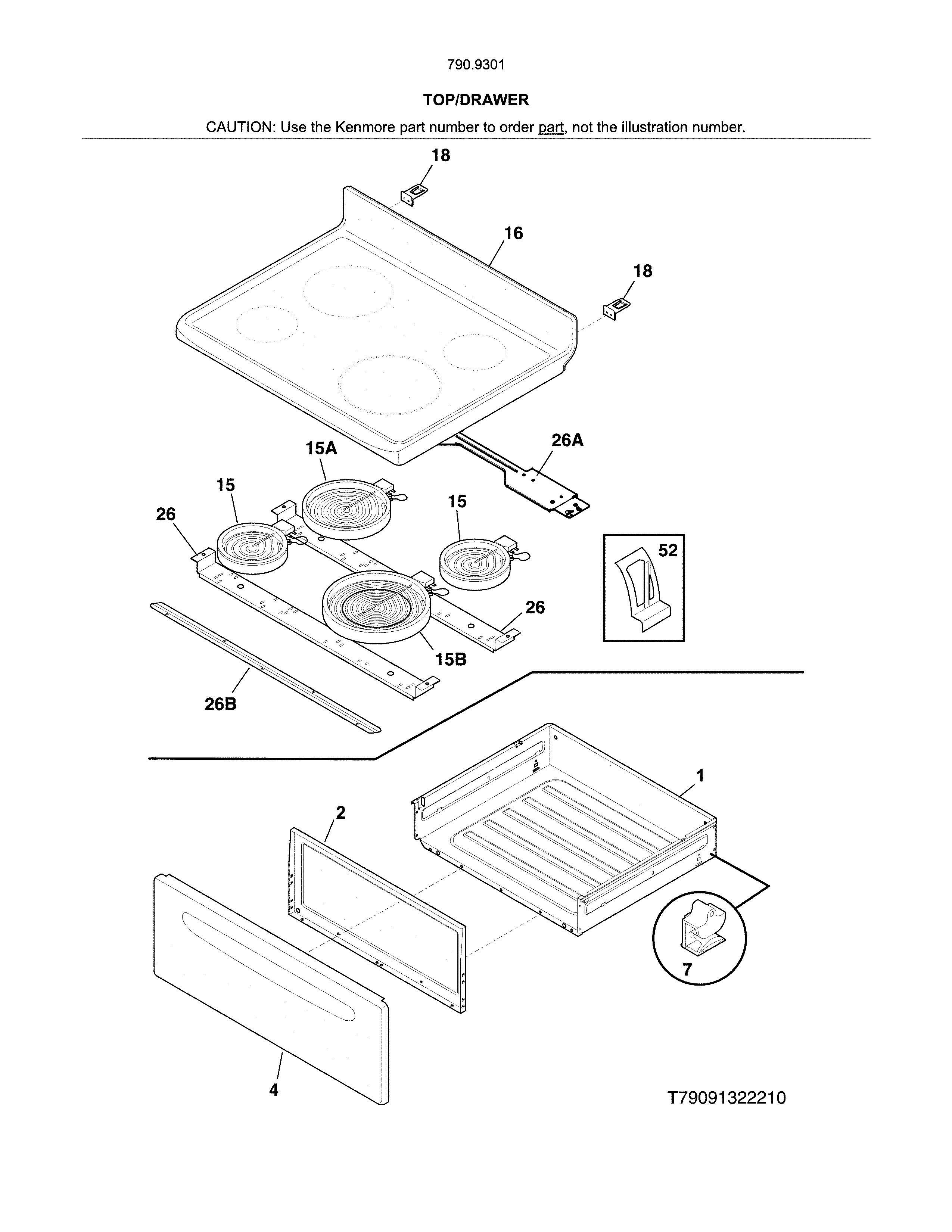

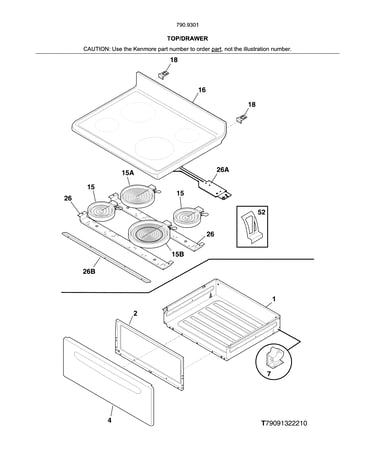

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

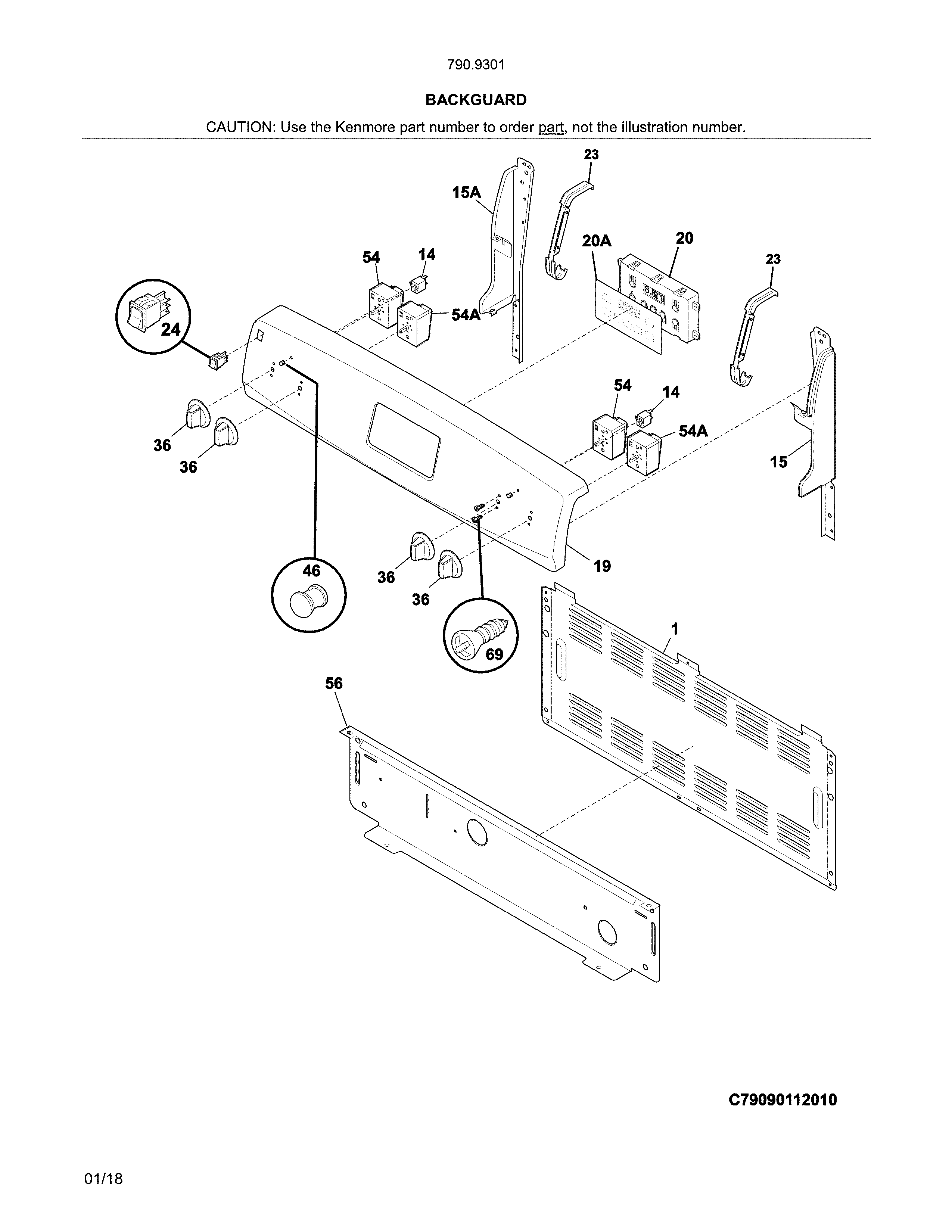

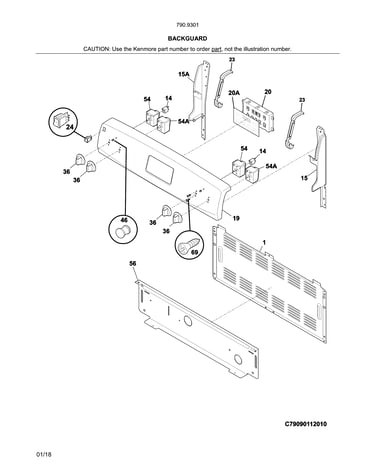

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

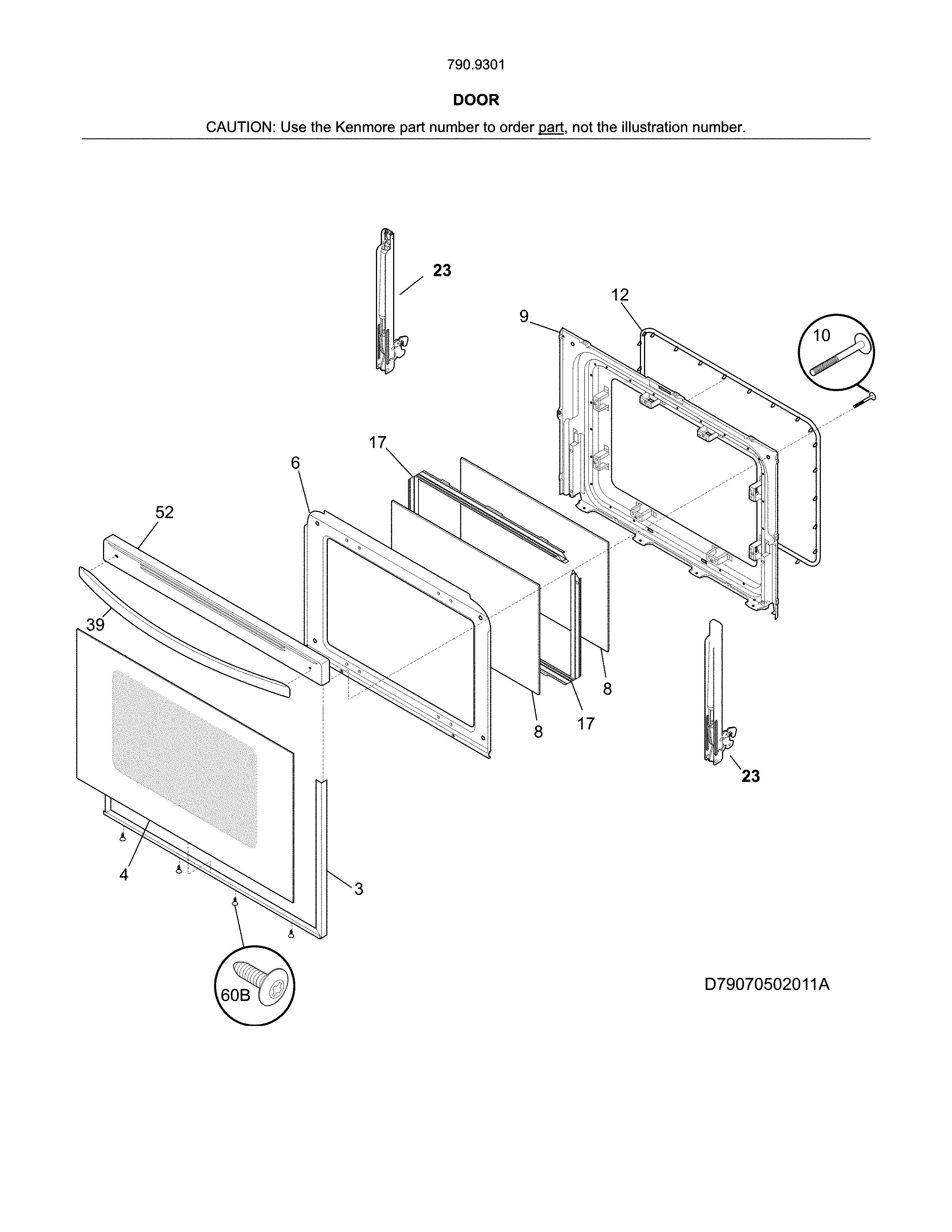

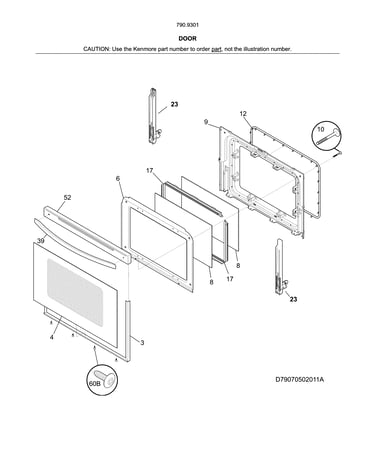

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86 |
13% OFF Phone Price : $14.86
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Oven Door Handle 316356201
#39

Door diagram

Range oven door handle

Part #316356201

Replaced by #5304532279

?
Manufacturer substitution
This part replaces 316356201. Substitute parts can look different from the original.
BEST SELLER
$57.02
In Stock
Range Screw (replaces 5304479277) 316001013
#10

Door diagram

Range screw (replaces 5304479277)

Part #316001013

BEST SELLER
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

$76.01 |
7% OFF Phone Price : $82.01
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Oven Light Rocker Switch (white) 5304515133
#12

Backguard diagram

Range oven light rocker switch (white)

Part #5304515133

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 5304515133. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

View all
