Craftsman
Lawn Edger

Model # 25785851 Official Craftsman electric multipurpose lawn edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 25785851 electric multipurpose lawn edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Handle 304A
#5

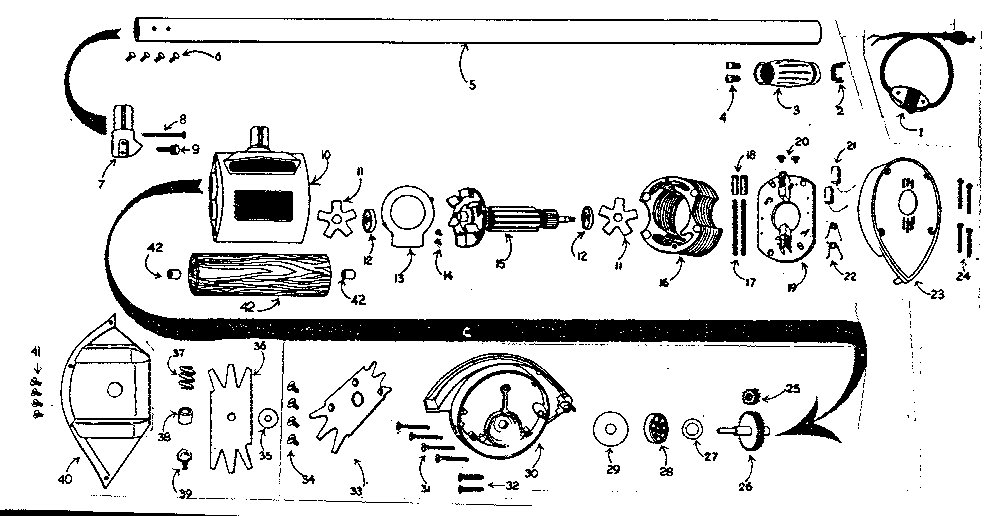

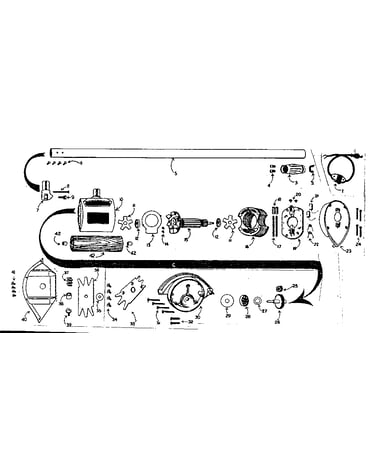

Replacement parts diagram

Handle

Part #304A

The manufacturer no longer makes this part, and there's no substitute part

Brush L107
#21

Replacement parts diagram

Brush

Part #L107

The manufacturer no longer makes this part, and there's no substitute part

Guard Not Used N/P
#37

Replacement parts diagram

Guard not used

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Connector 71B
#4

Replacement parts diagram

Connector

Part #71B

The manufacturer no longer makes this part, and there's no substitute part

Cord W/sw. 301A
#1

Replacement parts diagram

Cord w/sw.

Part #301A

The manufacturer no longer makes this part, and there's no substitute part

Swivel 306A
#7

Replacement parts diagram

Swivel

Part #306A

The manufacturer no longer makes this part, and there's no substitute part

Mount 311
#29

Replacement parts diagram

Mount

Part #311

The manufacturer no longer makes this part, and there's no substitute part

Armature L104
#15

Replacement parts diagram

Armature

Part #L104

The manufacturer no longer makes this part, and there's no substitute part

Bolt L106A
#17

Replacement parts diagram

Bolt

Part #L106A

The manufacturer no longer makes this part, and there's no substitute part

Skid Plate 320A
#40

Replacement parts diagram

Skid plate

Part #320A

The manufacturer no longer makes this part, and there's no substitute part
