GE
Range Hood

Model # JVB34SBL Official GE range hood

Here are the diagrams and repair parts for Official GE JVB34SBL range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw WB01X10190
#50

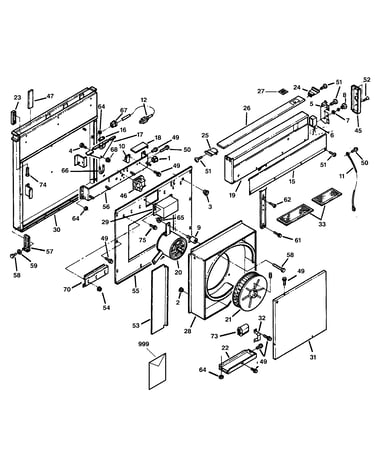

Range hood diagram

Screw

Part #WB01X10190

This item is not returnable
$2.49
In Stock
Hex Keps Nut WC01X5148
#64

Range hood diagram

Hex keps nut

Part #WC01X5148

The manufacturer no longer makes this part, and there's no substitute part
