Hotpoint
Chest Freezer

Model # FH22DXBWH Official Hotpoint freezer - x series

Here are the diagrams and repair parts for Official Hotpoint FH22DXBWH freezer - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Refrigerator Filter Dryer WR86X96
#740

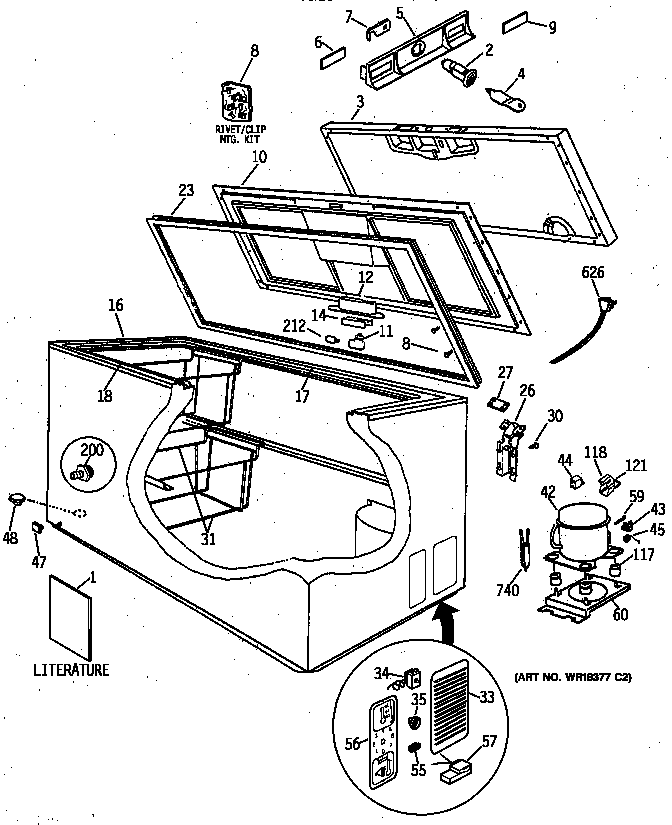

Compressor/gasket/lid diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Hose Adapter WR1X1538
#200

Compressor/gasket/lid diagram

Hose adapter

Part #WR1X1538

$27.99 |
18% OFF Phone Price : $33.99
In Stock
Power Cord WR23X108
#626

Compressor/gasket/lid diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Cover Relay Prot. WR2X9555
#118

Compressor/gasket/lid diagram

Cover relay prot.

Part #WR2X9555

The manufacturer no longer makes this part, and there's no substitute part

Temperature Control WR9X589
#34

Compressor/gasket/lid diagram

Temperature control

Part #WR9X589

The manufacturer no longer makes this part, and there's no substitute part

Overload WR8X10001
#45

Compressor/gasket/lid diagram

Overload

Part #WR8X10001

The manufacturer no longer makes this part, and there's no substitute part

Switch Test WR23X354
#55

Compressor/gasket/lid diagram

Switch test

Part #WR23X354

The manufacturer no longer makes this part, and there's no substitute part

Reflector WR2X9549
#12

Compressor/gasket/lid diagram

Reflector

Part #WR2X9549

The manufacturer no longer makes this part, and there's no substitute part

Plug-drai WR2X7456
#48

Compressor/gasket/lid diagram

Plug-drai

Part #WR2X7456

The manufacturer no longer makes this part, and there's no substitute part

Socket WR23X5148
#11

Compressor/gasket/lid diagram

Socket

Part #WR23X5148

The manufacturer no longer makes this part, and there's no substitute part
