Model # AQC1526AEW Official Amana chest freezer

Here are the diagrams and repair parts for Official Amana AQC1526AEW chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

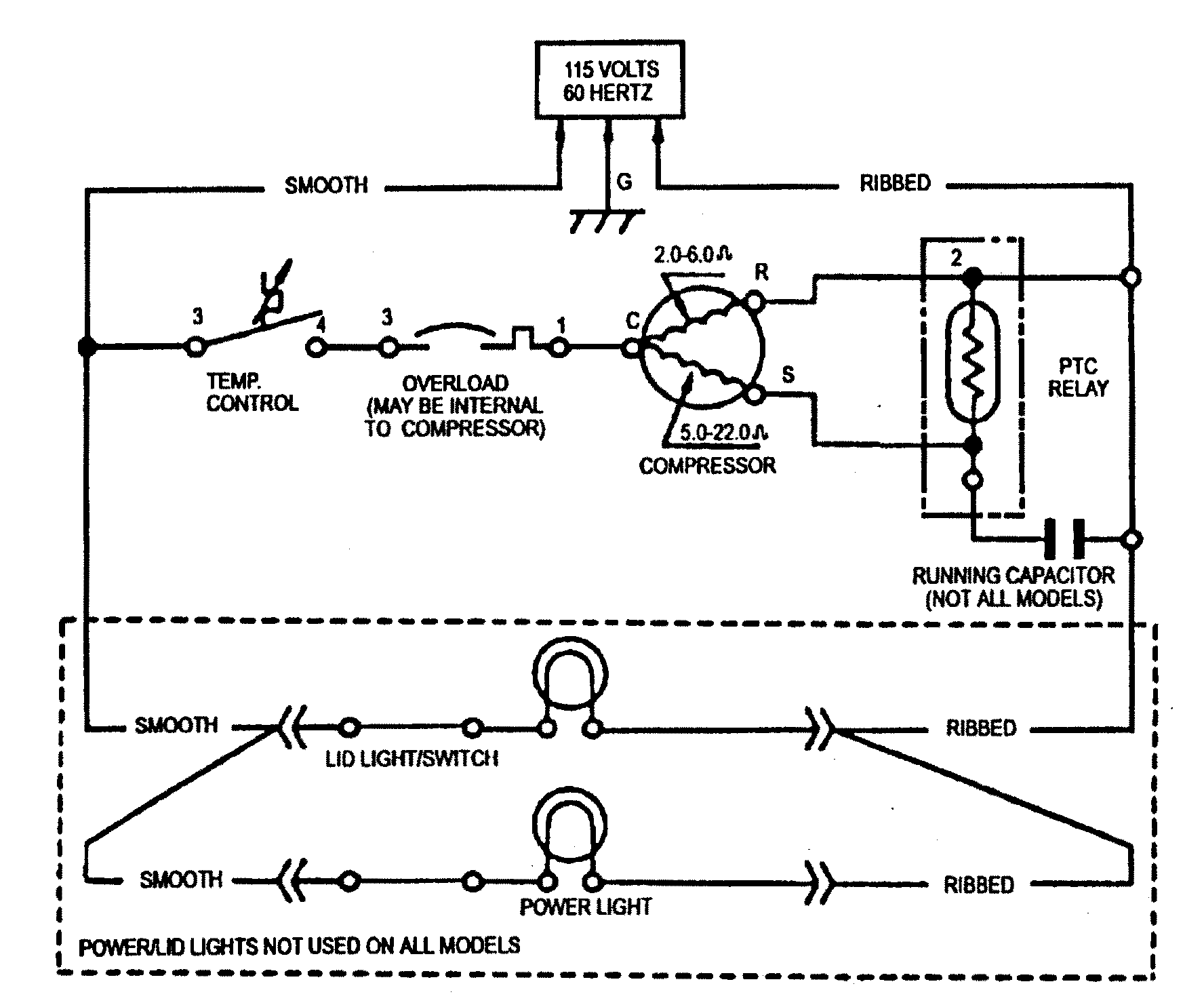

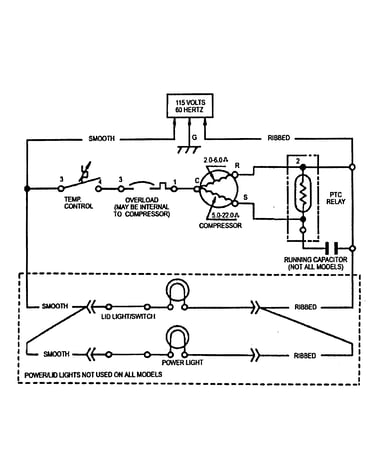

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Refrigerator Uv Dye Dryer 13900-1
#6

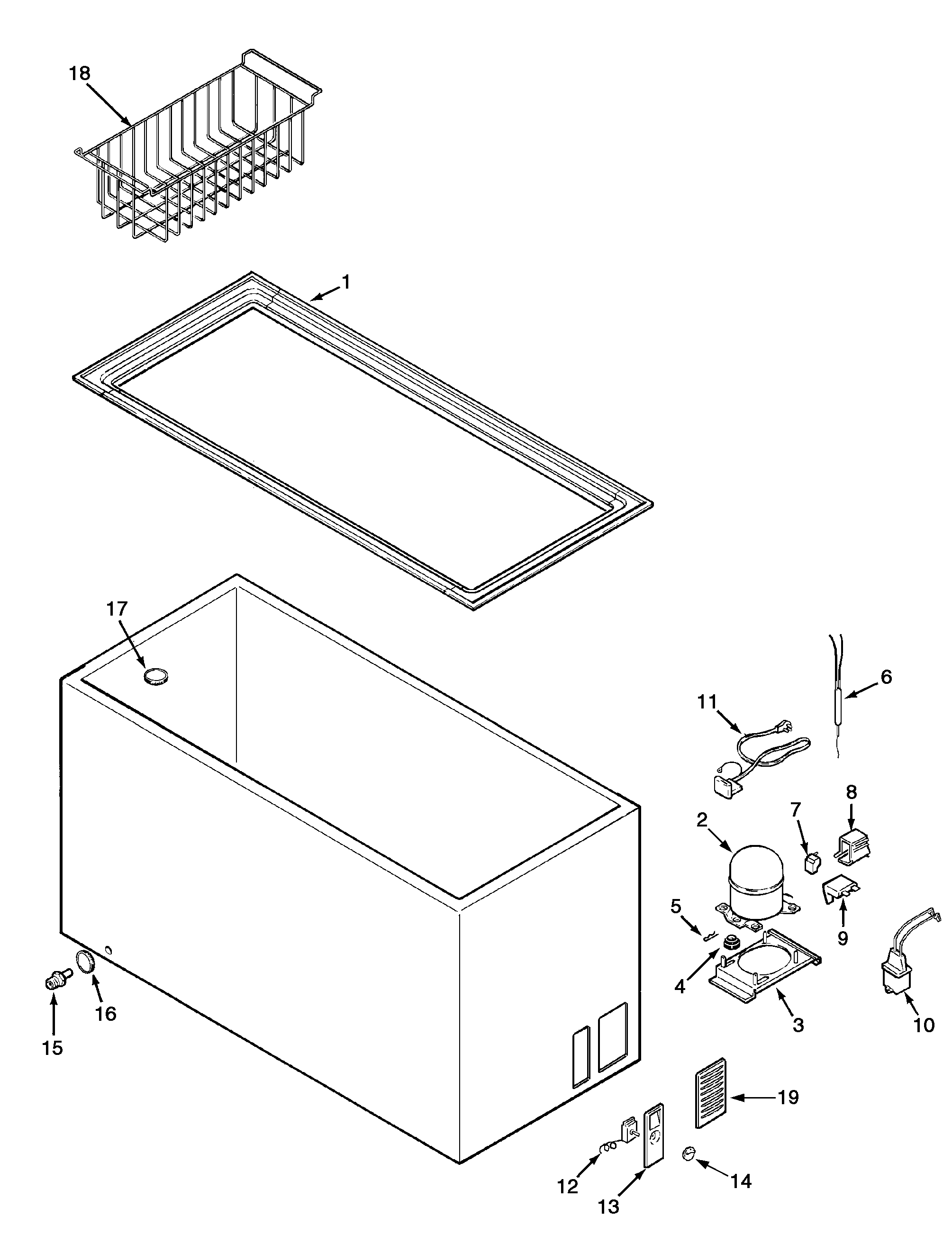

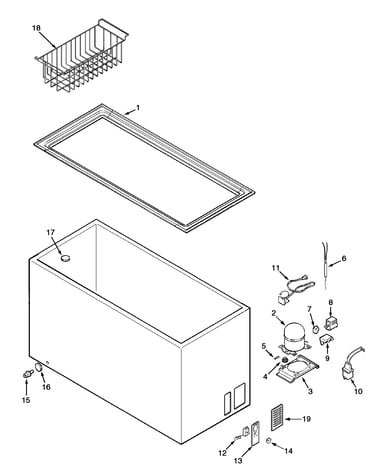

Cabinet diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Run Capacitor 09100173
#10

Cabinet diagram

Run capacitor

Part #09100173

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 09100173. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Light Bulb 09100073
#18

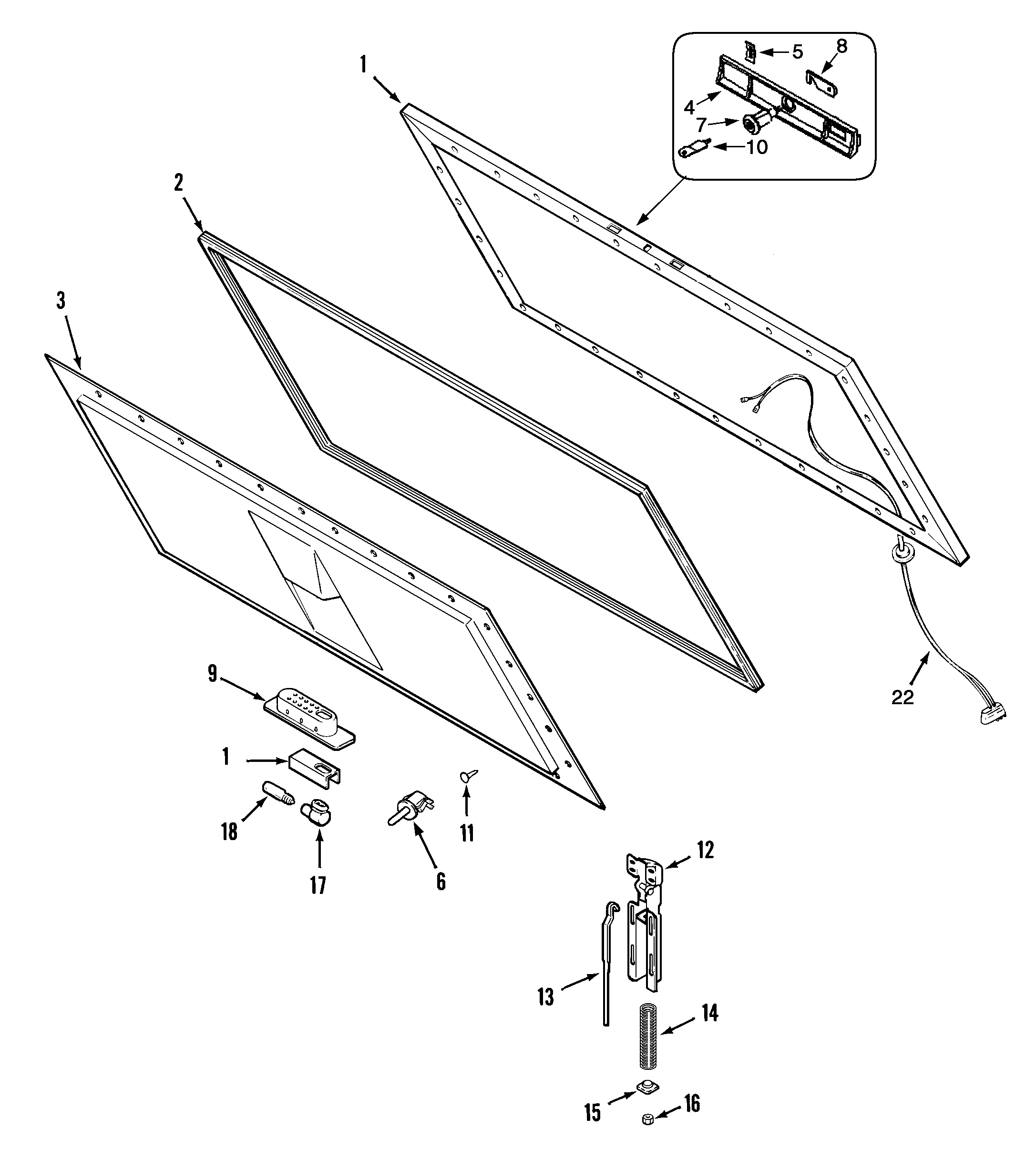

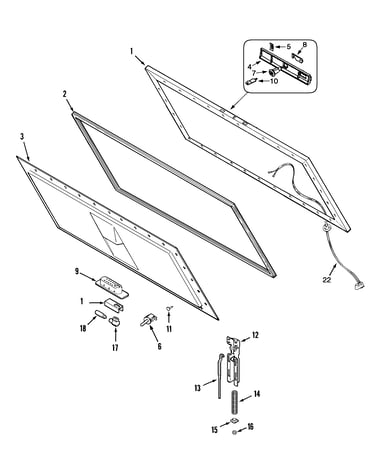

Lid diagram

Light bulb

Part #09100073

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 09100073. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Screw 68001156
#8A

Lid diagram

Screw

Part #68001156

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 68001156. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Gasket Kit 68001176
#2

Lid diagram

Gasket kit

Part #68001176

Replaced by #WP4-35260-005

?
Manufacturer substitution
This part replaces 68001176. Substitute parts can look different from the original.
$124.66 |
9% OFF Phone Price : $136.66
In Stock
Lock Kit 68001445
#7

Lid diagram

Lock kit

Part #68001445

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 68001445. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Temperature Control 68001451
#12

Cabinet diagram

Temperature control

Part #68001451

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 68001451. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Lock Clip 68001012
#7A

Lid diagram

Lock clip

Part #68001012

Replaced by #1-26359

?
Manufacturer substitution
This part replaces 68001012. Substitute parts can look different from the original.
$36.58
In Stock
Breaker Strip 68001185
#1B

Cabinet diagram

Breaker strip

Part #68001185

Replaced by #4-35010-004

?
Manufacturer substitution
This part replaces 68001185. Substitute parts can look different from the original.
$54.96
In Stock
Overload 68001459
#9

Cabinet diagram

Overload

Part #68001459

Replaced by #WP2214067

?
Manufacturer substitution
This part replaces 68001459. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
