Model # ZCGS150RSS-00 Official GE compactor

Here are the diagrams and repair parts for Official GE ZCGS150RSS-00 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

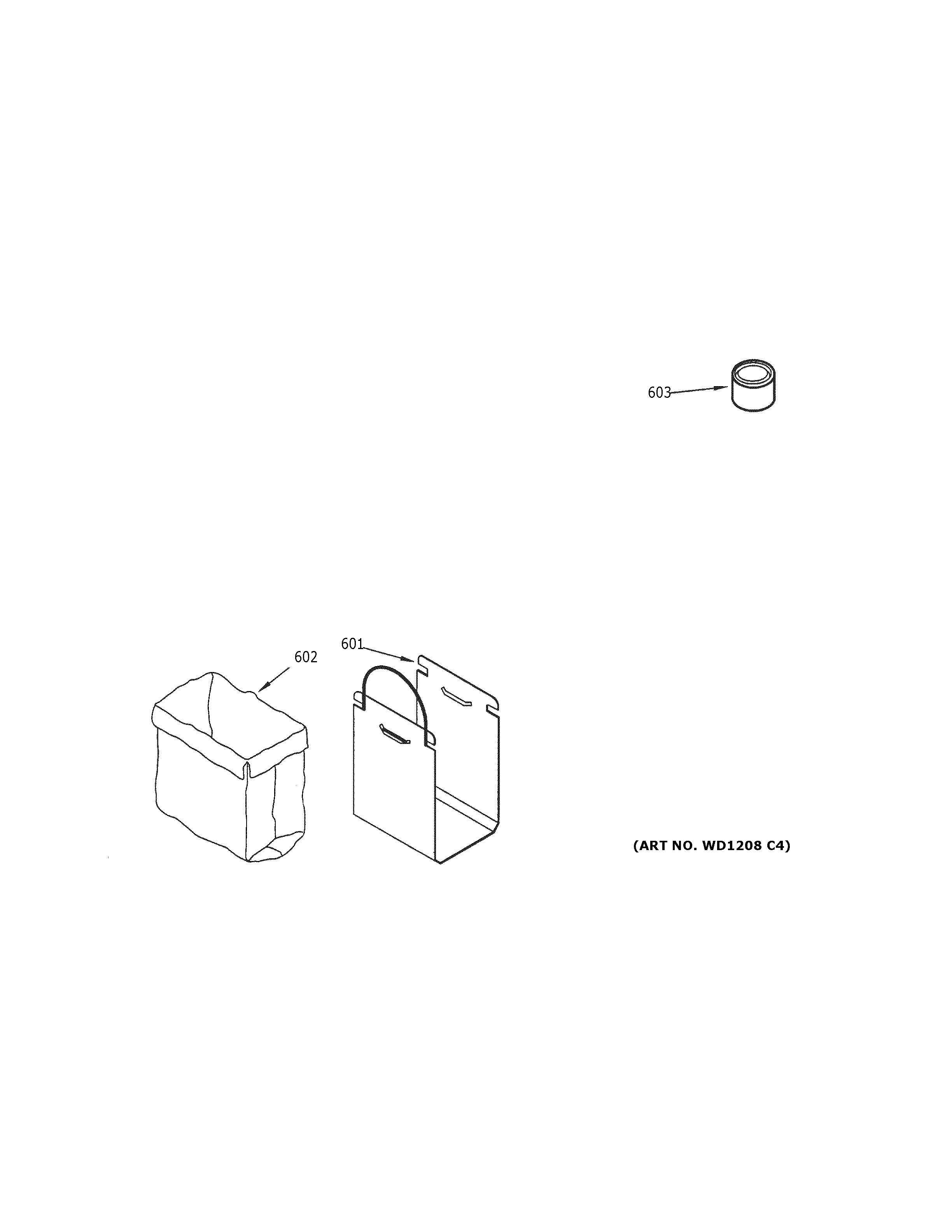

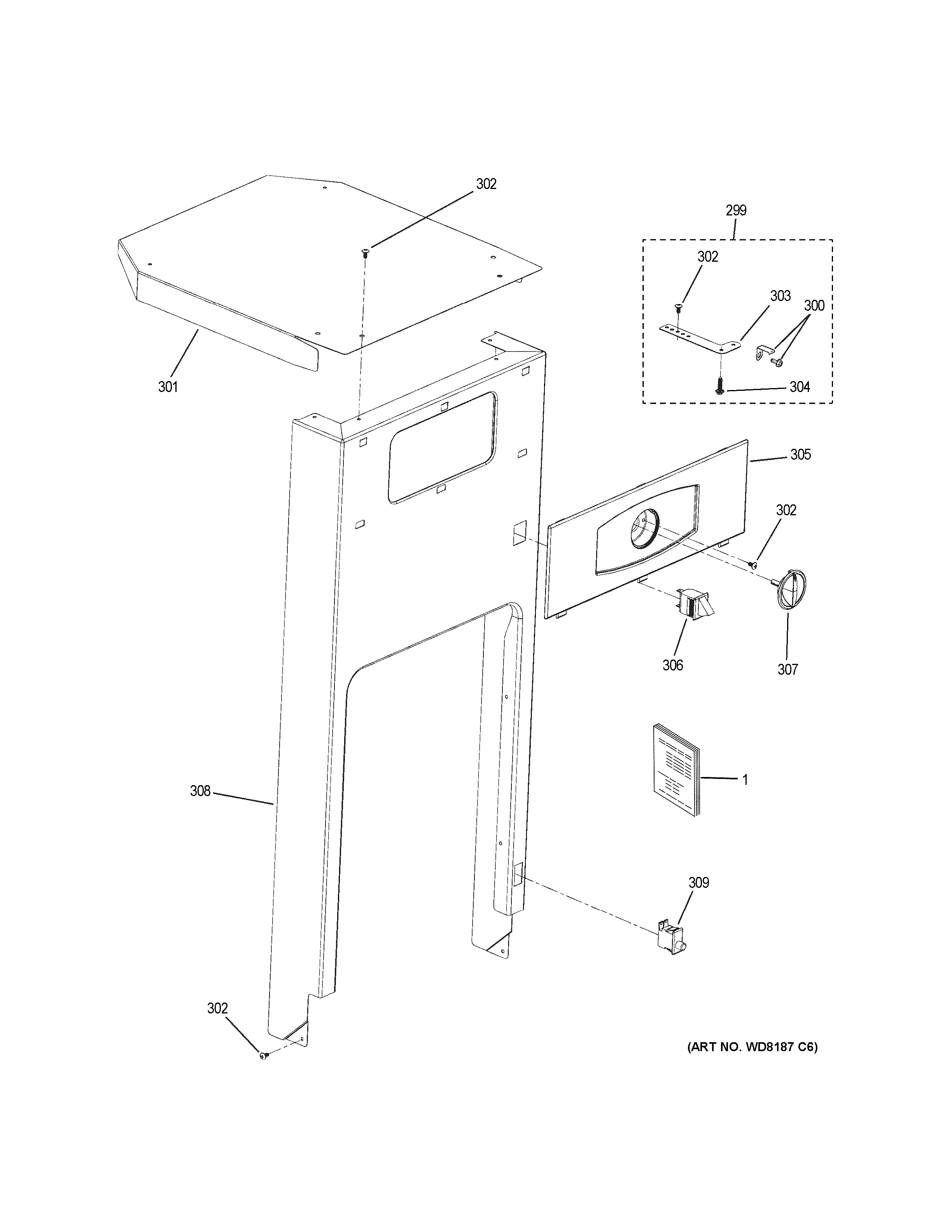

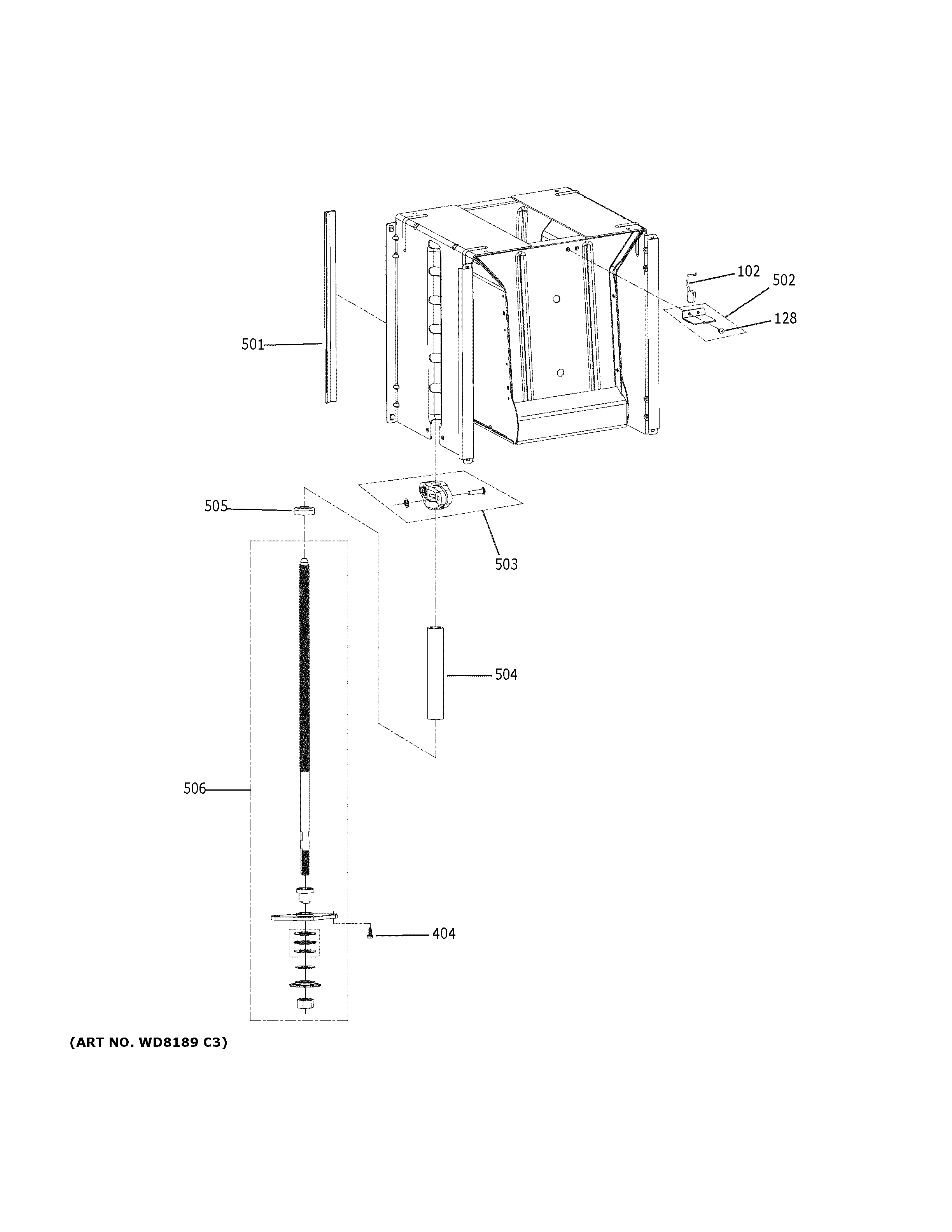

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Trash Compactor Frame Roller (replaces Wc17x20084) WC17X10012
#110

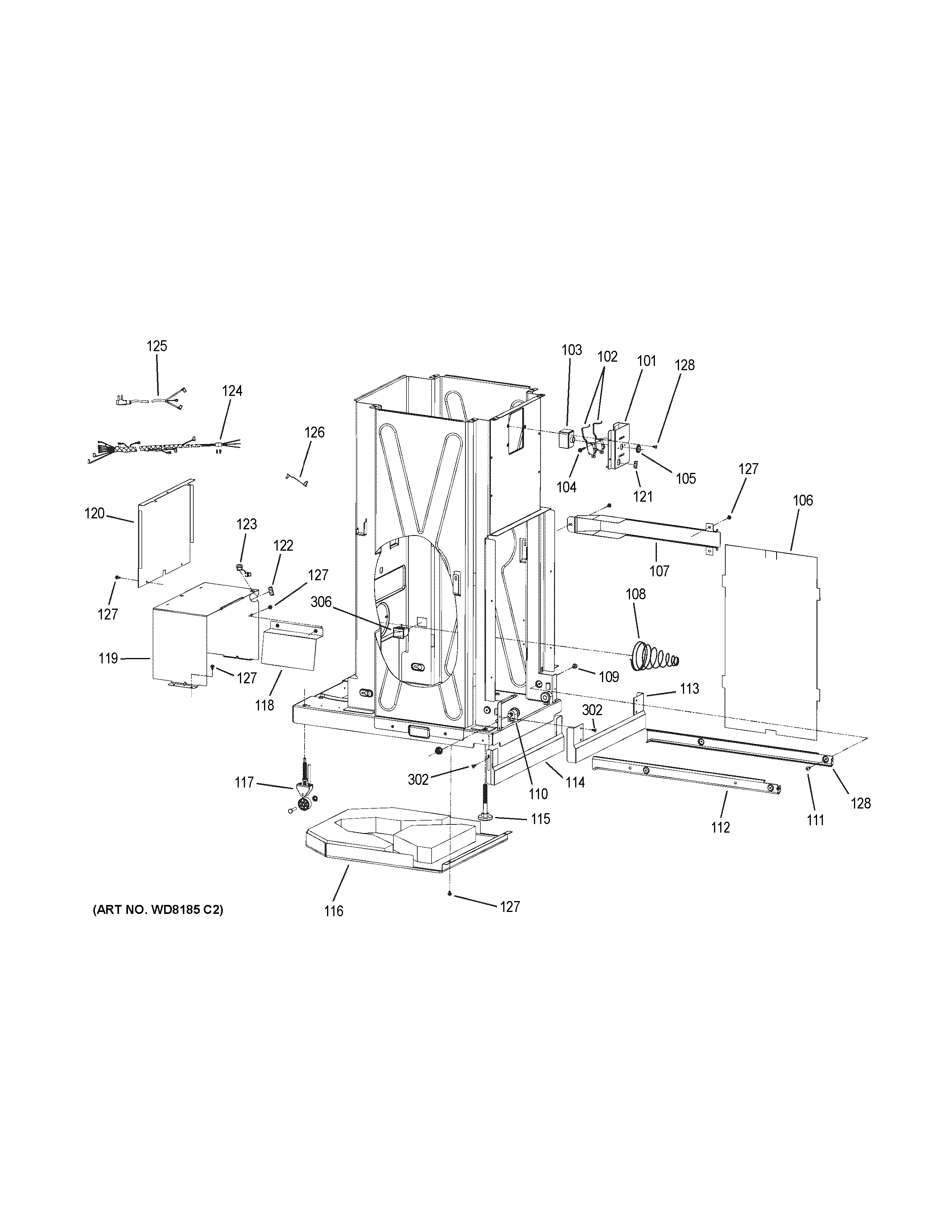

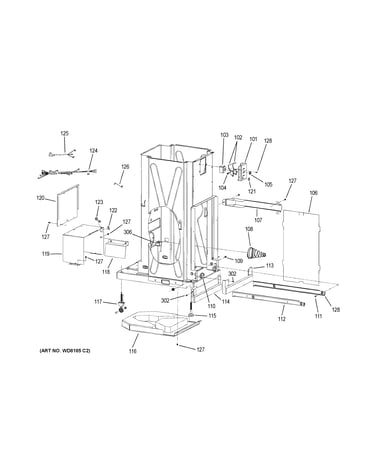

Frame parts diagram

Trash compactor frame roller (replaces wc17x20084)

Part #WC17X10012

This item is not returnable
$41.21
13% OFF Phone Price : $47.21
In Stock
Trash Compactor Drawer Roller WC02X10019
#209

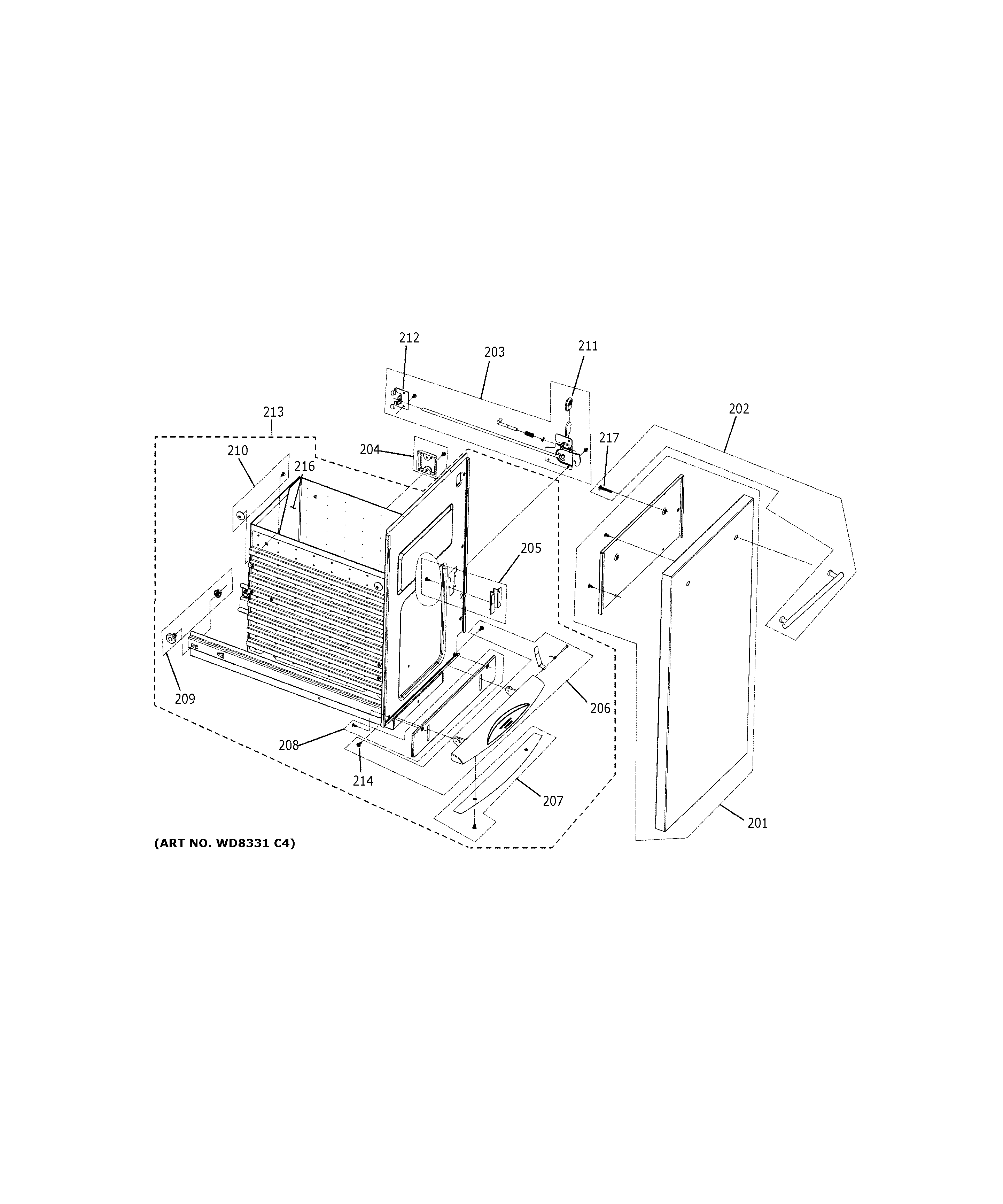

Container parts diagram

Trash compactor drawer roller

Part #WC02X10019

Replaced by #WC02X20110

?
Manufacturer substitution
This part replaces WC02X10019. Substitute parts can look different from the original.
$37.45
14% OFF Phone Price : $43.45
In Stock
Ring Clip WC01X10018
#411

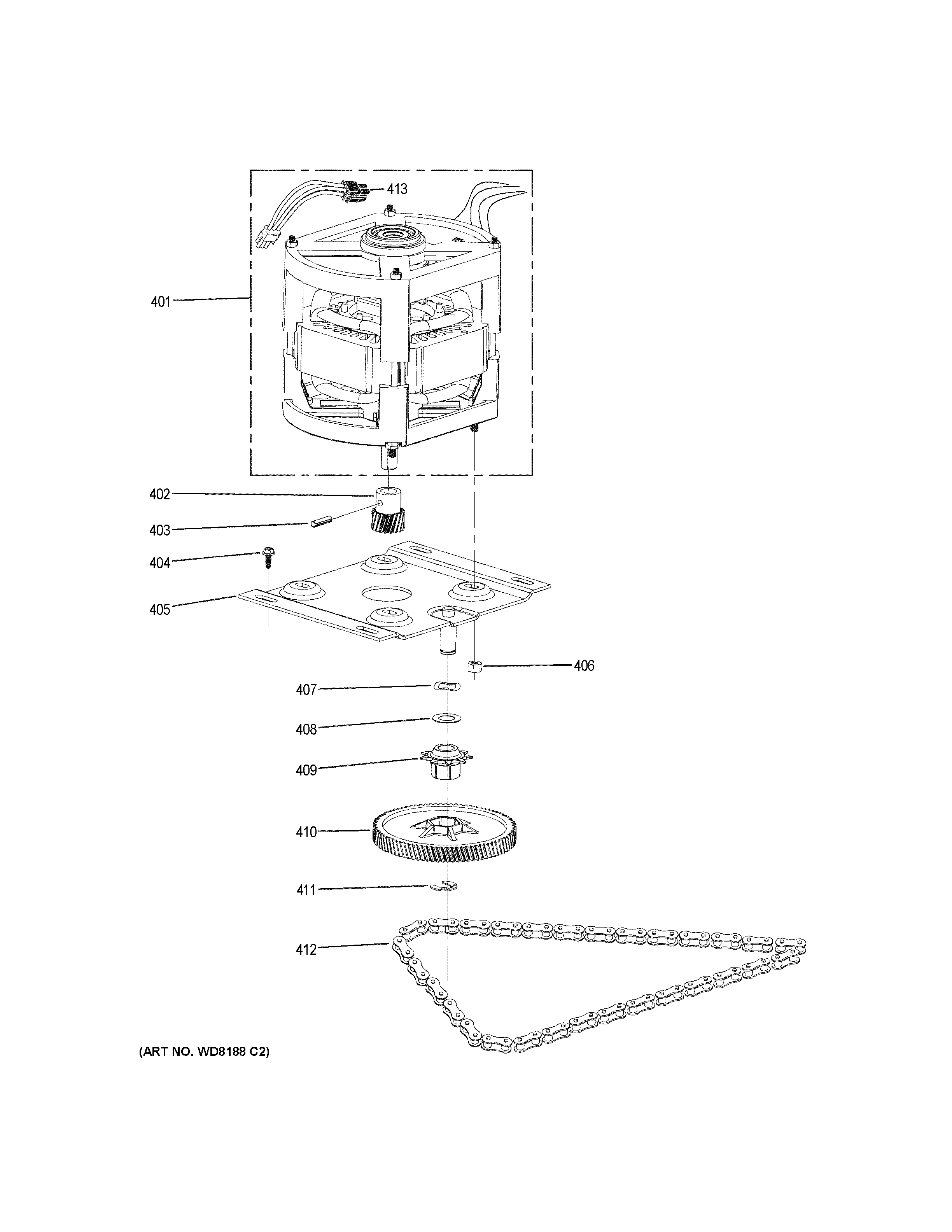

Motor & drive parts diagram

Ring clip

Part #WC01X10018

Replaced by #WC01X20107

?
Manufacturer substitution
This part replaces WC01X10018. Substitute parts can look different from the original.
This item is not returnable
$7.69
12% OFF Phone Price : $8.69
In Stock
Trash Compactor Top Limit And Directional Switch WC21X10004
Trash compactor top limit and directional switch

Part #WC21X10004

Replaced by #WC21X20108

?
Manufacturer substitution
This part replaces WC21X10004. Substitute parts can look different from the original.
$21.23
22% OFF Phone Price : $27.23
In Stock
Frame Spring WC09X10001
#108

Frame parts diagram

Frame spring

Part #WC09X10001

Replaced by #WC09X20115

?
Manufacturer substitution
This part replaces WC09X10001. Substitute parts can look different from the original.
This item is not returnable
In Stock
Handle Screw WC01X10035
#217

Container parts diagram

Handle screw

Part #WC01X10035

This item is not returnable
In Stock
Toe Kick Door WC17X10019
#208

Container parts diagram

Toe kick door

Part #WC17X10019

In Stock
Toe-kick Ss WC17X10006
#113

Frame parts diagram

Toe-kick ss

Part #WC17X10006

$63.13
9% OFF Phone Price : $69.13
In Stock
Handle WC10X10005
#202

Container parts diagram

Handle

Part #WC10X10005

In Stock
Rear Cover M WC17X10022
#120

Frame parts diagram

Rear cover m

Part #WC17X10022

In Stock
