Model # FAK123N1V Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAK123N1V air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

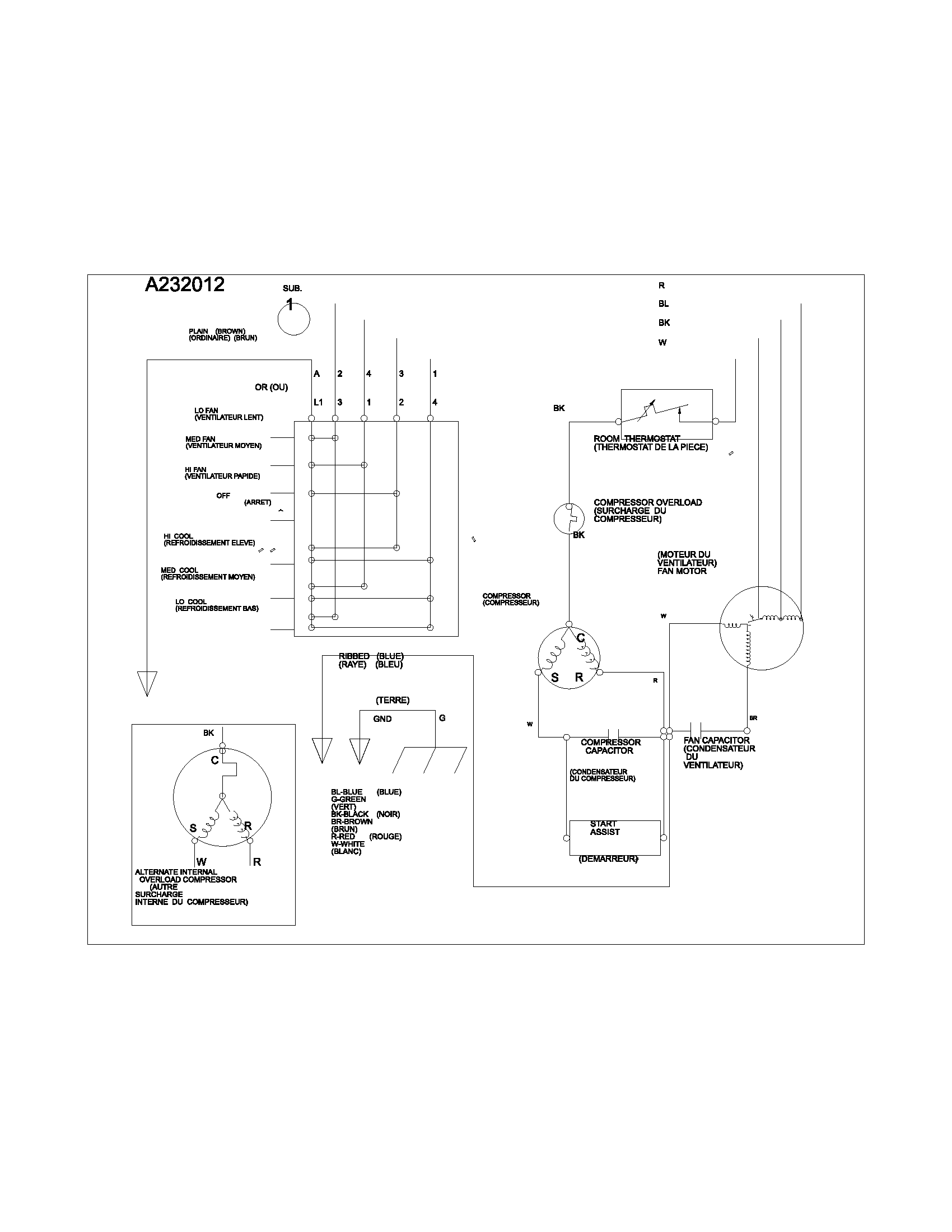

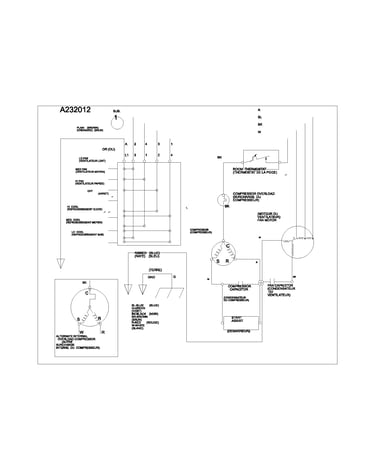

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Front Assembly 309622404
#24A

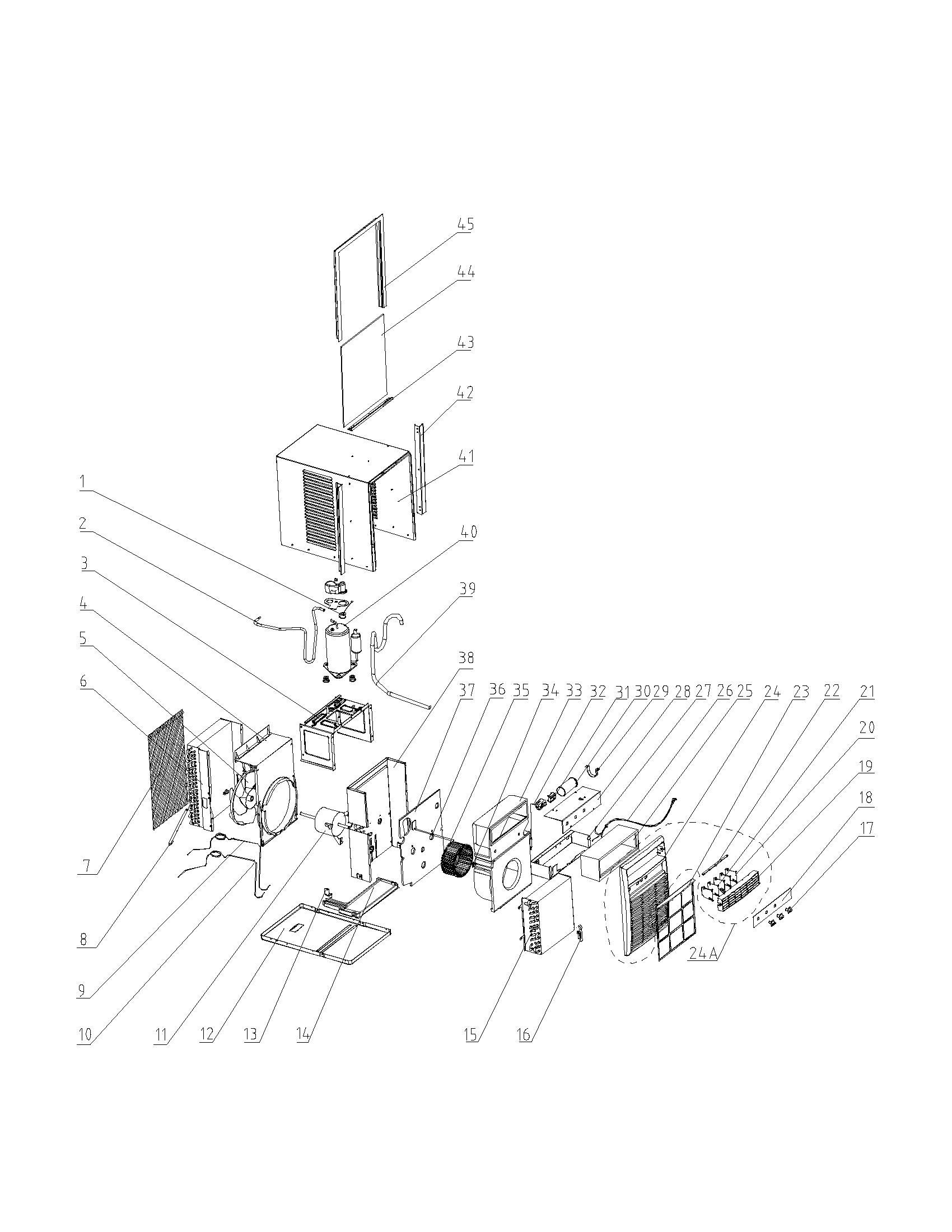

Recommended spare parts diagram

Front assembly

Part #309622404

$45.42
In Stock
White-westinghouse Ventilation Door 309625301
#36

Recommended spare parts diagram

White-westinghouse ventilation door

Part #309625301

$15.79
In Stock
Clip Control 309321201
#16

Recommended spare parts diagram

Clip control

Part #309321201

The manufacturer no longer makes this part, and there's no substitute part

Dial Plate 309622609
#18

Recommended spare parts diagram

Dial plate

Part #309622609

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 309622004
#41

Recommended spare parts diagram

Cabinet

Part #309622004

The manufacturer no longer makes this part, and there's no substitute part

Cord-electri 309343106
#26

Recommended spare parts diagram

Cord-electri

Part #309343106

The manufacturer no longer makes this part, and there's no substitute part

Rear Grille 5303317604
#7

Recommended spare parts diagram

Rear grille

Part #5303317604

The manufacturer no longer makes this part, and there's no substitute part

Tube 309365701
#39

Recommended spare parts diagram

Tube

Part #309365701

The manufacturer no longer makes this part, and there's no substitute part

Louver 309622104
#21

Recommended spare parts diagram

Louver

Part #309622104

The manufacturer no longer makes this part, and there's no substitute part

Frame 309621804
#24

Recommended spare parts diagram

Frame

Part #309621804

The manufacturer no longer makes this part, and there's no substitute part
