Model # 229964422 Official Kenmore induced draft boiler
Here are the diagrams and repair parts for Official Kenmore 229964422 induced draft boiler, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
229964422 Induced Draft Boiler
#1

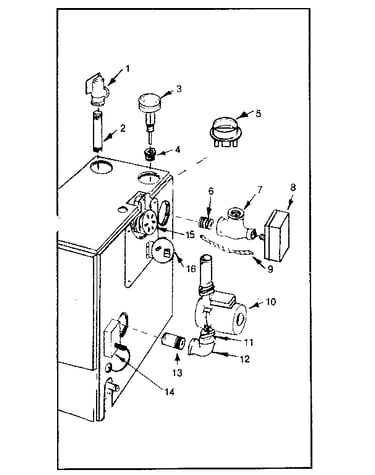

Functional replacement parts diagram
Relief valve
Part #146-22-011
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
#10
Functional replacement parts diagram
Circulator
Part #146-26-043
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#15
Functional replacement parts diagram
Boiler combustion chamber blower assembly
Part #433-00-510
$692.53
In Stock
#7

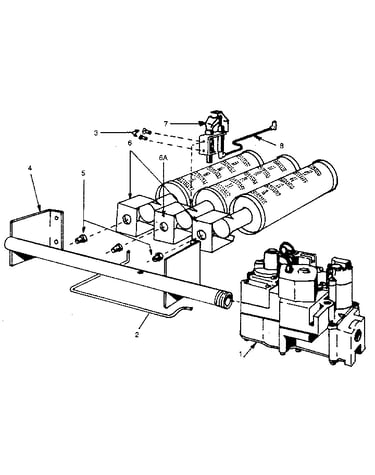

Burner assembly diagram
Pilot q345a
Part #146-62-072
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Drain valve
Part #146-22-001
Replaced by #31-606-04
?
Manufacturer substitution
This part replaces 146-22-001. Substitute parts can look different from the original.
$36.16
In Stock
#16
Functional replacement parts diagram
Press switch
Part #146-55-002
The manufacturer no longer makes this part, and there's no substitute part
#6B

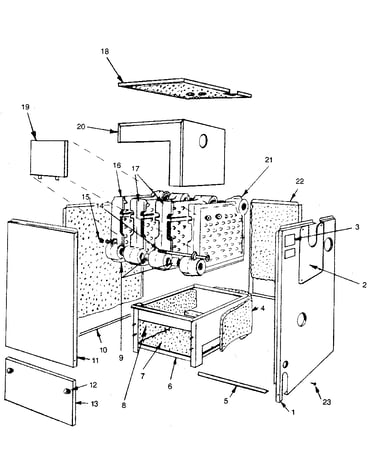

Non-functional replacement parts diagram
Boiler base
Part #425-60-734
Replaced by #42500734
?
Manufacturer substitution
This part replaces 425-60-734. Substitute parts can look different from the original.
$345.24
In Stock
#14A
Functional replacement parts diagram
Control lp
Part #146-62-071
Replaced by #BG1600M51EF-1AA
?
Manufacturer substitution
This part replaces 146-62-071. Substitute parts can look different from the original.
$191.94 |
6% OFF Phone Price : $203.94
In Stock
#8

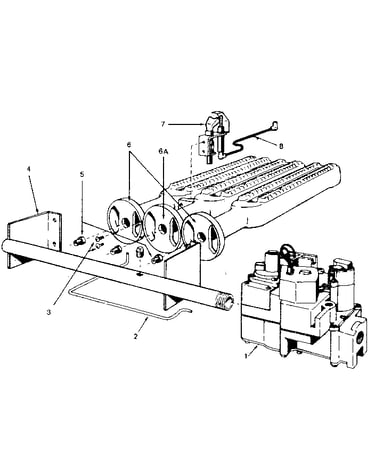

Burner assembly diagram
Ignitn cable
Part #146-62-074
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Block assembly
Part #410-01-512
Replaced by #41000512SVC
?
Manufacturer substitution
This part replaces 410-01-512. Substitute parts can look different from the original.
$1443.88
In Stock
