Caloric
Top-Mount Refrigerator

Model # GFS209-1L00 Official Caloric top-mount refrigerator

Here are the diagrams and repair parts for Official Caloric GFS209-1L00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

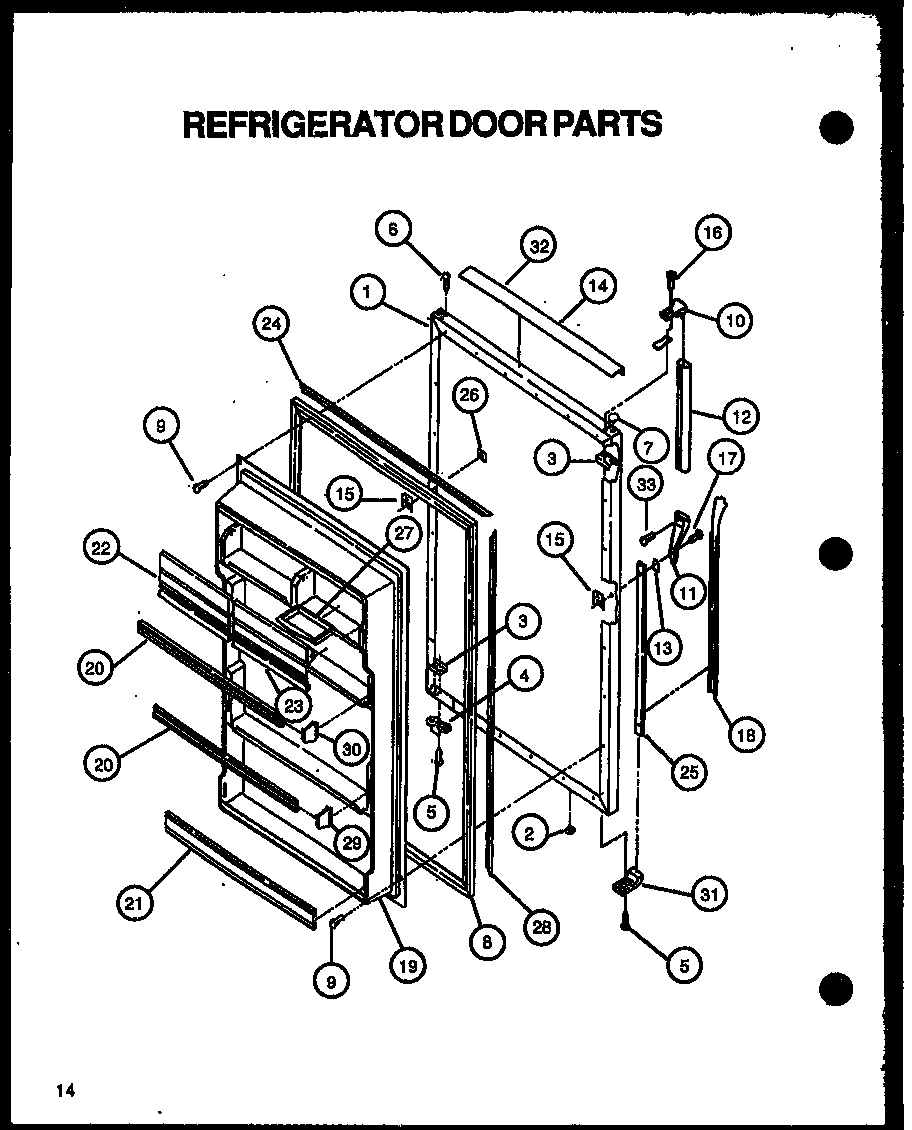

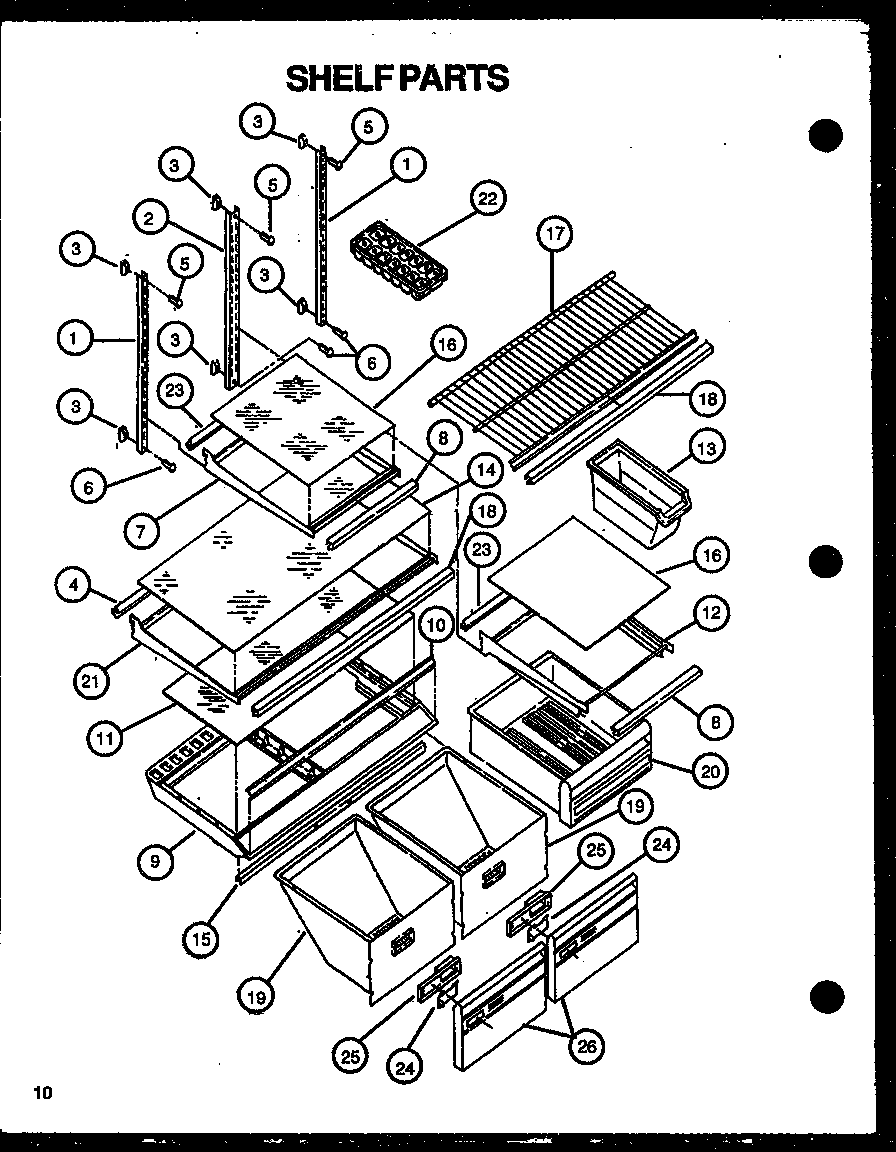

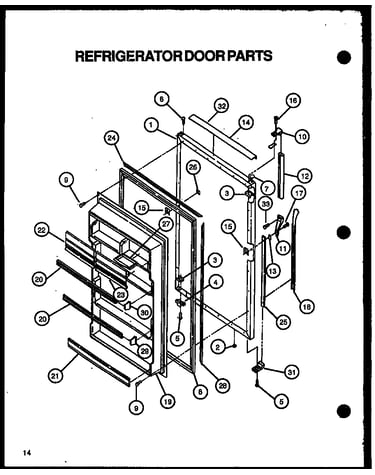

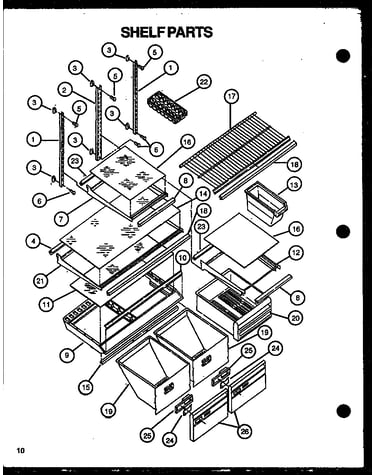

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 252 parts  |
Refrigerator Defrost Timer R0950029
#4

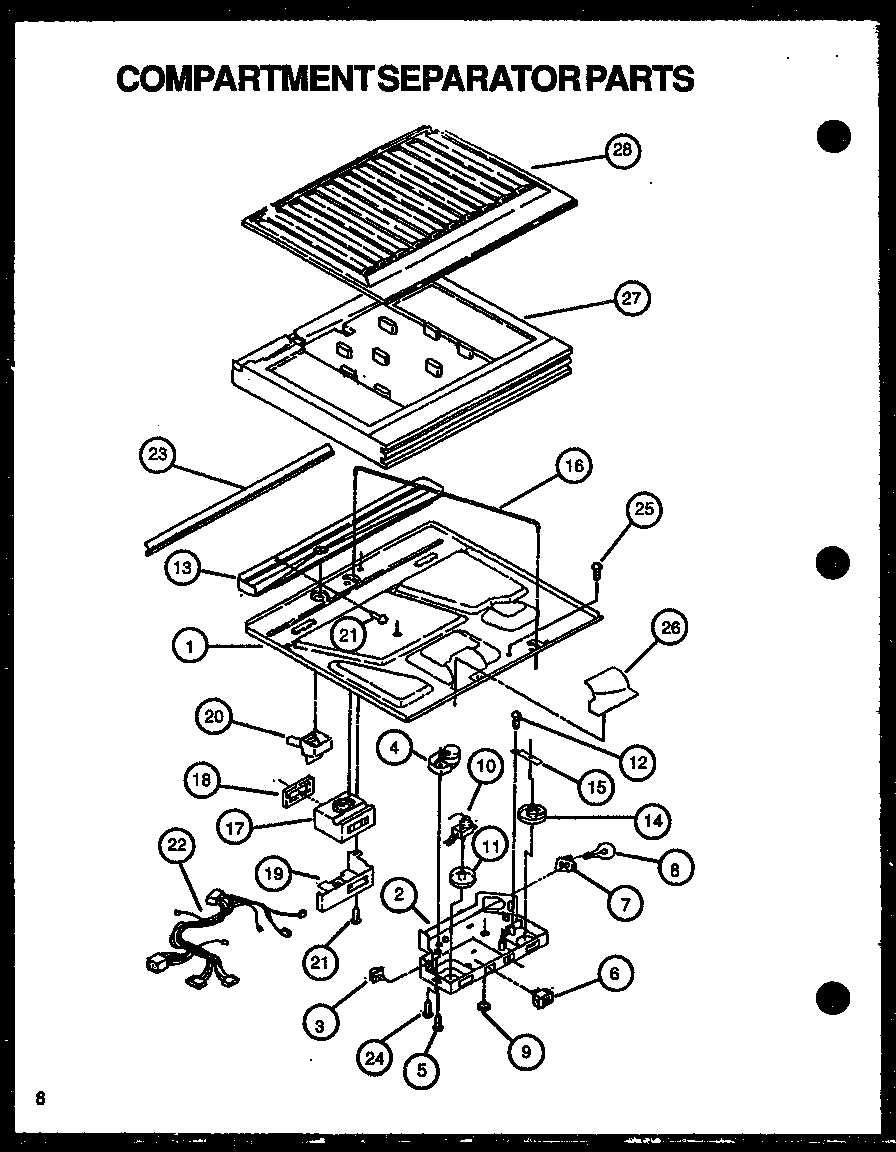

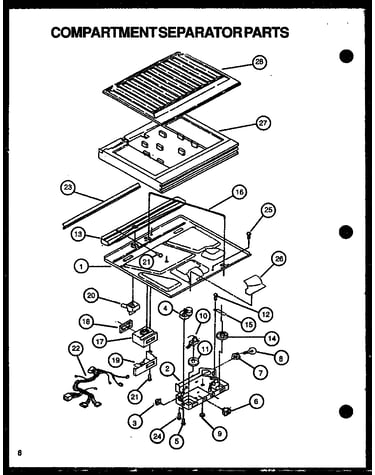

Compartment separator parts diagram

Refrigerator defrost timer

Part #R0950029

Replaced by #W10822278

?
Manufacturer substitution
This part replaces R0950029. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Defrost Bime R0950042
#33

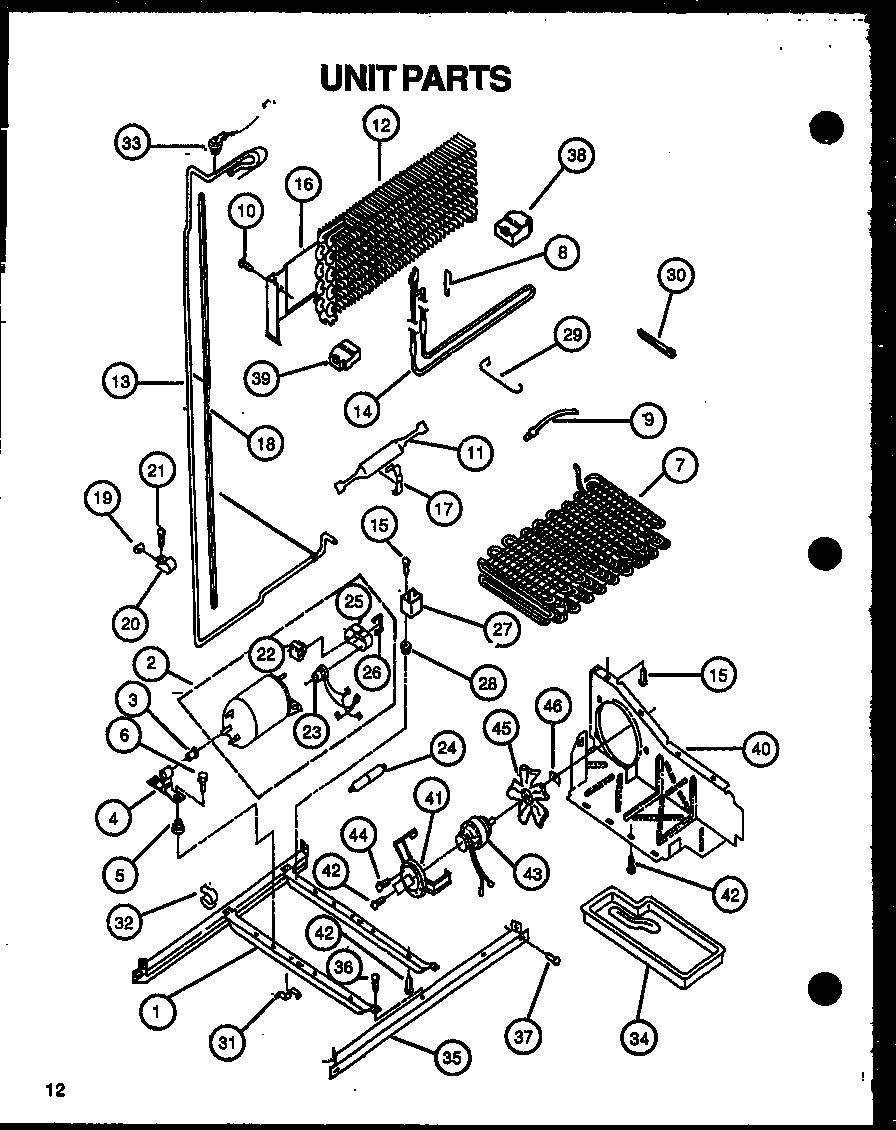

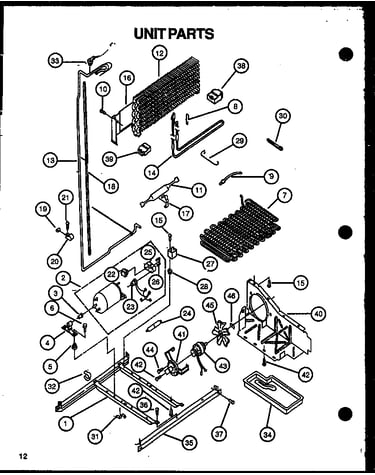

Unit parts diagram

Defrost bime

Part #R0950042

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces R0950042. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Refrigerator Fan Motor R0950046
#43

Unit parts diagram

Refrigerator fan motor

Part #R0950046

Replaced by #833697

?
Manufacturer substitution
This part replaces R0950046. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Refrigerator Screw 0056547
#34

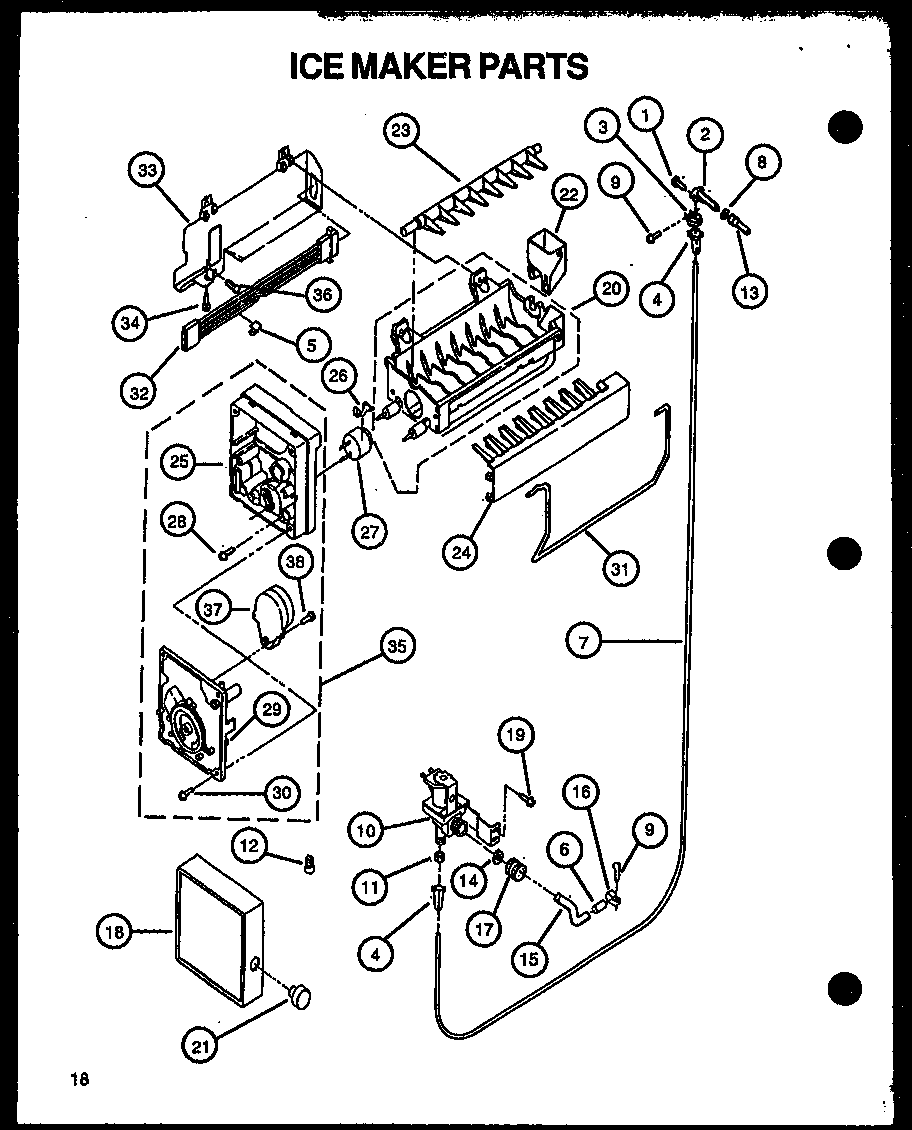

Ice maker parts diagram

Refrigerator screw

Part #0056547

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 0056547. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Screw R0950052
Refrigerator screw

Part #R0950052

Replaced by #67006529

?
Manufacturer substitution
This part replaces R0950052. Substitute parts can look different from the original.
This item is not returnable
$12.49
In Stock
Evaporator Motor R0950025
#16

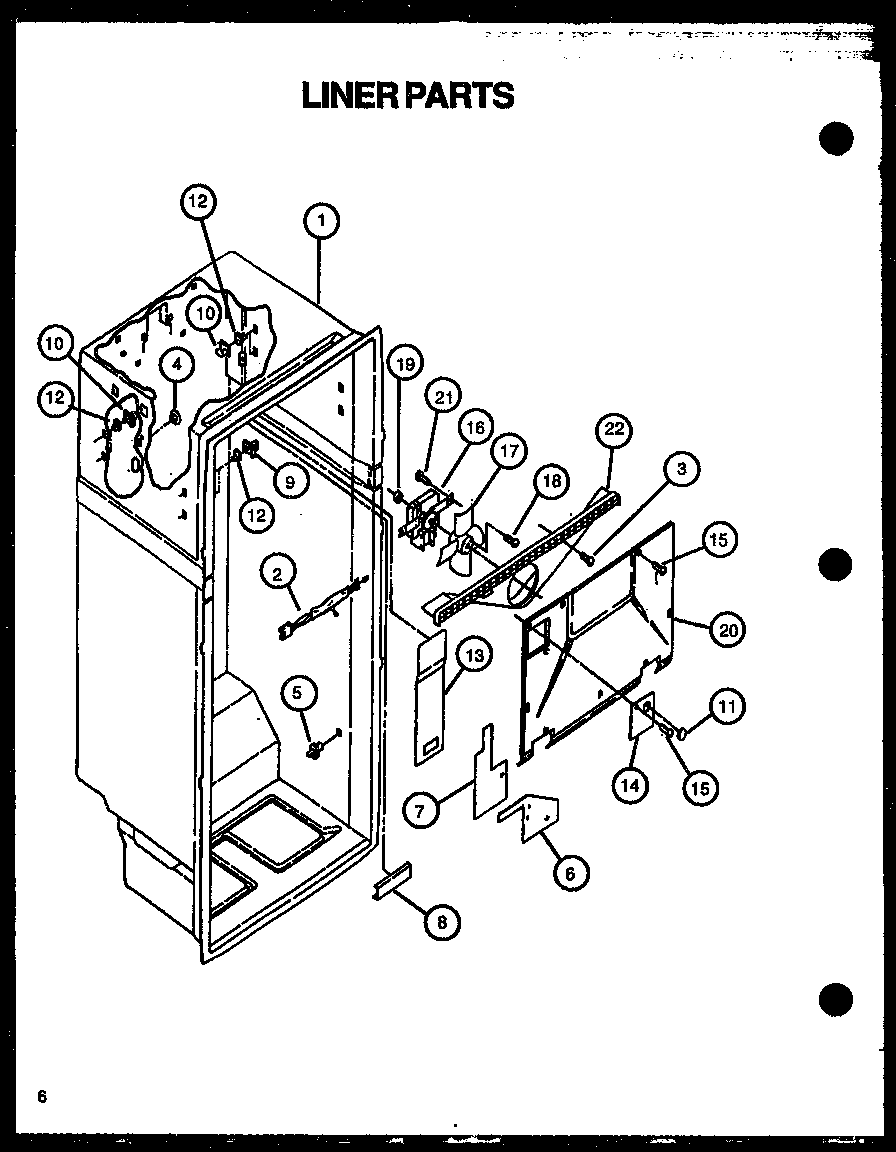

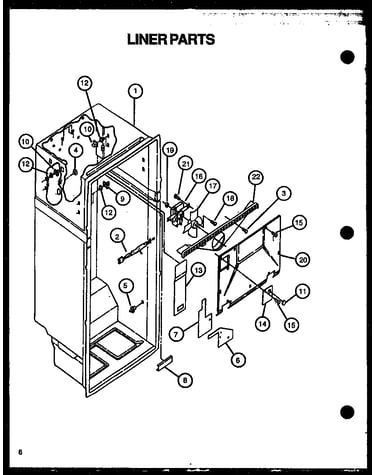

Liner parts diagram

Evaporator motor

Part #R0950025

Replaced by #482731

?
Manufacturer substitution
This part replaces R0950025. Substitute parts can look different from the original.
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Refrigerator Stud R0950022
#5

Liner parts diagram

Refrigerator stud

Part #R0950022

Replaced by #W10854959

?
Manufacturer substitution
This part replaces R0950022. Substitute parts can look different from the original.
$6.65 |
13% OFF Phone Price : $7.65
In Stock
Refrigerator Door Bracket R0950060
#4

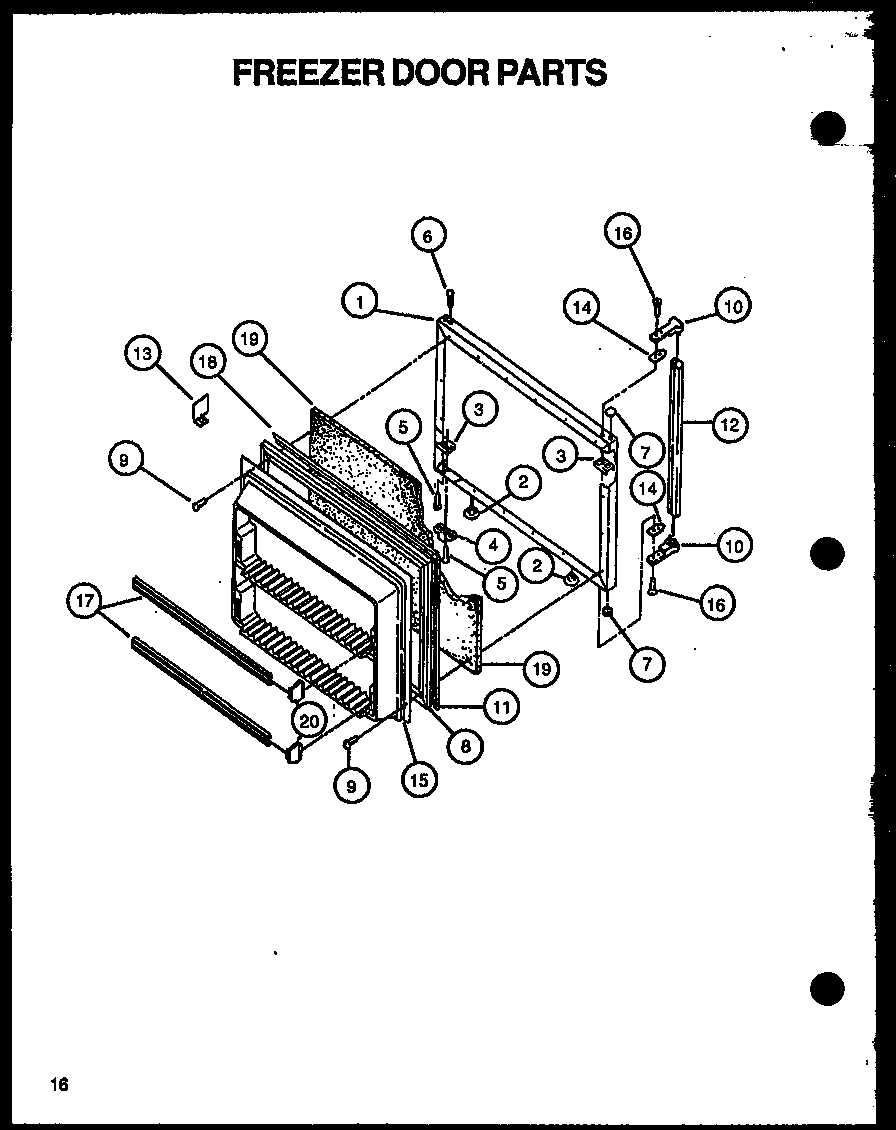

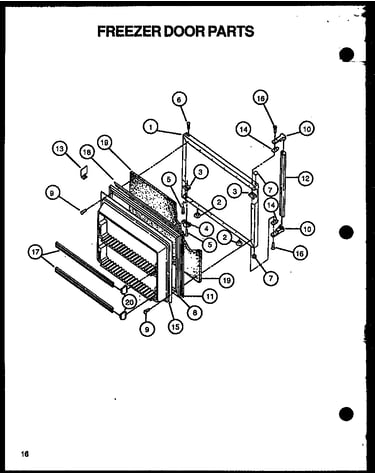

Freezer door parts diagram

Refrigerator door bracket

Part #R0950060

The manufacturer no longer makes this part, and there's no substitute part

Foam Insulation (required When Replacing Exterior Door P 0056239
#19

Freezer door parts diagram

Foam insulation (required when replacing exterior door p

Part #0056239

The manufacturer no longer makes this part, and there's no substitute part

Clip, Grille Retainer 0312215
#20

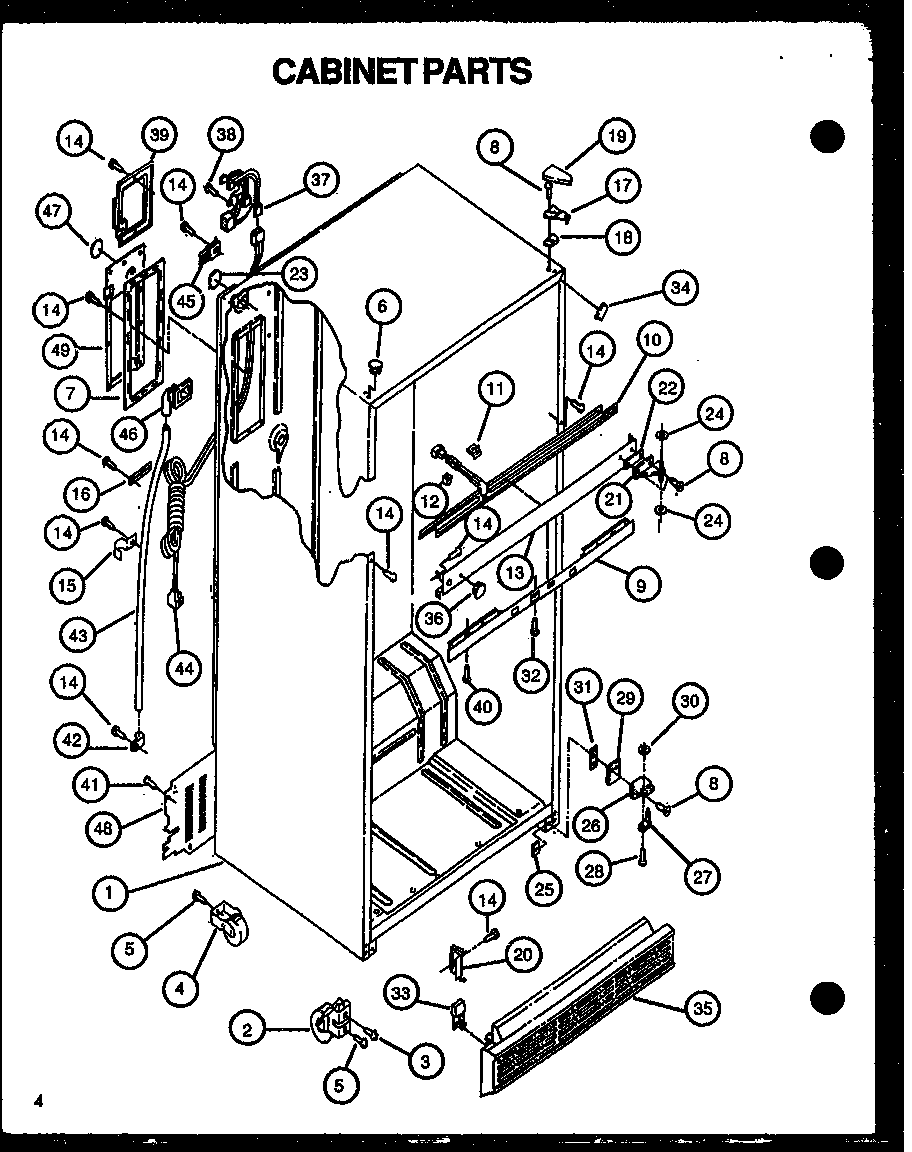

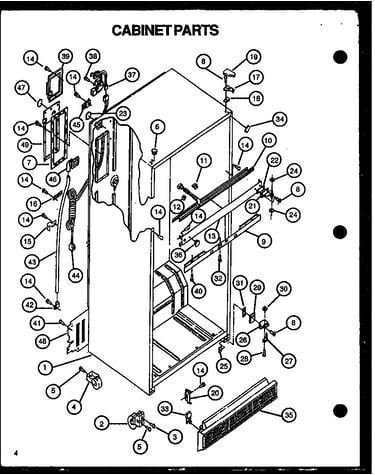

Cabinet parts diagram

Clip, grille retainer

Part #0312215

The manufacturer no longer makes this part, and there's no substitute part
