Kenmore
Top-Mount Refrigerator

Model # 25360082411 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25360082411 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

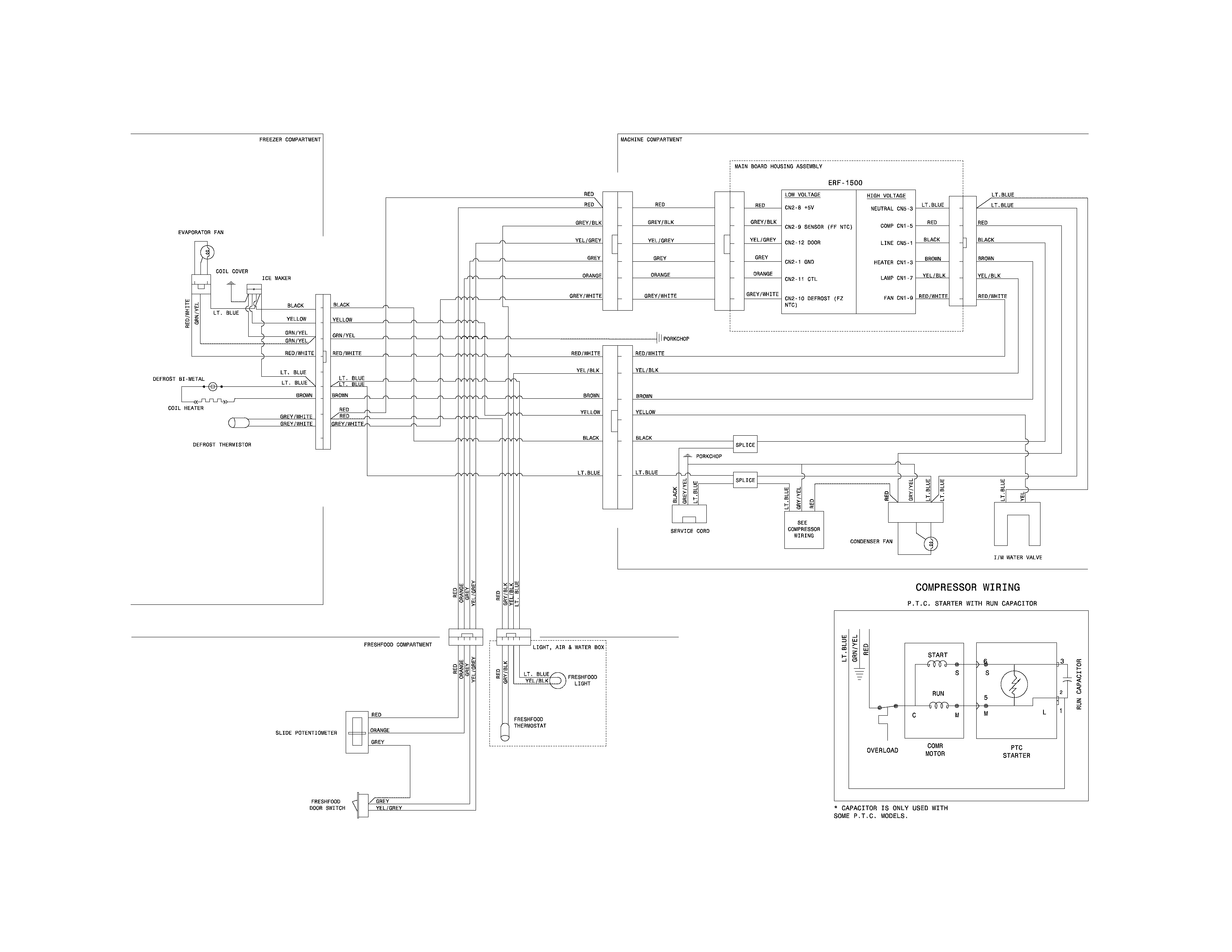

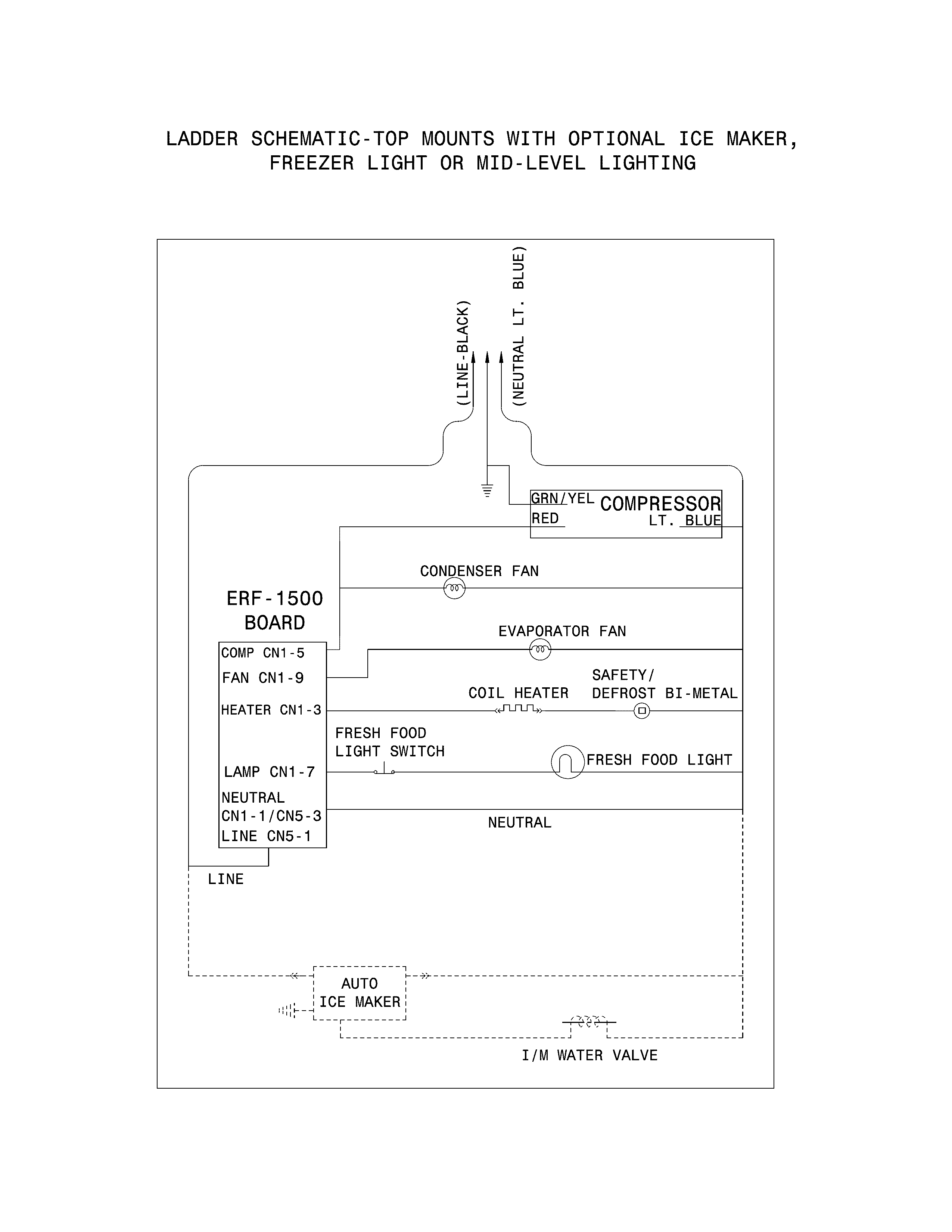

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Refrigerator Filter Dryer 242047603
#4

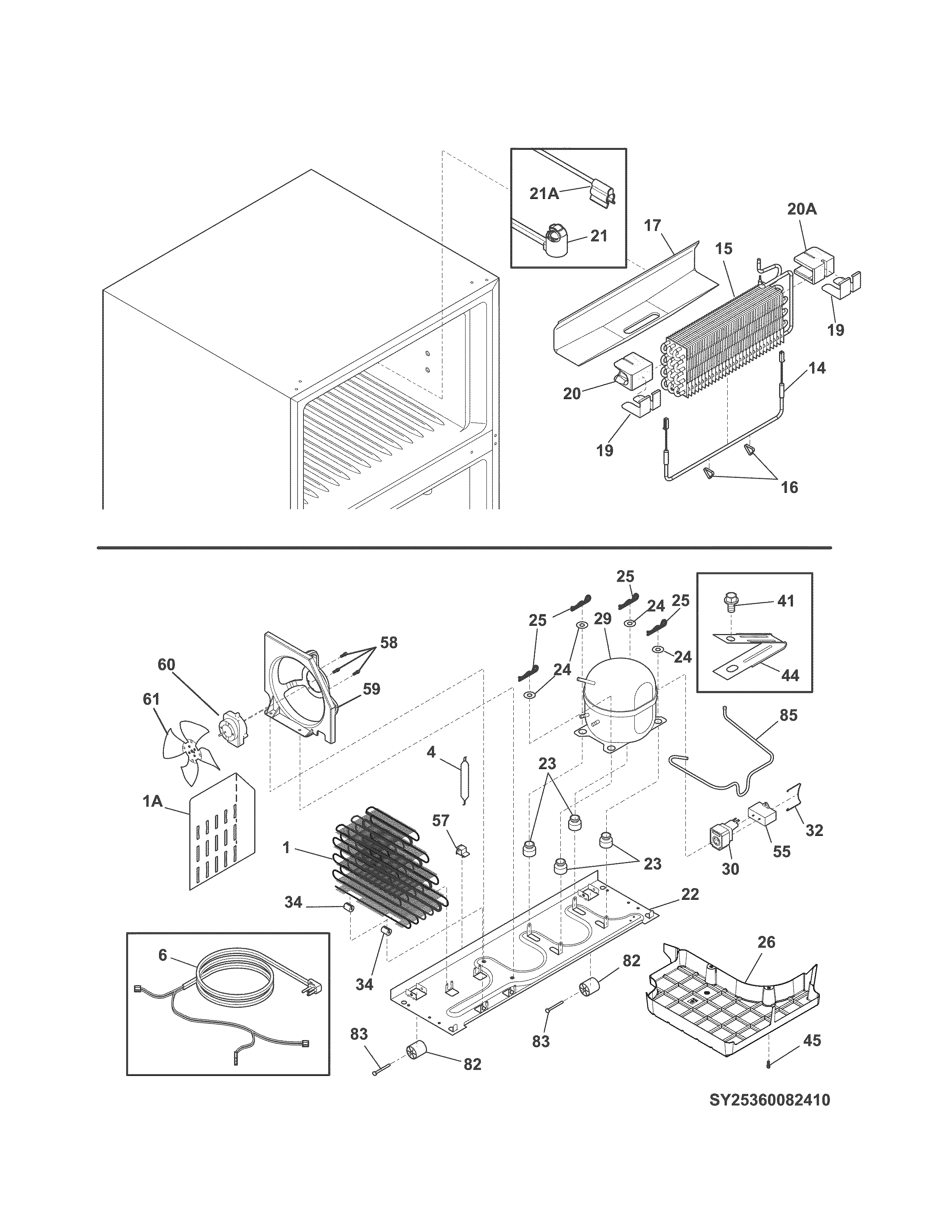

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Door Rack Support (240534901) - Refrigerator Shelving Part By Frigidaire 240534901
#4

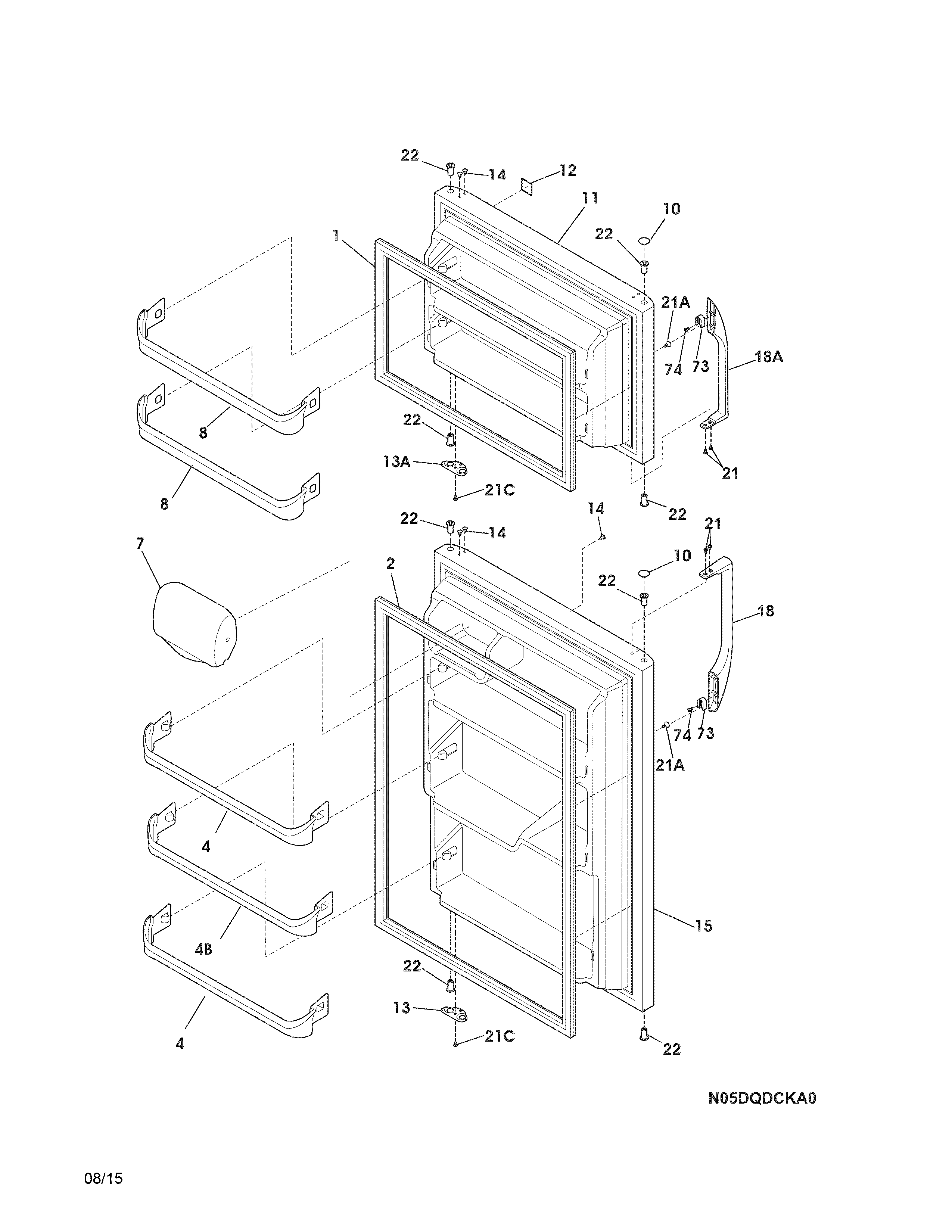

Doors diagram

Door rack support (240534901) - refrigerator shelving part by frigidaire

Part #240534901

BEST SELLER
$35.81 |
14% OFF Phone Price : $41.81
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

Doors diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$45.97 |
12% OFF Phone Price : $51.97
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

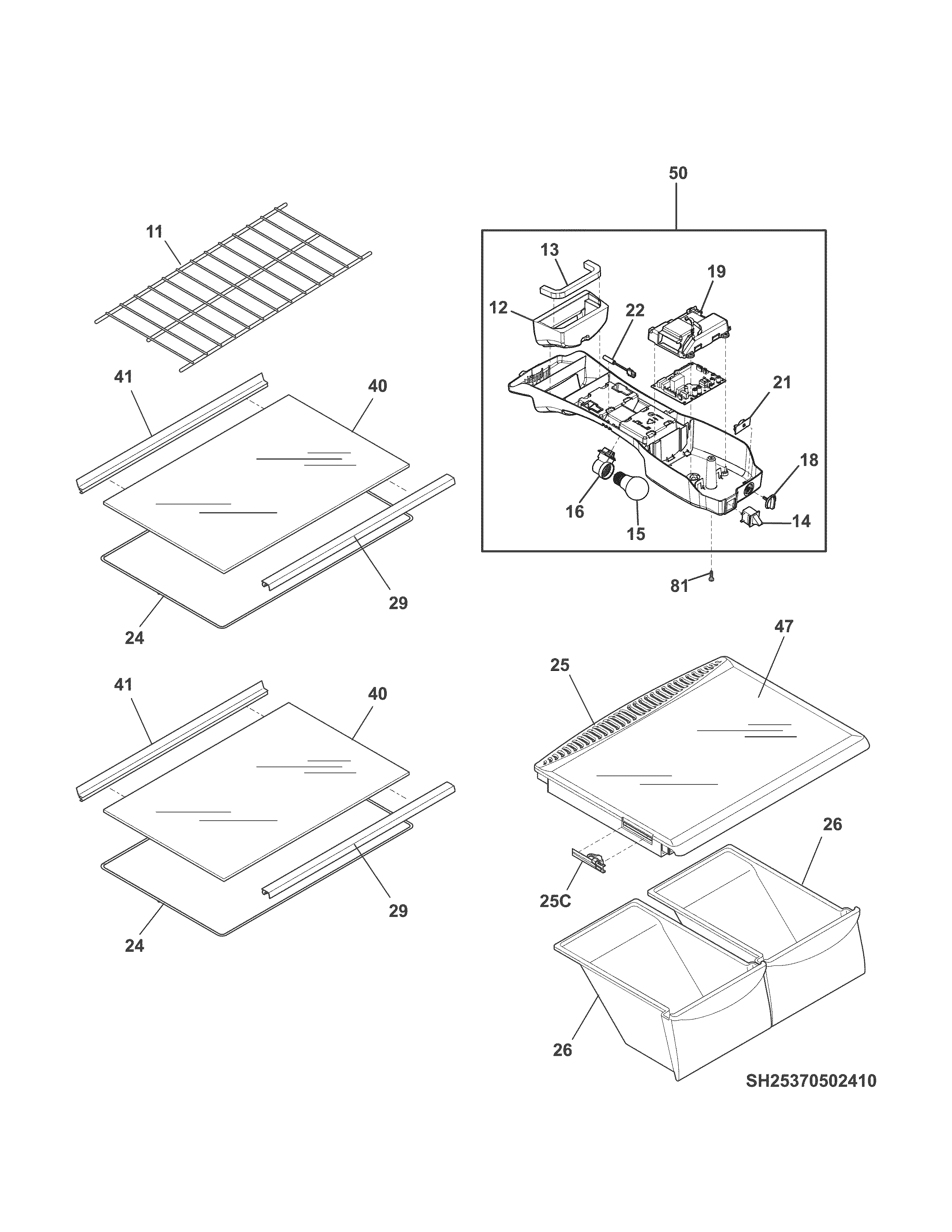

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

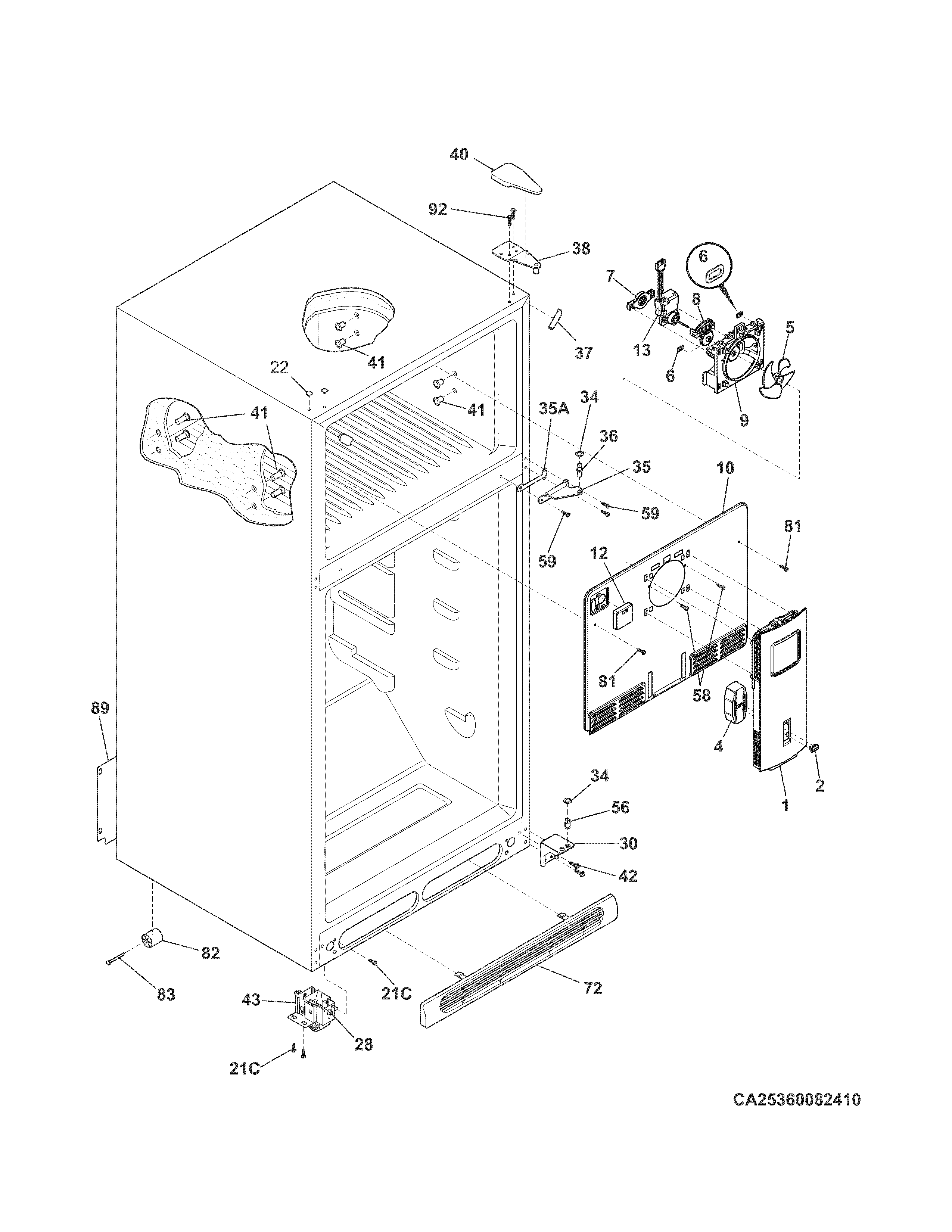

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Evaporator Motor 242077701
#13

Cabinet diagram

Refrigerator evaporator motor

Part #242077701

Replaced by #242077705

?
Manufacturer substitution
This part replaces 242077701. Substitute parts can look different from the original.
BEST SELLER
$90.43 |
6% OFF Phone Price : $96.43
In Stock
Refrigerator Shelf Trim, Front 240357704
#29

Shelves diagram

Refrigerator shelf trim, front

Part #240357704

BEST SELLER
$47.12 |
11% OFF Phone Price : $53.12
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$88.64 |
6% OFF Phone Price : $94.64
In Stock
Refrigerator Evaporator (replaces 5303918250, 5303918431) 5303918274
#15

System diagram

Refrigerator evaporator (replaces 5303918250, 5303918431)

Part #5303918274

BEST SELLER
$300.95 |
$12.00 OFF Phone Price : $312.95
In Stock
