Frigidaire
Upright Freezer

Model # FFU21F5HWV Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU21F5HWV freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Filter Drier 216987501
#4

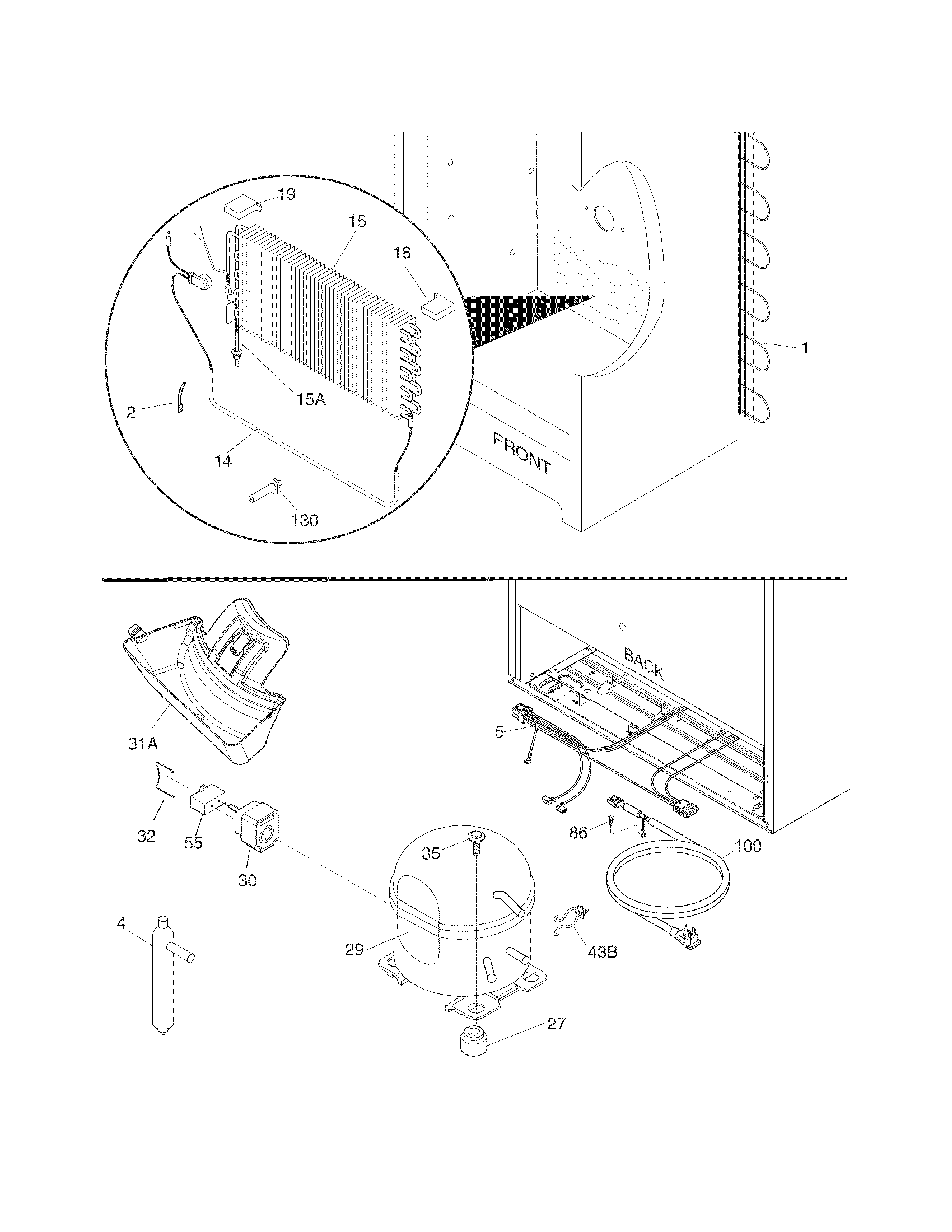

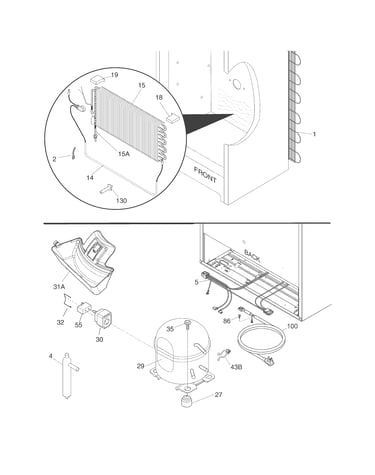

System diagram

Filter drier

Part #216987501

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987501. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$87.43
6% OFF Phone Price : $93.43
In Stock
Freezer Door Gasket 216522362
#1

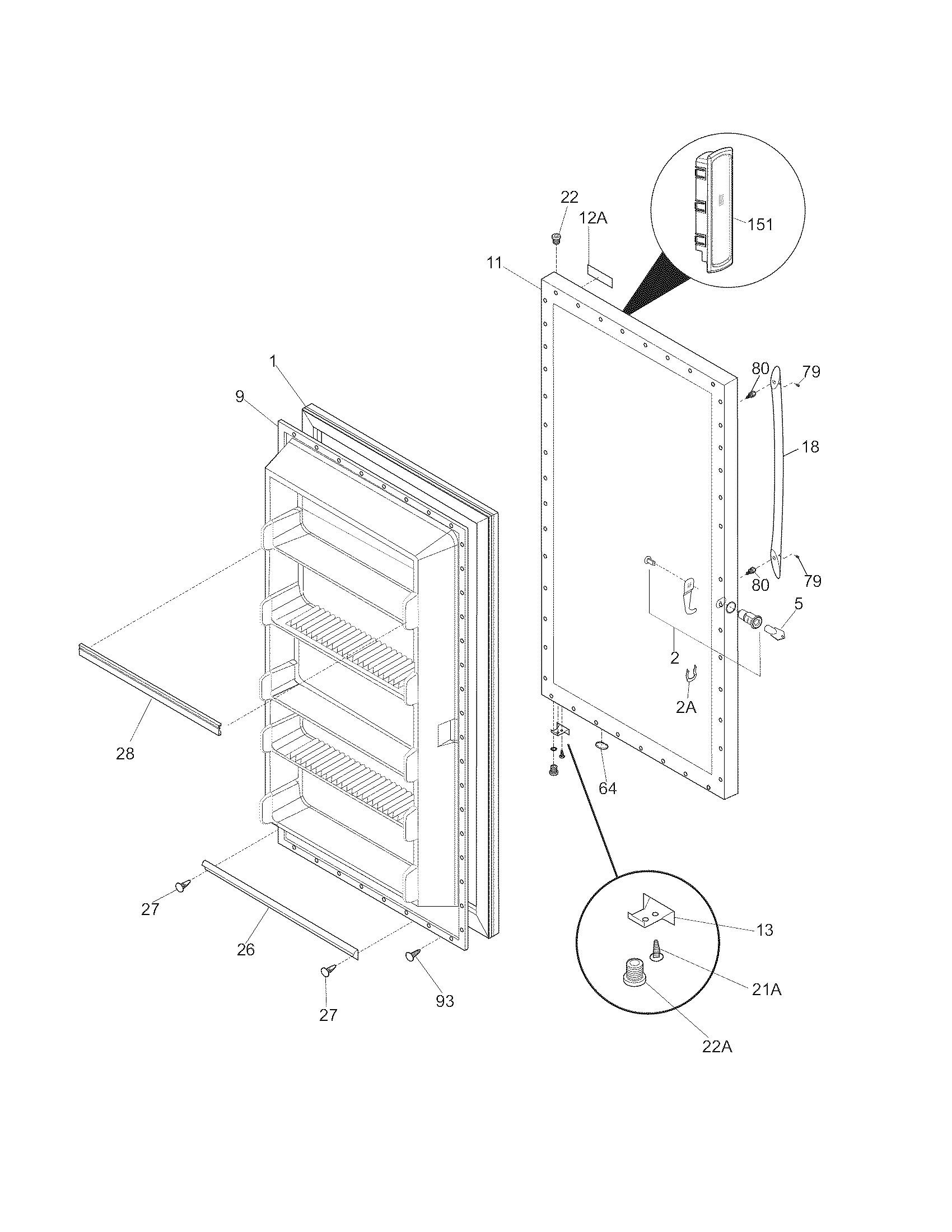

Door diagram

Freezer door gasket

Part #216522362

Replaced by #5304507199

?
Manufacturer substitution
This part replaces 216522362. Substitute parts can look different from the original.
BEST SELLER
$103.47
10% OFF Phone Price : $115.47
In Stock
Blade 216325600
#5

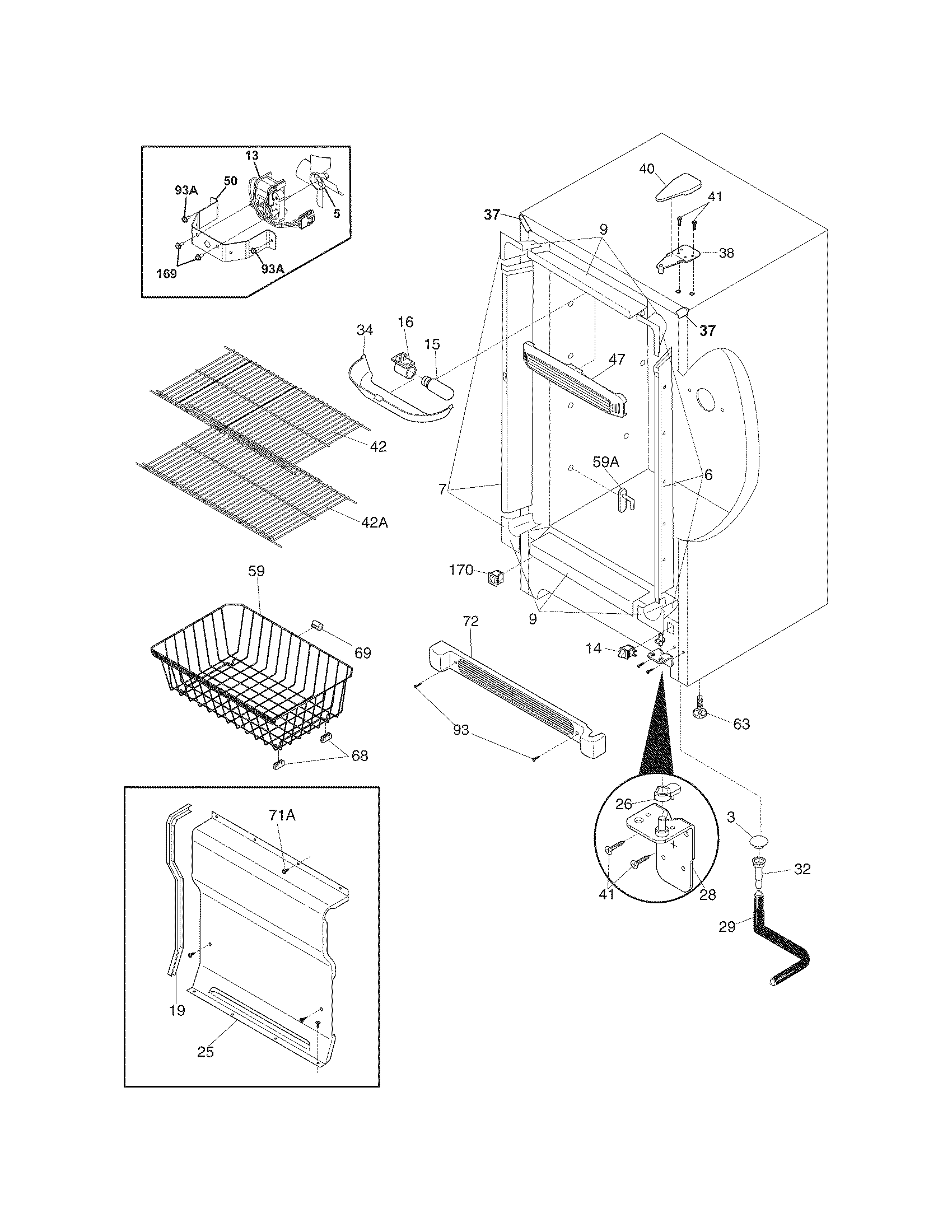

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$39.93
13% OFF Phone Price : $45.93
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.25
10% OFF Phone Price : $10.25
In Stock
Freezer Evaporator Fan Motor 297250000
#13

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$58.41
9% OFF Phone Price : $64.41
In Stock
Defrost Heat 297348700
#14

System diagram

Defrost heat

Part #297348700

Replaced by #5304496284

?
Manufacturer substitution
This part replaces 297348700. Substitute parts can look different from the original.
BEST SELLER
$77.46
7% OFF Phone Price : $83.46
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$51.35
10% OFF Phone Price : $57.35
In Stock
Freezer Door Handle Set Screw, #10-32 X 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402) 218755402
#79

Door diagram

Freezer door handle set screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)

Part #218755402

BEST SELLER
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Refrigerator Strap 5308000110
#2

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30
10% OFF Phone Price : $58.30
In Stock
