Model # 502472571 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472571 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

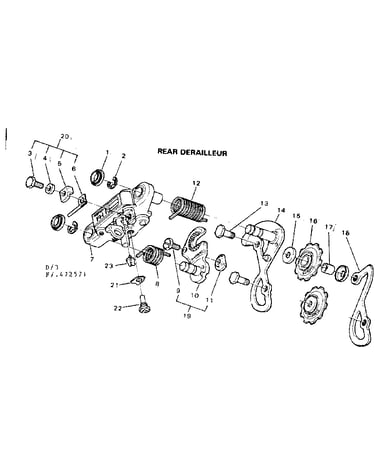

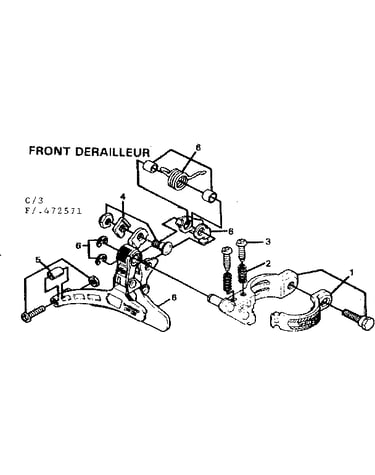

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
F Axle Set 303518
#11

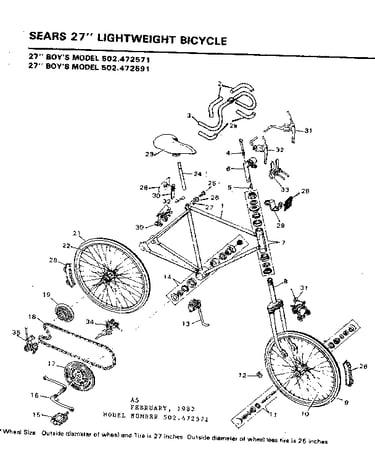

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#12

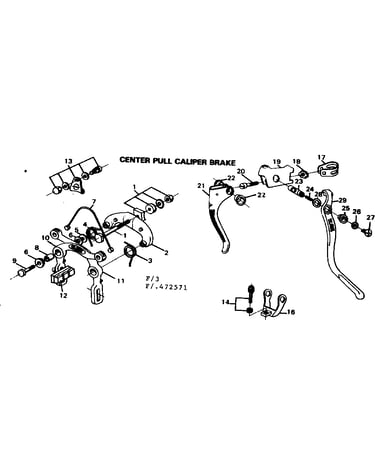

Center pull caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336Z
#13

Unit parts diagram

Kickstand

Part #302336Z

The manufacturer no longer makes this part, and there's no substitute part

Spkt. Asm 36265PA
#19

Unit parts diagram

Spkt. asm

Part #36265PA

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 308500
#18

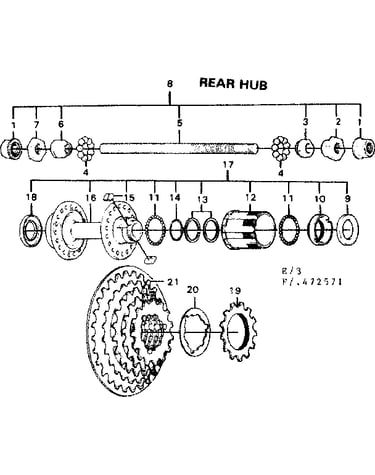

Rear hub diagram

Dust cap

Part #308500

The manufacturer no longer makes this part, and there's no substitute part

Hub/axle 308492
#8

Rear hub diagram

Hub/axle

Part #308492

The manufacturer no longer makes this part, and there's no substitute part

Chain & Link 303483
#18

Unit parts diagram

Chain & link

Part #303483

The manufacturer no longer makes this part, and there's no substitute part

Plate 300947
#2

Shifter diagram

Plate

Part #300947

The manufacturer no longer makes this part, and there's no substitute part

Bolt 304200
#1

Center pull caliper brake diagram

Bolt

Part #304200

The manufacturer no longer makes this part, and there's no substitute part

Frame 34515AAC
#1A

Unit parts diagram

Frame

Part #34515AAC

The manufacturer no longer makes this part, and there's no substitute part
