Model # AKM12ANW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AKM12ANW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Axial Flow Fan WJ73X10196
#16

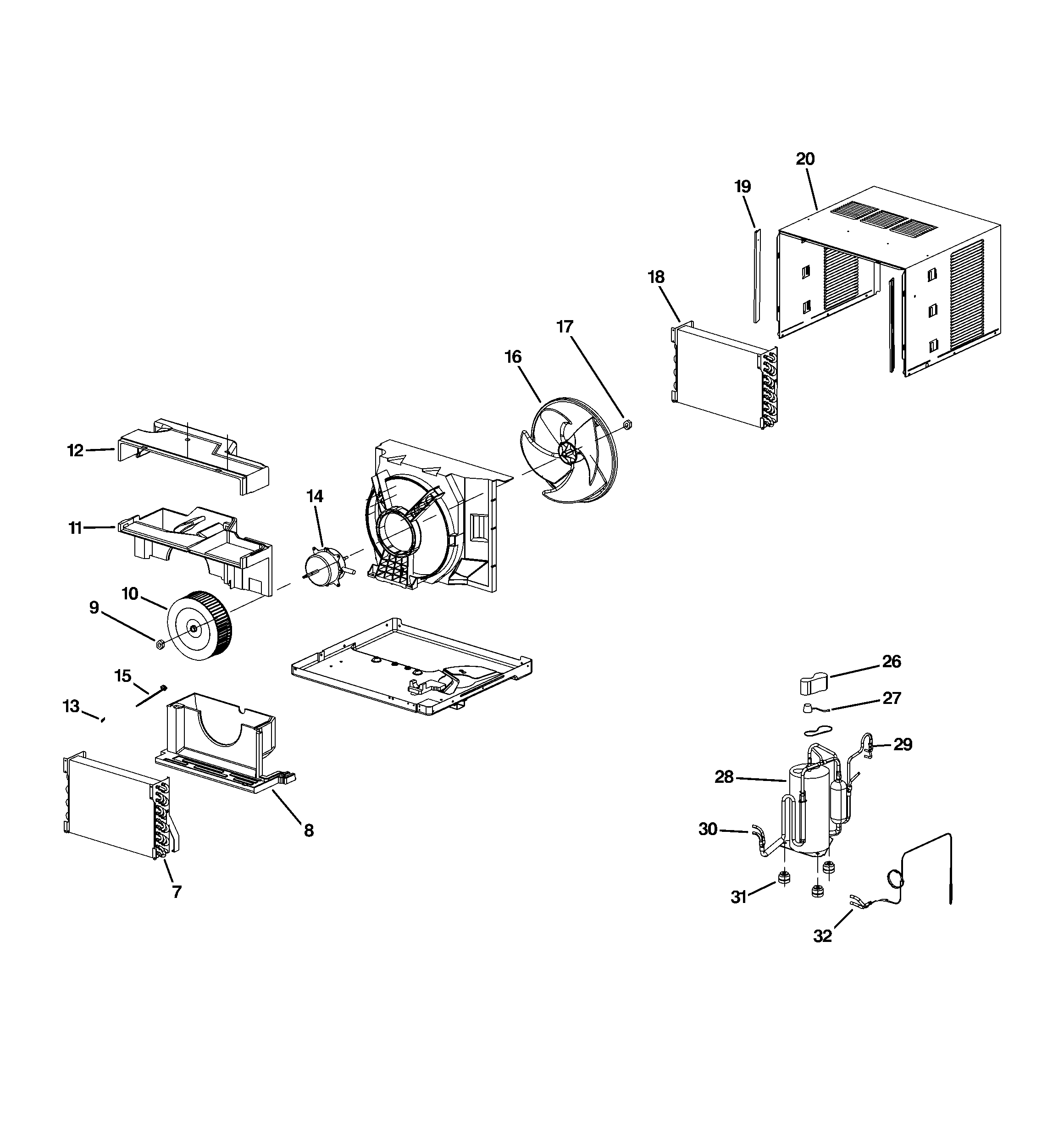

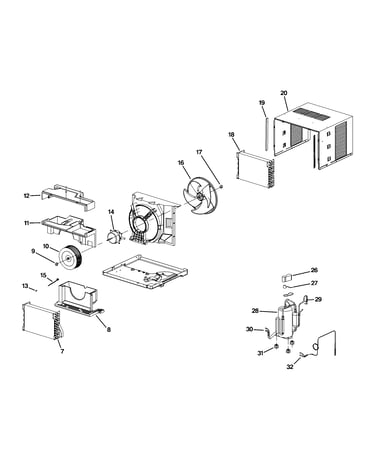

Cabinet & components diagram

Axial flow fan

Part #WJ73X10196

$21.29
In Stock
Fan Shell Co WJ79X10229
#12

Cabinet & components diagram

Fan shell co

Part #WJ79X10229

$21.71
In Stock
Curtain Assembly WJ71X10688
#21

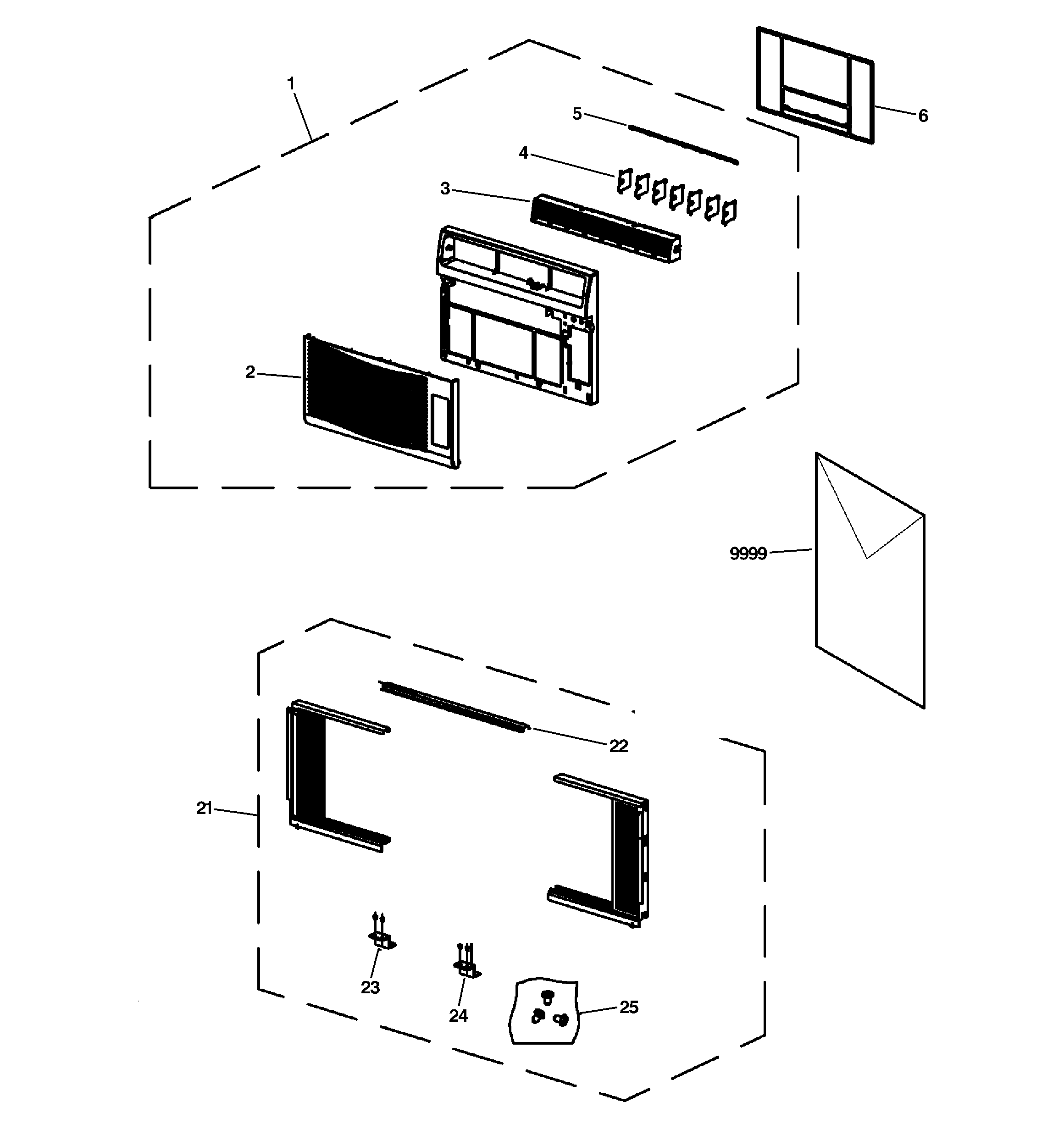

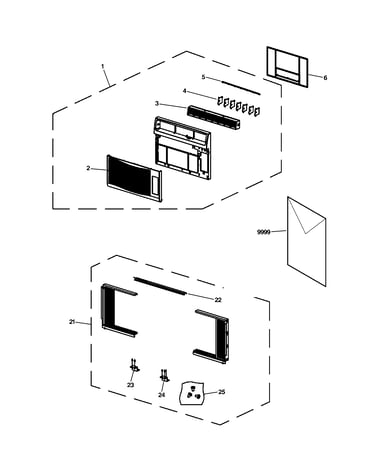

Front panel, filter & frame diagram

Curtain assembly

Part #WJ71X10688

The manufacturer no longer makes this part, and there's no substitute part

Grommet WJ01X10411
#31

Cabinet & components diagram

Grommet

Part #WJ01X10411

The manufacturer no longer makes this part, and there's no substitute part

Air Guide WJ71X10686
#3

Front panel, filter & frame diagram

Air guide

Part #WJ71X10686

The manufacturer no longer makes this part, and there's no substitute part

Air Filter WJ85X10177
#6

Front panel, filter & frame diagram

Air filter

Part #WJ85X10177

The manufacturer no longer makes this part, and there's no substitute part

Upper, Fan S WJ76X10298
#11

Cabinet & components diagram

Upper, fan s

Part #WJ76X10298

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WJ53X10226
#32

Cabinet & components diagram

Capillary tube

Part #WJ53X10226

The manufacturer no longer makes this part, and there's no substitute part

Pipe Temp Se WJ27X10125
#35

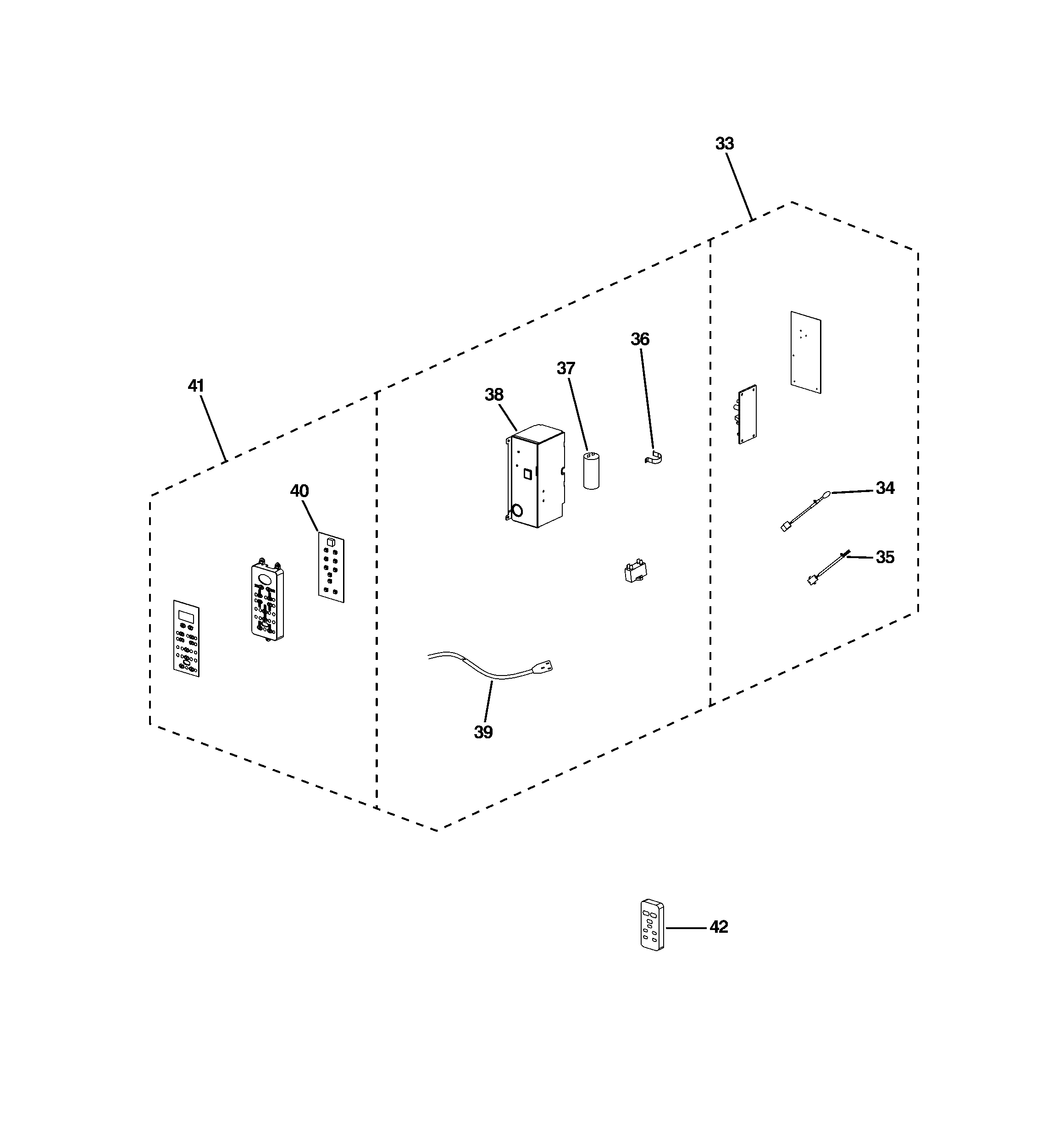

Control parts diagram

Pipe temp se

Part #WJ27X10125

The manufacturer no longer makes this part, and there's no substitute part

Complete Protector WJ79X10242
#26

Cabinet & components diagram

Complete protector

Part #WJ79X10242

The manufacturer no longer makes this part, and there's no substitute part
