Model # PLES389ACA Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire PLES389ACA electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

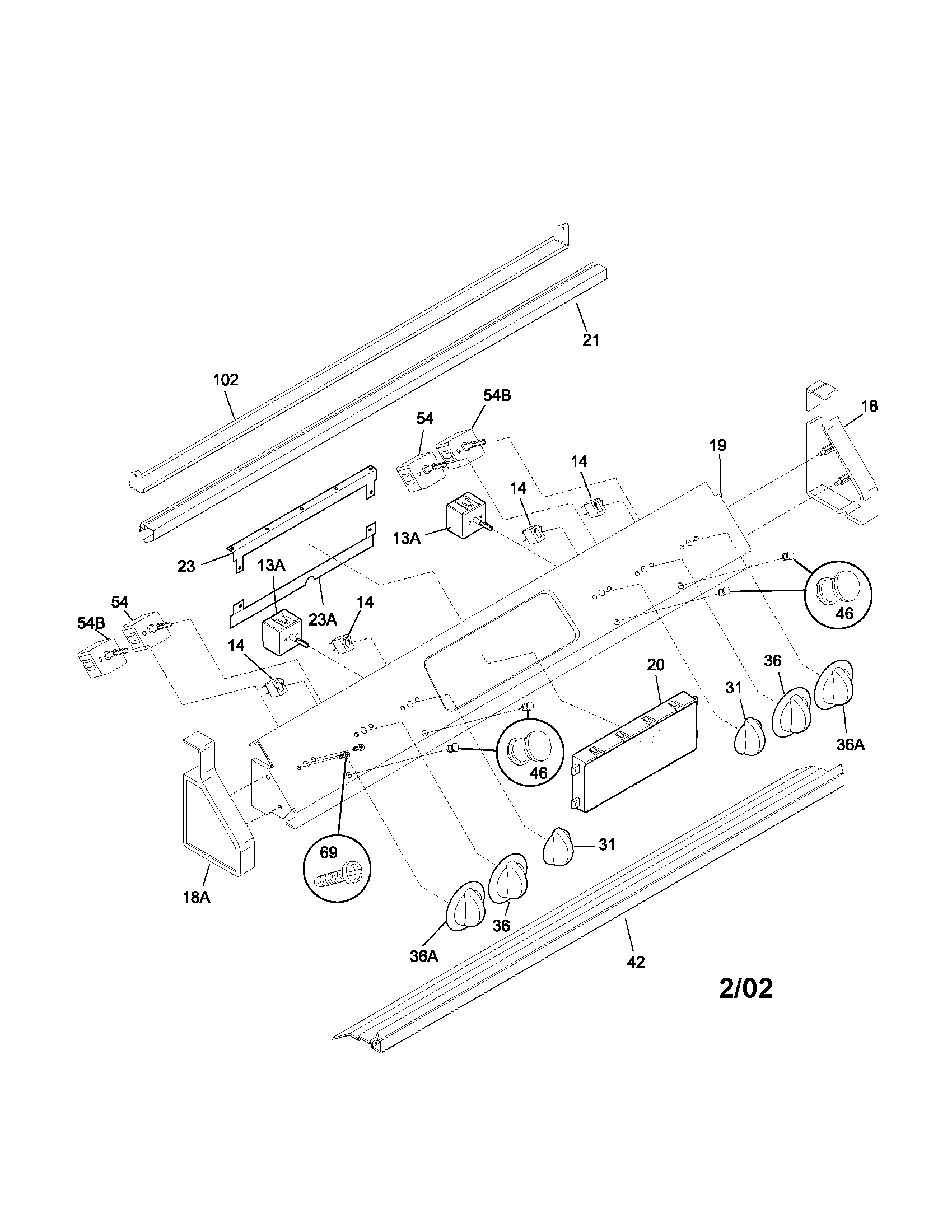

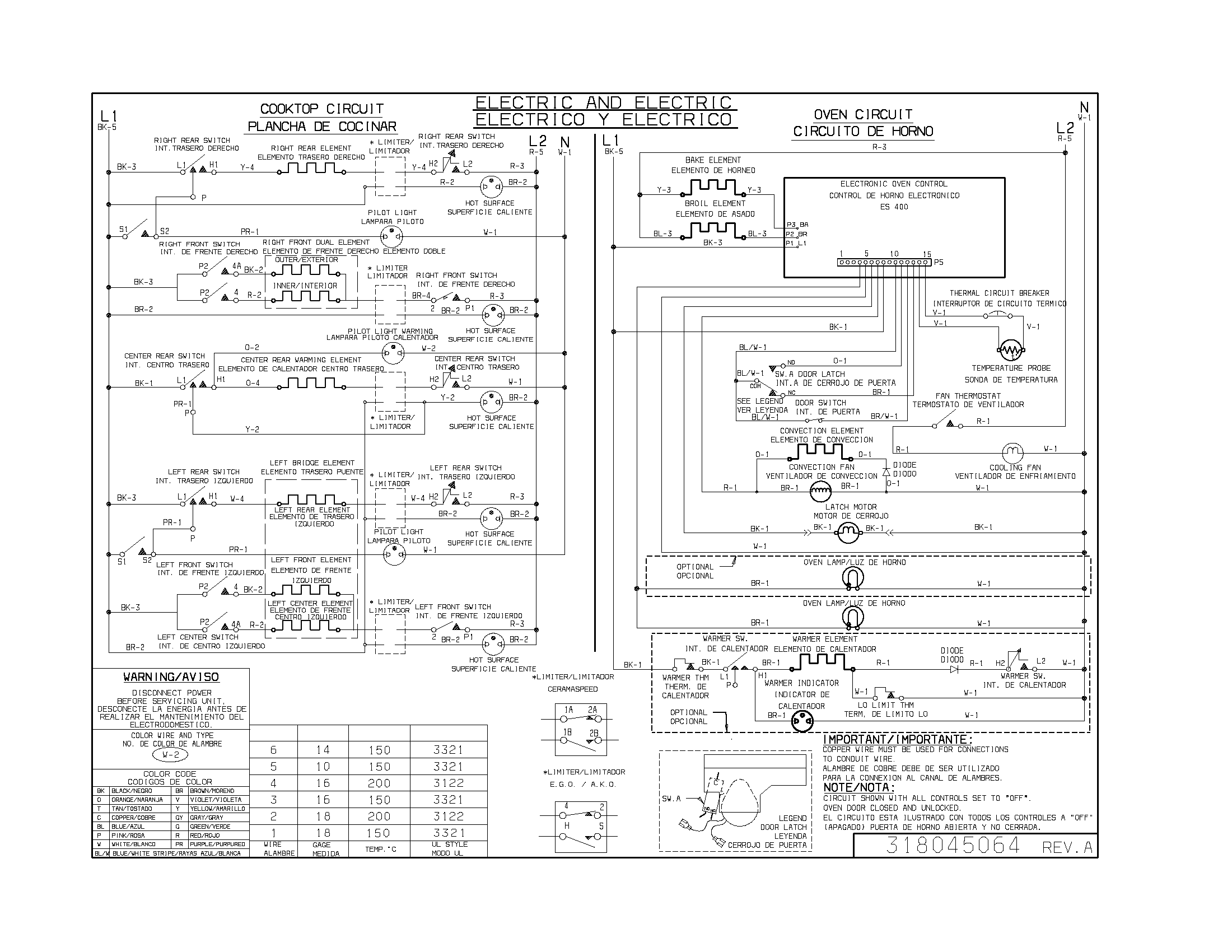

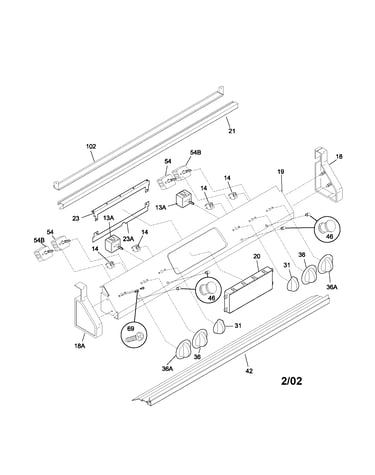

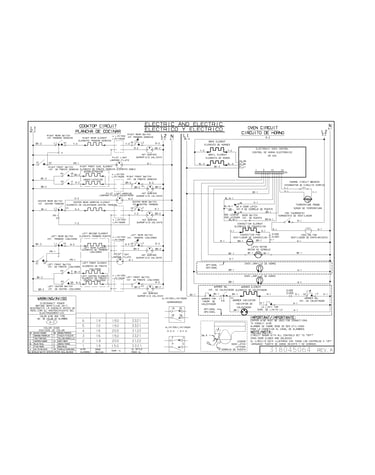

SELECT DIAGRAM
Browse Parts forPLES389ACA Ranges
- #37

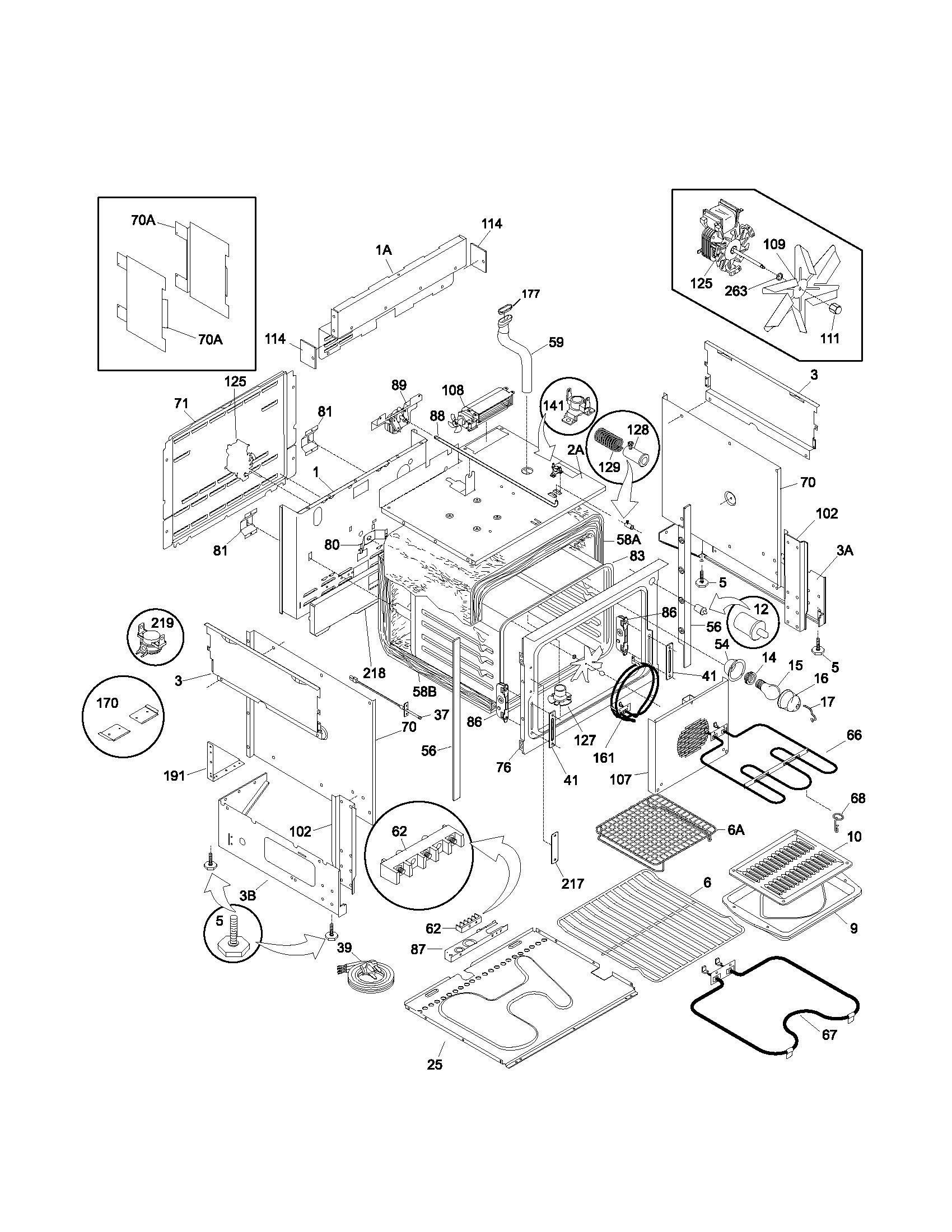

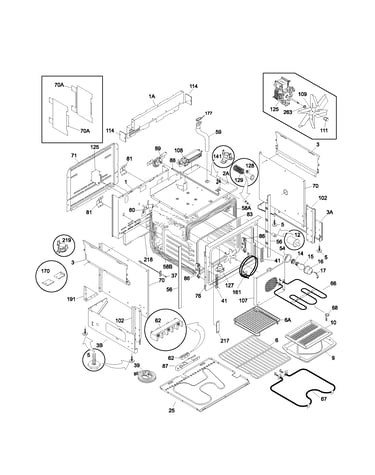

Body diagram
ProbePart #318198500
Replaced by #316217002
?Manufacturer substitutionThis part replaces 318198500. Substitute parts can look different from the original.$45.79 |12% OFF Phone Price : $51.79In Stock - #67
Body diagram
Oven bake elementPart #5303310512
Replaced by #318255006
?Manufacturer substitutionThis part replaces 5303310512. Substitute parts can look different from the original.$147.86 |8% OFF Phone Price : $159.86In Stock - #15B

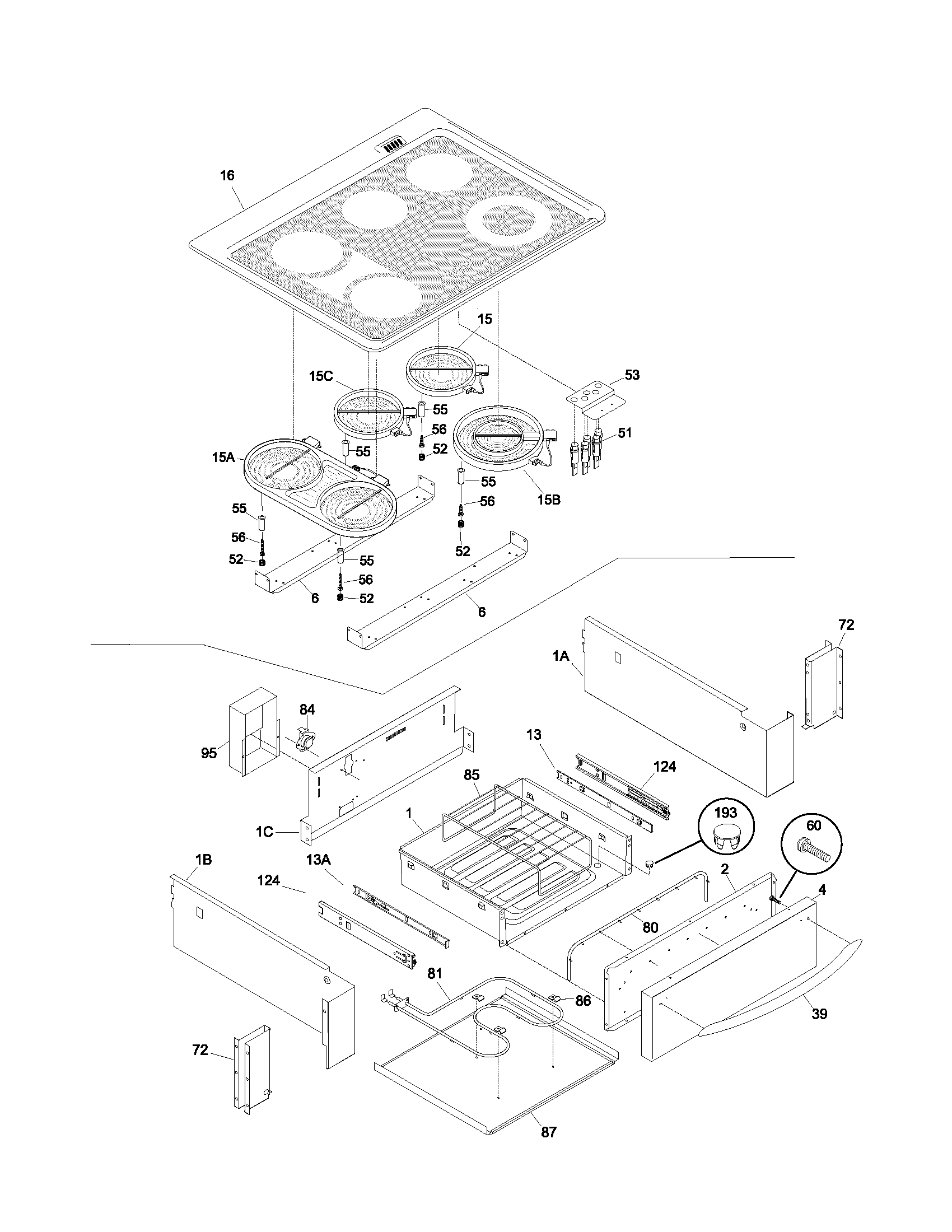

Top/drawer diagram
Element-suPart #316224300
Replaced by #316555800
?Manufacturer substitutionThis part replaces 316224300. Substitute parts can look different from the original.$104.70 |10% OFF Phone Price : $116.70In Stock - #62
Body diagram
Terminal blockPart #5303310518
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5303310518. Substitute parts can look different from the original.$9.33 |10% OFF Phone Price : $10.33In Stock - #66
Body diagram
Oven broiler elementPart #5303310513
Replaced by #318255605
?Manufacturer substitutionThis part replaces 5303310513. Substitute parts can look different from the original.$111.69 |10% OFF Phone Price : $123.69In Stock - #109
Body diagram
Range convection fan bladePart #316136400
The manufacturer no longer makes this part, and there's no substitute part
- #263
Body diagram
WasherPart #316136500
Replaced by #316008401
?Manufacturer substitutionThis part replaces 316136500. Substitute parts can look different from the original.$13.71 |13% OFF Phone Price : $15.71In Stock - #124
Top/drawer diagram
Out rh warmrPart #316105500
Replaced by #316105501
?Manufacturer substitutionThis part replaces 316105500. Substitute parts can look different from the original.$71.86 |8% OFF Phone Price : $77.86In Stock - #6
Body diagram
Oven rackPart #318025304
Replaced by #318345205
?Manufacturer substitutionThis part replaces 318025304. Substitute parts can look different from the original.$94.04 |6% OFF Phone Price : $100.04In Stock - #12

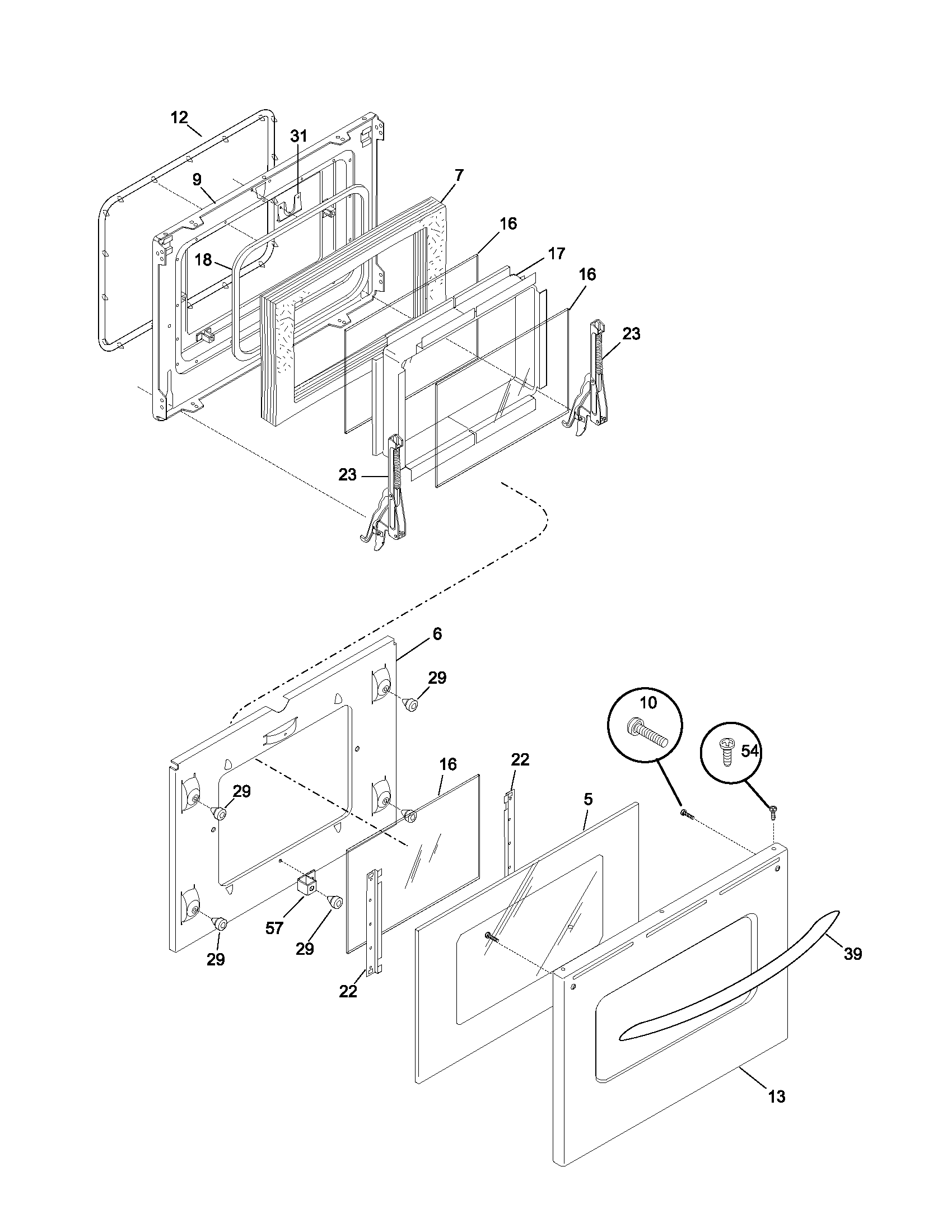

Door diagram
Range oven door sealPart #318053103
$106.19 |10% OFF Phone Price : $118.19In Stock
