Electric Wall Oven

Model # KEBI141YWH1 Official KitchenAid electric range

Here are the diagrams and repair parts for Official KitchenAid KEBI141YWH1 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

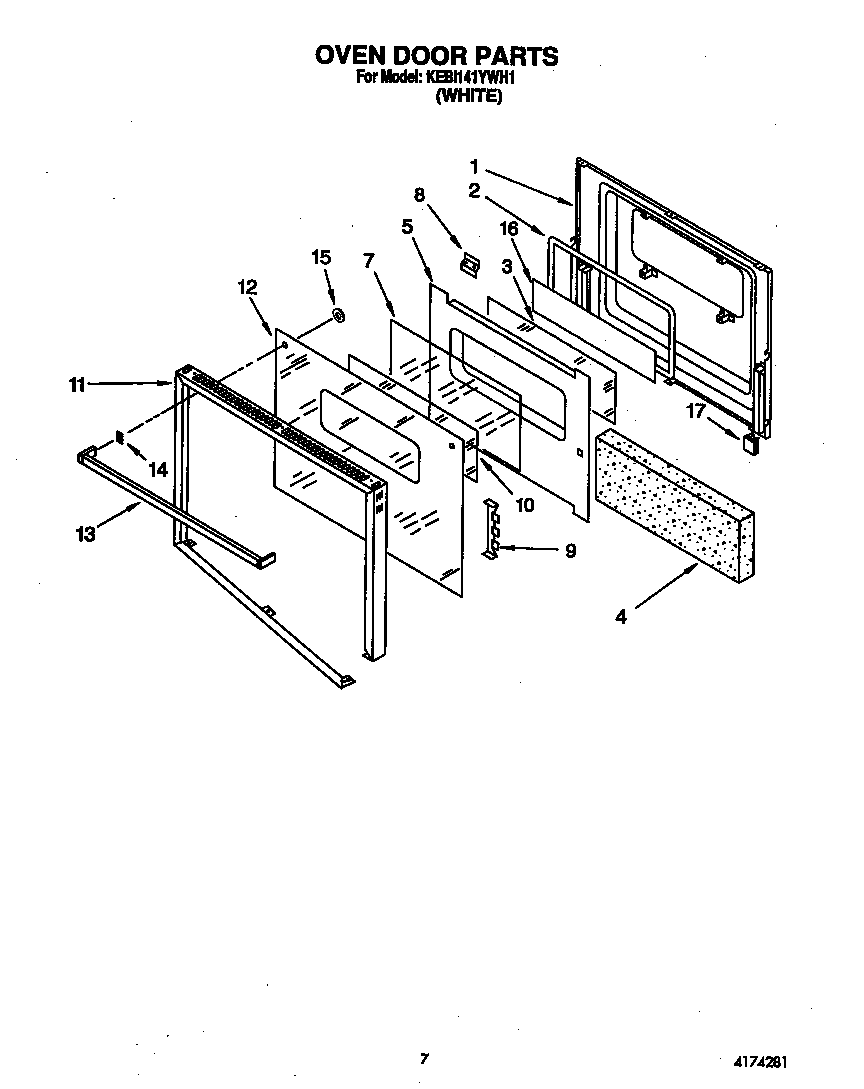

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KEBI141YWH1 Wall Ovens
Light Bulb 311255
#12

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$16.80
11% OFF Phone Price : $18.80
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$16.50
11% OFF Phone Price : $18.50
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02
10% OFF Phone Price : $10.02
In Stock
Screw 4159450
#33A

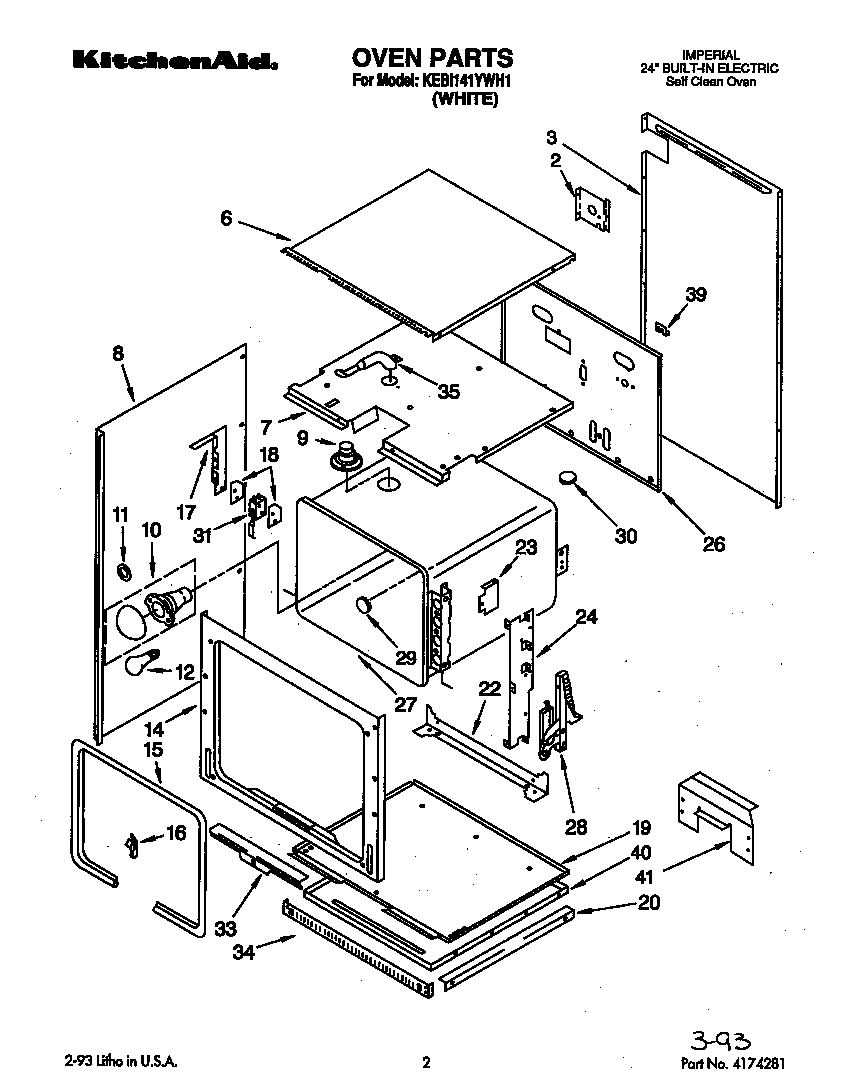

Oven diagram

Screw

Part #4159450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4159450. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Gaskt-lite 3184533
#11

Oven diagram

Gaskt-lite

Part #3184533

Replaced by #WP3184533

?
Manufacturer substitution
This part replaces 3184533. Substitute parts can look different from the original.
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock
Terminal Block 3184673
#2

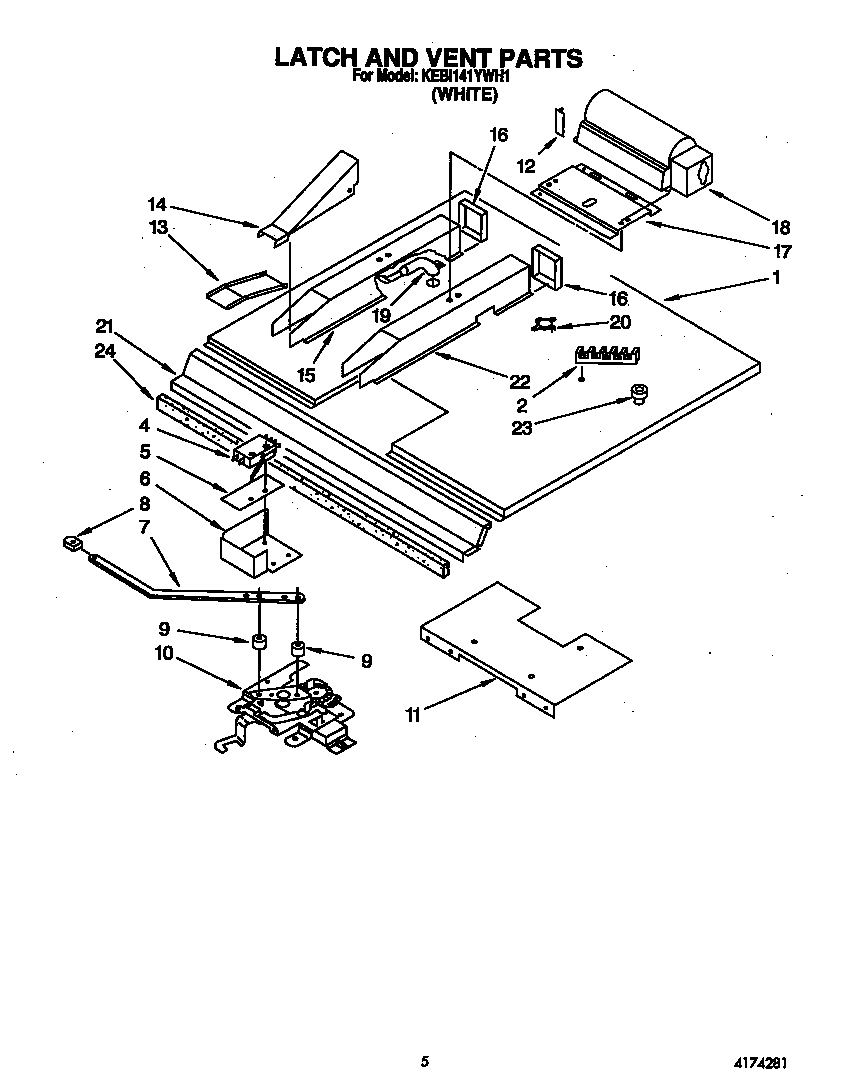

Latch and vent diagram

Terminal block

Part #3184673

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 3184673. Substitute parts can look different from the original.
This item is not returnable
$16.75
11% OFF Phone Price : $18.75
In Stock
Broiler Pan 3147845
#4

Oven liner diagram

Broiler pan

Part #3147845

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147845. Substitute parts can look different from the original.
$29.55
17% OFF Phone Price : $35.55
In Stock
Grid Pan 3147563
#3

Oven liner diagram

Grid pan

Part #3147563

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147563. Substitute parts can look different from the original.
$29.55
17% OFF Phone Price : $35.55
In Stock
Clip 313438
#6

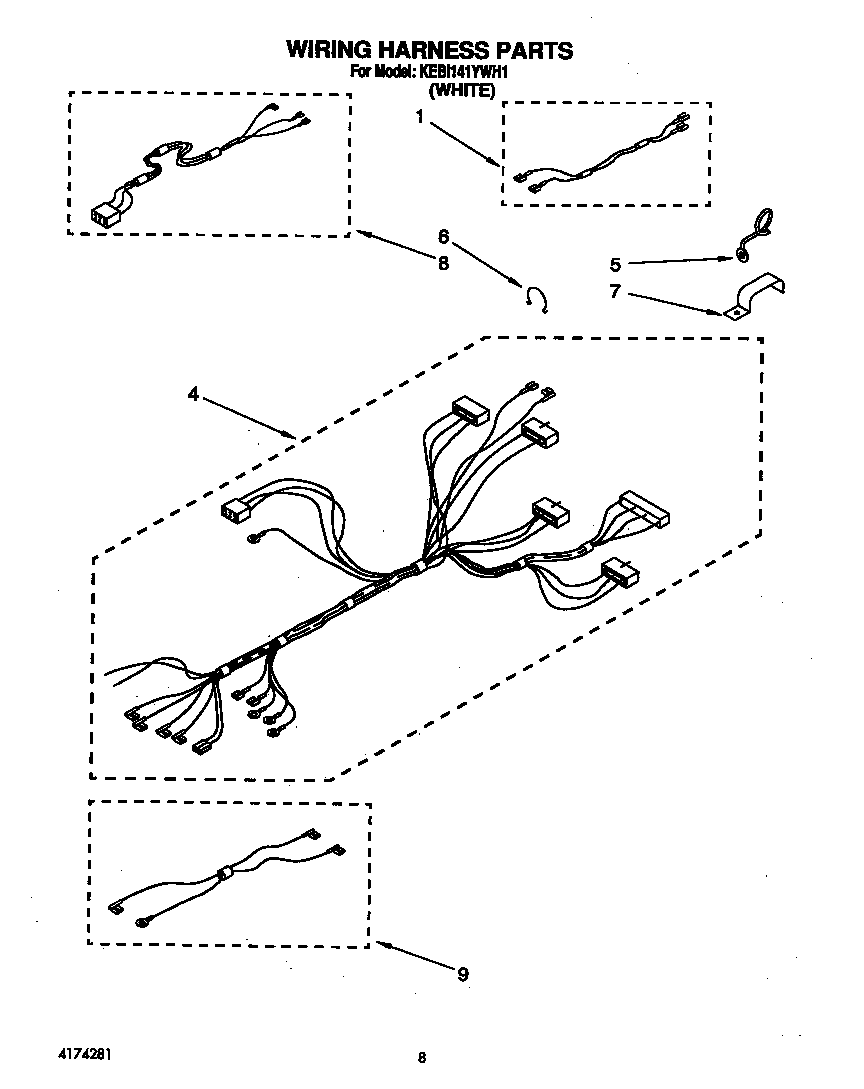

Wiring harness diagram

Clip

Part #313438

Replaced by #16515

?
Manufacturer substitution
This part replaces 313438. Substitute parts can look different from the original.
This item is not returnable
$20.39
23% OFF Phone Price : $26.39
In Stock
