Model # 113242721 Official Craftsman 9" motorized table saw

Here are the diagrams and repair parts for Official Craftsman 113242721 9" motorized table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

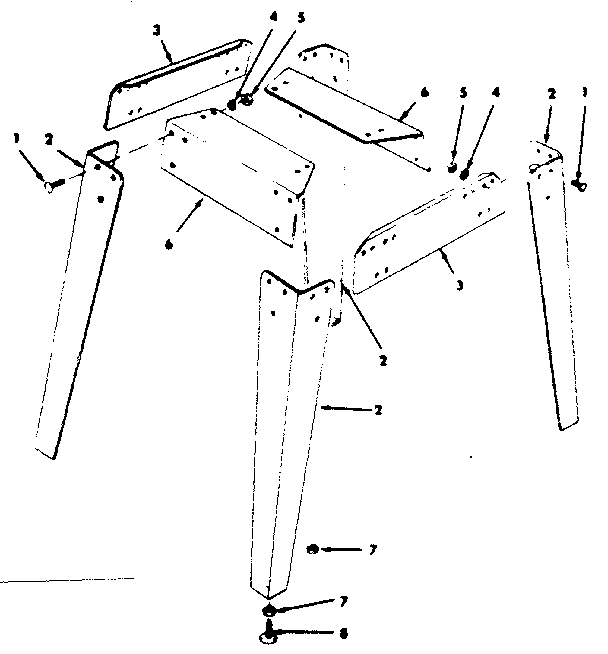

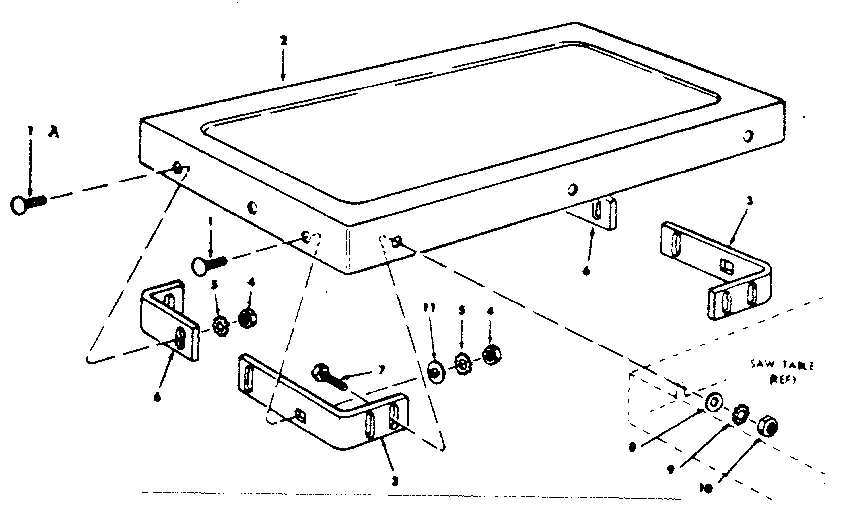

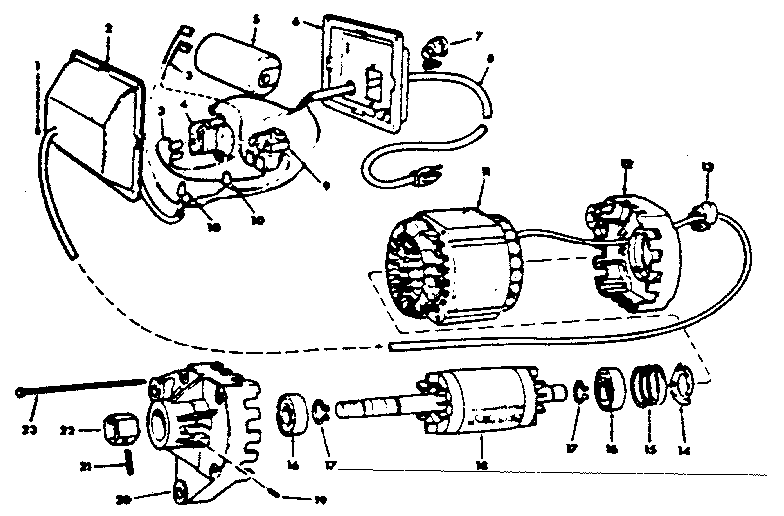

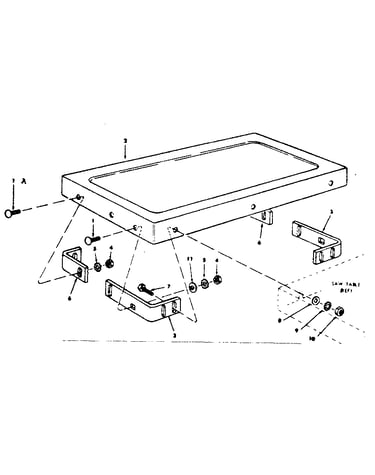

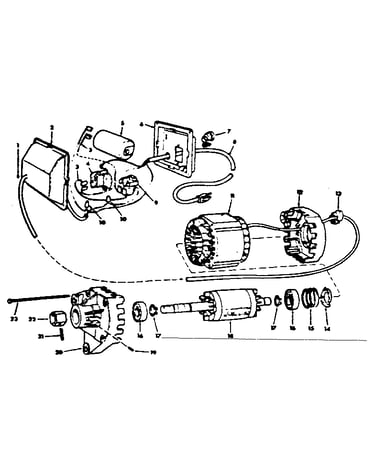

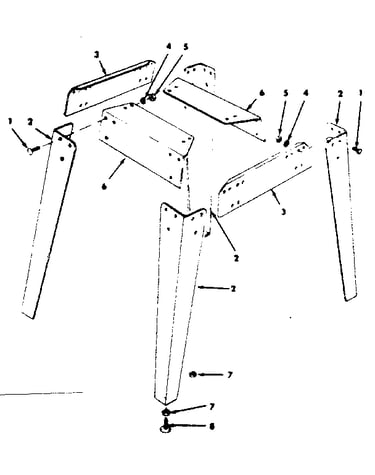

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Table Saw Table Insert Screw 447441
#3

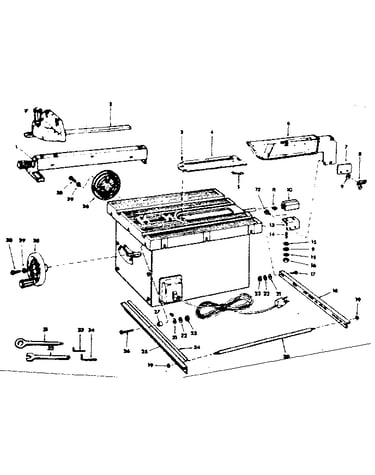

Unit housing diagram

Table saw table insert screw

Part #447441

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Knob Cap 62693
#1

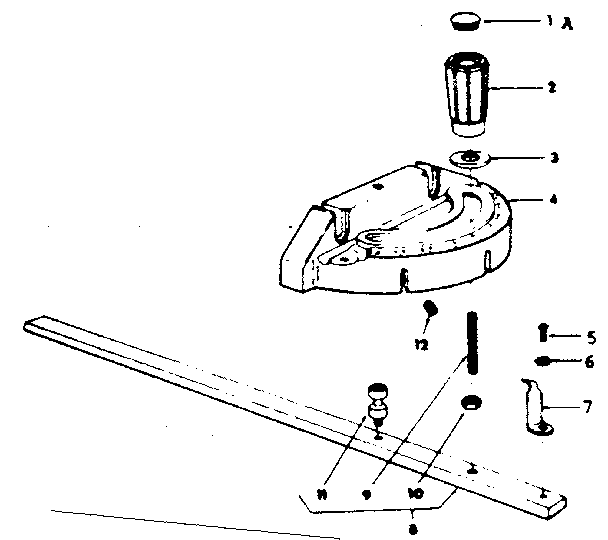

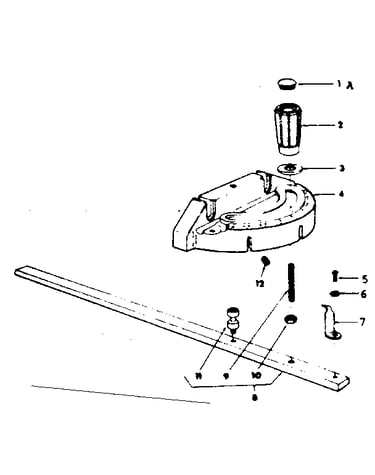

62694 miter gauge assembly diagram

Table saw knob cap

Part #62693

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Blade Guard Clamp 62643
#7

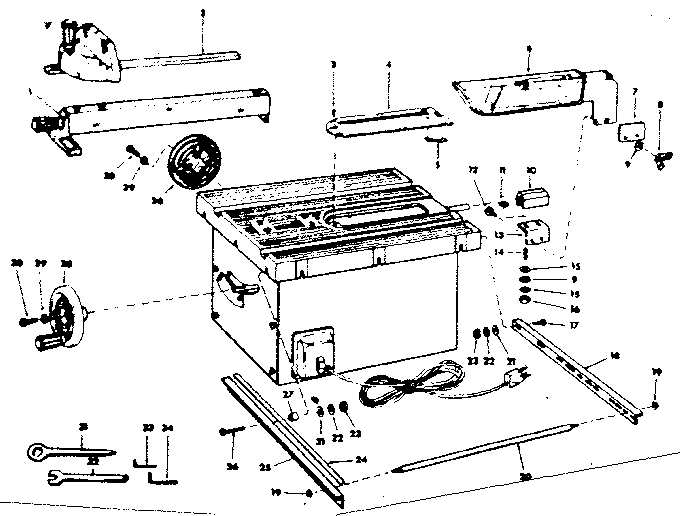

Unit housing diagram

Table saw blade guard clamp

Part #62643

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Handle 62692
#2

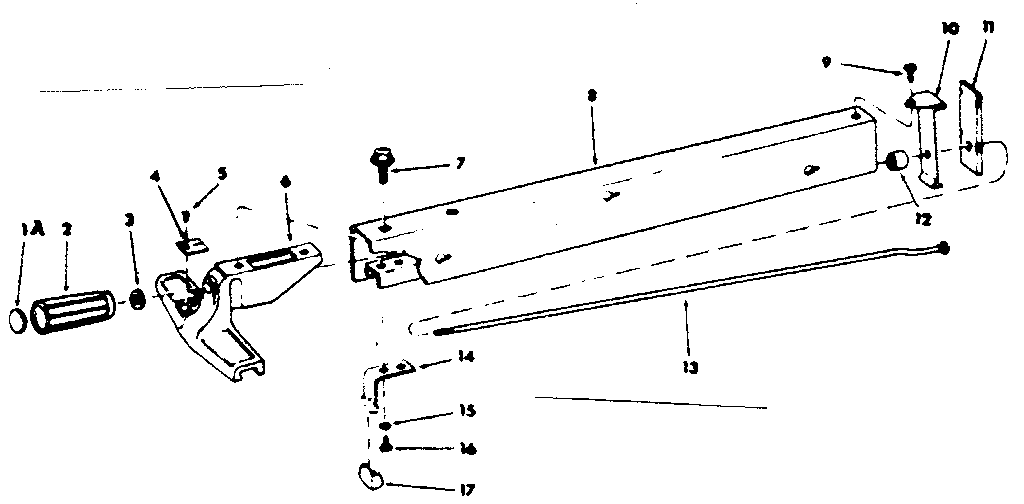

62782 fence assembly diagram

Table saw rip fence handle

Part #62692

The manufacturer no longer makes this part, and there's no substitute part

Flat Head Screw 805297-1
#2

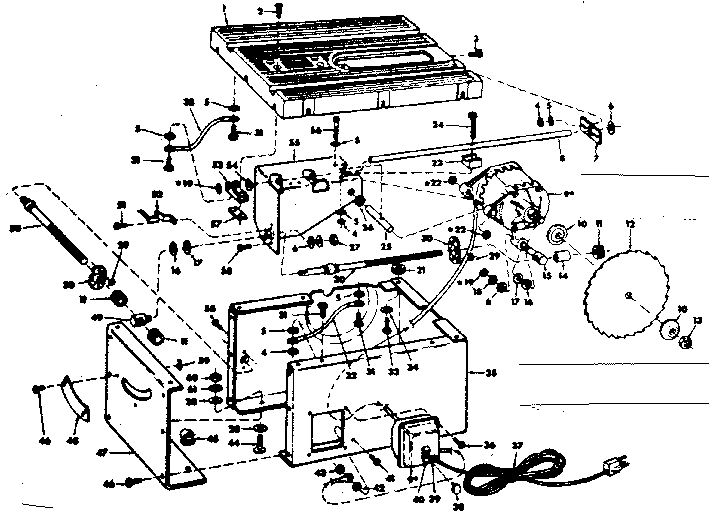

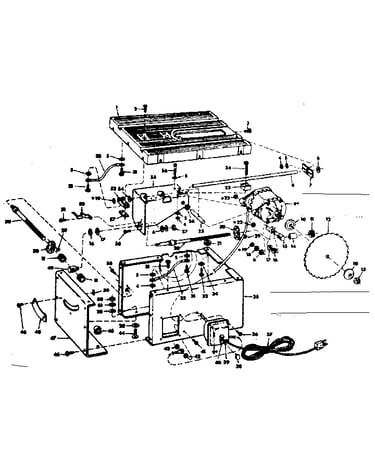

Unit breakdown diagram

Flat head screw

Part #805297-1

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Miter Gauge Clamp Stud 62225
#9

62694 miter gauge assembly diagram

Table saw miter gauge clamp stud

Part #62225

The manufacturer no longer makes this part, and there's no substitute part

Screw 9404392
#24

Unit breakdown diagram

Screw

Part #9404392

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 60354
#59

Unit breakdown diagram

Speed nut

Part #60354

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Screw 9404336
#5

62782 fence assembly diagram

Table saw screw

Part #9404336

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Spacer 62520
#11

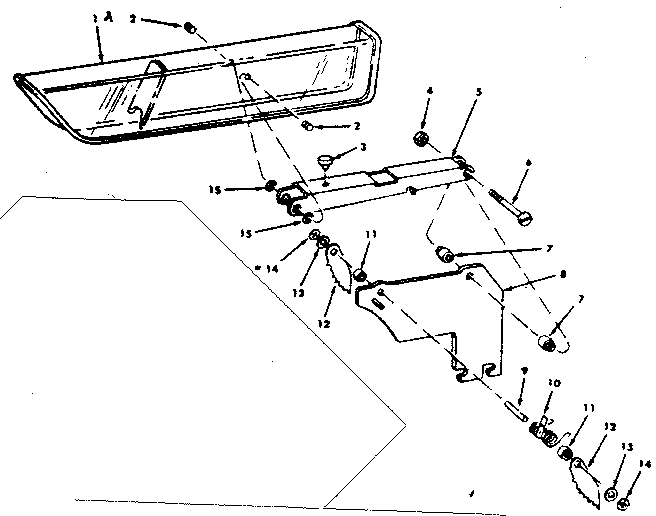

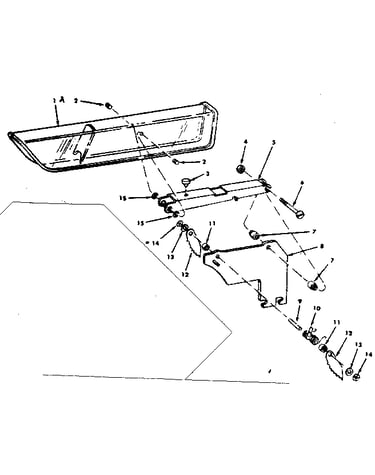

62812 guard assembly diagram

Table saw spacer

Part #62520

The manufacturer no longer makes this part, and there's no substitute part
