Model # WFMC5801UC/13 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC5801UC-13 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Washer Hot Water Inlet Hose (replaces 422245) 00422245
#407

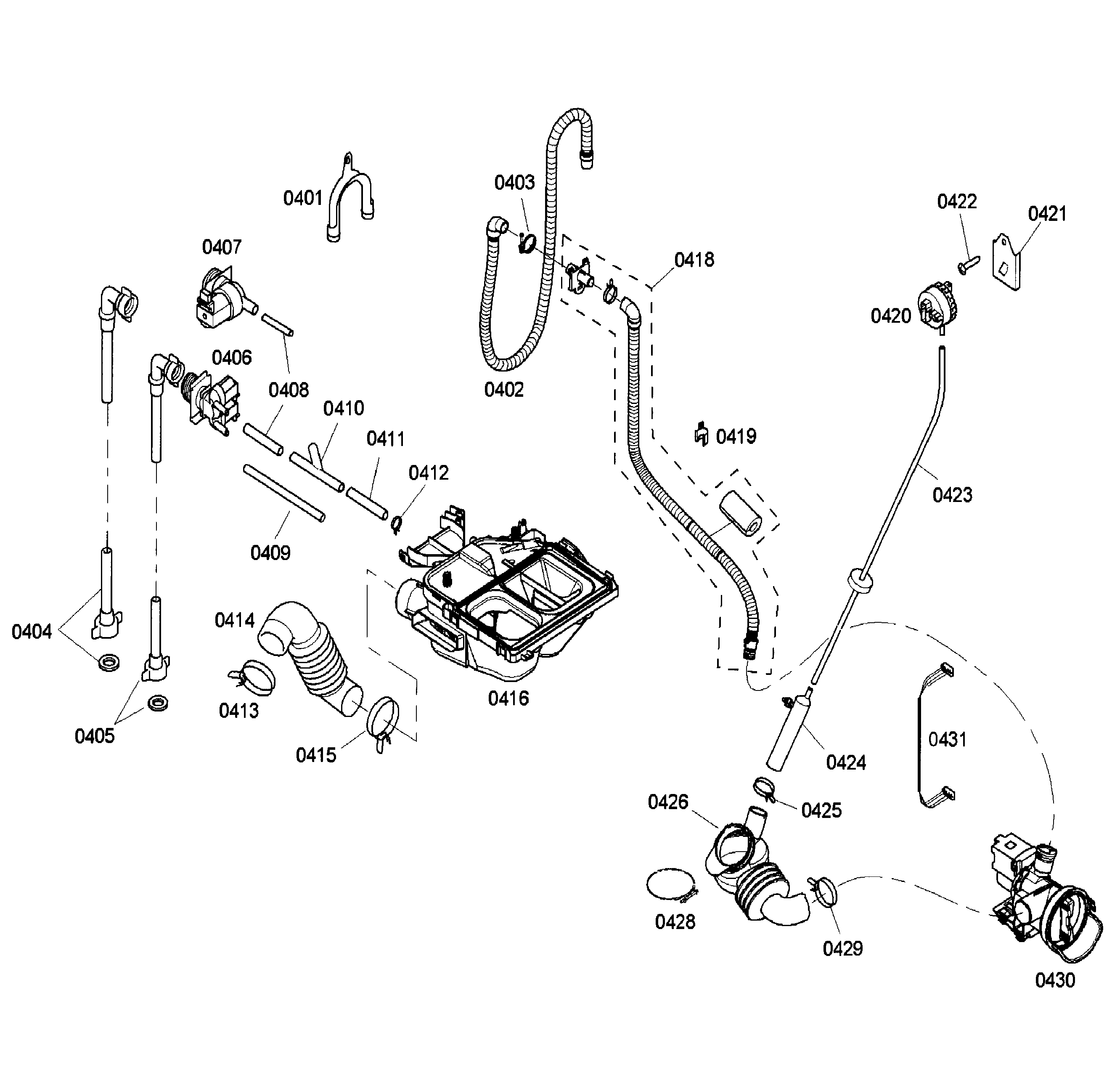

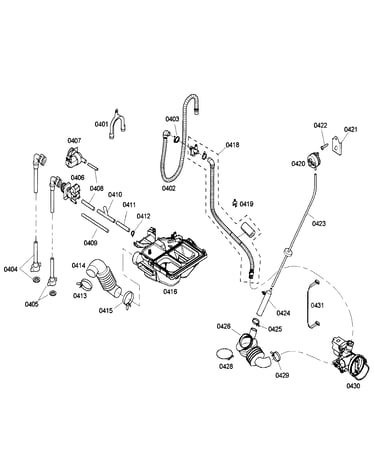

Pump diagram

Washer hot water inlet hose (replaces 422245)

Part #00422245

BEST SELLER
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Washer Cold Water Inlet Valve (replaces 422244) 00422244
#406

Pump diagram

Washer cold water inlet valve (replaces 422244)

Part #00422244

$59.49 |
9% OFF Phone Price : $65.49
In Stock
Washer Door Lock (replaces 497255) 00497255
#210

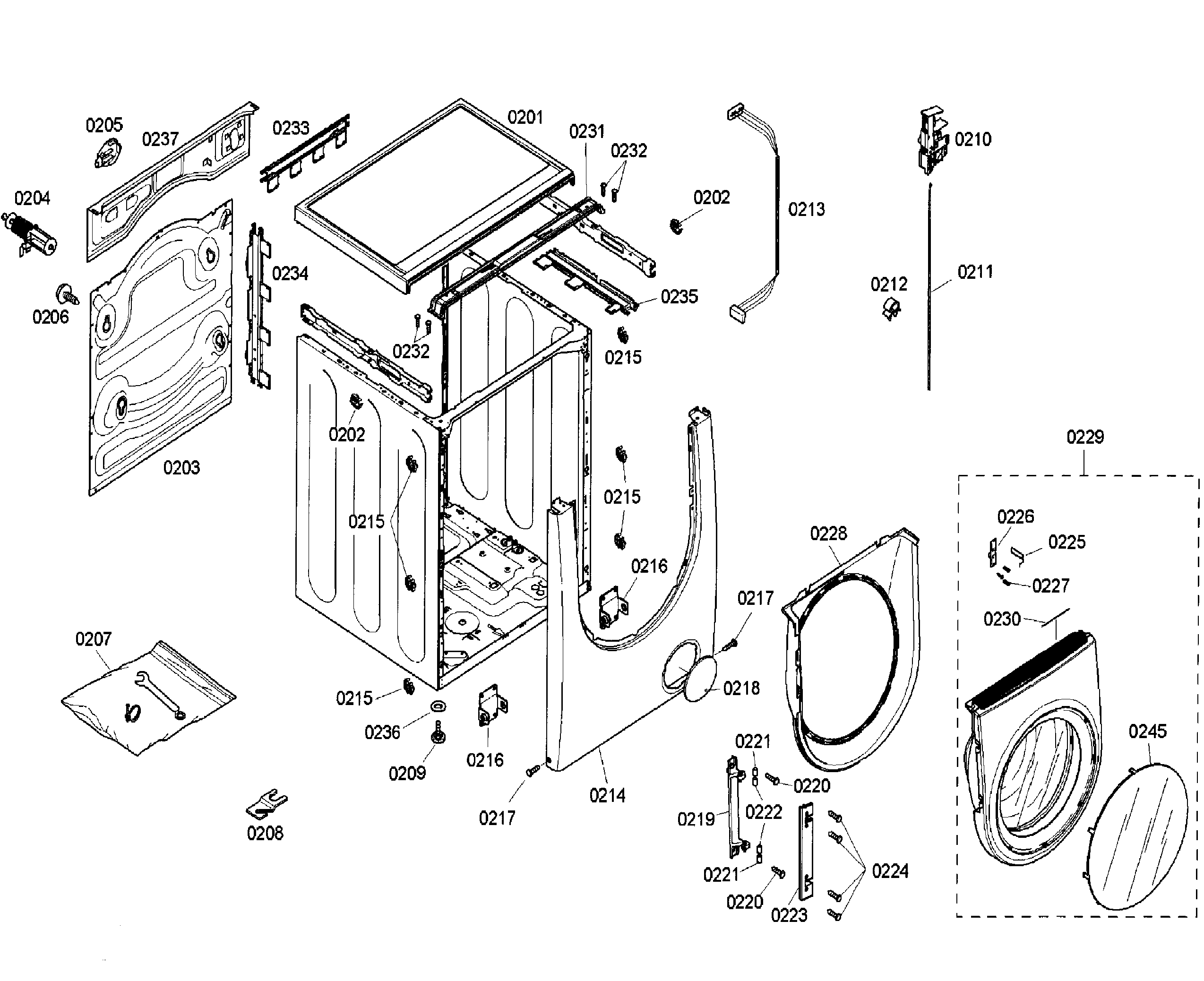

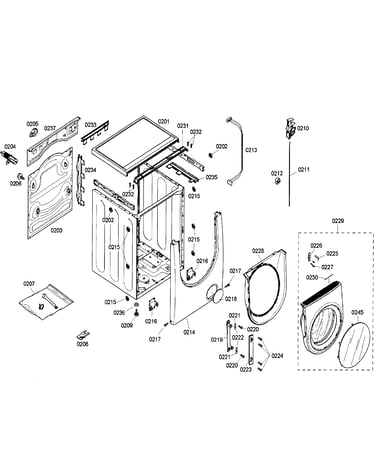

Cabinet diagram

Washer door lock (replaces 497255)

Part #00497255

$119.00 |
9% OFF Phone Price : $131.00
In Stock
Washer Door Boot Spring Clamp 00644646
#320

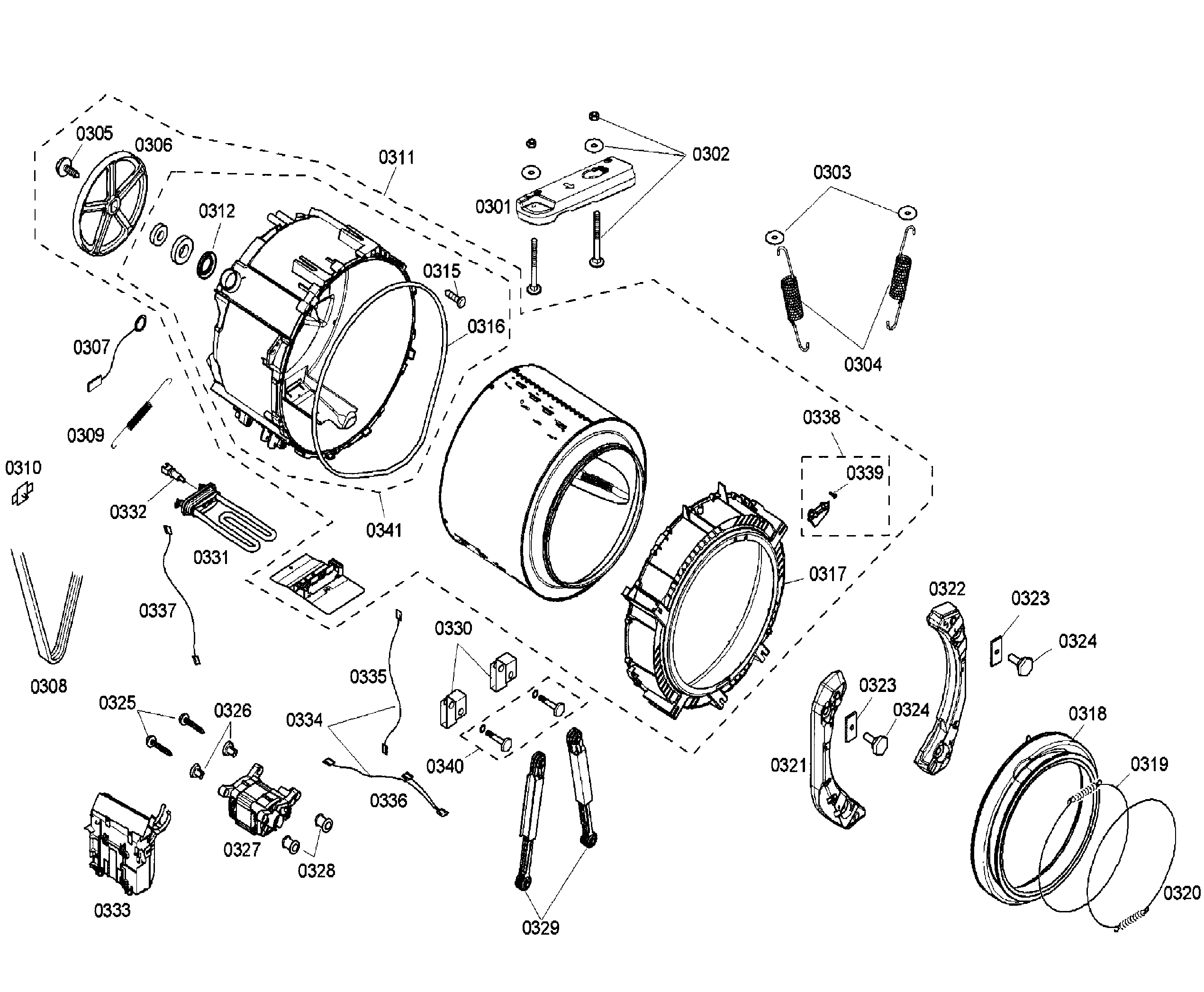

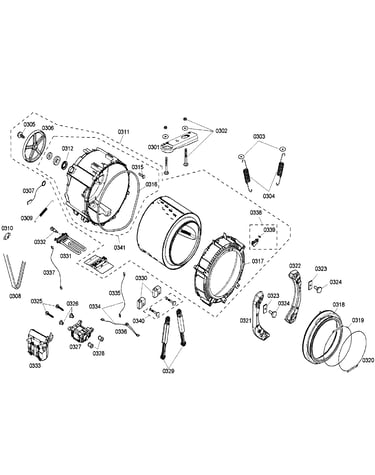

Drum diagram

Washer door boot spring clamp

Part #00644646

This item is not returnable
$16.09 |
11% OFF Phone Price : $18.09
In Stock
Washer Suspension Spring 00491683
#304

Drum diagram

Washer suspension spring

Part #00491683

$100.80
In Stock
Shaft Seal 00416363
#312

Drum diagram

Shaft seal

Part #00416363

Replaced by #00613084

?
Manufacturer substitution
This part replaces 00416363. Substitute parts can look different from the original.
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Washer Drain Hose Clamp (replaces 422207) 00422207
#429

Pump diagram

Washer drain hose clamp (replaces 422207)

Part #00422207

This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Appliance Noise Filter 00429052
#104

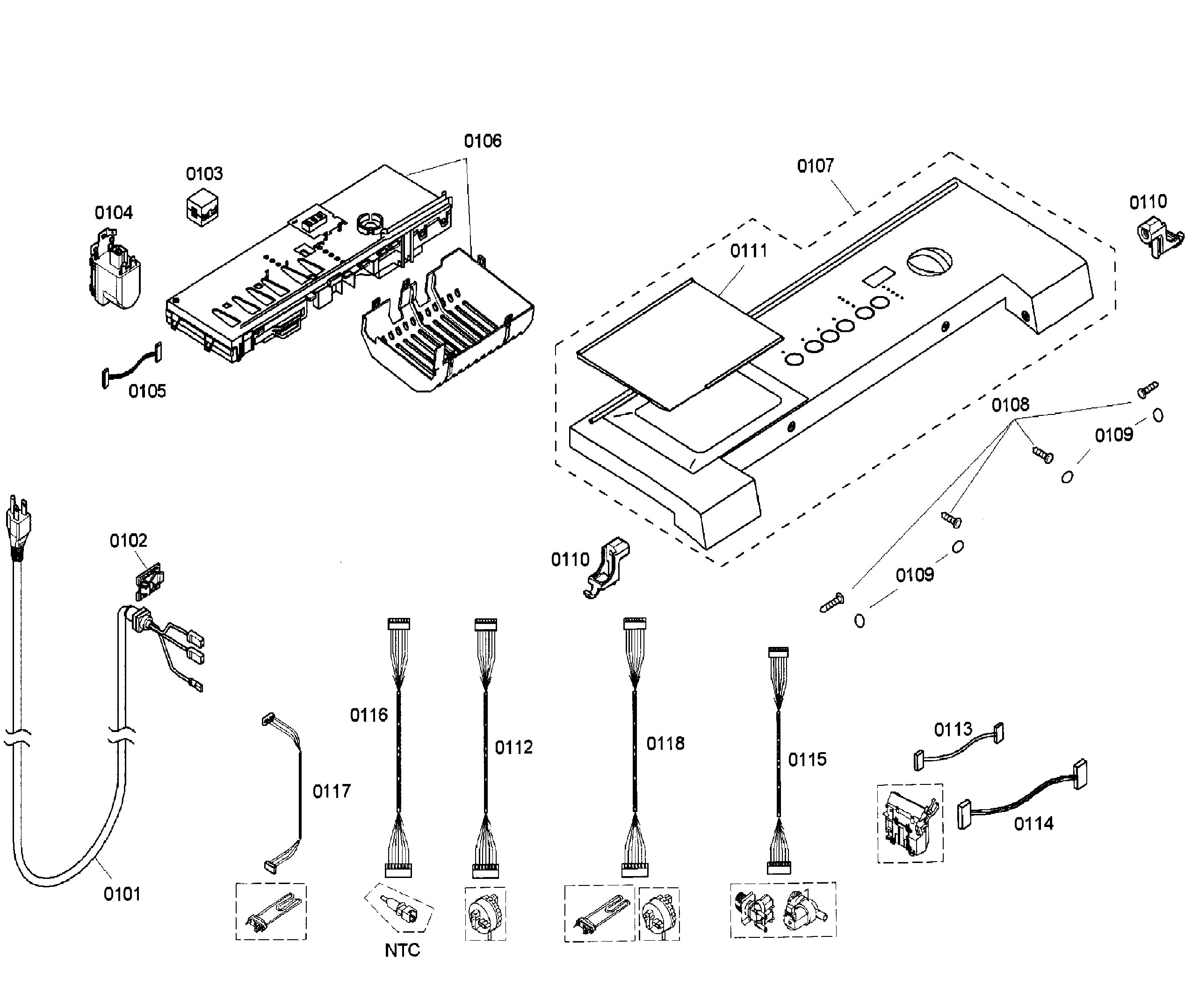

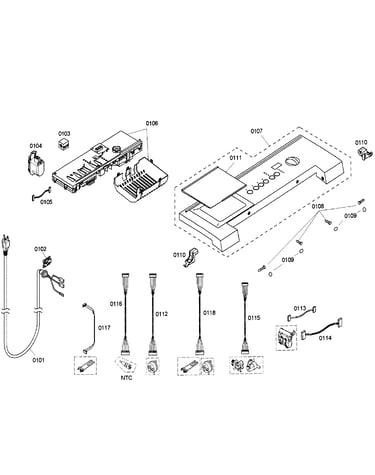

Control panel diagram

Appliance noise filter

Part #00429052

$76.53
In Stock
Washer Cold Water Fill Hose 00493766
#405

Pump diagram

Washer cold water fill hose

Part #00493766

$43.98
In Stock
Tank Spring (replaces 491606) 00491606
#309

Drum diagram

Tank spring (replaces 491606)

Part #00491606

$26.97
In Stock
