Model # 1559314G Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 1559314G range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Housing 3089-Y9080
#18

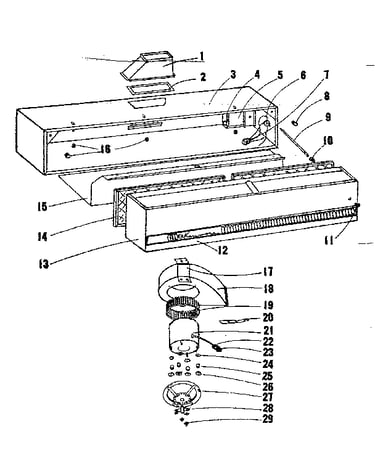

Range hood assembly diagram

Housing

Part #3089-Y9080

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 3168-Y9356
#13

Range hood assembly diagram

Housing assembly

Part #3168-Y9356

The manufacturer no longer makes this part, and there's no substitute part

Bracket 3093-Y8829
#27

Range hood assembly diagram

Bracket

Part #3093-Y8829

The manufacturer no longer makes this part, and there's no substitute part

Motor Brace 2813-T11677
#28

Range hood assembly diagram

Motor brace

Part #2813-T11677

The manufacturer no longer makes this part, and there's no substitute part

Hood Box Assembly 3162-Y9360
#3

Range hood assembly diagram

Hood box assembly

Part #3162-Y9360

The manufacturer no longer makes this part, and there's no substitute part

Rod Switch 3110-Z2843
#9

Range hood assembly diagram

Rod switch

Part #3110-Z2843

The manufacturer no longer makes this part, and there's no substitute part

Plate 2597-T10670
#20

Range hood assembly diagram

Plate

Part #2597-T10670

The manufacturer no longer makes this part, and there's no substitute part

Motor 3090-K10506
#21

Range hood assembly diagram

Motor

Part #3090-K10506

The manufacturer no longer makes this part, and there's no substitute part

Cover 3072-T12408
#5

Range hood assembly diagram

Cover

Part #3072-T12408

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 2594-T10645

#NI

All parts diagram

Cover plate

Part #2594-T10645

The manufacturer no longer makes this part, and there's no substitute part
