Electric Wall Oven

Model # DDO-750 Official Modern Maid self-cleaning wall oven

Here are the diagrams and repair parts for Official Modern Maid DDO-750 self-cleaning wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

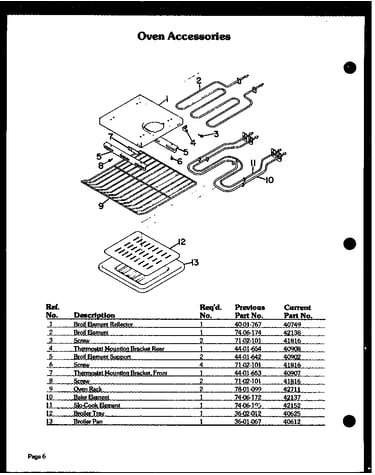

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DDO-750 Wall Ovens
Door Panel, Harvest 40221D
#3C

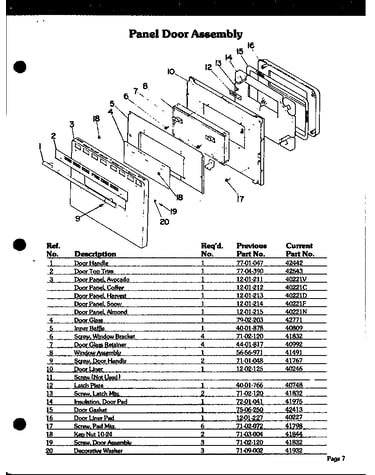

Panel door assembly diagram

Door panel, harvest

Part #40221D

The manufacturer no longer makes this part, and there's no substitute part

Screw - Tapping 41774
Screw - tapping

Part #41774

The manufacturer no longer makes this part, and there's no substitute part

Latch Handle Guide 42018
#35

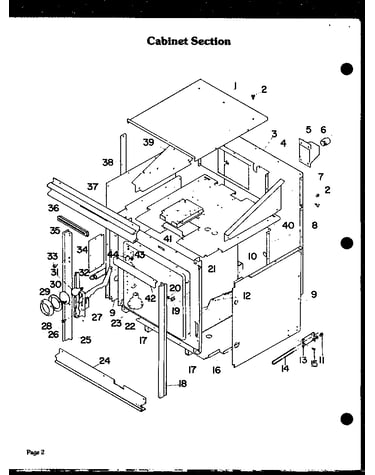

Cabinet section diagram

Latch handle guide

Part #42018

The manufacturer no longer makes this part, and there's no substitute part

Screw, Switch Mtg. 4-40 41826
#3

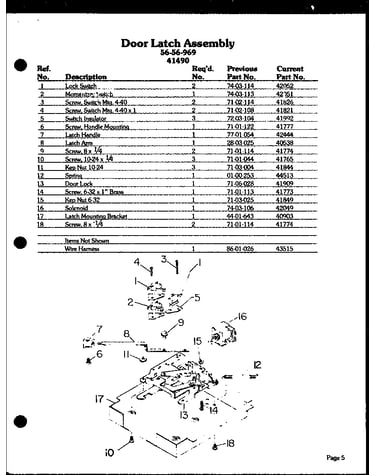

Door latch assembly diagram

Screw, switch mtg. 4-40

Part #41826

The manufacturer no longer makes this part, and there's no substitute part

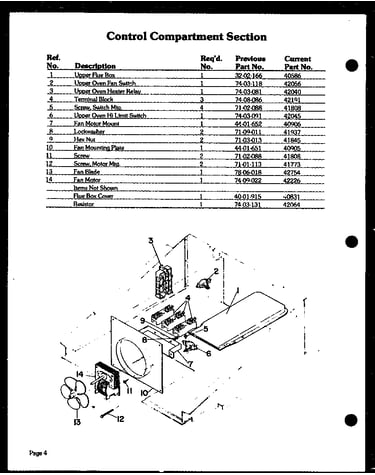

Screw 41773
Screw

Part #41773

The manufacturer no longer makes this part, and there's no substitute part

Window Mouning Bracket 40955
#7

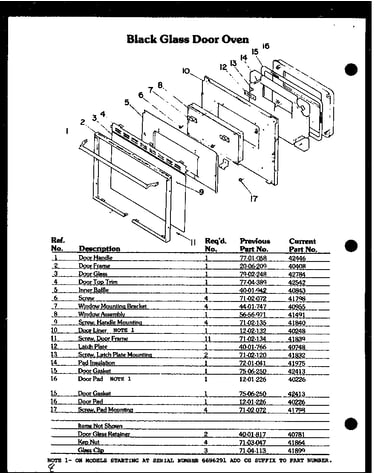

Black glass door oven diagram

Window mouning bracket

Part #40955

The manufacturer no longer makes this part, and there's no substitute part

Kep Nut 41849
#15

Door latch assembly diagram

Kep nut

Part #41849

The manufacturer no longer makes this part, and there's no substitute part

Screw, Switch Mtg. 41821
#4

Door latch assembly diagram

Screw, switch mtg.

Part #41821

The manufacturer no longer makes this part, and there's no substitute part

Clock Timer 53071
#6

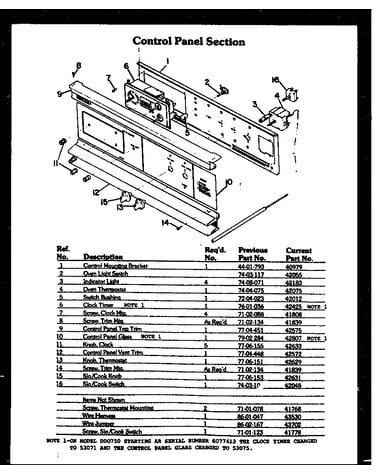

Control panel section diagram

Clock timer

Part #53071

The manufacturer no longer makes this part, and there's no substitute part

Latch Mounting Bracket 40903
#17

Door latch assembly diagram

Latch mounting bracket

Part #40903

The manufacturer no longer makes this part, and there's no substitute part
