Model # A5898VRV Official Admiral electric freestanding range

Here are the diagrams and repair parts for Official Admiral A5898VRV electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Oven Sensor 7430P010-60
Oven sensor

Part #7430P010-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P010-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Range Surface Element Control Switch 7403P238-60
#2

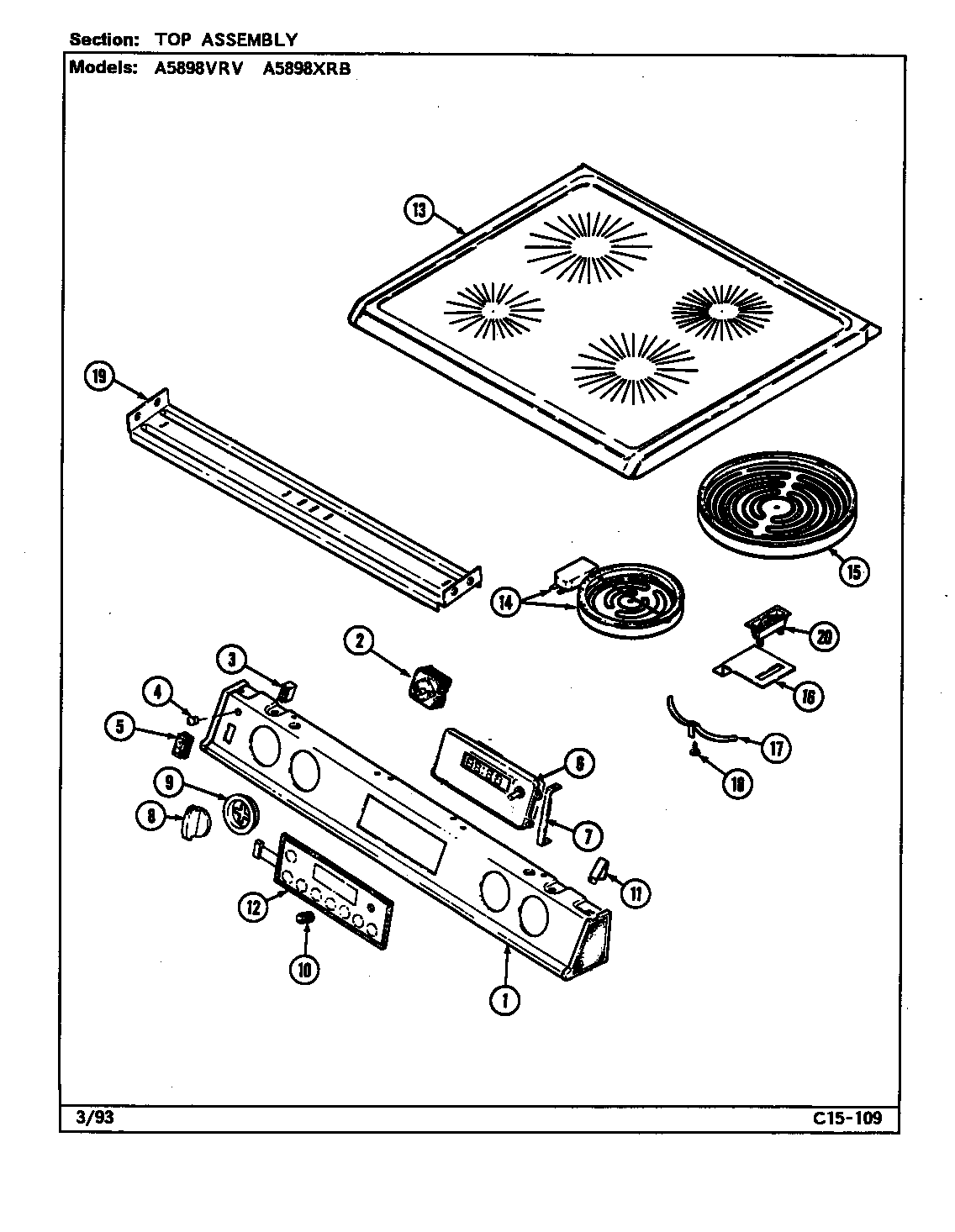

Top assy. diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Surface Element Control Switch 7403P239-60
#2A

Top assy. diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Element W/re 7406P073-60
#15

Top assy. diagram

Element w/re

Part #7406P073-60

Replaced by #W10823707

?
Manufacturer substitution
This part replaces 7406P073-60. Substitute parts can look different from the original.
$126.43 |
9% OFF Phone Price : $138.43
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hinge Screw 7101P017-60
#8

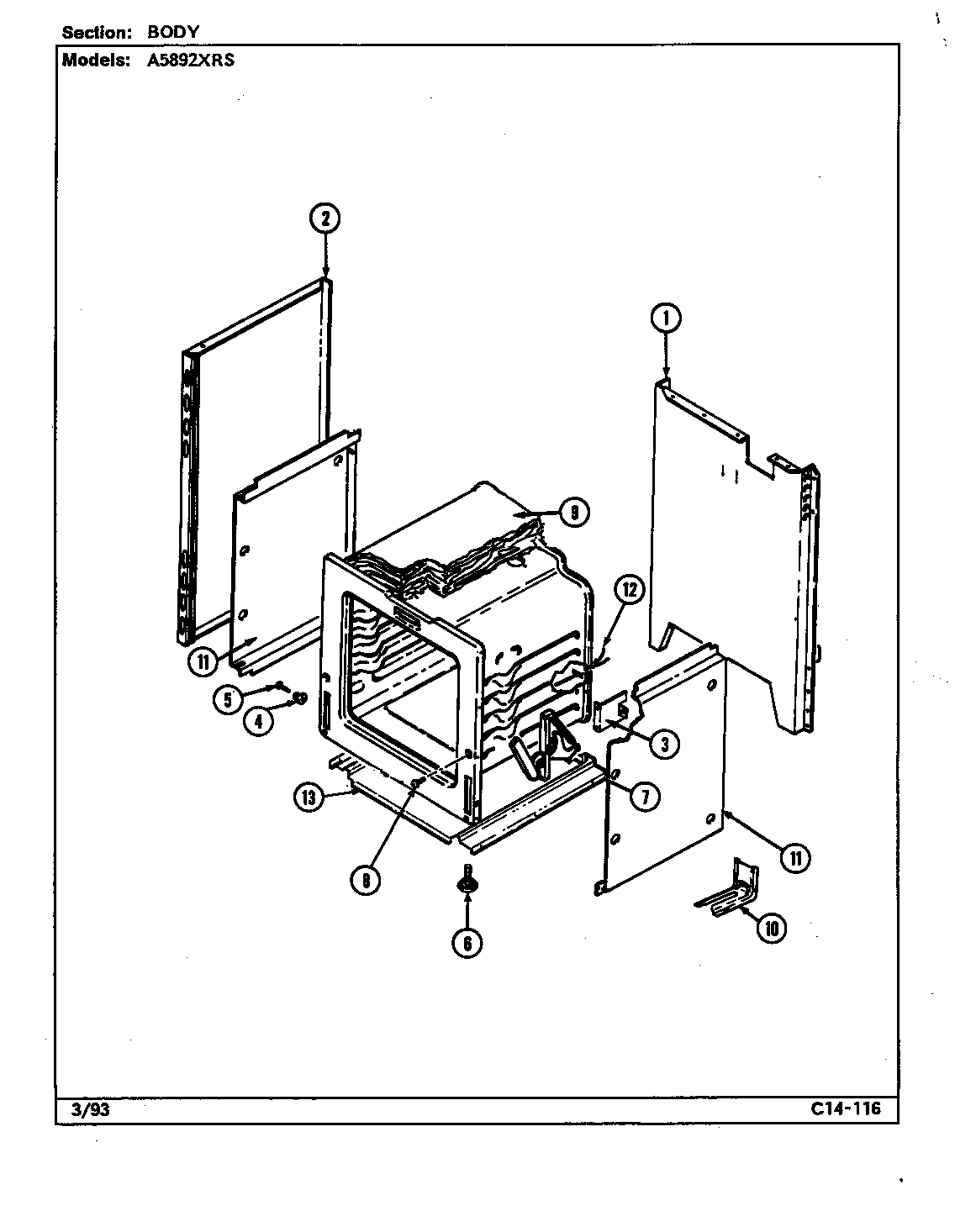

Body diagram

Hinge screw

Part #7101P017-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P017-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Lever Screw 7101P230-60
#5

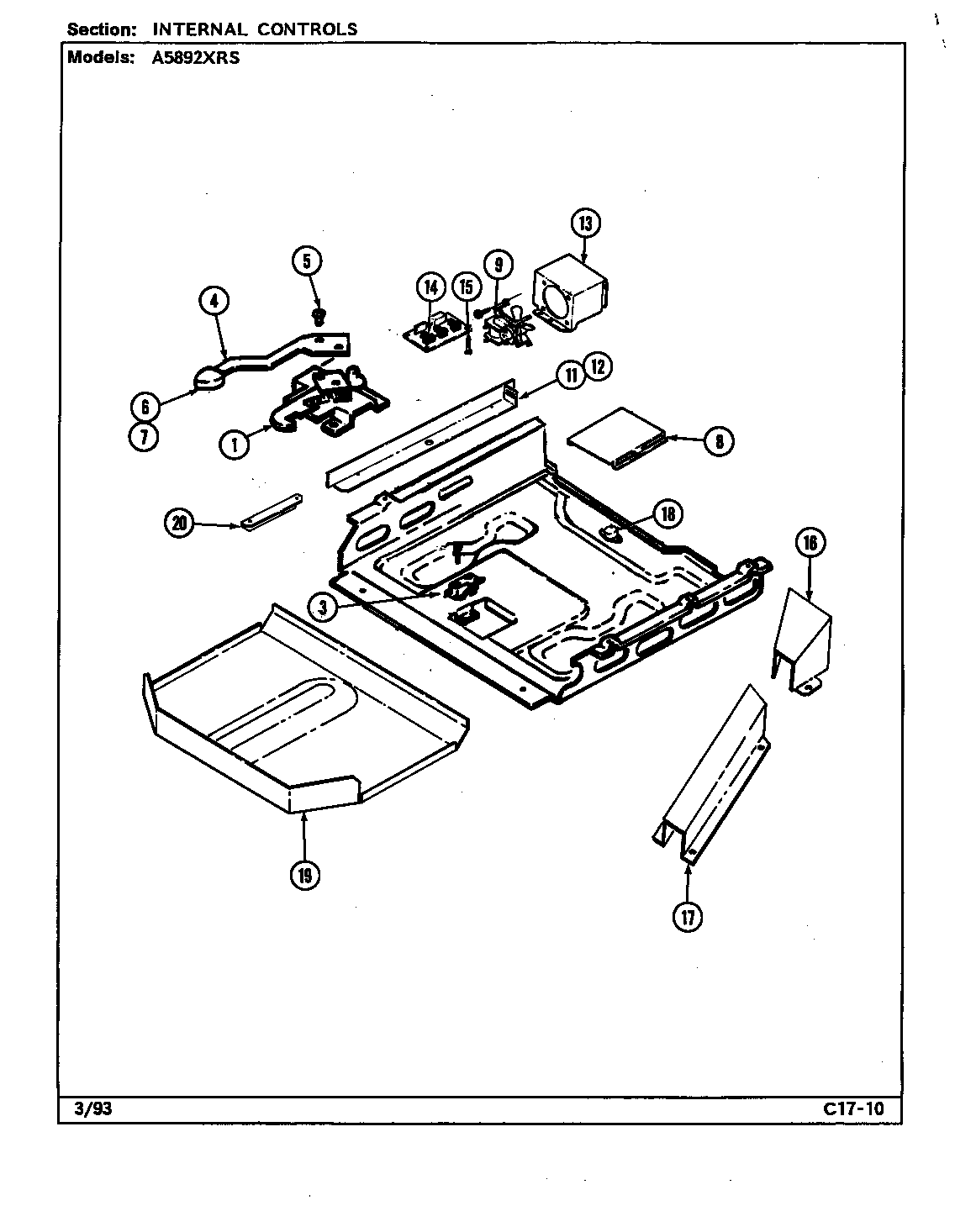

Internal controls diagram

Lever screw

Part #7101P230-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P230-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Seal 7208P011-60
#13

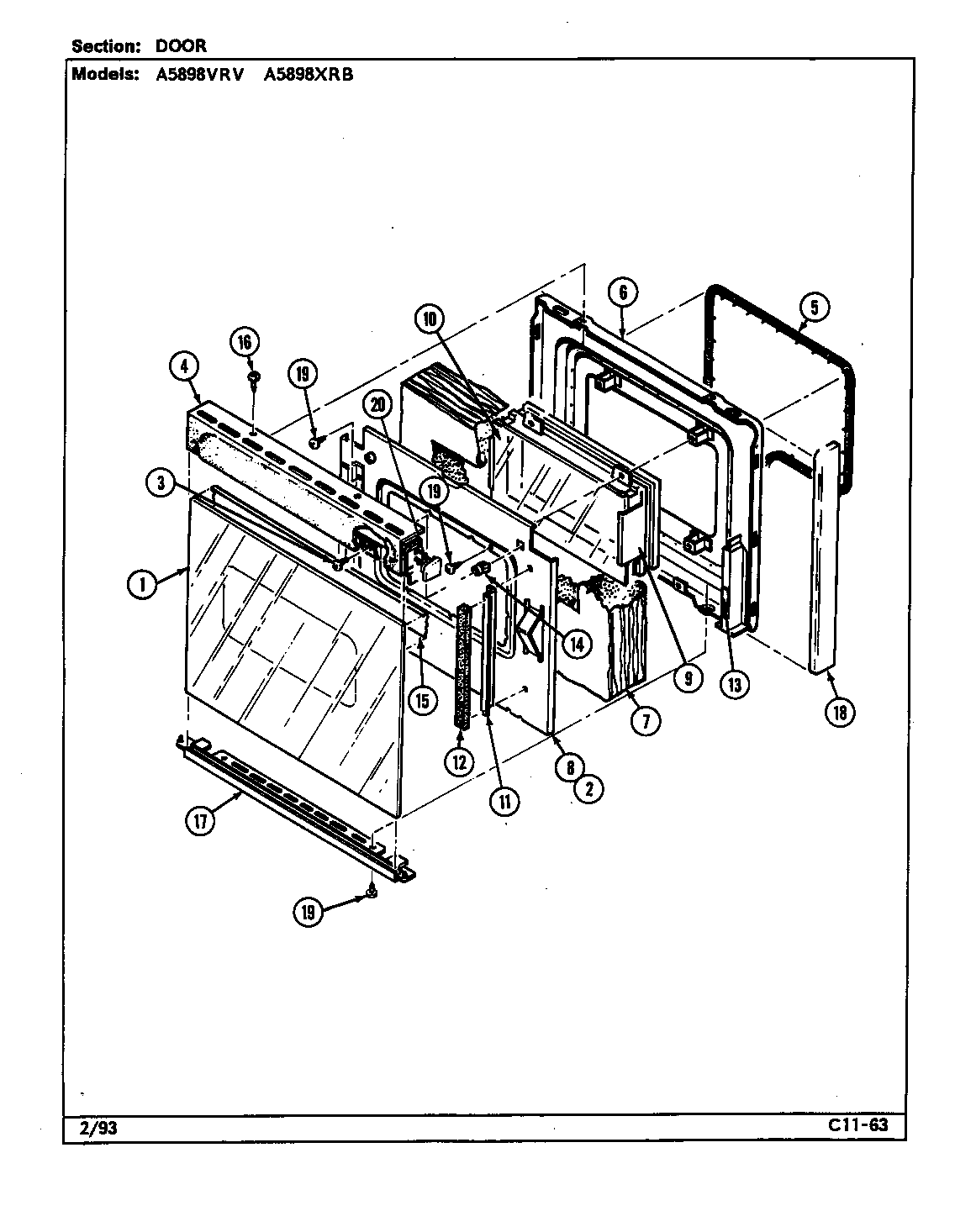

Door diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Screw (wht) 7101P308-60
#19A

Door diagram

Screw (wht)

Part #7101P308-60

Replaced by #WP98008544

?
Manufacturer substitution
This part replaces 7101P308-60. Substitute parts can look different from the original.
$8.23
In Stock
Broiler Element 7406P065-60
#2

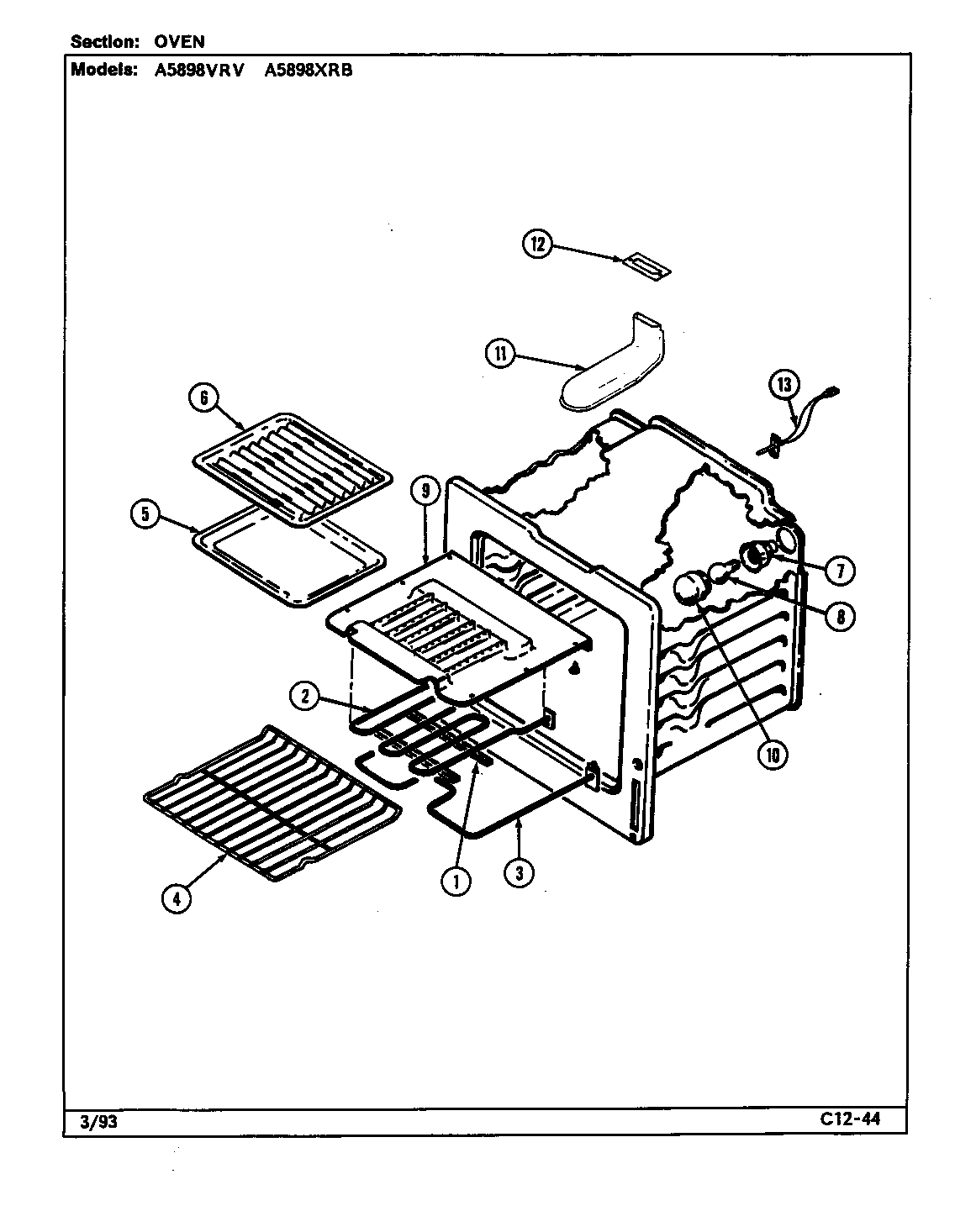

Oven diagram

Broiler element

Part #7406P065-60

Replaced by #WPY04000059

?
Manufacturer substitution
This part replaces 7406P065-60. Substitute parts can look different from the original.
$100.20
In Stock
