Lawn & Garden Engine

Model # 143631082 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143631082 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143631082 4-Cycle Engine
Repair Kit 630974
#25

Carburetor diagram

Repair kit

Part #630974

Replaced by #631893A

?
Manufacturer substitution
This part replaces 630974. Substitute parts can look different from the original.
In Stock
Plug 27625
#27

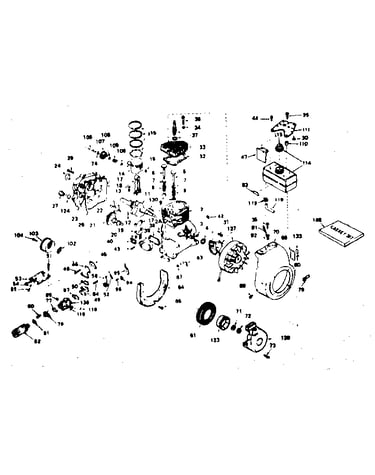

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Breaker Assembly 30547A
#6

Magneto diagram

Lawn & garden equipment engine breaker assembly

Part #30547A

In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug 630748
#15

Carburetor diagram

Troybilt lawn & garden equipment engine welch plug

Part #630748

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl 590148
#4

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl

Part #590148

This item is not returnable
In Stock
Troybilt Lawn & Garden Equipment Engine Tension Spring 630766
#5

Carburetor diagram

Troybilt lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
In Stock
Rewnd Startr 590420
#139

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part
