Model # HMV9305/01 Official Bosch microwave/hood combo

Here are the diagrams and repair parts for Official Bosch HMV9305-01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

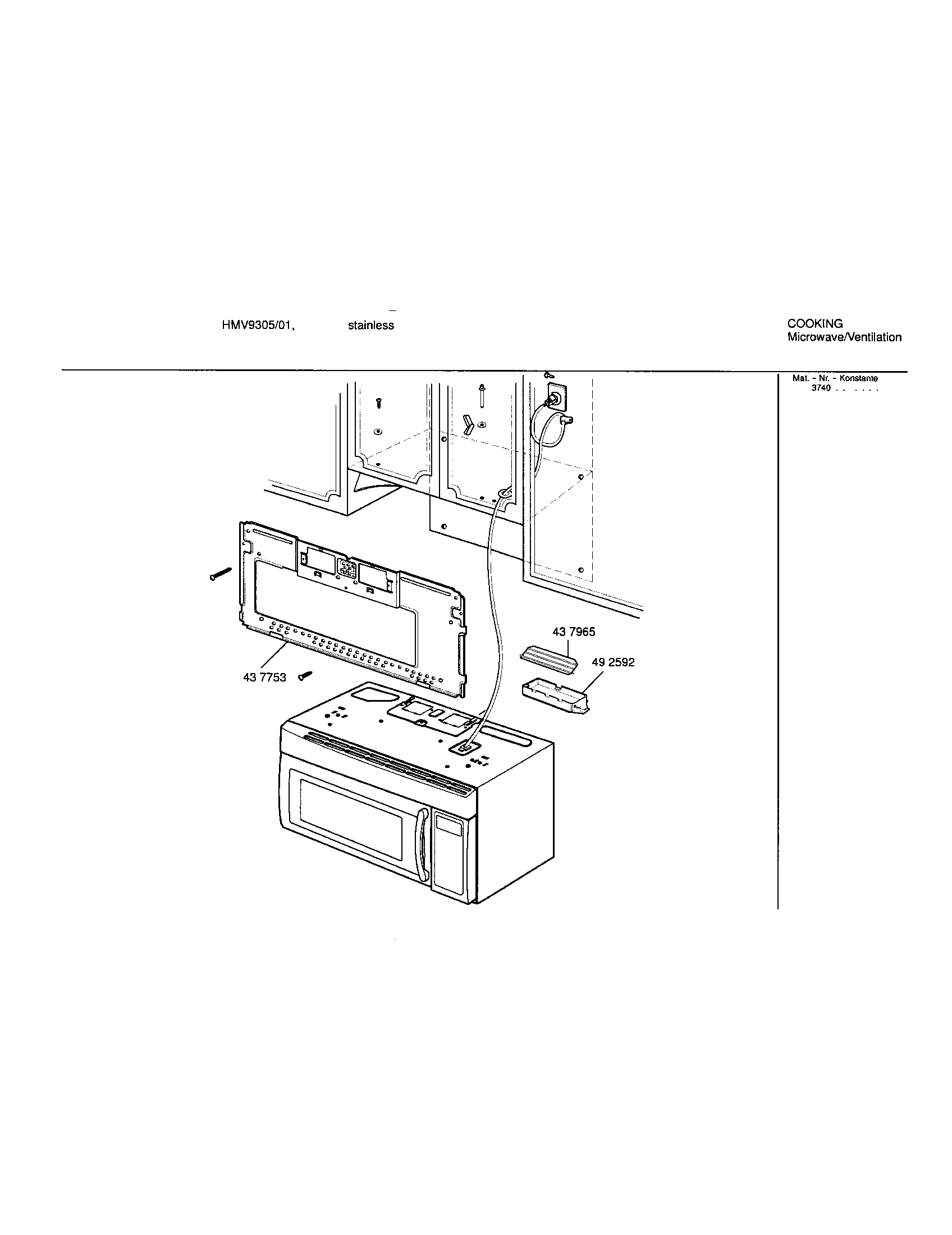

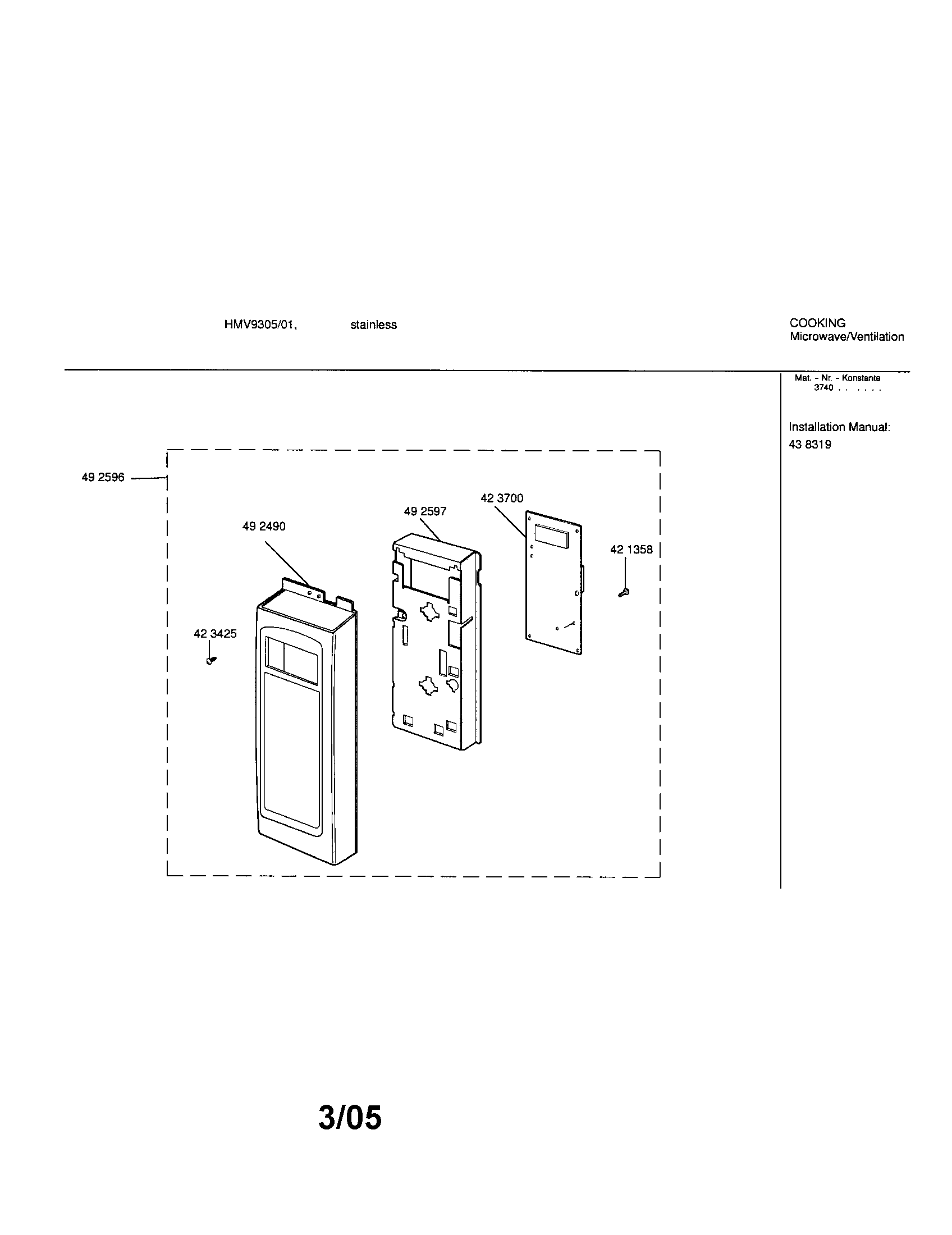

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Motor 423628
#423628

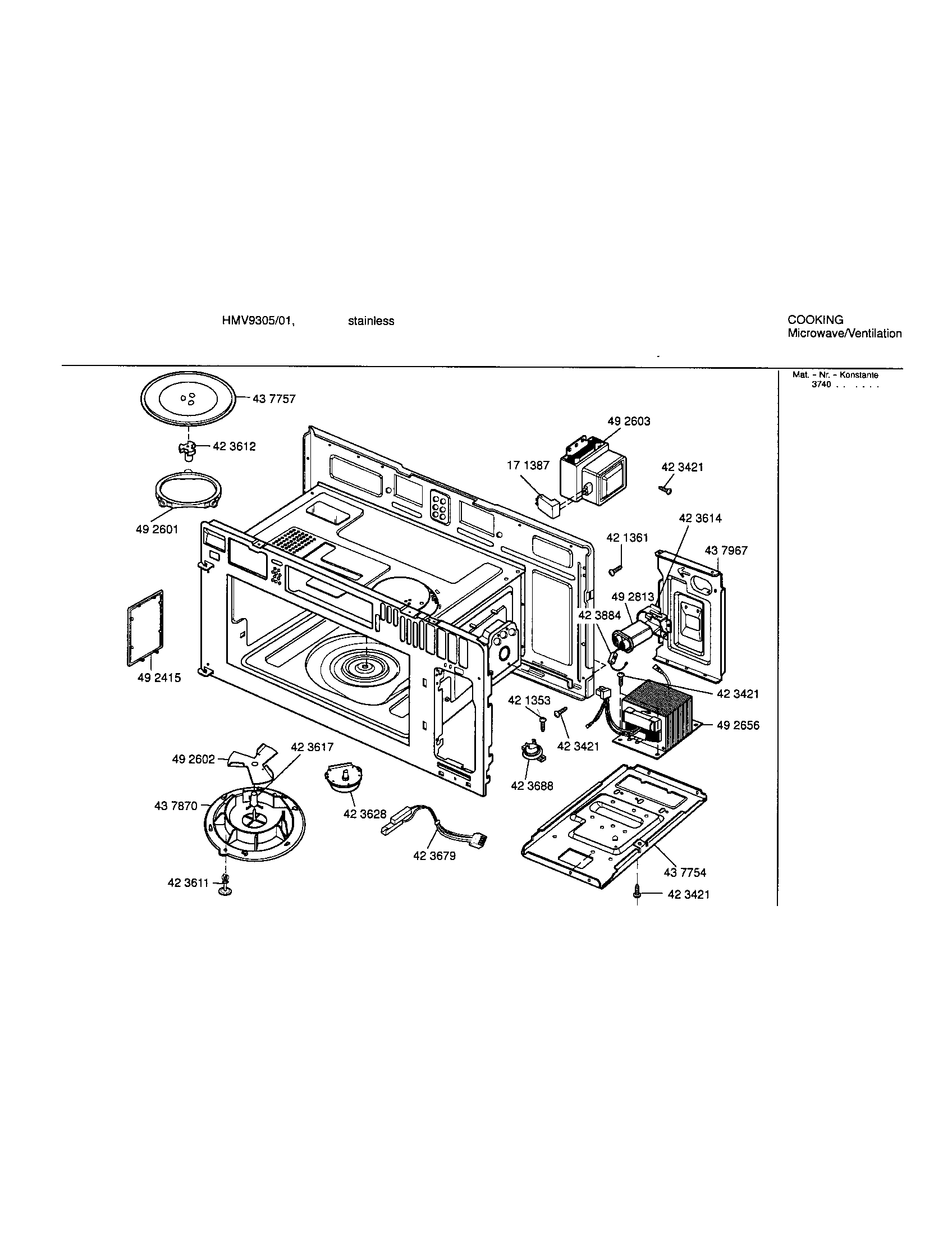

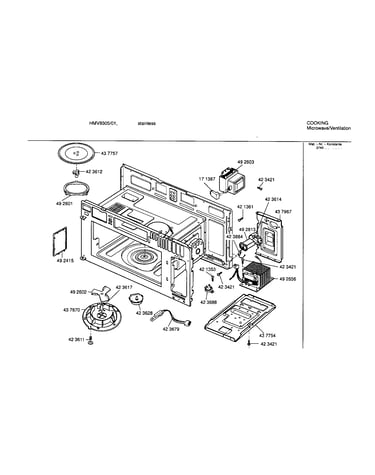

Oven cavity diagram

Motor

Part #423628

Replaced by #00423628

?
Manufacturer substitution
This part replaces 423628. Substitute parts can look different from the original.
$72.31
In Stock
Magnetron 492603
#492603

Oven cavity diagram

Magnetron

Part #492603

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 492813
#492813

Oven cavity diagram

Capacitor

Part #492813

Replaced by #00492813

?
Manufacturer substitution
This part replaces 492813. Substitute parts can look different from the original.
$96.60
In Stock
Microwave/hood Cover 437870
#437870

Oven cavity diagram

Microwave/hood cover

Part #437870

Replaced by #00437870

?
Manufacturer substitution
This part replaces 437870. Substitute parts can look different from the original.
$22.91
In Stock
Fuse 423690
#423690

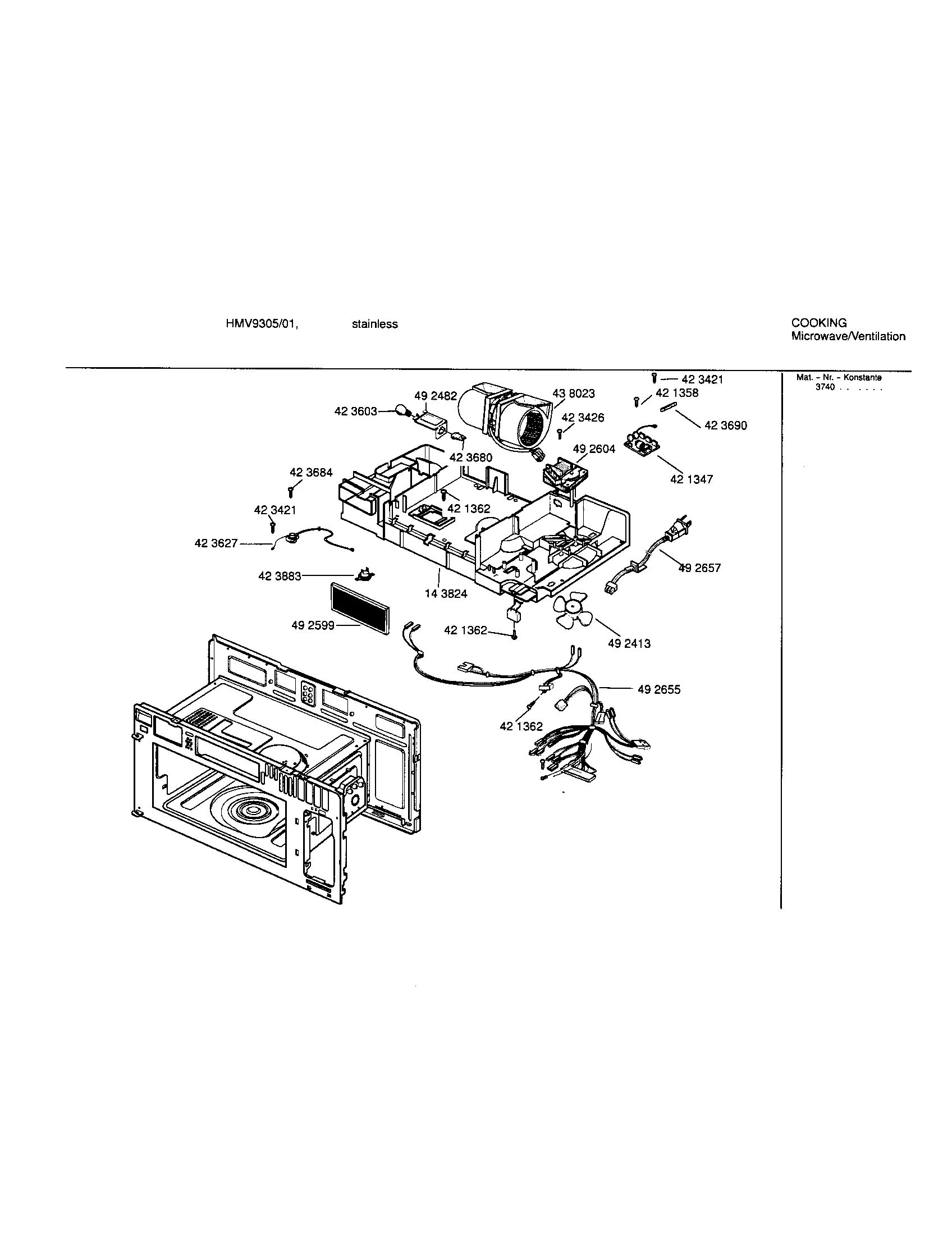

Interior assembly diagram

Fuse

Part #423690

Replaced by #00605916

?
Manufacturer substitution
This part replaces 423690. Substitute parts can look different from the original.
$26.97
In Stock
Switch 423879
#423879

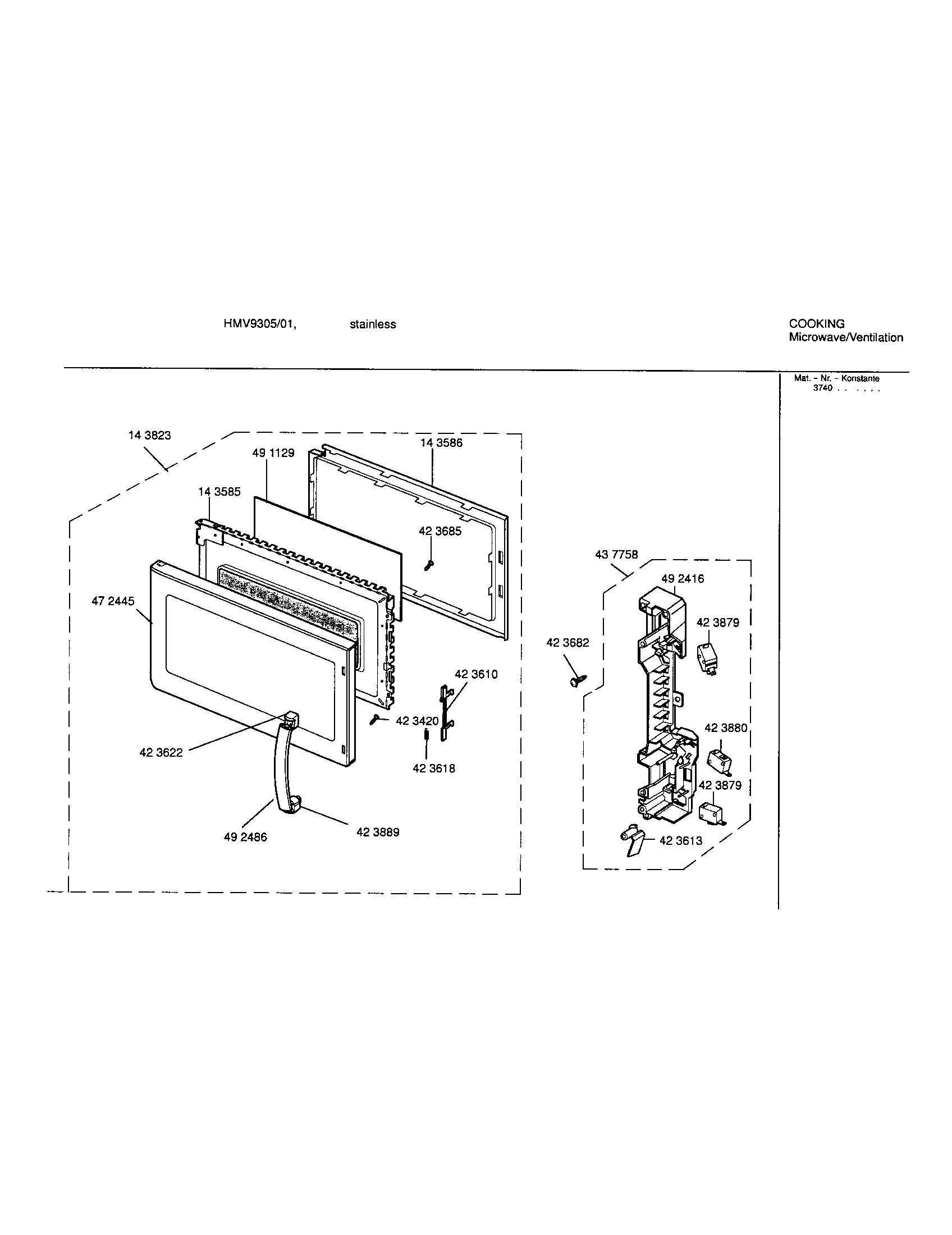

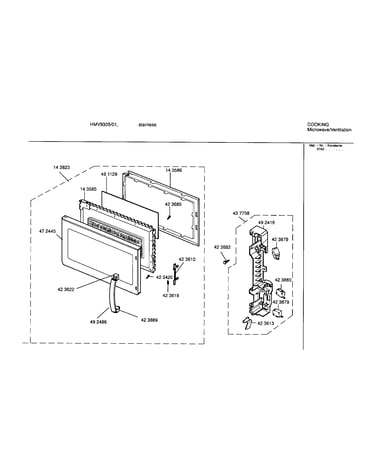

Door latch assembly diagram

Switch

Part #423879

Replaced by #00423879

?
Manufacturer substitution
This part replaces 423879. Substitute parts can look different from the original.
$26.97
In Stock
Pcb Assembly 421347
#421347

Interior assembly diagram

Pcb assembly

Part #421347

Replaced by #00421347

?
Manufacturer substitution
This part replaces 421347. Substitute parts can look different from the original.
$75.87
In Stock
Holder 423616
#423616

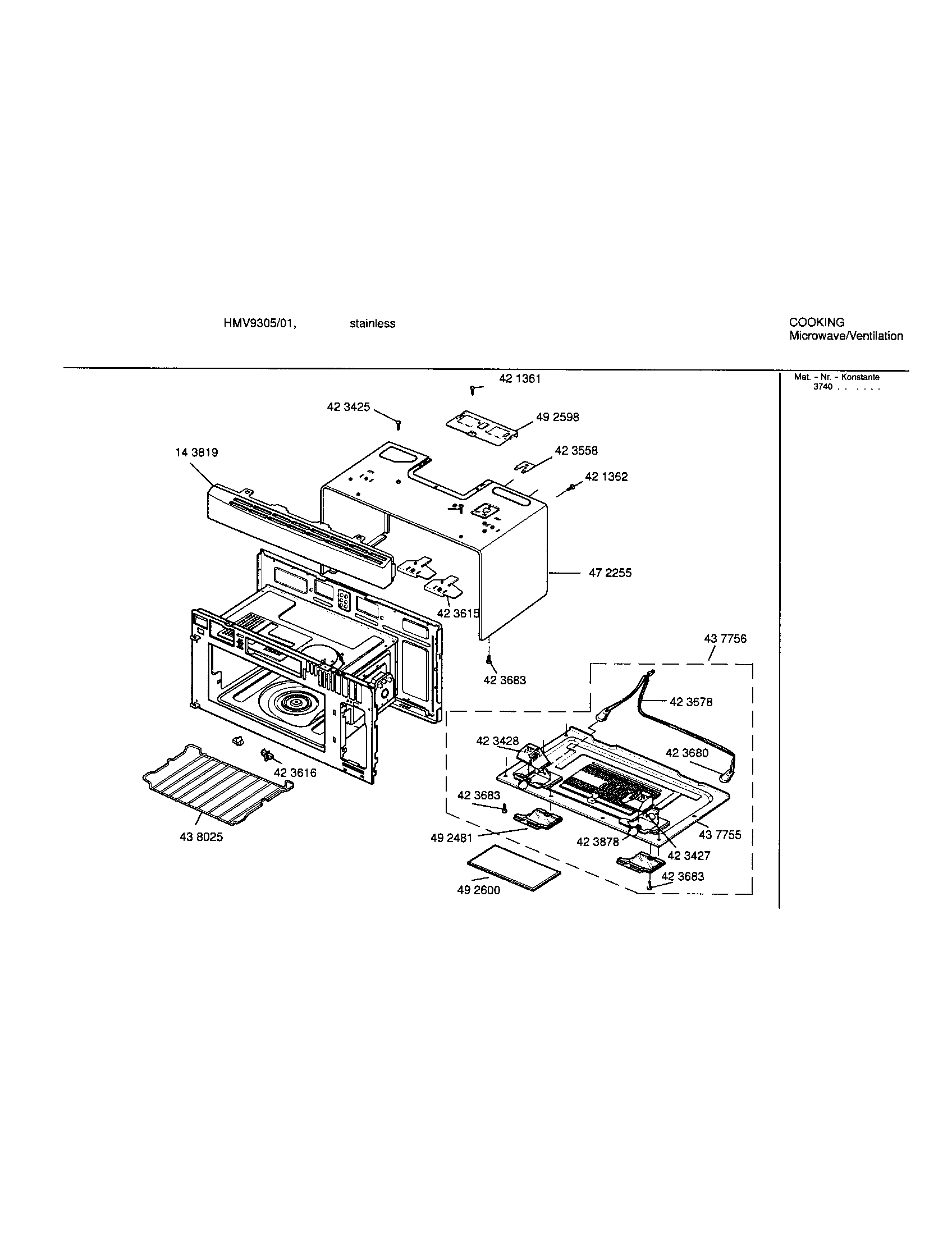

Base plate assembly diagram

Holder

Part #423616

Replaced by #00423616

?
Manufacturer substitution
This part replaces 423616. Substitute parts can look different from the original.
$26.97
In Stock
Switch 423880
#423880

Door latch assembly diagram

Switch

Part #423880

Replaced by #00614767

?
Manufacturer substitution
This part replaces 423880. Substitute parts can look different from the original.
This item is not returnable
$22.79 |
21% OFF Phone Price : $28.79
In Stock
Vent Motor 438023
#438023

Interior assembly diagram

Vent motor

Part #438023

The manufacturer no longer makes this part, and there's no substitute part
