Model # 919165600 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919165600 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

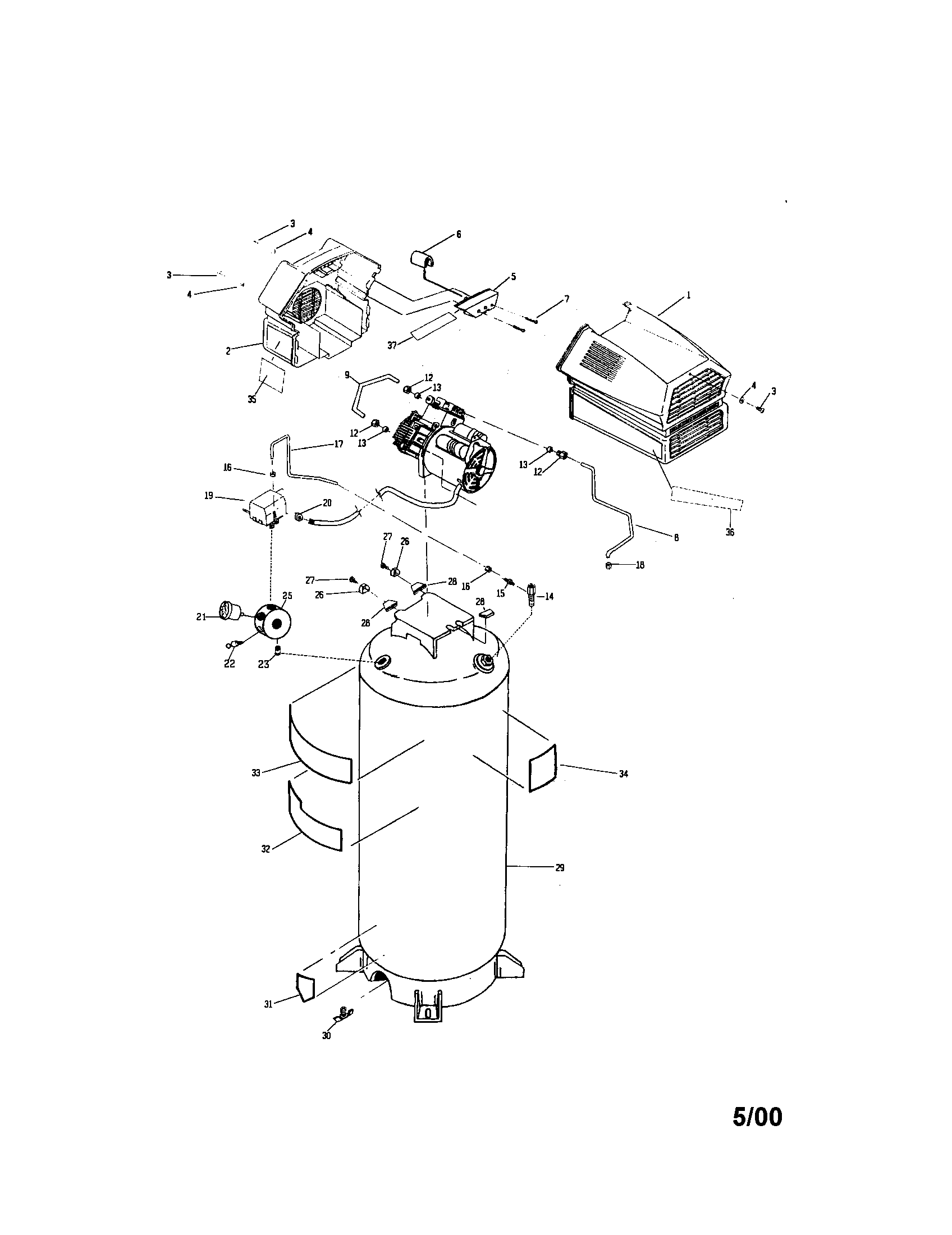

Air compressor diagram

Air compressor shroud, front

Part #ACG-14

The manufacturer no longer makes this part, and there's no substitute part

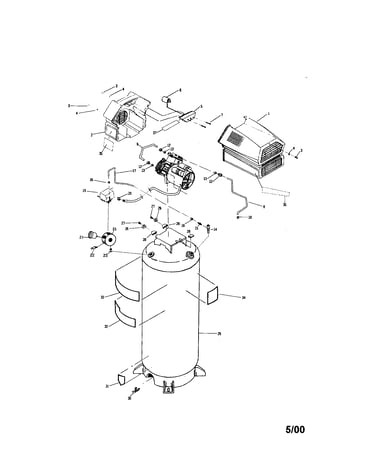

Air compressor diagram

Air compressor screw

Part #SSF-554

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7821-1

#12

Air compressor diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Connecting Rod Cap ACG-29

#49

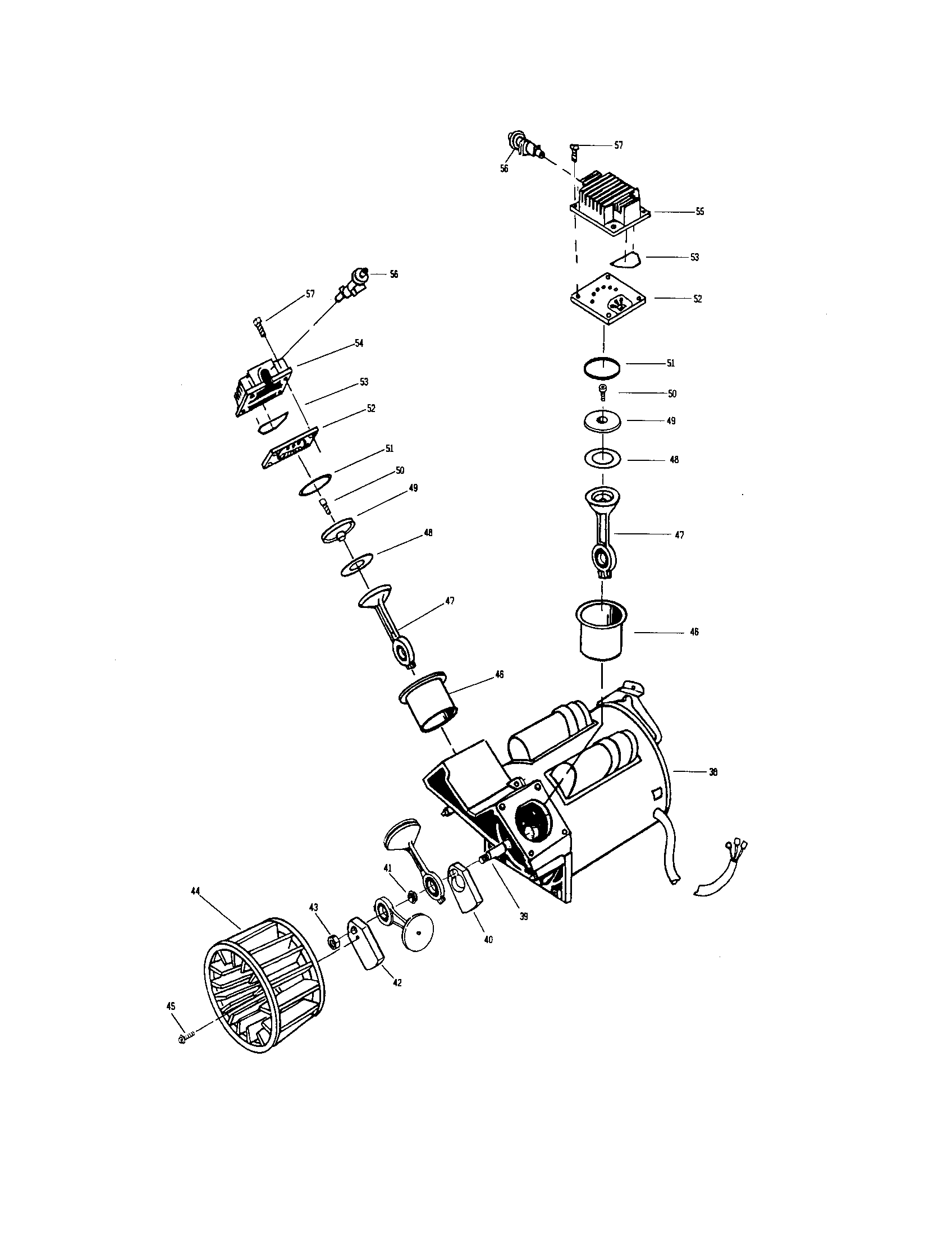

Pump diagram

Air compressor connecting rod cap

Part #ACG-29

The manufacturer no longer makes this part, and there's no substitute part

#27

Air compressor diagram

Screw

Part #SSF-990

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Air compressor air filter retainer

Part #ACG-13

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Manifold Nipple SS-2072-1

#23

Air compressor diagram

Air compressor manifold nipple

Part #SS-2072-1

The manufacturer no longer makes this part, and there's no substitute part

#57

Pump diagram

Unknown brand name #696 air compressor screw

Part #SSF-927

The manufacturer no longer makes this part, and there's no substitute part

#42

Pump diagram

Air compressor counterbalance

Part #ACG-7

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Intake Muffler ACG-11

#56

Pump diagram

Tower air compressor intake muffler

Part #ACG-11

The manufacturer no longer makes this part, and there's no substitute part
