Dehumidifier

Model # AHK50LKM1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHK50LKM1 dehumidifier, as well as links to manuals and error code tables, if available.

Owner's Manual Icon

Owner’s manual

By Schematic

SELECT DIAGRAM

Browse Parts forAHK50LKM1 Dehumidifier

#9999

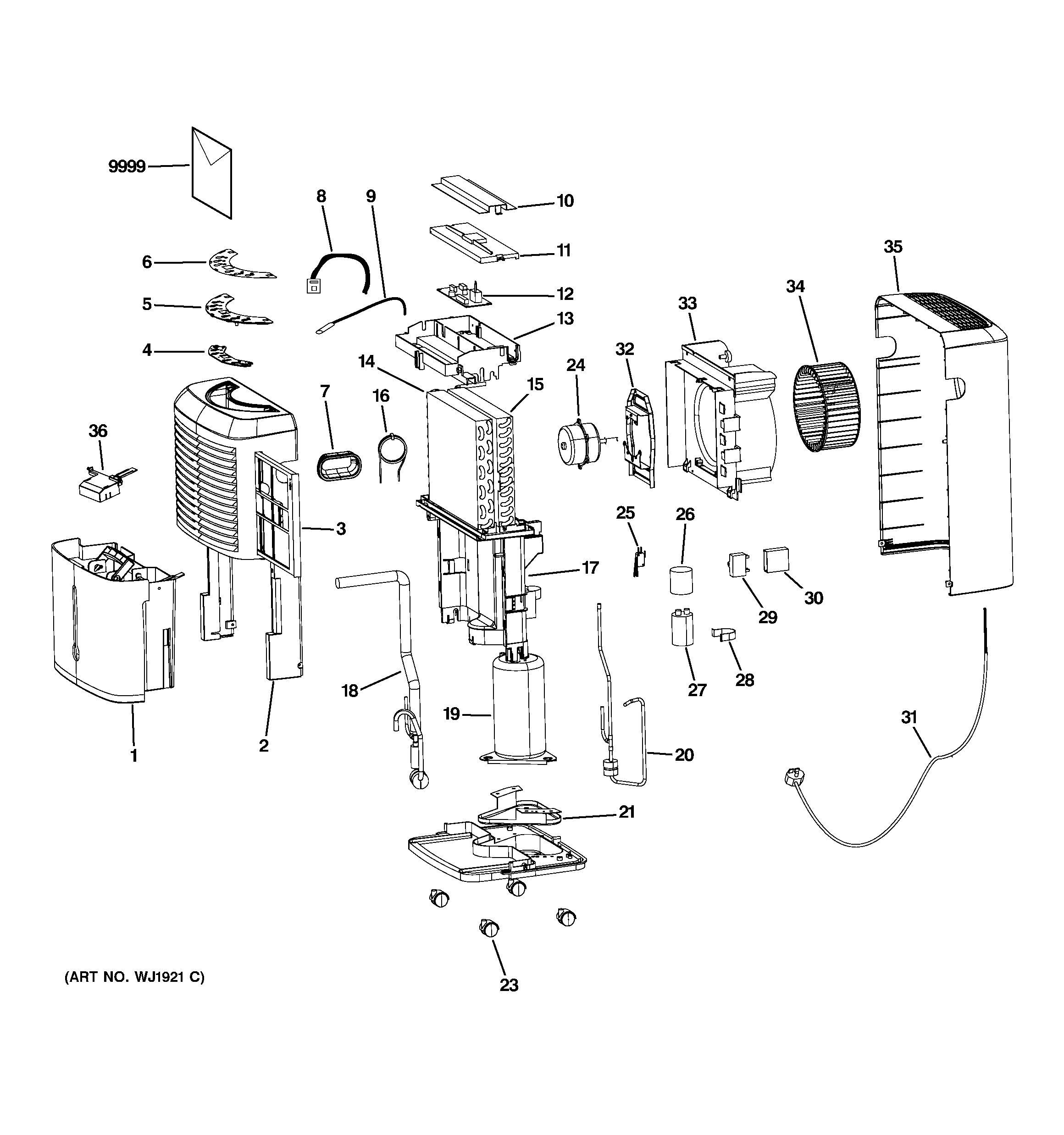

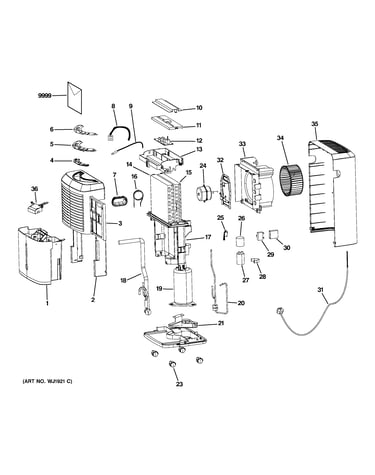

Dehumidifier diagram
Om dehumidif
Part #49-7557
$17.66 |
10% OFF Phone Price : $19.66
In Stock
Qty
#30
Dehumidifier diagram
Complete capacitor
Part #WK79X10010
The manufacturer no longer makes this part, and there's no substitute part
#33
Dehumidifier diagram
Fan scroll
Part #WK76X10014
The manufacturer no longer makes this part, and there's no substitute part
#4
Dehumidifier diagram
Display pcb
Part #WK27X10027
The manufacturer no longer makes this part, and there's no substitute part
#21
Dehumidifier diagram
Complete bracket
Part #WK66X10007
The manufacturer no longer makes this part, and there's no substitute part
#2
Dehumidifier diagram
Panel
Part #WK71X10025
The manufacturer no longer makes this part, and there's no substitute part
#24
Dehumidifier diagram
Motor
Part #WK94X10013
The manufacturer no longer makes this part, and there's no substitute part
#1
Dehumidifier diagram
Water tank a
Part #WK10X10011
The manufacturer no longer makes this part, and there's no substitute part
#17
Dehumidifier diagram
Base bracket
Part #WK76X10013
The manufacturer no longer makes this part, and there's no substitute part
#9
Dehumidifier diagram
Temperature sensor
Part #WK23X10020
The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your dehumidifiers

Choose a symptom to see related dehumidifier repairs.

Why does my dehumidifier run all the time?

Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, b…

Why isn't my dehumidifier draining?

Main causes: clogged drain hose, drain hose not properly connected…

Why won't my dehumidifier turn on?

Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure…

Why is there frost on my dehumidifier's coil?

Main causes: room temperature below 65 degrees Fahrenheit, control system failure…

Why isn't my dehumidifier's remote monitor working?

Main causes: weak or dead batteries, out of range, radio frequency interference…

Why doesn't my dehumidifier remove moisture?

Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the …

Why won't my dehumidifier run?

Main causes: collection bucket not installed, collection bucket full of water…

Why is my dehumidifier noisy?

Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor…

Why does my dehumidifier leak water?

Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection…

Most common repair guides to help fix your dehumidifiers

These step-by-step repair guides will help you safely fix what’s broken on your dehumidifier.

How to replace a dehumidifier sensor assembly

How to replace a dehumidifier sensor assembly

If the humidifier sensor doesn’t properly detect humidity or evaporator temperature, install a new sensor assembly, foll…

Repair difficulty

Time required

45 minutes or less

How to replace a dehumidifier user interface control board

How to replace a dehumidifier user interface control board

If the dehumidifier doesn’t respond when you try to set it, follow these steps to replace it.…

Repair difficulty

Time required

30 minutes or less

How to replace a dehumidifier electronic control board

How to replace a dehumidifier electronic control board

If the dehumidifier won’t power up because the control board has failed, use the steps in this repair guide to replace t…

Repair difficulty

Time required

45 minutes or less

Effective articles & videos to help repair your dehumidifiers

Use the advice and tips in these articles to get the most out of your dehumidifier.

Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
